SPC Performance BJoint Install Adaptor Set

BALL JOINT PRESS
Remove and replace universal joints without "brute force" methods that can cause costly damage. Now you can take on 4WD ball joint service in addition to servicing most cars. A forcing screwpowered press, used with proper adapters, easily removes and installs all press-fit ball joints (inc. GM plastic pin "U" type joints). Comes in a durable plastic case.

PERFORMANCE BALL JOINT PRESS
This tool was specifically designed to remove the original equipment ball joints on smaller cars when installing SPC Performance's sliding ball joints (pages 58 & 60). With this revolutionary design you can remove the ball joint from the front upper control arm without removing the arm from the vehicle, saving time and costs. Packaged in a convenient blow-molded plastic case this set comes complete with adapters for removing and installing stock or Specialty Produc's sliding ball joints.

MASTER BALL JOINT ADAPTER SET
Expand the service capability of your ball joint press with this Master Ball Joint Adapter Set. This complete kit includes the adapters and receiving tubes needed to work on GM, Ford and Dodge two and four wheel drive trucks, vans and SUVs. Kit also includes a livecenter forcing screw for heavy duty applications.

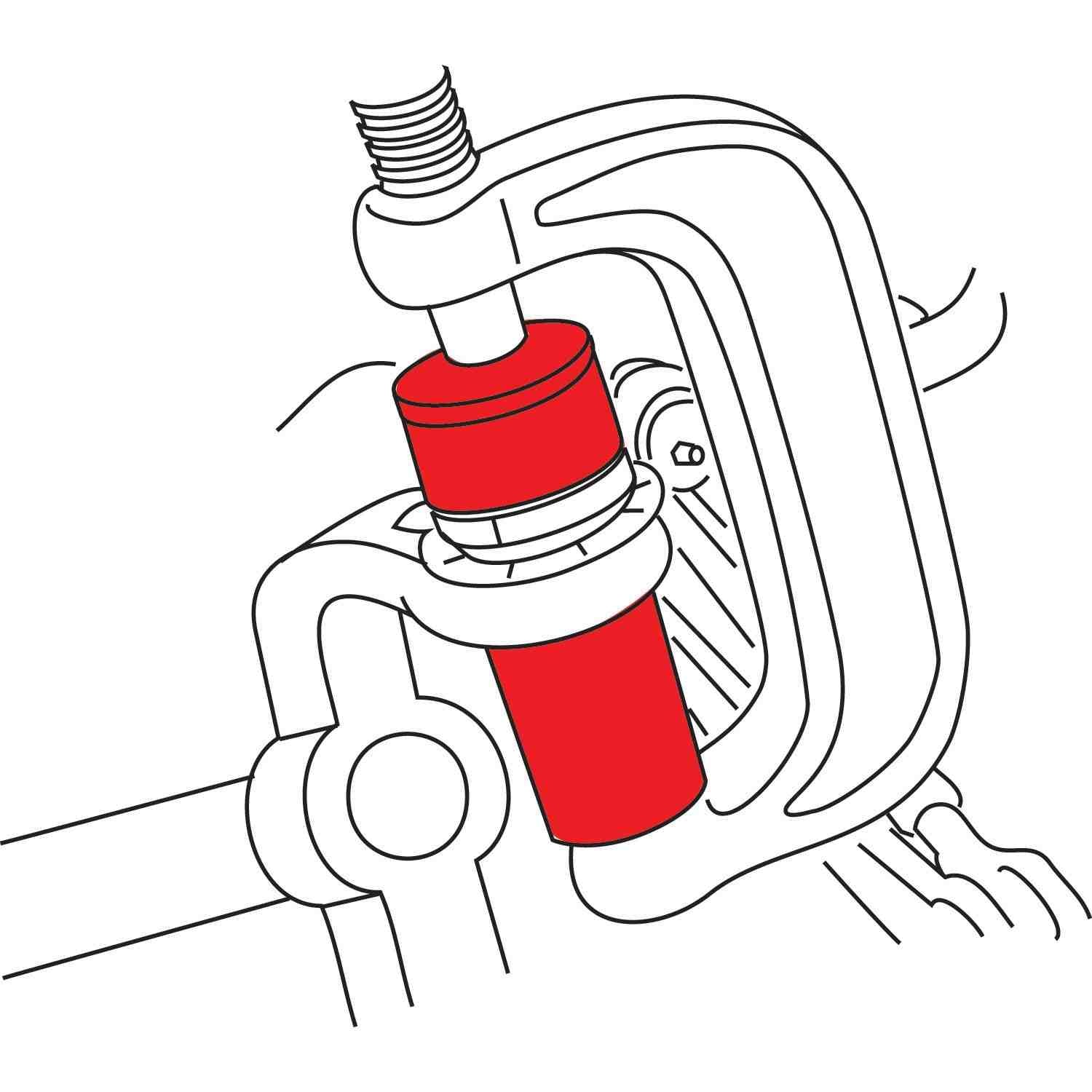

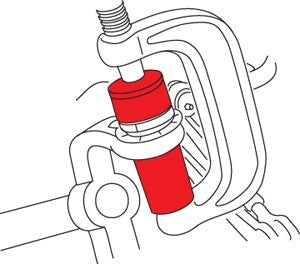

BUSHING PRESS SLEEVES
The sleeves are designed to match the angle of the yoke on the axle housing to insure proper installation. Use with the 72509 Ball Joint Press.

GM BUSHING PRESS SLEEVES
These adapter sleeves are designed to be used with the 72509 Ball Joint Press. They are designed specifically for easy removal of the stock bushing and installation of the 86330 and 86350 Offset Upper Control Arm Bushings used on 1988 and newer GM light trucks.

CHRYSLER BUSHING PRESS SLEEVES
These adapter sleeves are designed to be used with the 40920 Performance Ball Joint Press. It is designed specifically to remove the stock rear control arm bushings and to install our 66010, 66020 and 66080, 66085 Offset Rear Camber Bushings used on the new Chrysler LX platform cars.

HONDA ADAPTERS
Honda Adapter #75980 is used in conjunction with the 72509 Ball Joint Press and are used with the 67465 Honda Civic Camber Kit. You need these adapters to push the oldbushing out of the stock arm and also to install the new bushing included in the 67465 Kit.

MERCEDES PRESS SET
The 75990 Mercedes Rear Bushing Press Adapter Set is designed for quick, easy removal of the OE rear control arm bushings and for the insertion of new adjustable camber bushings. This tool set is a must for any shop servicing Mercedes vehicles, and includes a wrench for easy adjustment of the 28840 rear bushing.

HONDABUSHING EXTRACTOR
Easily and quickly remove and install rear trailing arm bushing in as little as 15 minutes per side vs. the factory "book" time of 1.8 hours per side. No need to remove the trailing arm from the vehicle or use a hydraulic press.

UPPER CONTROL ARM BUSHING SERVICE SET
Easily replace press-in type control arm bushings on many domestic and imported vehicles with this new kit. Mechanical power screw quickly and easily removes worn bushings and installs them without damaging the control arm. Set includesC-Frame, screw assembly and all adapters to do the job quickly and correctly. Packaged in a durable plastic case.

CHRYSLER BALL JOINT SOCKETS
These sockets are used on Chrysler products with screw in ball joints. They have a 3/4" square drive and are four-point with shallow spline.

TIE ROD/BALL JOINT/PITMAN ARM TOOL
Five tools in one, this handy kit consists of three drop forged forks and two handles. One handle is for use with a hammer and one is designed to fit an air hammer. All forks are threaded to interchange with either handle. Comes with 3 forks of 11/16", 15/16" and 1-1/8" openings.

TIE ROD SEPARATOR
This drop forged alloy steel tool acts as a tapered wedge and easily separates the tie rod and knuckle. Comes with a 21/32" opening and features a 16" long handle for easy access.

BALL JOINT SEPARATOR
This heavy duty, drop forged allow steel, lever-type ball joint and tie rod end remover provides good leverage action to remove stubborn tie rod ends or break ball joint tapers easily. Use when space prevents use of a direct action separator. The 37990 fits 3/4" openings.

PITMAN ARM SEPARATOR
For use on most cars and some light trucks. The tapered wedge easily removes the pitman arm from the shaft with just a few sharp hammer blows.
DIMENSIONS: 1" opening, 12" overall length

• Bushing Press Sleeves Use w/ 72509 Ball Joint Press Use w/ Ball Joints 23510
• 23520
• 23530
• 23540

Vehicle Fitments:
