Snow Performance Diesel POWER-MAX Powerstroke 7.3L/6.0L/6.4L/6.7L Water/Methanol Inject
DIESEL STAGE 2 BOOST COOLERT WATER-METHANOL INJECTION KIT FORD 7.3/6.0/6.4/6.7 POWERSTROKE
Features

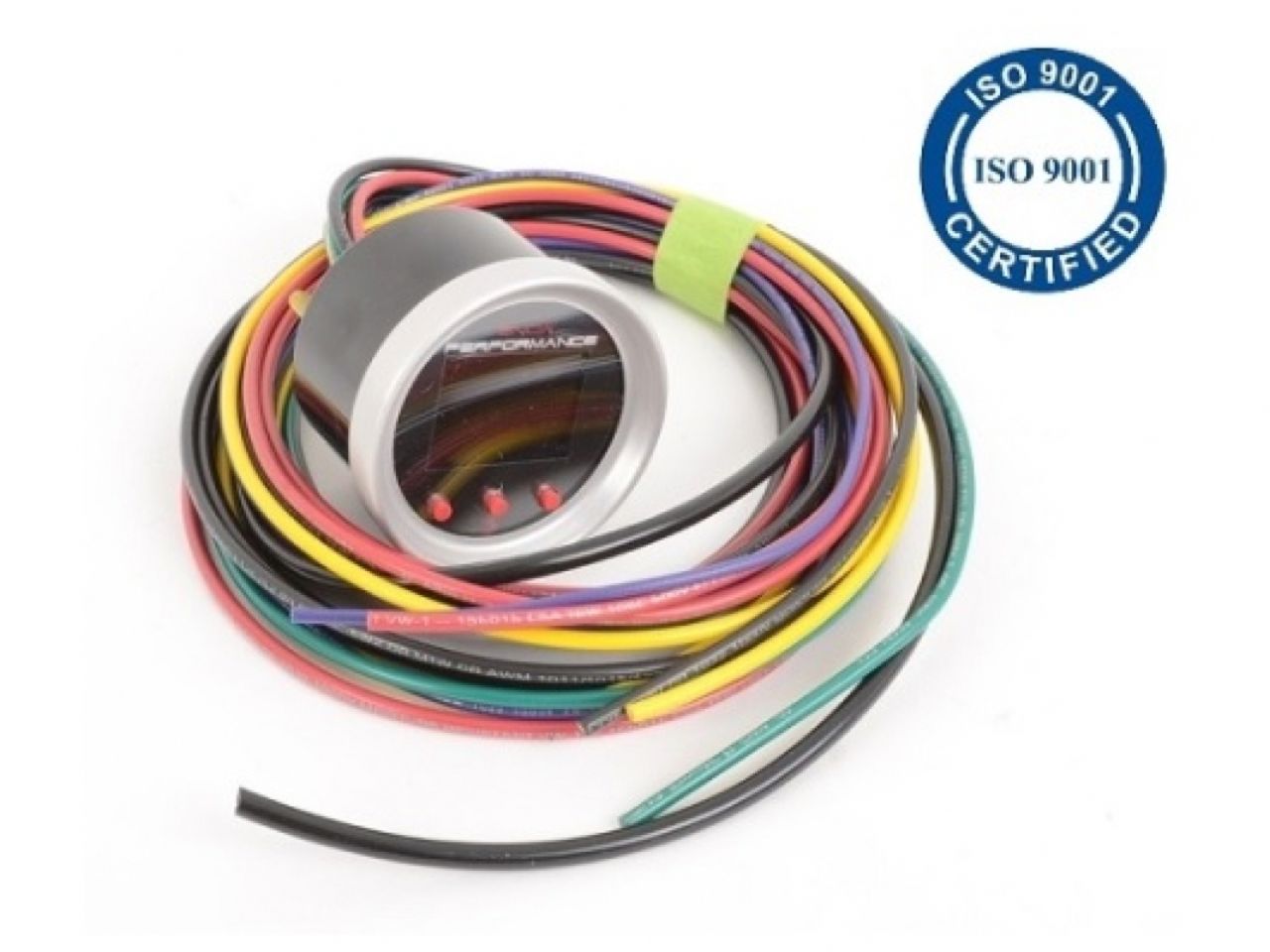

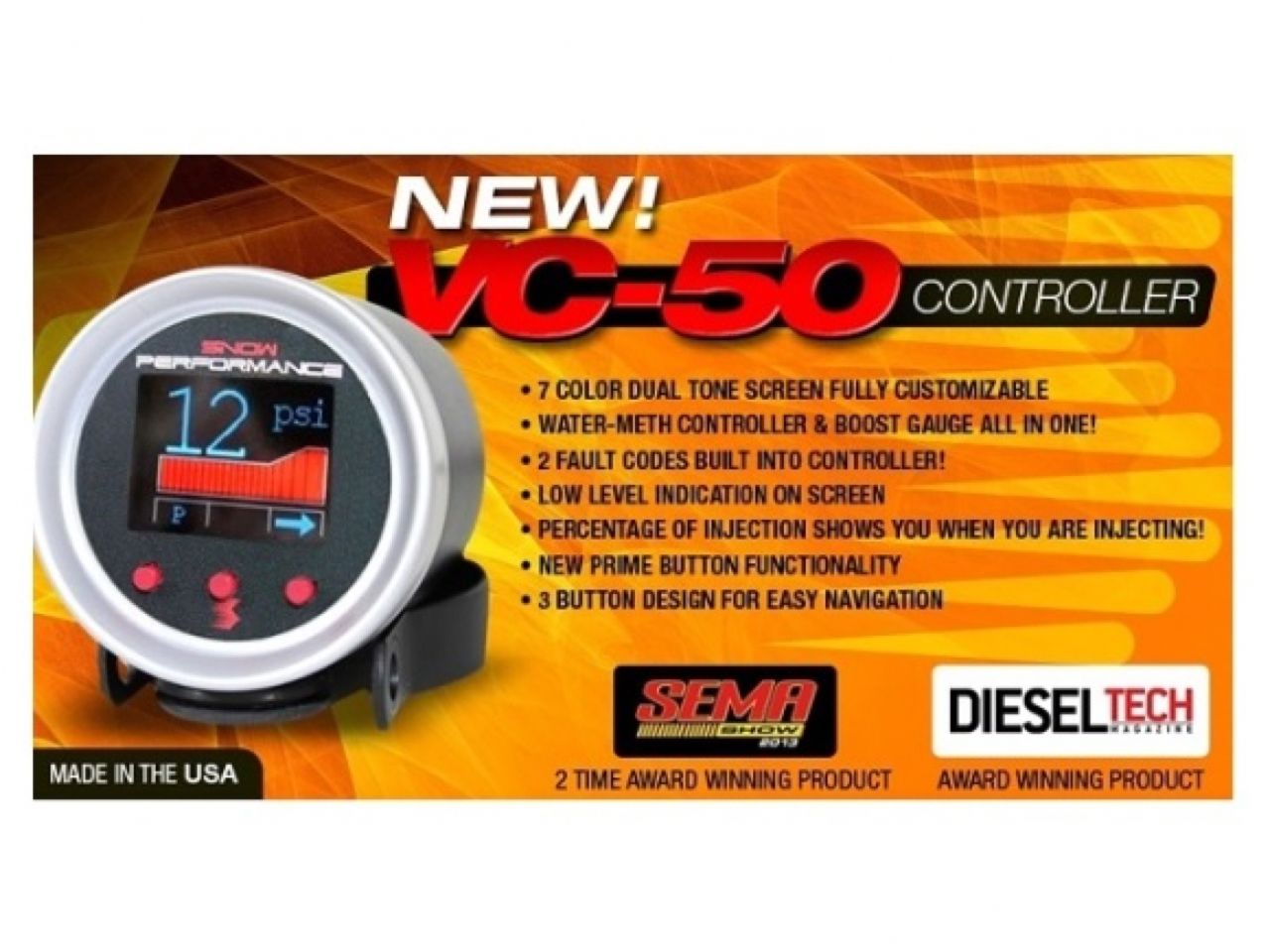

Lower EGTs 100-300 degrees and increase HP by 65+ with a cleaner, cooler running Ford 7.3 / 6.0 / 6.4 / 6.7 Powerstroke! The Snow Performance Diesel Stage 2 Boost Cooler is available for all Ford Powerstroke owners looking to have the benefit of water-methanol injection through out the 6.7Ls boost range. The Stage 2 utilizes a progressive VC-50 controller (52mm gauge) that commands two water-methanol nozzles that proportionally inject more or less according to boost pressure. Start and full points are adjustable for engagement and delivery curve to match what the engine requires. Proportionally injecting according to boost pressure gives an accurate delivery of water-methanol and allows cooling and performance improvements over a wide range for improved drivability. The VC-50 controller (52mm gauge) offers the functionality of a boost gauge and water-methanol controller all in one! Highlighting a 7 color (Blue, White, Red, Yellow, Orange, Purple, Green) OLED screen displaying boost, percentage of injection, secondary nozzle activation, prime button, and 4 fault codes directly on the screen you can tailor the controller to match your OEM gauges or mix and match up to two colors. 7 Gal Tank included for trip ready installation. Recommended for all daily driven Ford Powerstrokes that see light towing.
Benefits:
- Made In USA
- Will Not Leave Signature On Vehicle (Warranty Intact Power Added!)
- Reduced EGTs 100-300 Degrees
- Increased HP 65+
- Increased Boost
- Cleans Engine Combustion Of Carbon Build Up
- Reduced Emissions (Less Regen)
- New Prime Feature Ensures Water-Methanol In Lines With Push of A Button
- 4 Fault Modes (Clogged Line/Broken Line)
Specs & Information

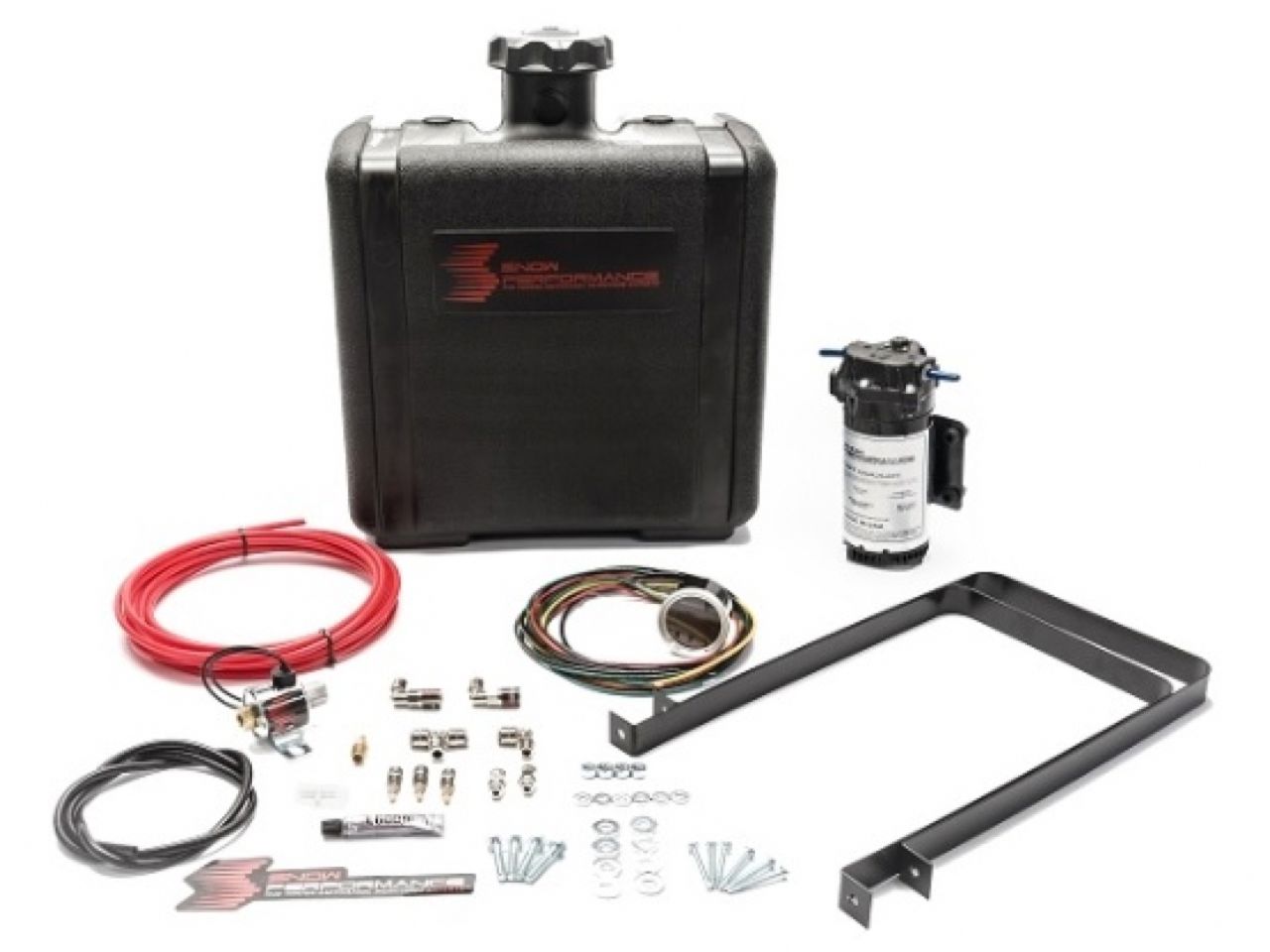

| Type Of Pump | Proprietary 300 PSI EE UHO Pump, Potting & Gaskets To Seal Pump From Elements, Dual Outlet EPDM Seals, Fully Adjustable, Proprietary Heat Dissipation Flange, (2) 1/4" Push-lock Inlet/Outlet Fittings, Dimensions (4"L x 7 1/4"H x 3 3/4"W - Including Mounting Bracket) |
| Standard Reservoir | 7 Gallon Reservoir |
| Controller | Adjustable VC-50 (1-50) PSI Progressive Boost Activated Controller, Dimensions (2 1/16" Gauge) |
| Nozzle | 3 Hyper-Sonic Nozzles (175 ml/min, 375 ml/min, 625 ml/min) |
| Tubing | 1/4" O.D. High Temp Nylon Tubing (800 PSI Burst Rating) |
| Accessories | Solenoid Upgrade, Dual Nozzle Upgrade, Prime Button, Boost Gauge, 7 Color Screen (Red, Blue, Yellow, Orange, Purple, White, Green) |
| Fitment | All Ford Powerstroke Diesel Engines |
| Warranty | Snow Performance 1-Year Warranty |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988 - 1991 | Ford | E-250 Econoline Club Wagon | Custom, XLT, XL |
| 2003 - 2005 | Ford | E-350 Club Wagon | XL, Chateau, XLT |
| 1992 - 1998 | Ford | E-350 Econoline | Base |
| 1988 - 1991 | Ford | E-350 Econoline | Custom |
| 1988 - 1998 | Ford | E-350 Econoline | XL |
| 1992 - 2002 | Ford | E-350 Econoline Club Wagon | Chateau |
| 1992 - 1996 | Ford | E-350 Econoline Club Wagon | Chateau HD |
| 1988 - 2000 | Ford | E-350 Econoline Club Wagon | Custom |
| 1992 - 1993 | Ford | E-350 Econoline Club Wagon | Custom HD |
| 1994 - 1998 | Ford | E-350 Econoline Club Wagon | XL HD |
| 1992 - 1998 | Ford | E-350 Econoline Club Wagon | XLT HD |
| 1988 - 2002 | Ford | E-350 Econoline Club Wagon | XLT, XL |
| 1999 - 2010 | Ford | E-350 Super Duty | Base, XL |
| 2006 | Ford | E-350 Super Duty | Chateau |
| 2006 - 2010 | Ford | E-350 Super Duty | XLT |
| 2003 - 2005 | Ford | Excursion | Eddie Bauer |
| 2004 - 2005 | Ford | Excursion | XLS |
| 2000 - 2005 | Ford | Excursion | XLT, Limited |
| 1995 - 1999 | Ford | F-250 | Base |
| 1988 - 1994 | Ford | F-250 | Custom |
| 1997 - 1999 | Ford | F-250 | Lariat |
| 1992 - 1994 | Ford | F-250 | Ranger |
| 1995 - 1996 | Ford | F-250 | Special, Eddie Bauer |
| 1988 - 1999 | Ford | F-250 | XL |
| 1993 - 1999 | Ford | F-250 | XLT |
| 1988 - 1992 | Ford | F-250 | XLT Lariat |
| 1996 - 1999 | Ford | F-250 | XLT VIP |
| 1997 | Ford | F-250 HD | XL, XLT |
| 2015 - 2016 | Ford | F-250 Super Duty | Base |
| 2009 - 2010 | Ford | F-250 Super Duty | Cabela's |
| 2008 - 2014 | Ford | F-250 Super Duty | FX4 |
| 2004 - 2010 | Ford | F-250 Super Duty | Harley-Davidson Edition |
| 2004 - 2017 | Ford | F-250 Super Duty | King Ranch |
| 2013 - 2017 | Ford | F-250 Super Duty | Platinum |
| 1999 - 2017 | Ford | F-250 Super Duty | XLT, Lariat, XL |
| 1988 - 1997 | Ford | F-350 | Base, XL |
| 1988 - 1992 | Ford | F-350 | Custom, XLT Lariat |
| 1995 | Ford | F-350 | Eddie Bauer |
| 1995 - 1996 | Ford | F-350 | Special |
| 1993 - 1997 | Ford | F-350 | XLT |
| 2009 - 2010 | Ford | F-350 Super Duty | Cabela's |
| 2008 - 2009 | Ford | F-350 Super Duty | FX4 |
| 2004 - 2010 | Ford | F-350 Super Duty | Harley-Davidson Edition |
| 2003 - 2017 | Ford | F-350 Super Duty | King Ranch |
| 2013 - 2017 | Ford | F-350 Super Duty | Platinum |
| 2017 | Ford | F-350 Super Duty | XL Plus |
| 1999 - 2017 | Ford | F-350 Super Duty | XL, Lariat, XLT |
