Snow Performance Stage II Boost Cooler Forced Induction Water/Methanol Injection Kit
Stage 2 Boost Cooler (Nylon Line)
Features
Keep those boost temps down with the Boost CoolerT! The Snow Performance Stage 2 Boost CoolerT water methanol injection kit is available for all forced induction applications (Supercharged/Turbocharged) and uses a progressive controller with built-in manifold absolute pressure (MAP) sensor that proportionally injects more or less water-methanol according to boost pressure. Start and full points are adjustable for engagement and delivery curve to match what the engine requires. Proportionally injecting according to boost pressure gives an accurate delivery of water-methanol and allows cooling and performance improvements over a wide range for improved drivability and cooling benefits. Especially helpful for direct injected engines to remove 100% of carbon build up on the valves. Recommend for all street/strip driven gas forced induction vehicles using a turbo or centrifugal supercharger (Procharger/Vortech) looking for cooling over a wide range. Comes with adjustable progressive VC-20 engine mount controller that can easily be hidden.
This kit utilizes the only OEM approved water methanol injection pump on the market with proprietary heat flange, twin seals, and custom motor winding to run cooler and longer than the competition. The Extreme EnvironmentT 300 PSI UHO pump is designed to be in the elements with O-Ring connections that are then sealed and potted at our Colorado facility to ensure no moisture can enter the pump internals. Compare this to pumps that use a pump "sleeve". These sleeves will keep moisture around the pump unit leading to corrosion as well as trap heat greatly decrease pump life. The Stage 2 comes standard with 100% methanol resistant components using stainless steel, nickel plating, EPDM, and hard anodizing to ensure years of continued use. Tie that in with new Snow Performance ACU-SEALT compression fittings for guaranteed leak-free operation even when using 100% methanol. Whether running a supercharger, turbo, or high compression motor the Stage 2 Boost CoolerT will make the induction charge colder, denser, and increase 91 octane fuel to 116 octane race gas levels allowing full power all the time!
Features:
- U.S.A. Made
- Adjustable Progressive Water Methanol Engagement & Monitoring
- Recommended For Street Driven Turbo and Centrifugal Supercharger Applications
- Supports 1,000+ HP
- 100% Methanol Resistant (Stainless Steel, Nickel Plating, Hard Anodizing, EPDM)
- Snow Performance Hyper-SonicT Water Methanol Nozzle
- Snow Performance ACU-SEALT Water Methanol Compression Fittings
- Snow Performance OEM Approved Extreme EnvironmentT 300 PSI UHO Water Methanol Pump
- Snow Performance Running "S" Engraved Low Profile Nozzle Holder
- Snow Performance Running "S" Engraved Low Profile High Flow Check Valve

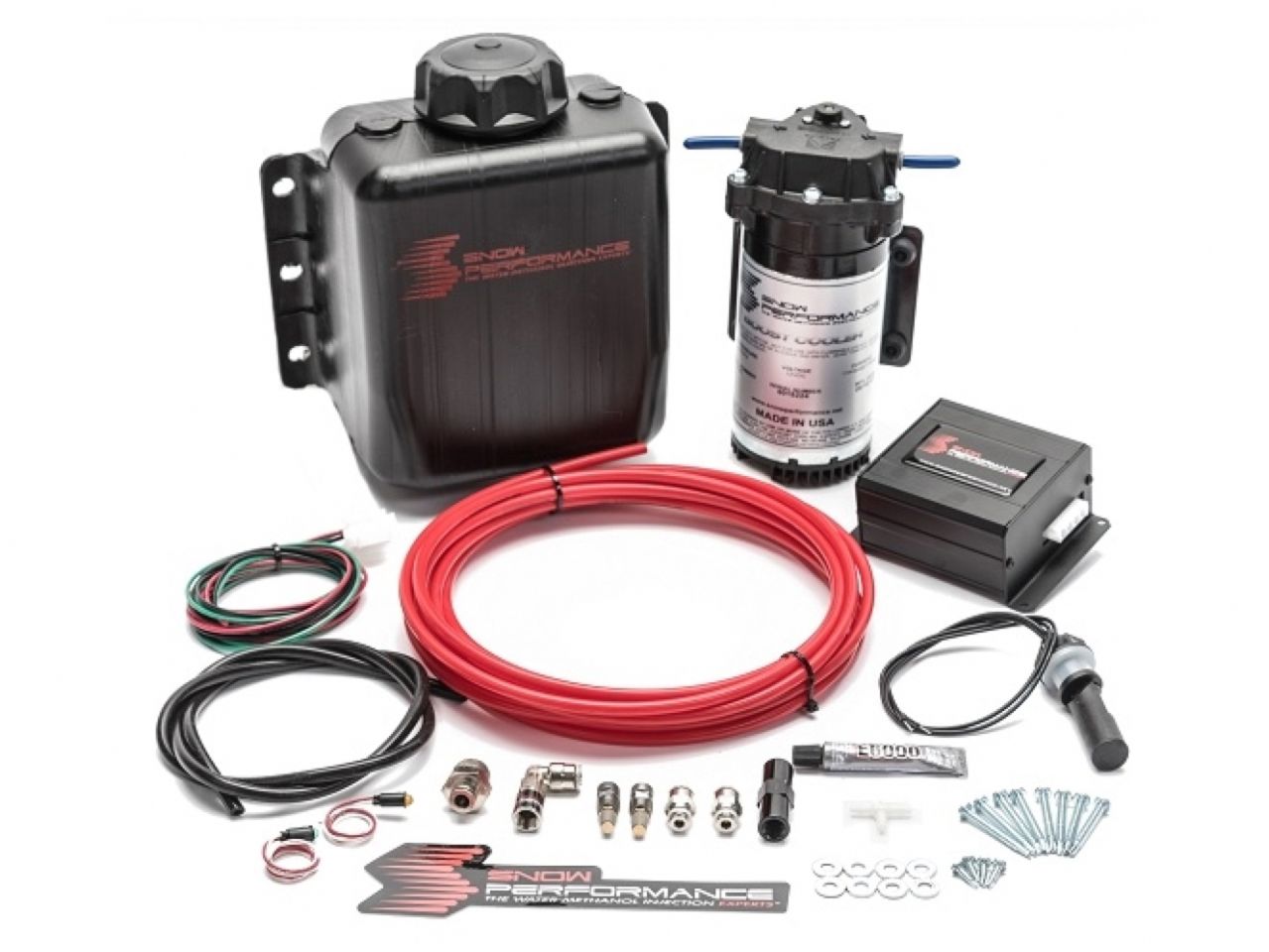

Contents
Snow Performance Boost CoolerT Kit Box

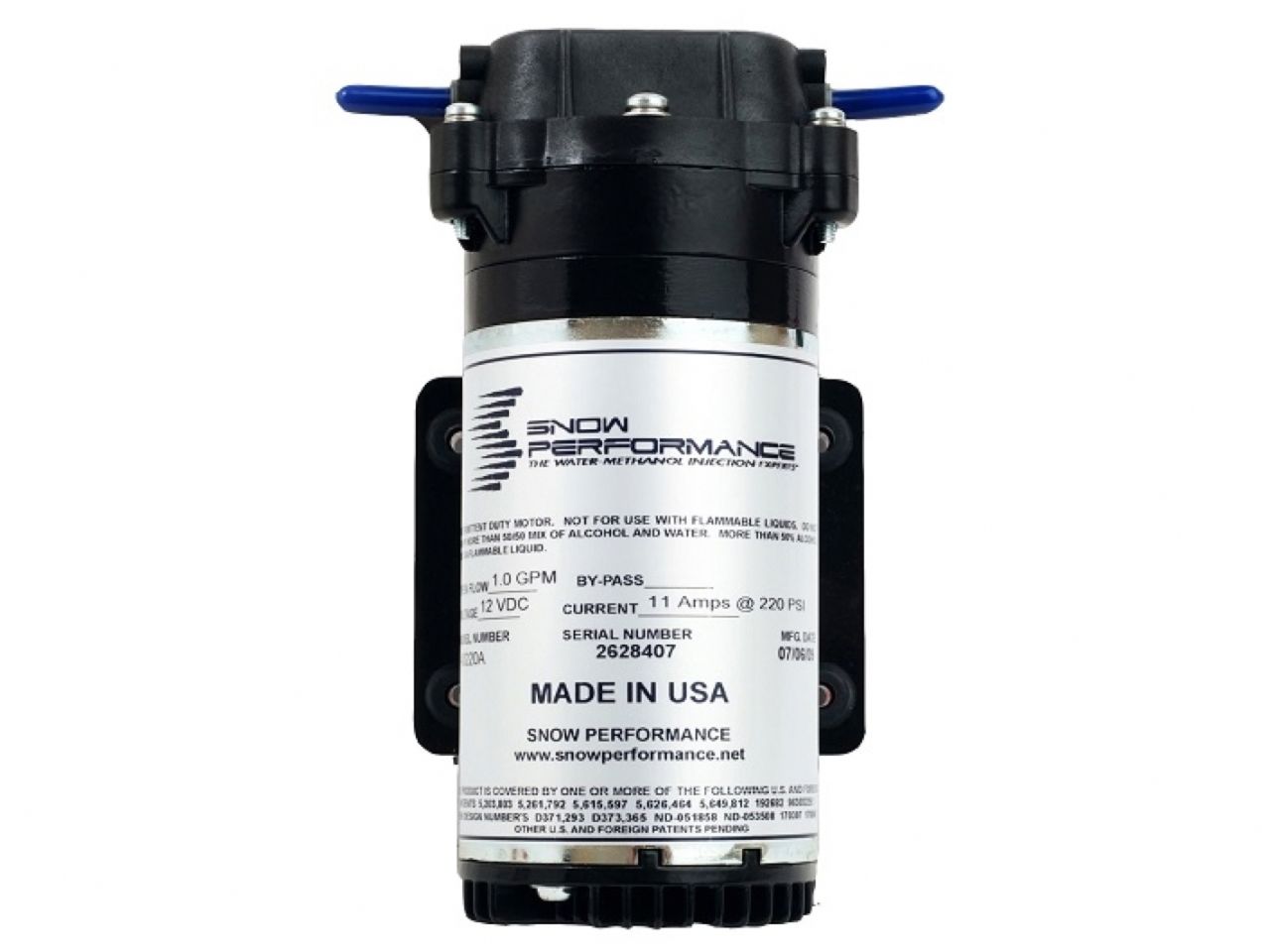

Extreme EnvironmentT 300 PSI UHO (Ultra High Output) Water Methanol Pump (100% Methanol Resistant)

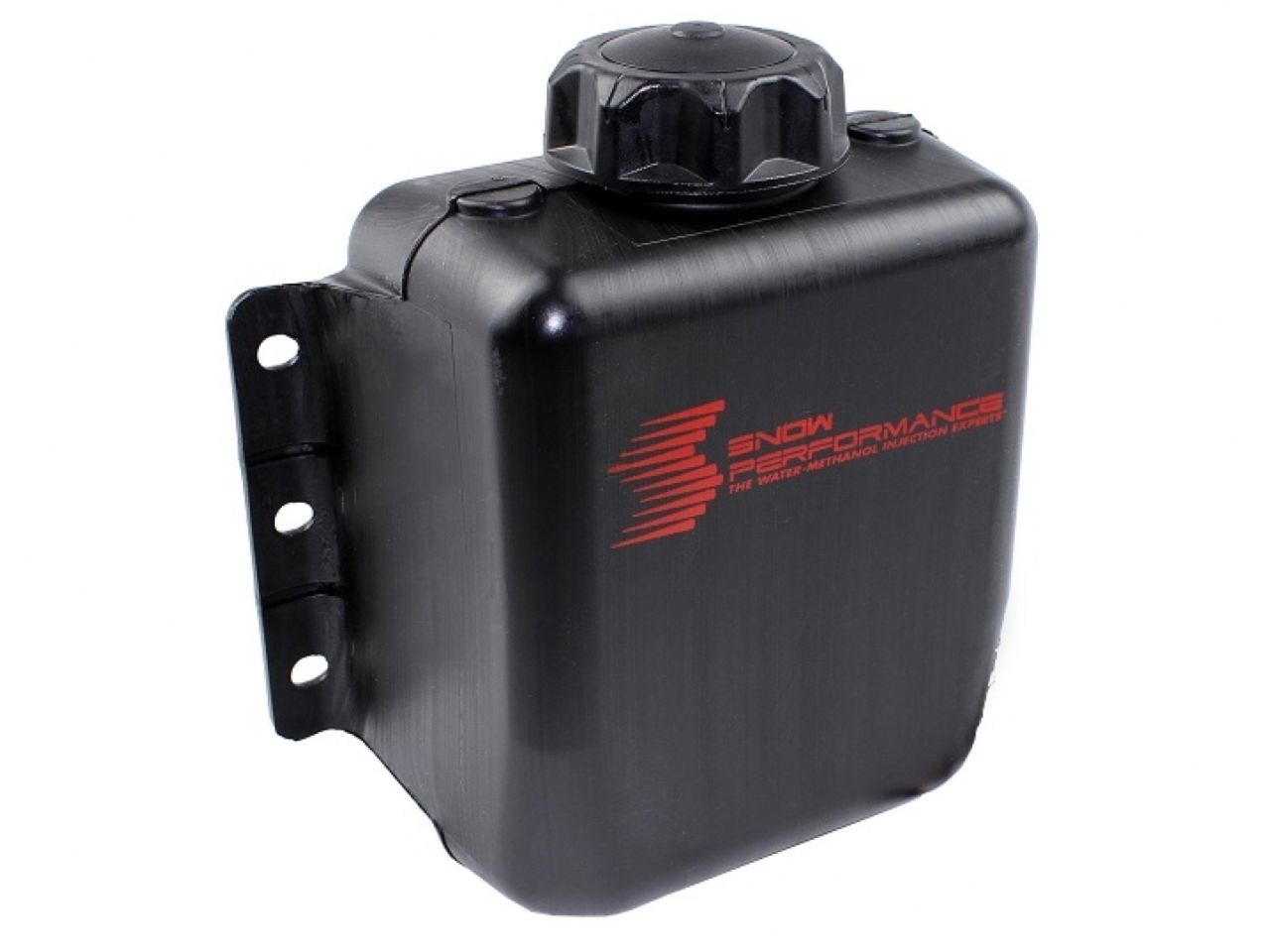

3 QT Water Methanol Tank
E-6000 Sealant (100% Methanol Resistant)

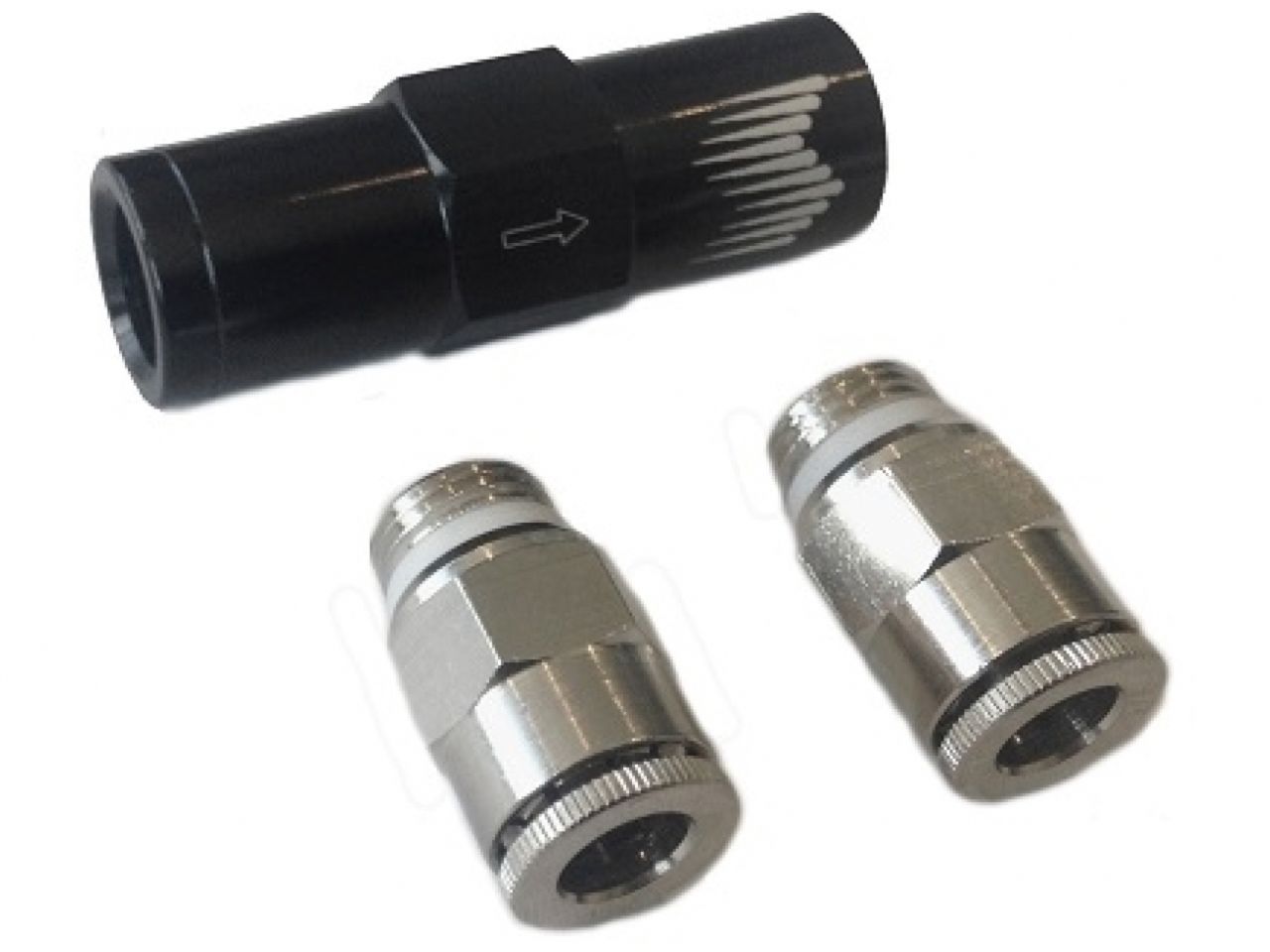

(1) 3/8" NPT - 1/4" Elbow ACU-SEALT Compression Fitting (Nickel Plated 100% Methanol Resistant)
(2) 3/8" NPT - 1/4" Straight ACU-SEALT Compression Fitting (Nickel Plated 100% Methanol Resistant)
(3) 1/8" NPT - 1/4" Straight ACU-SEALT Compression Fitting (Nickel Plated 100% Methanol Resistant)
Snow Performance Hyper-SonicT Water Methanol Nozzle (Stainless Steel 100% Methanol Resistant)
Snow Performance Low Profile Nozzle Holder (Hard Anodized 100% Methanol Resistant)
Snow Performance Low Profile High Flow Check Valve (Hard Anodized 100% Methanol Resistant)
20' High Temperature Nylon Tubing (800 PSI Rating 100% Methanol Resistant)
18" High Pressure Boost Line
Boost "T"
Green LED

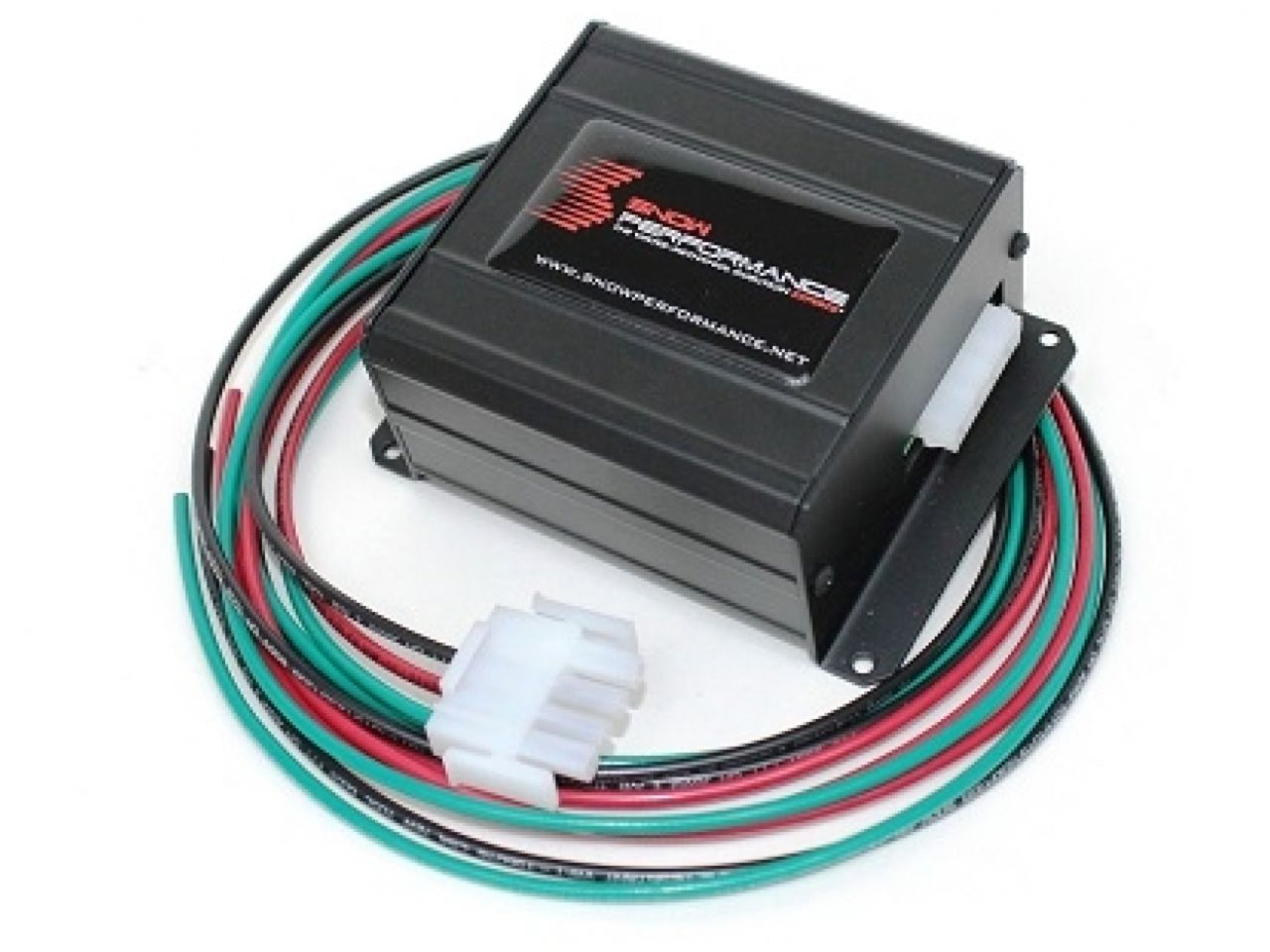

Adjustable Progressive VC-20 Water Methanol Controller (Boost Activated)
Relay Harness
Snow Performance Decal
Required Hardware Needed For Install
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1999 | Acura | NSX | Alex Zanardi Edition |
1991 - 2001 | Acura | NSX | Base |
1995 - 2003 | Acura | NSX | T |
2002 - 2006 | Acura | RSX | Type-S, Base |
2013 | BMW | 135is | Base |
1995 - 1999 | BMW | 318ti | Base |
1984 - 1987 | BMW | 325e | Base |
1986 - 1987 | BMW | 325es | Base |
1987 - 2006 | BMW | 325i | Base |
1987 - 1995 | BMW | 325is | Base |
2001 - 2006 | BMW | 325xi | Base |
1996 - 2016 | BMW | 328i | Base |
2012 - 2015 | BMW | 328i | Luxury, Modern, Sport |
2013 - 2015 | BMW | 328i | M Sport |
1996 - 1999 | BMW | 328is | Base |
2001 - 2006 | BMW | 330Ci | Base |
2005 | BMW | 330Ci | M |
2016 | BMW | 330e | Base |
2017 | BMW | 330e | iPerformance |
2001 - 2017 | BMW | 330i | Base |
2017 | BMW | 330i | Luxury Line, Sport Line |
2005 | BMW | 330i | M |
1939 - 1940 | BMW | 335 | Base |
2007 - 2015 | BMW | 335i | Base |
2012 - 2013 | BMW | 335i | Exclusive |
2012 - 2015 | BMW | 335i | Luxury, Sport, Modern |
2008 - 2015 | BMW | 335i | M Sport |
1988 - 2017 | BMW | M3 | Base |
1995 | BMW | M3 | Lightweight |
1988 - 2016 | BMW | M5 | Base |
1989 - 2000 | Honda | Civic | CX |
1988 - 2010 | Honda | Civic | DX, LX |
2008 - 2010 | Honda | Civic | DX-G, EX-L |
1990 - 2010 | Honda | Civic | EX |
1997 - 2000 | Honda | Civic | EX-R |
1999 - 2000 | Honda | Civic | EX-R SIR |
2006 - 2007 | Honda | Civic | EXS, LXS |
1998 - 2010 | Honda | Civic | GX |
1996 - 2005 | Honda | Civic | HX |
2003 - 2010 | Honda | Civic | Hybrid |
2009 - 2010 | Honda | Civic | Hybrid-L, LX-S, Sport |
2005 | Honda | Civic | LX Special Edition, Reverb, EX Special Edition |
2008 | Honda | Civic | MUGEN Si |
1988 - 1991 | Honda | Civic | RT 4WD, Base |
1988 | Honda | Civic | SE |
1989 - 2010 | Honda | Civic | Si |
2002 - 2004 | Honda | Civic | SiR |
1999 - 2005 | Honda | Civic | Value Package |
1992 - 1995 | Honda | Civic | VX |
1988 - 1989 | Honda | Civic | Wagovan |
1989 - 1991 | Honda | CRX | Base |
1988 | Honda | CRX | DX |
1988 - 1991 | Honda | CRX | Si, HF |
2000 - 2009 | Honda | S2000 | Base |
2008 - 2009 | Honda | S2000 | CR |
1984 - 1998 | Nissan | 200SX | Base |
1987 - 1998 | Nissan | 200SX | SE |
1995 - 1998 | Nissan | 200SX | SE-R |
1984 - 1986 | Nissan | 200SX | Turbo |
1984 - 1988 | Nissan | 200SX | XE |
1989 - 1998 | Nissan | 240SX | Base, SE |
1991 - 1998 | Nissan | 240SX | LE |
1989 - 1990 | Nissan | 240SX | XE |
2005 | Nissan | 350Z | 35th Anniversary Edition |
2003 - 2008 | Nissan | 350Z | Base |
2003 - 2009 | Nissan | 350Z | Enthusiast, Touring |
2005 - 2009 | Nissan | 350Z | Grand Touring |
2007 - 2008 | Nissan | 350Z | Nismo |
2003 - 2005 | Nissan | 350Z | Performance |
2003 - 2006 | Nissan | 350Z | Track |
2010 | Nissan | 370Z | 40th Anniversary Edition |
2009 - 2017 | Nissan | 370Z | Base, Nismo, Touring |
2015 - 2017 | Nissan | 370Z | Sport Tech, Touring Sport, Nismo Tech, Sport |
1986 - 1998 | Toyota | Supra | Base |
1987 - 1992 | Toyota | Supra | Turbo |
1993 - 1998 | Toyota | Supra | Twin Turbo |
