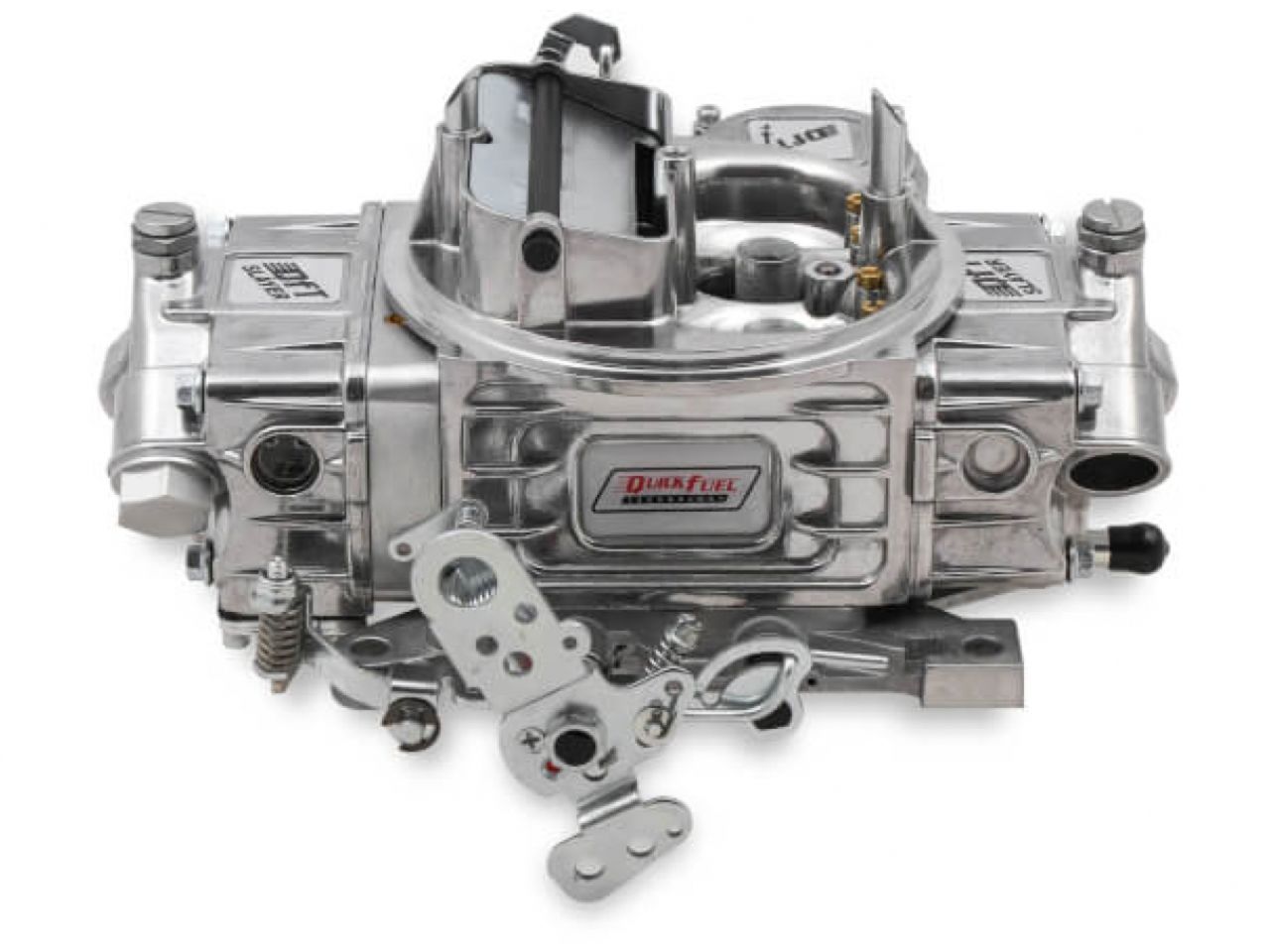

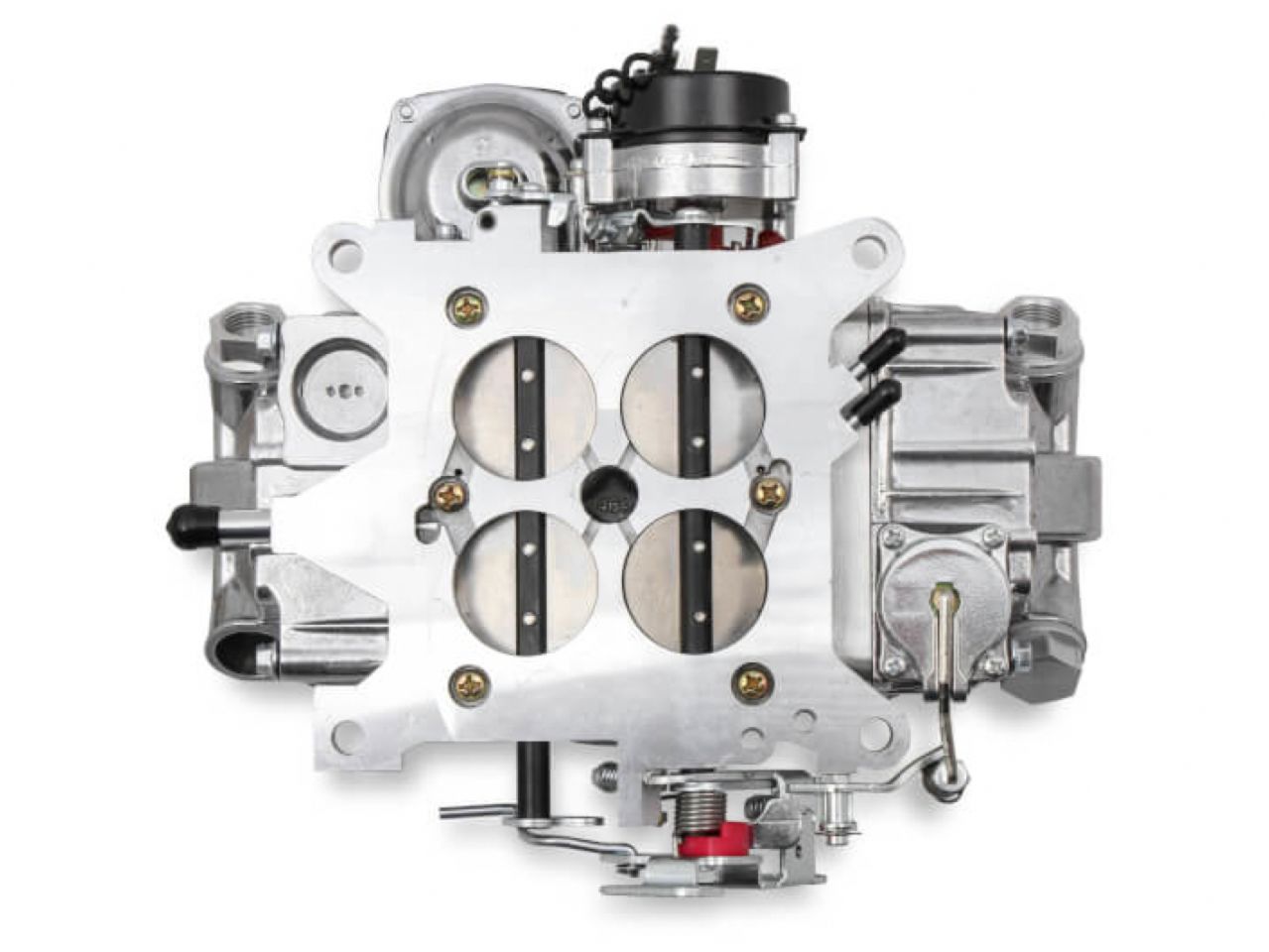

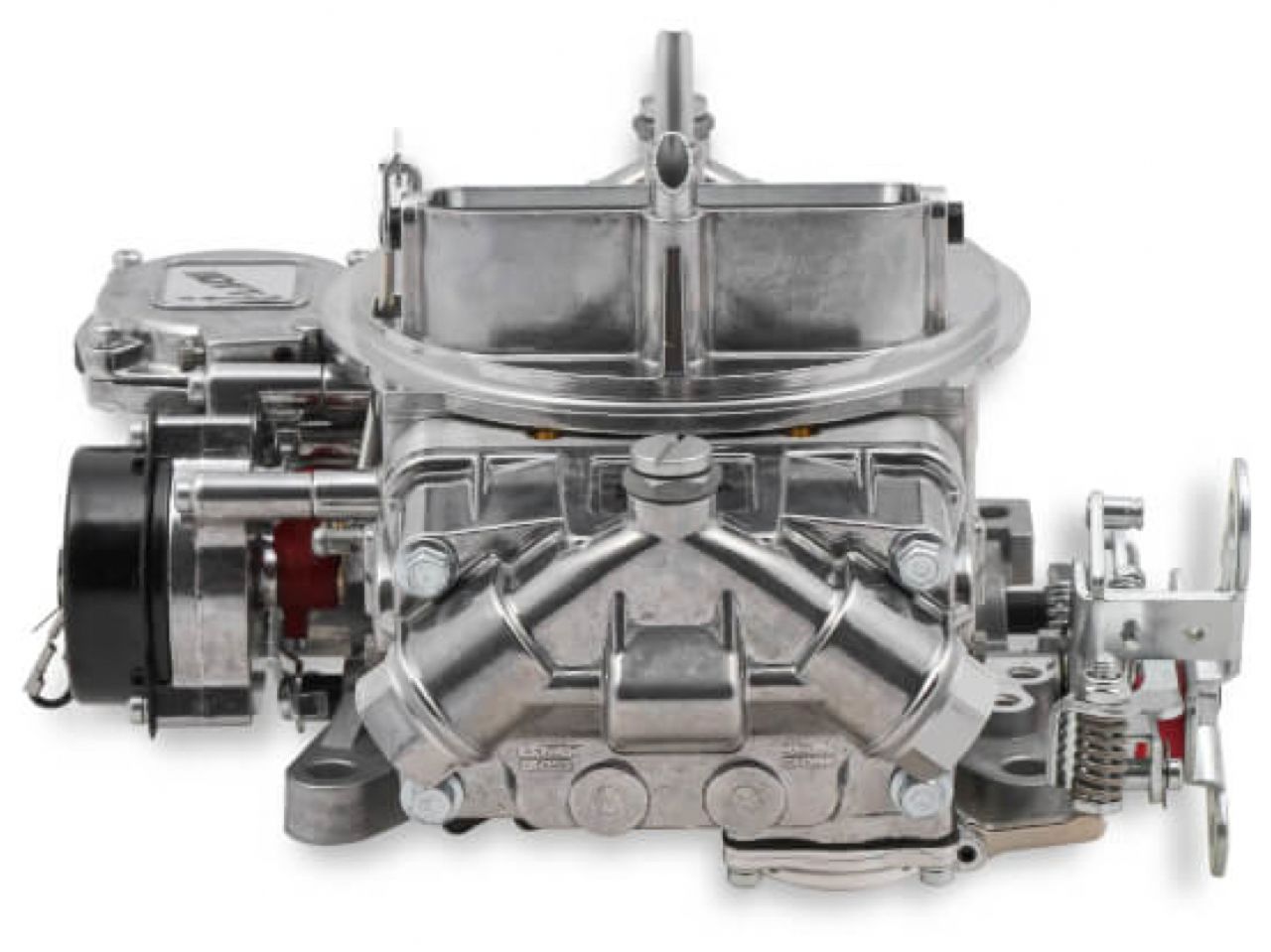

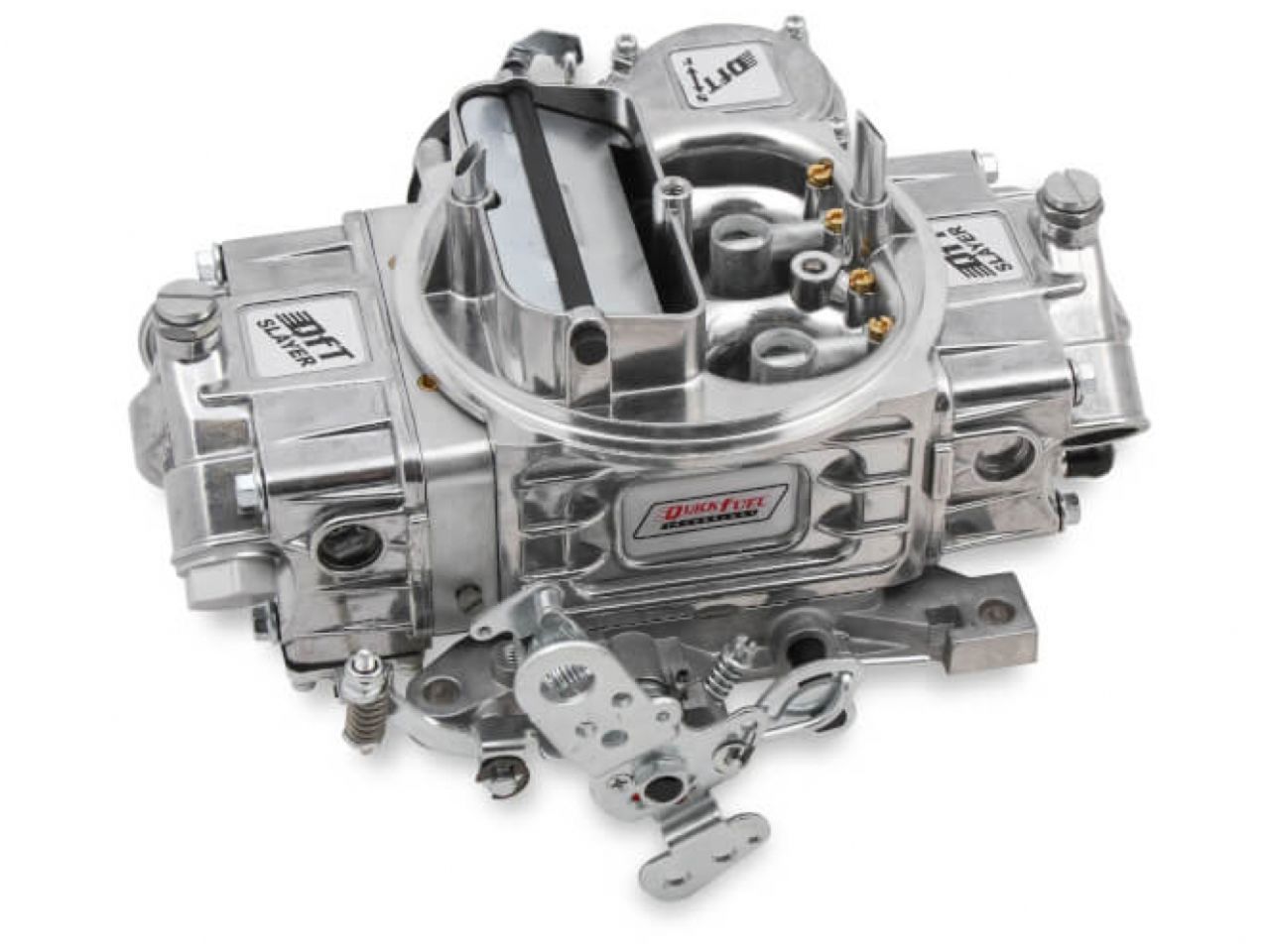

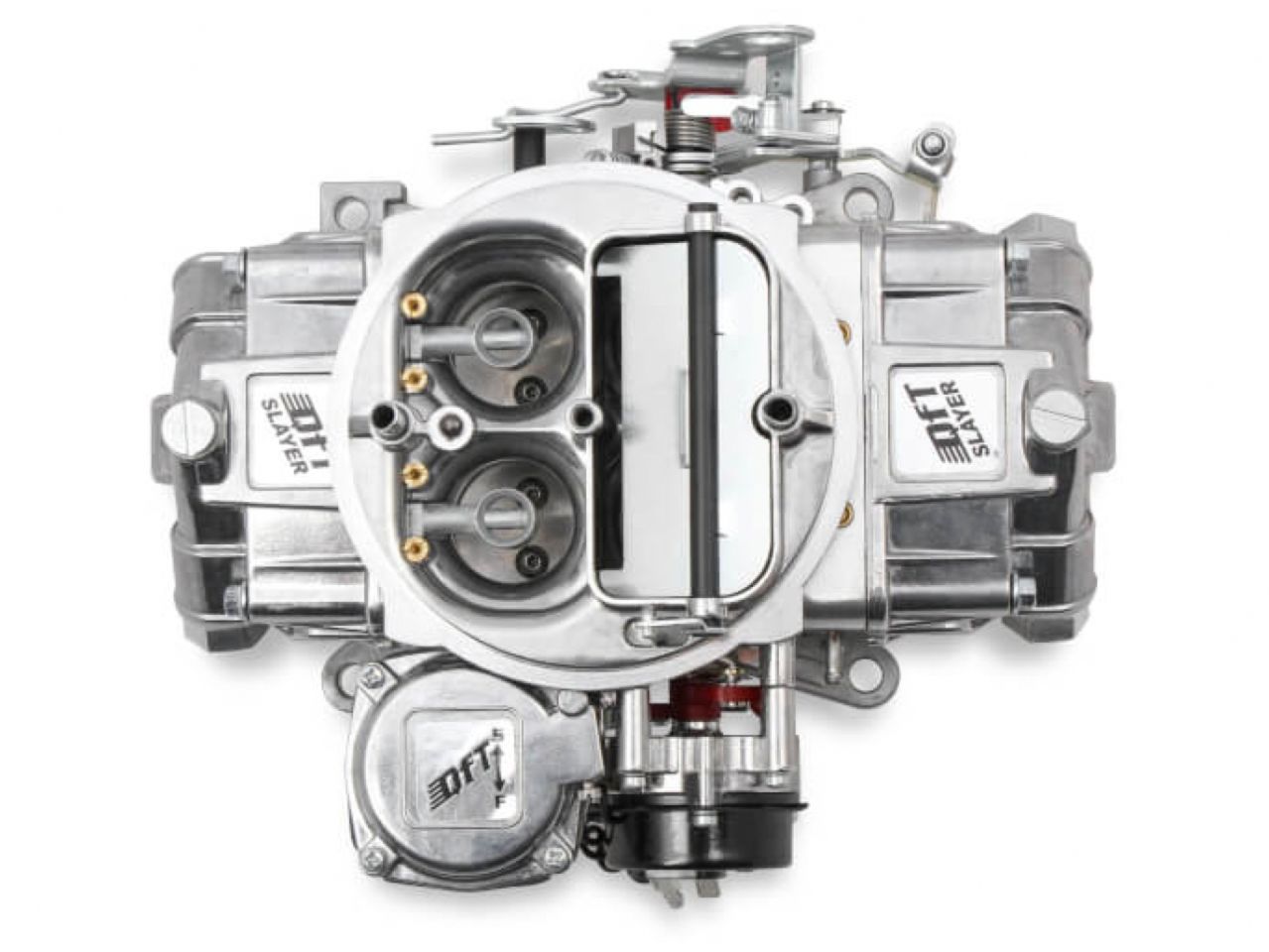

Quick Fuel Slayer Series Craburator 600CFM VS -4160

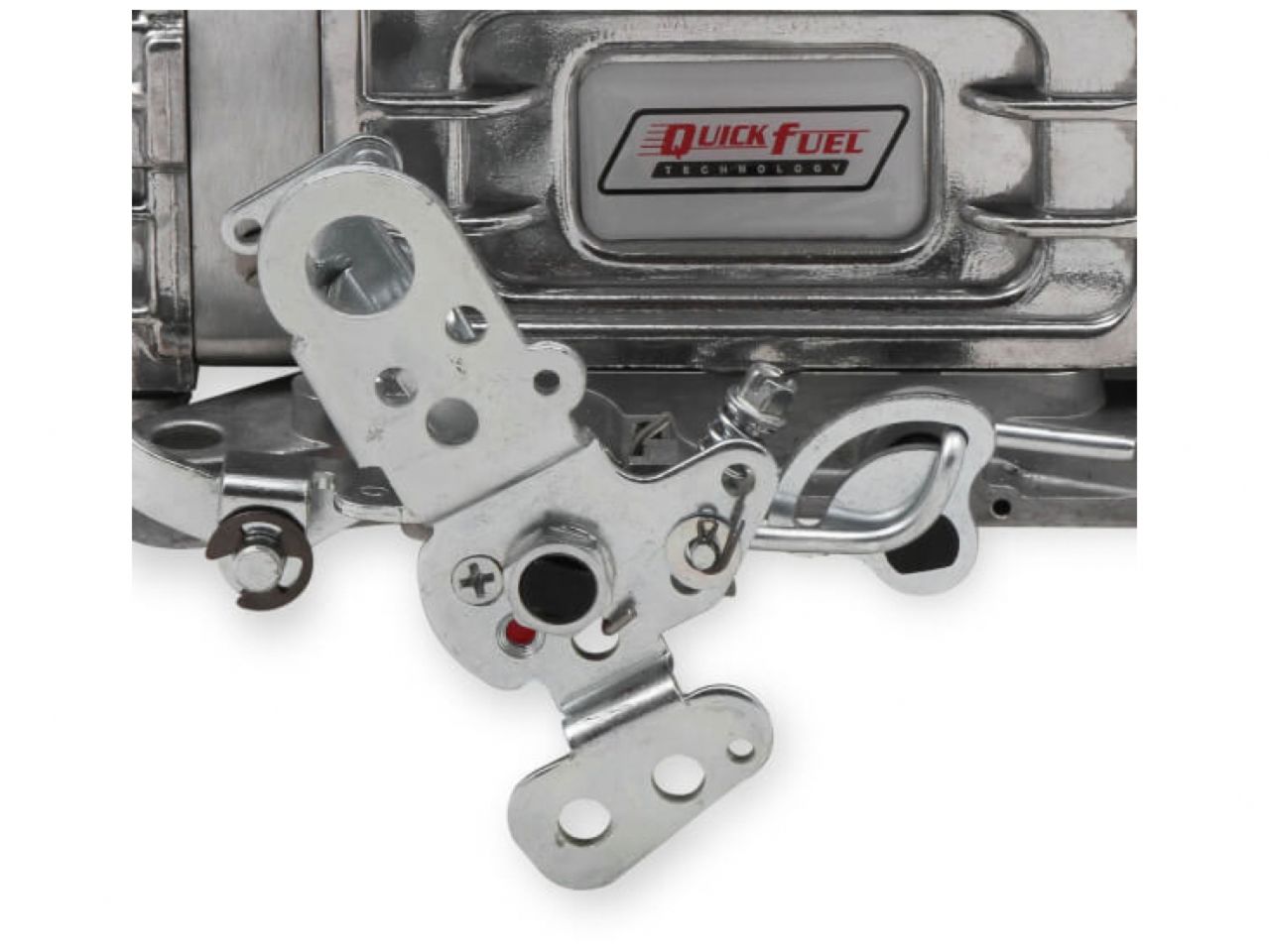

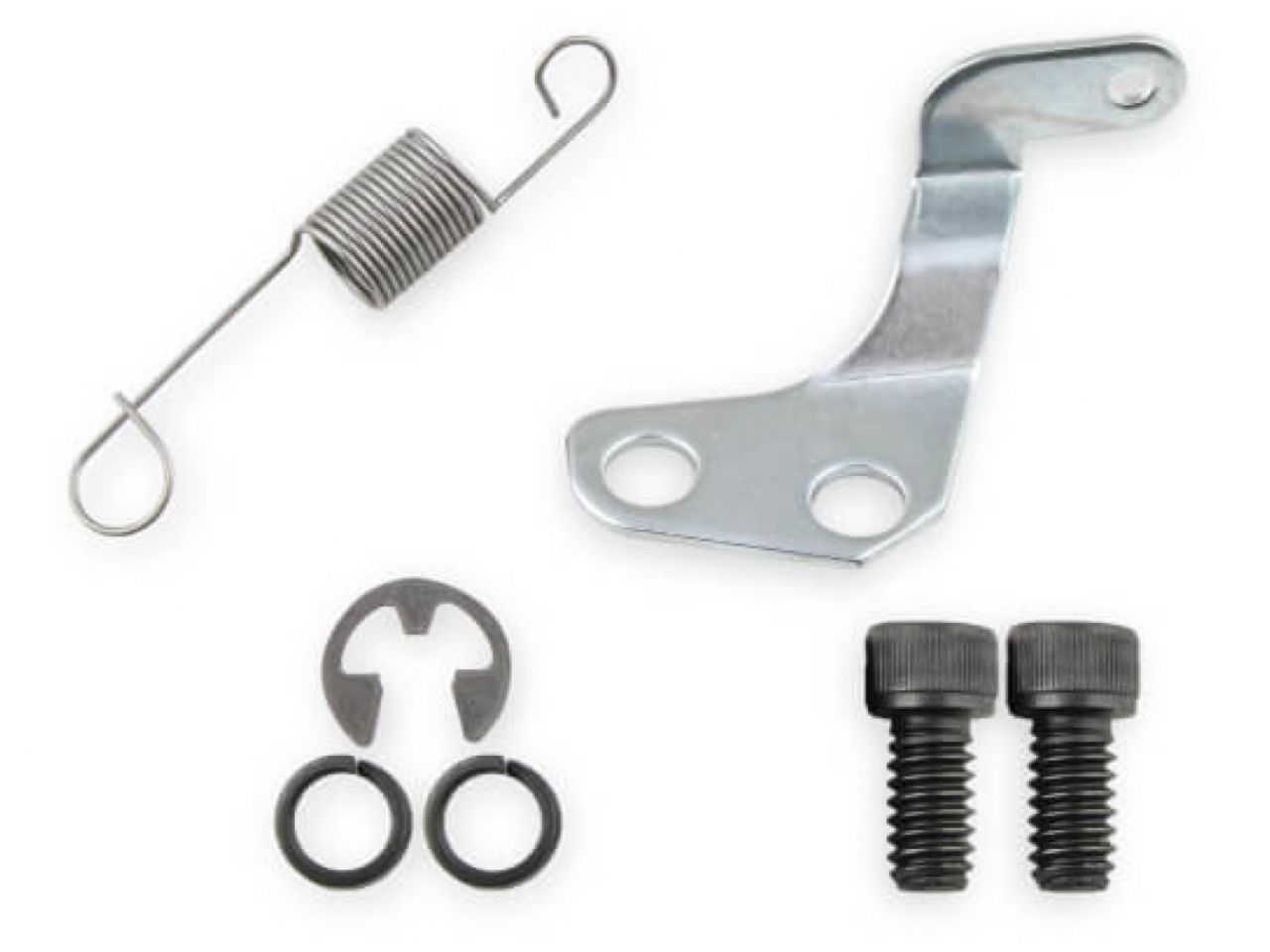

Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.

Vacuum Secondaries
Electric Choke
Single Metering Block
Secondary Metering Plate
Cast Aluminum Throttle Body
Single Sight Glass Windows
Changeable Air Bleeds
Adjustable Needles & Seats
Notched Secondary Floats w/Jet Extensions

Specification

Barrels: 4
Billet Color: Diecast-No Billet
Booster: Straight
CFM: 600
Choke: Electric
Circuit: 2
Emission Code: 3
Finish: Shiny
Fuel: Gasoline
Fuel System: Carbureted
High Speed Air Bleed: 31
Idle Air Bleed Size: 70;39
Material: Aluminum
Model: Slayer Series
Primary Main Jet: 68
Primary Power Valve: 65
Primary Pump Nozzle Size: 31
Product Type: Carburetor
Secondaries: Vacuum
Secondary Main Jet: 74
Supercharged Application: No
Throttle Bore: 1-9/16 inch
