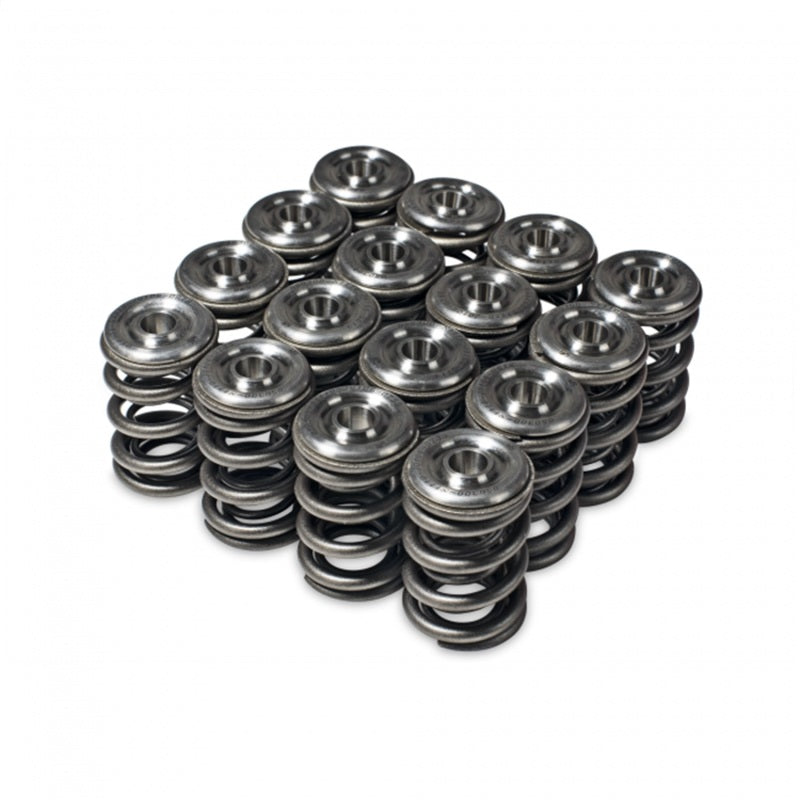

Alpha Valve Springs
Manufactured exclusively from super-clean, chrome-silicone wire milled in Japan, Skunk2's Alpha Valve Springs for Honda's F, H-series VTEC engines are a product of the company's years of racing and engine building experiences. By using inner and outer springs mated together through a slight interference fit and with differing frequencies, Alpha Valve Springs are able to prevent valve float and maintain valvetrain stability at engine speeds in excess of 10,000 rpm.
Alpha Retainers
Alpha Titanium Retainers are designed to significantly reduce valvetrain mass, resulting in more horsepower and improved valvetrain stability. Similar to Skunk2's already popular Pro Series Titanium Retainers, Alpha Titanium Retainers feature radius-cut edges for additional rocker arm clearance and reduced weight, strategically positioned lightening grooves, and reduced overall heights for better valve seal clearance and even further weight reduction.
Alpha Titanium Retainers are manufactured using the latest 3D CAD (Computer Aided Design) and FEA (Finite Element Analysis) to ensure that each is optimized for strength as well as for reduced weight. Skunk2 engineers then test and prove their designs on the engine dyno as well as the race track. Once approved for manufacturing, only medical-grade titanium that's been ultrasonically inspected and certified is used. Following CNC machining, each retainer is then individually inspected to ensure proper hole diameter, taper, and that each are free from machining defects to ensure proper installed valve spring heights and pressures. Finally, each retainer is serialized for your protection, including valuable information, like material batch specifics as well as production and inspection dates.
- 1993 - 2001 Honda Prelude (Base, Type SH)
SPECIFICATIONS:
Seat Pressure: 50 lbs at 1.400"
Open Pressure: 205 lbs at 0.900"
Coil Bind: 0.880"
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1995 |
Honda |
Prelude |
SE |
| 1993 - 1994 |
Honda |
Prelude |
Si 4WS |
| 1993 - 1996 |
Honda |
Prelude |
Si, VTEC, S |
| 1997 - 2001 |
Honda |
Prelude |
Type SH, Base |
