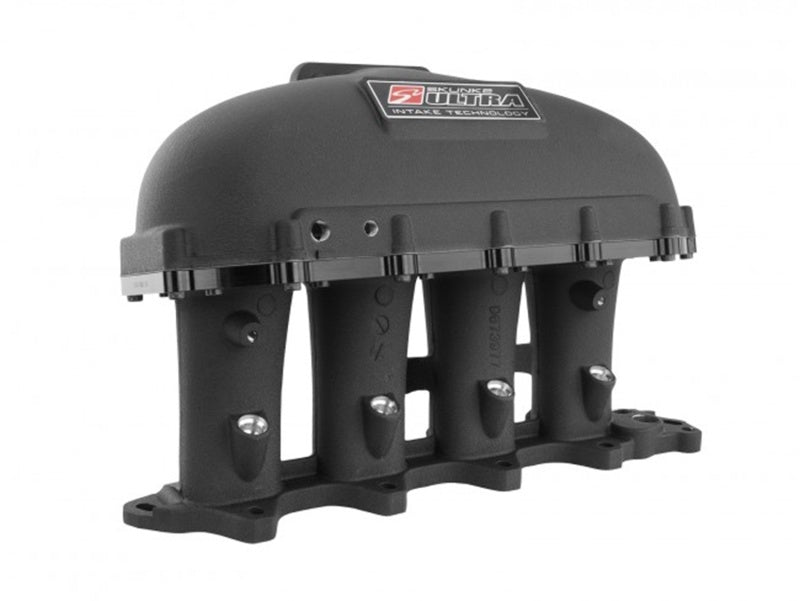

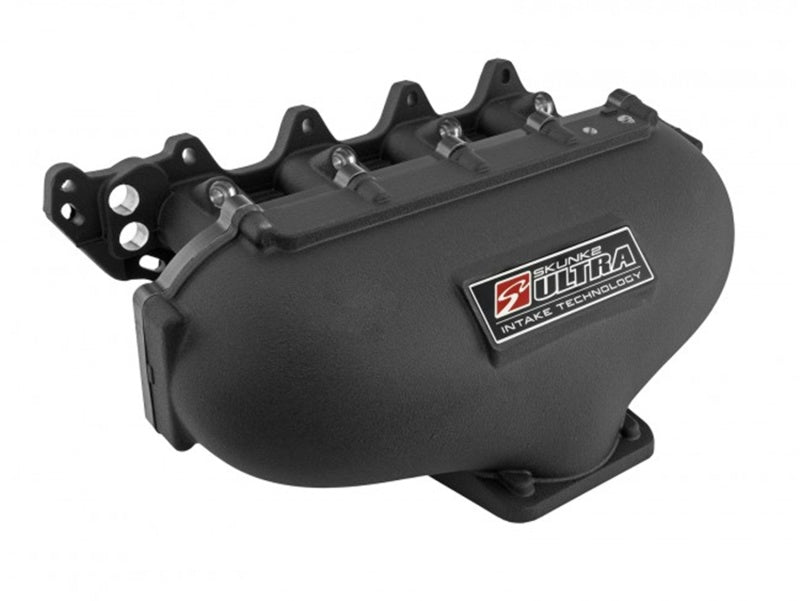

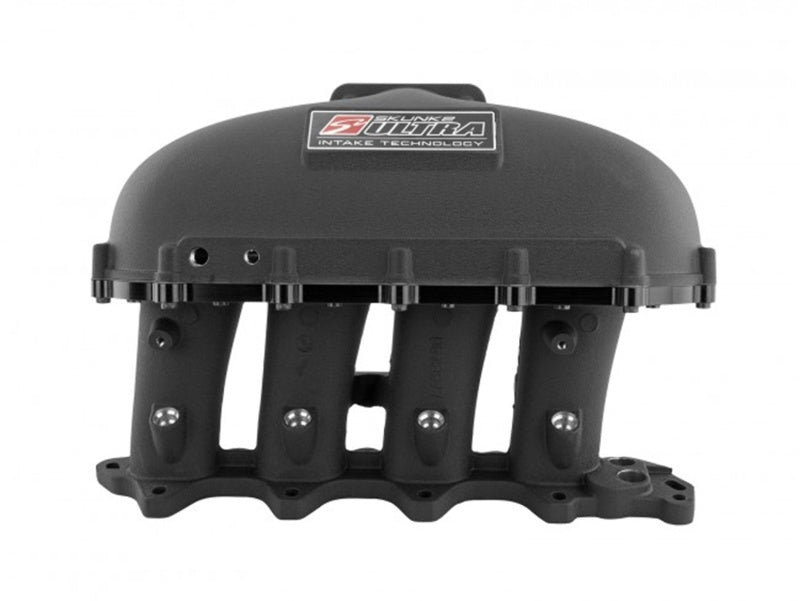

Skunk2 Black Ultra Series Race Centerfeed Intake Manifold - B VTEC

Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads!

The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.

FEATURES:

Modular 3pc. Design w/ Removable Plenum
5.0L Plenum Volume**

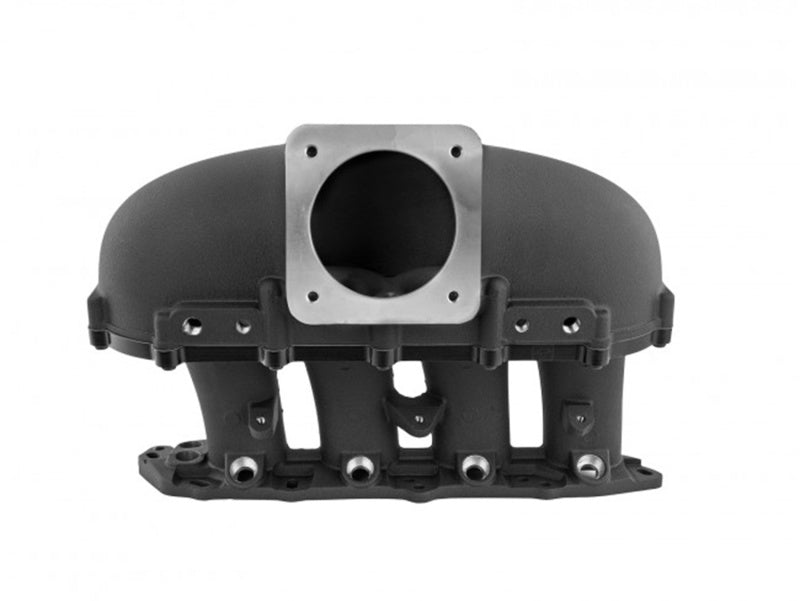

90mm Throttle Body Flange - Std. 5.0L Ford Pattern
6.0" Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks
Generously Cast Runner Walls for Porting
Provisions Secondary Fuel Rail & Injectors
Universal Mounting Flange Fits All B VTEC Cylinder Heads

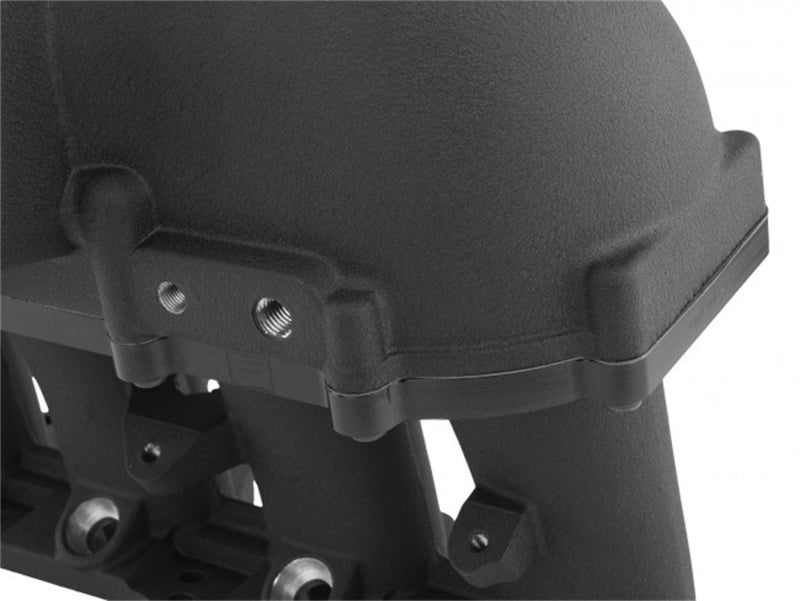

3 x 1/8" NPT and 3 x 1/4" NPT Accessory Ports

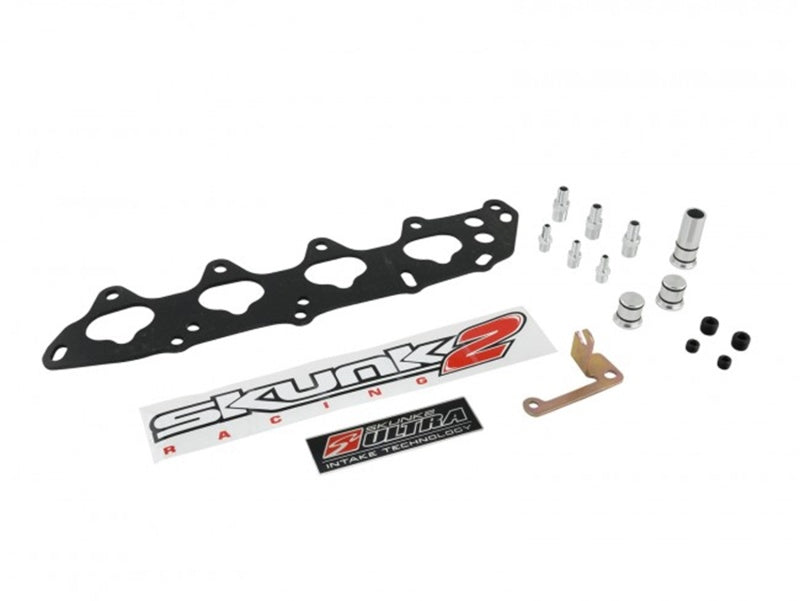

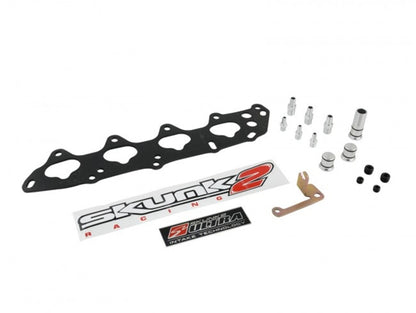

Hi-Grade Mounting Hardware
Thermal Gasket Included
Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes

**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes

US Patent: D673977

RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE

5.0 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
6.0 Liter > 600-1000HP
7.0 Liter > 1,000HP Up

US Patent: D673977

Vehicle Fitments:
