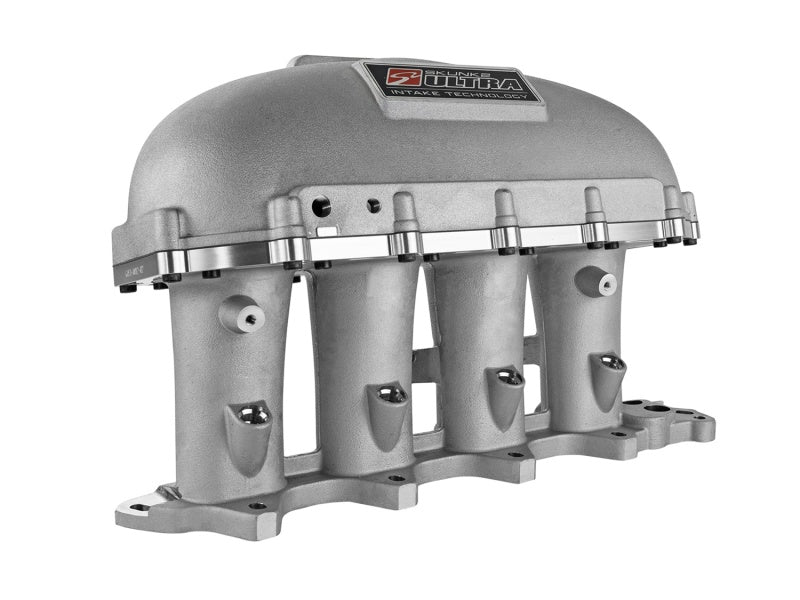

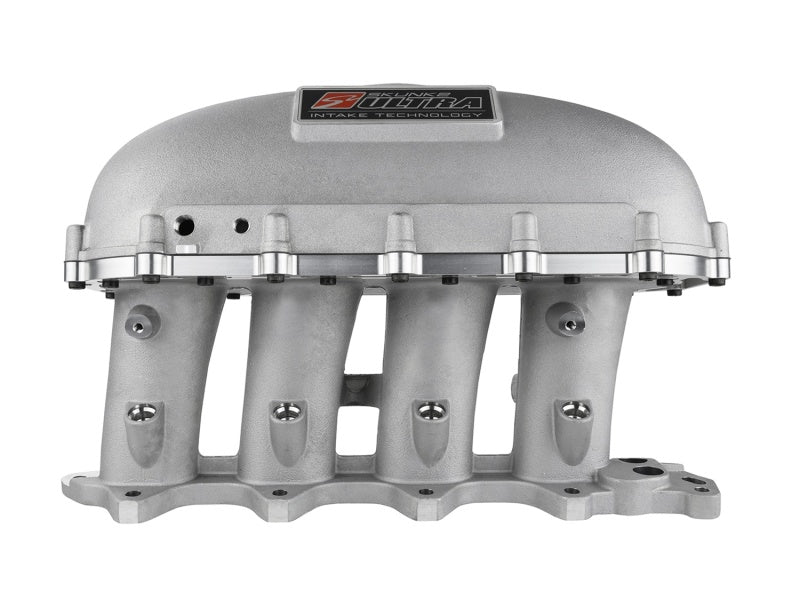

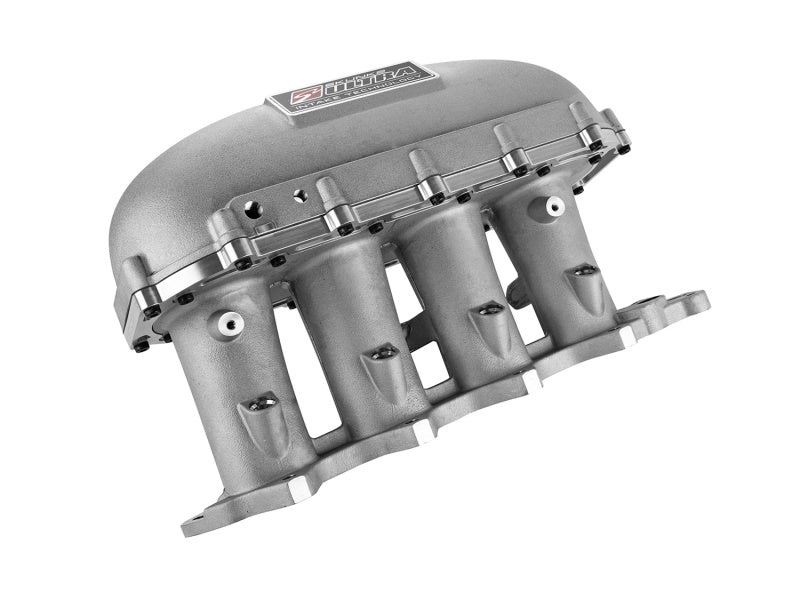

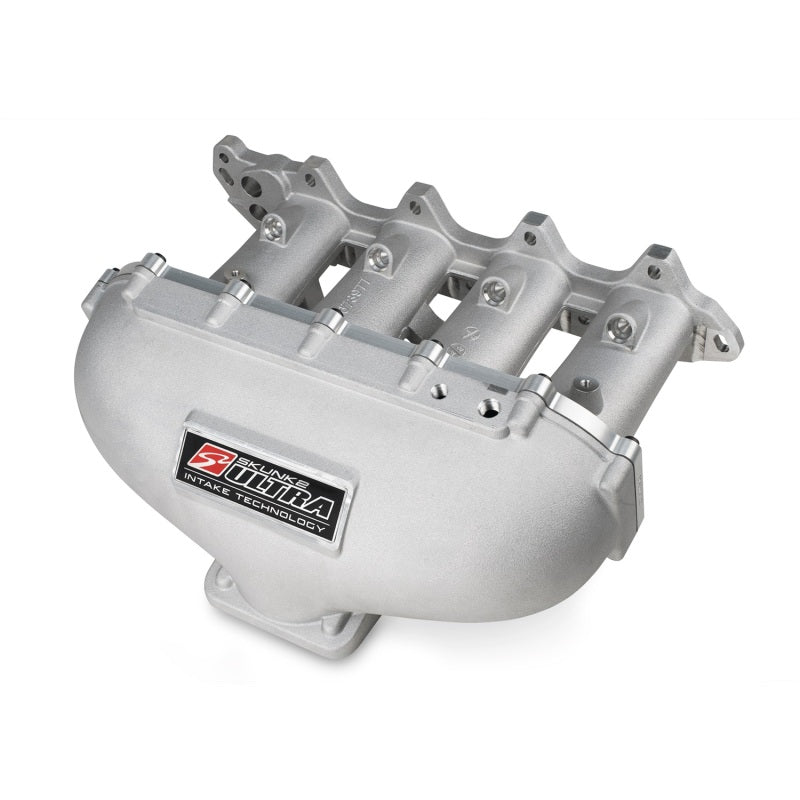

Skunk2 Ultra Series Race Centerfeed Intake Manifold - B VTEC
Skunk2 Ultra Series Race Centerfeed Intake Manifold - B VTEC
Out of stock
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds!
The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
FEATURES:
Modular 3pc. Design w/ Removable Plenum
5.0L Plenum Volume**

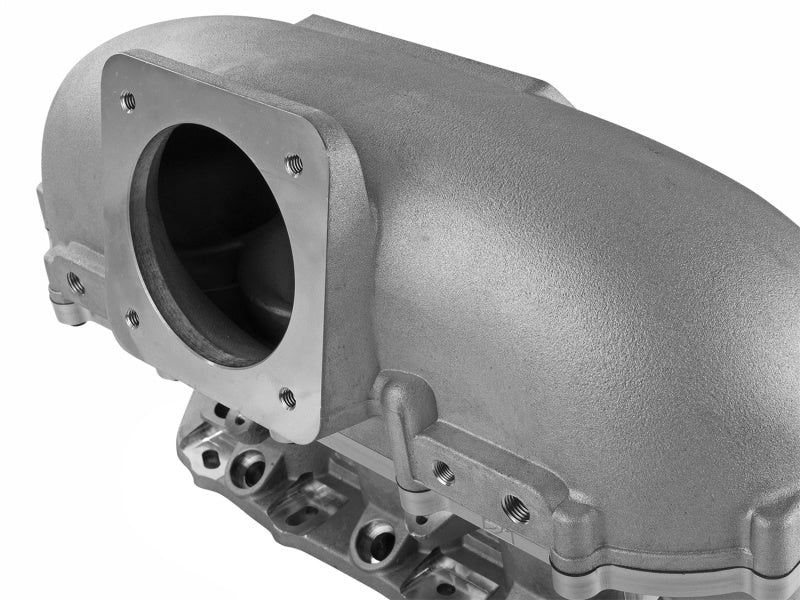

90mm Throttle Body Flange - Std. 5.0L Ford Pattern
6.0" Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks
Generously Cast Runner Walls for Porting
Provisions Secondary Fuel Rail & Injectors

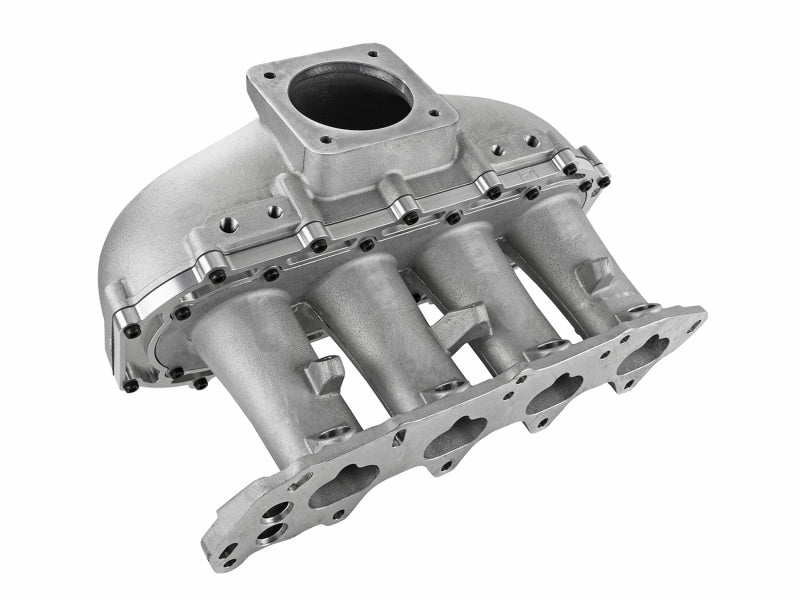

Universal Mounting Flange Fits All B VTEC Cylinder Heads
3 x 1/8" NPT and 3 x 1/4" NPT Accessory Ports
Hi-Grade Mounting Hardware
Thermal Gasket Included
Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes
**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
US Patent: D673977
- B-Series - B-Series Any Acura (Any)
- B-Series - B-Series Any Honda (Any)
- 1992 - 2001 Acura Integra (GS-R, Type R)
- 1999 - 2000 Honda Civic (Si)
- 1994 - 1997 Honda Civic del Sol (VTEC)
RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE
5.0 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
6.0 Liter > 600-1000HP
7.0 Liter > 1,000HP Up
US Patent: D673977
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 2001 | Acura | Integra | GS-R, LS, GS |
| 1992 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R |
| 1999 - 2000 | Honda | Civic | EX-R, DX, EX, Si, HX, EX-R SIR, CX, LX, GX |
| 1999 | Honda | Civic | Value Package |
| 1994 - 1997 | Honda | Civic del Sol | S, Si, VTEC |
