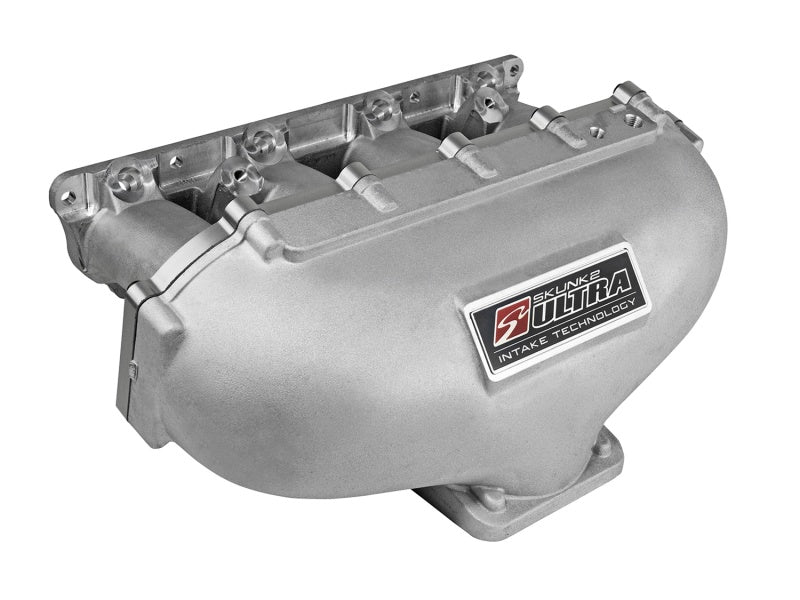

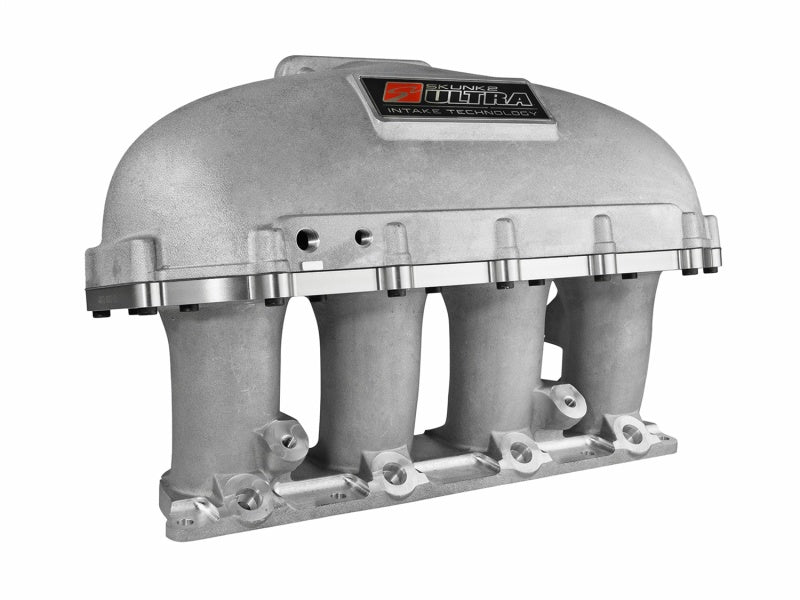

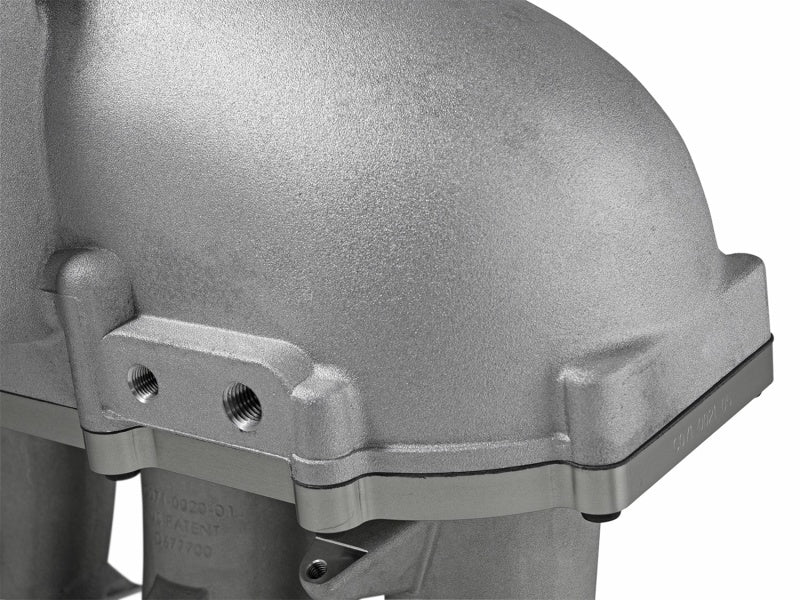

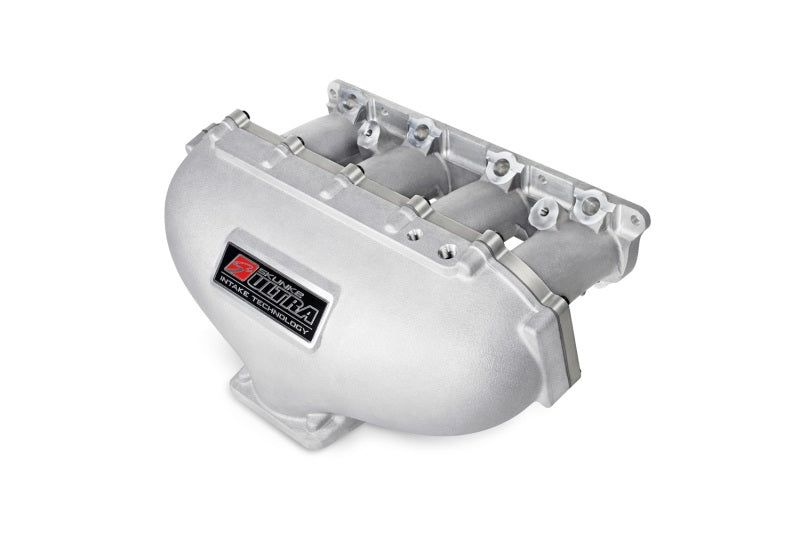

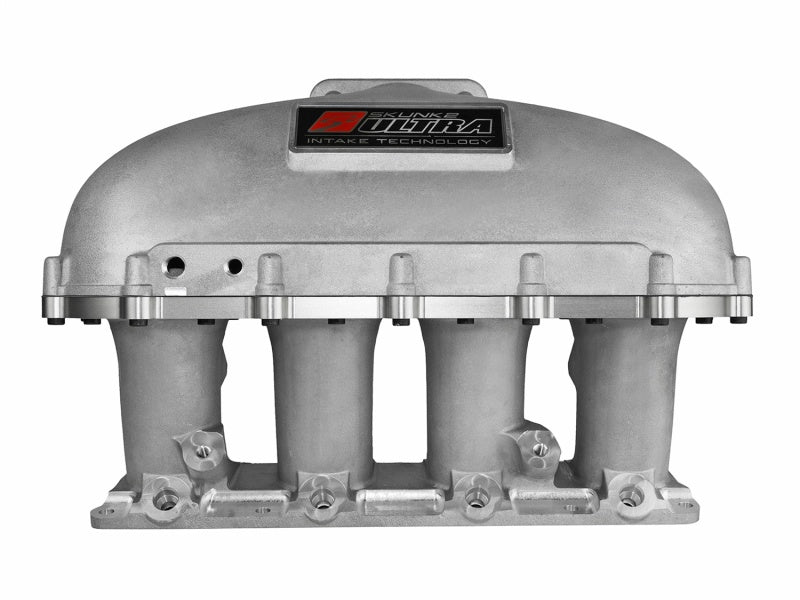

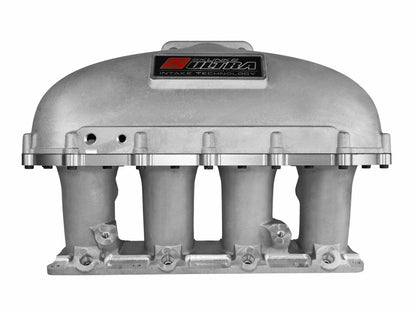

Skunk2 Ultra Series Race Centerfeed Intake Manifold 02-05 Civic Si / K Series
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the '02-'05 Civic Si and '02-'06RSX/ RSX Type S, and/ or any swap using the K20A/ K20A2/ K20Z1/ K24A1 engines or cylinder heads has finally arrived!
The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Features:
Modular 3pc. Design w/ Removable Plenum
5.0L Plenum Volume**

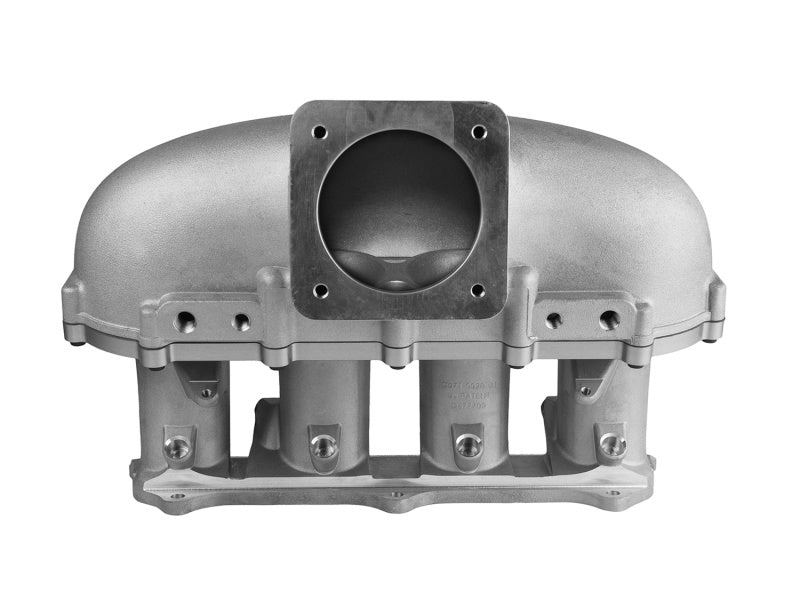

90mm Throttle Body Flange - Std. 5.0L Ford Pattern
6.0" Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks
Generously Cast Runner Walls for Porting
Provisions Secondary Fuel Rail & Injectors
3 x 1/8" NPT and 3 x 1/4" NPT Accessory Ports

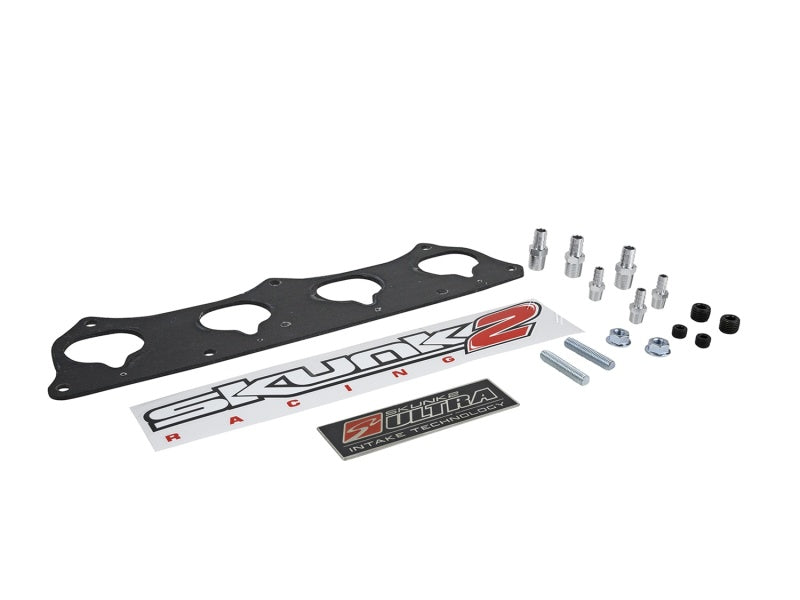

Hi-Grade Mounting Hardware
Thermal Gasket Included
Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes
**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
US Patent: D677700
- K-Series - K-Series Any Acura (Any)
- K-Series - K-Series Any Honda (Any)
- 2004 - 2014 Acura TSX (Base, Premium, Special Edition, Tech)
- 2013 - 2017 Acura ILX (Base)
- 2002 - 2006 Acura RSX (Base)
- 2015 - 2017 Acura TLX (Base)
- 2003 - 2017 Honda Accord (EX, EX-L, LX, LX-S, SE, Sport, Sport Special Edition)
- 2003 - 2011 Honda Element (EX, LX)
- 2002 - 2016 Honda CR-V (EX, EX-L, LX, SE, Touring)
- 2012 - 2015 Honda Crosstour (EX, EX-L)
- 2002 - 2015 Honda Civic (Si)
The K Series Ultra "Street" Manifold uses the EARLY PRB/ PRC style cylinder head and throttle body mounting flange pattern but can be installed on the LATE RBC/ RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and associated throttle body or throttle body adapter.
RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE
5.0 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
6.0 Liter > 600-1000HP
7.0 Liter > 1,000HP Up
US Patent: D677700
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2017 | Acura | ILX | Base |
| 2013 - 2015 | Acura | ILX | Dynamic, Hybrid |
| 2017 | Acura | ILX | Tech, A-Spec |
| 2002 - 2006 | Acura | RSX | Base, Type-S |
| 2015 - 2017 | Acura | TLX | Base, SH-AWD |
| 2017 | Acura | TLX | Tech, Advance |
| 2012 | Acura | TSX | A-Spec |
| 2004 - 2014 | Acura | TSX | Base |
| 2012 - 2014 | Acura | TSX | Special Edition |
| 2010 - 2014 | Acura | TSX | V6 |
| 2013 - 2014 | Acura | TSX | V6 Tech, Tech, Premium |
| 2003 | Honda | Accord | Coupe |
| 2003 - 2005 | Honda | Accord | DX |
| 2003 - 2017 | Honda | Accord | EX, LX |
| 2007 - 2017 | Honda | Accord | EX-L |
| 2012 | Honda | Accord | HFP |
| 2014 - 2017 | Honda | Accord | Hybrid Touring, Hybrid EX-L |
| 2007 | Honda | Accord | LX SE, Special Edition |
| 2006 | Honda | Accord | LX Special Edition |
| 2008 - 2012 | Honda | Accord | LX-P |
| 2008 - 2017 | Honda | Accord | LX-S |
| 2014 | Honda | Accord | Plug-In |
| 2005 - 2017 | Honda | Accord | SE, Hybrid |
| 2017 | Honda | Accord | Sport Special Edition |
| 2013 - 2017 | Honda | Accord | Sport, Touring |
| 2006 - 2007 | Honda | Accord | Value Package |
| 2012 - 2013 | Honda | Civic | Base |
| 2002 - 2012 | Honda | Civic | GX |
| 2002 - 2005 | Honda | Civic | HX |
| 2003 - 2015 | Honda | Civic | Hybrid |
| 2012 - 2015 | Honda | Civic | Hybrid-L, EX-L, HF |
| 2005 | Honda | Civic | LX Special Edition, Reverb, EX Special Edition |
| 2002 - 2015 | Honda | Civic | LX, Si, EX, DX |
| 2015 | Honda | Civic | SE |
| 2012 | Honda | Civic | Si HFP |
| 2002 - 2004 | Honda | Civic | SiR |
| 2013 - 2015 | Honda | Civic | Touring, Natural Gas |
| 2004 - 2005 | Honda | Civic | Value Package |
| 2002 - 2003 | Honda | CR-V | Base |
| 2002 - 2016 | Honda | CR-V | EX, LX |
| 2009 | Honda | CR-V | EXL |
| 2015 - 2016 | Honda | CR-V | i-Style |
| 2005 - 2016 | Honda | CR-V | SE, EX-L |
| 2012 - 2016 | Honda | CR-V | Touring |
| 2012 - 2015 | Honda | Crosstour | EX, EX-L |
| 2003 - 2004 | Honda | Element | DX |
| 2003 - 2011 | Honda | Element | EX |
| 2004 - 2011 | Honda | Element | LX |
| 2007 - 2010 | Honda | Element | SC |
