Skunk2 Ultra Series 1 Camshaft Honda/Acura K20A3 & K24A1 DOHC i-VTEC

SKU: 0P61T | MPN:  305-05-7010
In stock
Sale price$1,013.11 USD Regular price$1,049.99 USD
Save $36.88

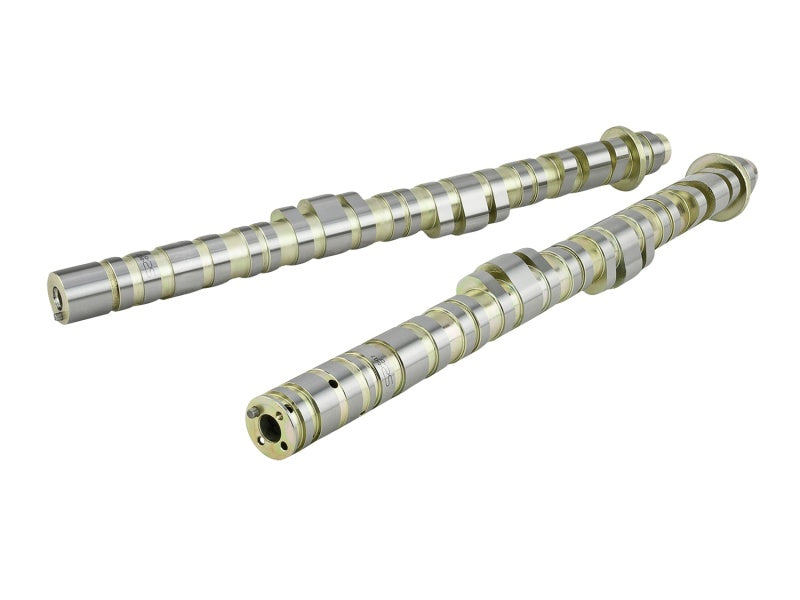

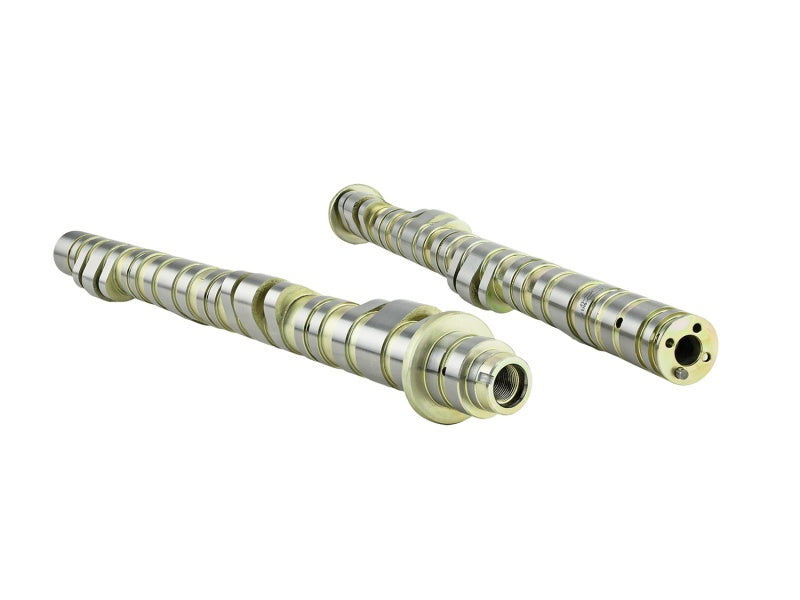

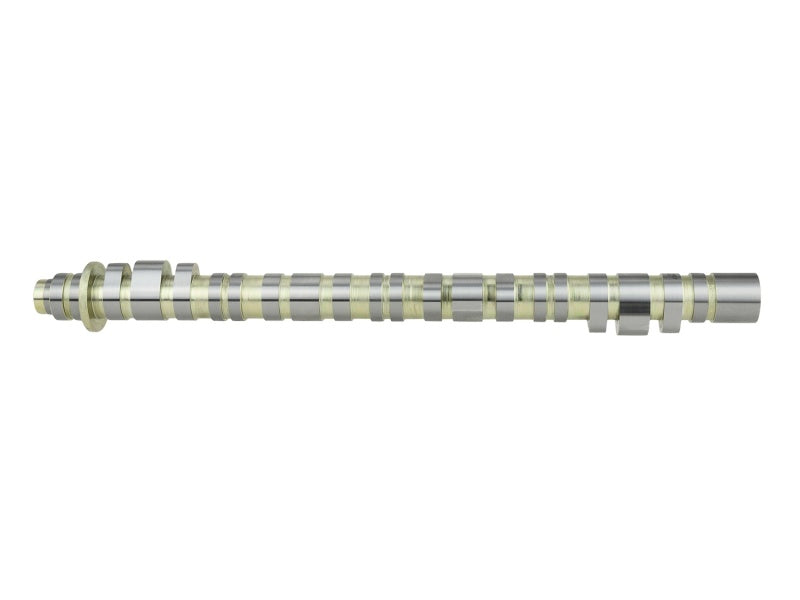

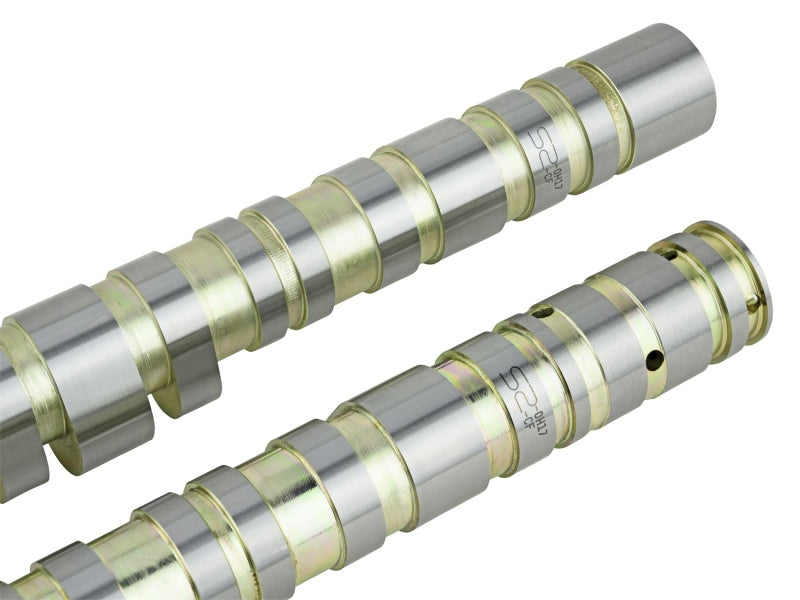

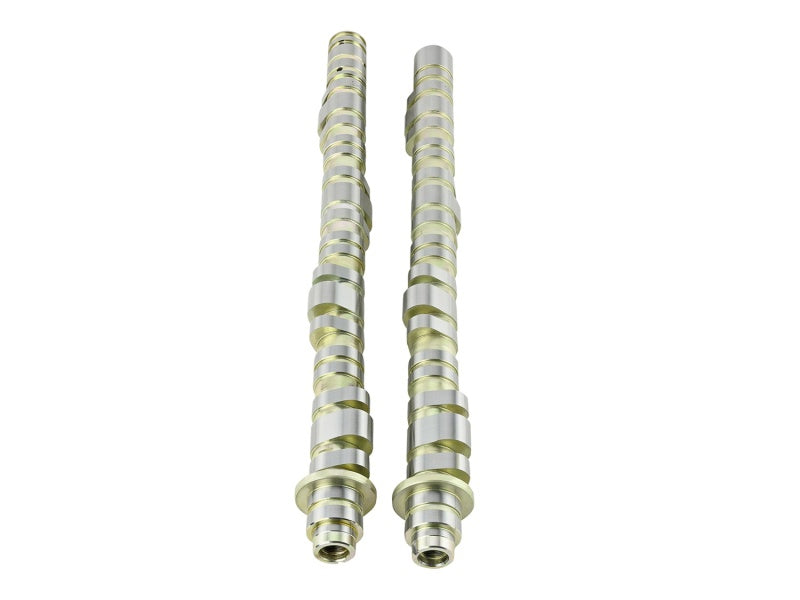

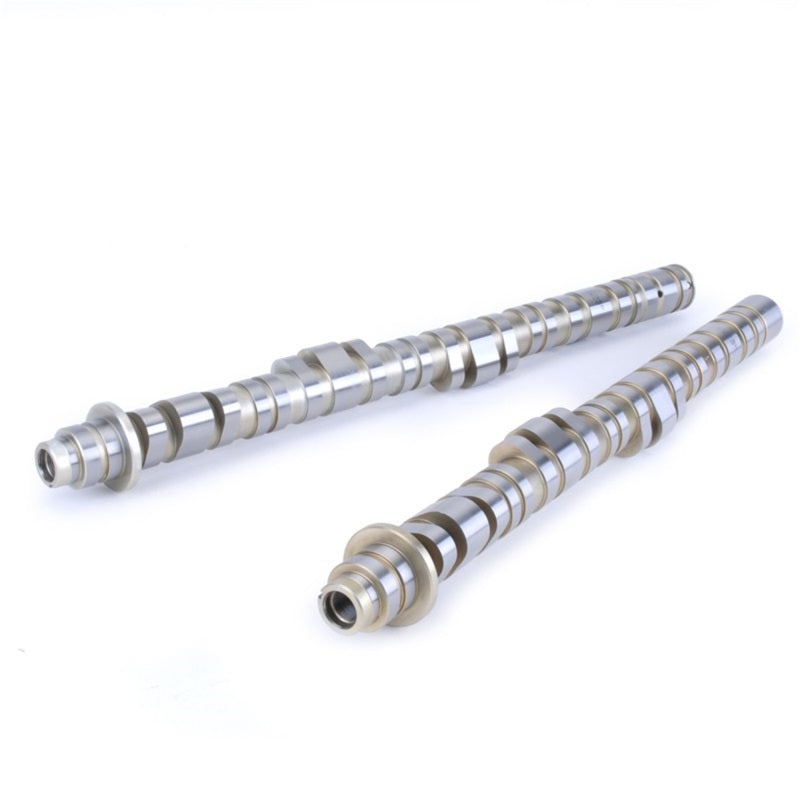

Skunk2's Ultra Series Camshafts for the Honda K20A, K20A2, K20Z1, K20Z3, and K24A2 engines dramatically increase both horsepower and torque yet retain complete valvetrain stability and exceptional engine response. Ideal for heavily modified engines, Ultra Series Camshafts are manufactured from proprietary, high-quality forged tool steel cores, are CNC ground, and feature patent-pending profiles with unique lobe shapes and revolutionary lift, velocity, and acceleration characteristics.

Up to 80 hp gains with Skunk2's Ultra Series line of camshafts, our professional line of high-lift, racing camshafts for Honda's K-series VTEC engines. Ultra Camshafts are designed to optimize mid-range and top-end horsepower and torque, with peak power moved up the RPM band. As a result, VTEC crossover is seamless, allowing for the broadest powerband possible. No other line of racing camshafts even comes close to Skunk2's Ultra Series.

 Skunk2's Ultra Series Camshafts also feature Fast Ramp and AMAX profile technology, which increases overall performance and results in unmatched response from idle to redline. AMAX technology simply maximizes the area under the lift curve but without compromising reliability or valvetrain stability. Skunk2's profiles feature more duration than competitors' at lifts above 1mm, resulting in greater efficiency and more power. And thanks to Fast Ramp, the same technology used in Formula One racing, seat timing is reduced, which results in additional cylinder pressure and more torque but without compromising valvetrain longevity.

  • 2004 - 2008 Acura TSX (Base)
  • 2002 - 2006 Acura RSX (Type-S)
  • 2006 - 2011 Honda Civic (Si)

REQUIRED - Pro Series Valve Springs Or Pro XP Valve Springs Recommended for Turbo Applications and Titanium Retainers

Camshafts Specifications

 Intake - Lift: .540"/ Duration 264° @ 1mm

Exhaust - Lift: .530"/ Duration 264° @ 1mm

Intake Centerline - Variable

Exhaust Centerline - 111°

Valve Clearance (Intake / Exhaust) - .008" / .010"

RPM Range: Varies

** 3 Lobe Forged Tool Steel Core **



Vehicle Fitments:

Year Make Model Submodel
2002 - 2006 Acura RSX Type-S, Base
2004 - 2008 Acura TSX Base
2011 Honda Civic Base
2008 - 2011 Honda Civic DX-G, EX-L
2006 - 2011 Honda Civic GX, Si, Hybrid, DX, LX, EX
2009 - 2011 Honda Civic LX-S, Hybrid-L
2006 - 2007 Honda Civic LXS, EXS
2008 Honda Civic MUGEN Si
2009 - 2010 Honda Civic Sport
