Diftech Shock Upper Mounts Rear Extended Suspension Top Hats Nissan 370Z Z34
Diftech Shock Upper Mounts Rear Extended Suspension Top Hats for Nissan 370Z Z34 Penske 8300
- Fits Nissan 370Z (Z34 chassis) rear
- For Penske 8300 dampers
- Increased damper response and durability
- 1" more compression stroke and reduced droop from stock

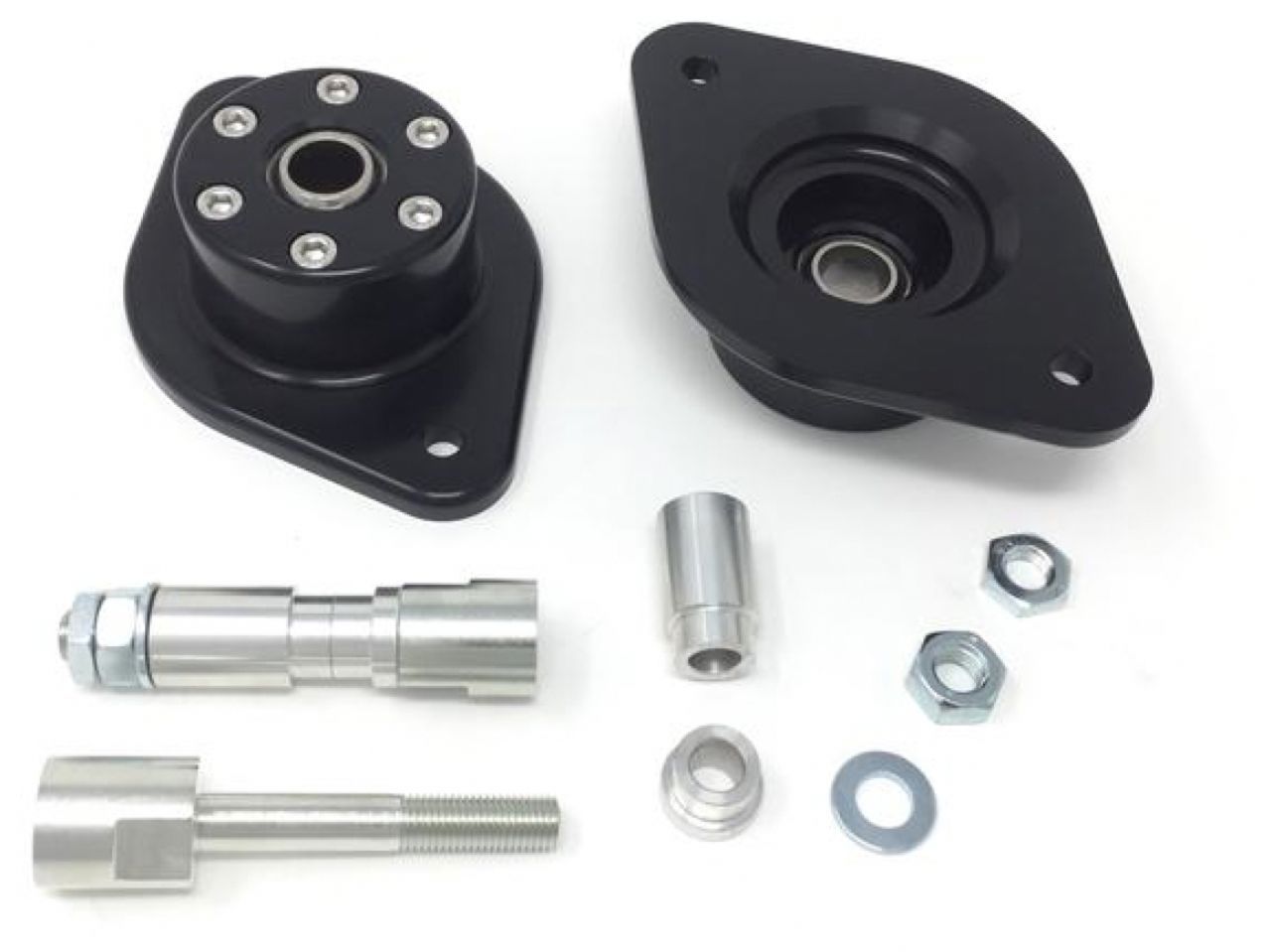

- Includes all hardware needed for mounting to Penske rear shocks
- Custom install kit available (email us for your custom application)
- Strong and lightweight 6061 Aluminum construction
- Anodized black finish for look and durability
- 5/8" FK wide-series spherical bearings
- Engineered, fabricated, and tested in the United States
-
These extended rear top mounts (hats) for the Z34 chassis are designed to convert to an upper bearing type mount, and allow maximum compression stroke in the process. This compact, lightweight package is designed to eliminate bushing compliance and give you the control you need in the rear of your modified Z. It also uses a raised design to free up as much compression stroke as possible so that long shock bodies won't bottom out on lowered cars. These hats can limit droop and free up as much as 7/8" of compression stroke over stock, or sleeves can be flipped to restore stock dimensions.
Stock mounts are a rubber bushing setup, which allows lots of deflection under high loads. This is great for ride comfort and noise, but not ideal for controlling a high spring rate in aggressive driving conditions. As spring rates, and therefore dampening forces go up, the damper can't effectively do its job because the top of the shaft is not mounted securely. This kit eliminates bushing deflection and raises the stock mounting point to allow more compression stroke on lowered cars.
Note: This hat uses an inverted bearing carrier design and is not recommended for use with a coilover (spring over shock) conversion!
Made in the USA from 6061 billet aluminum. All Diftech hats use high strength FK wide-series bearings with Teflon liners for maintenance free, quiet operation. Diftech universal hardware kit included to fit to Penkse 8300 dampers using 5/8-18 threaded shaft. Customers can also email us for custom install kits for specific racing applications.
