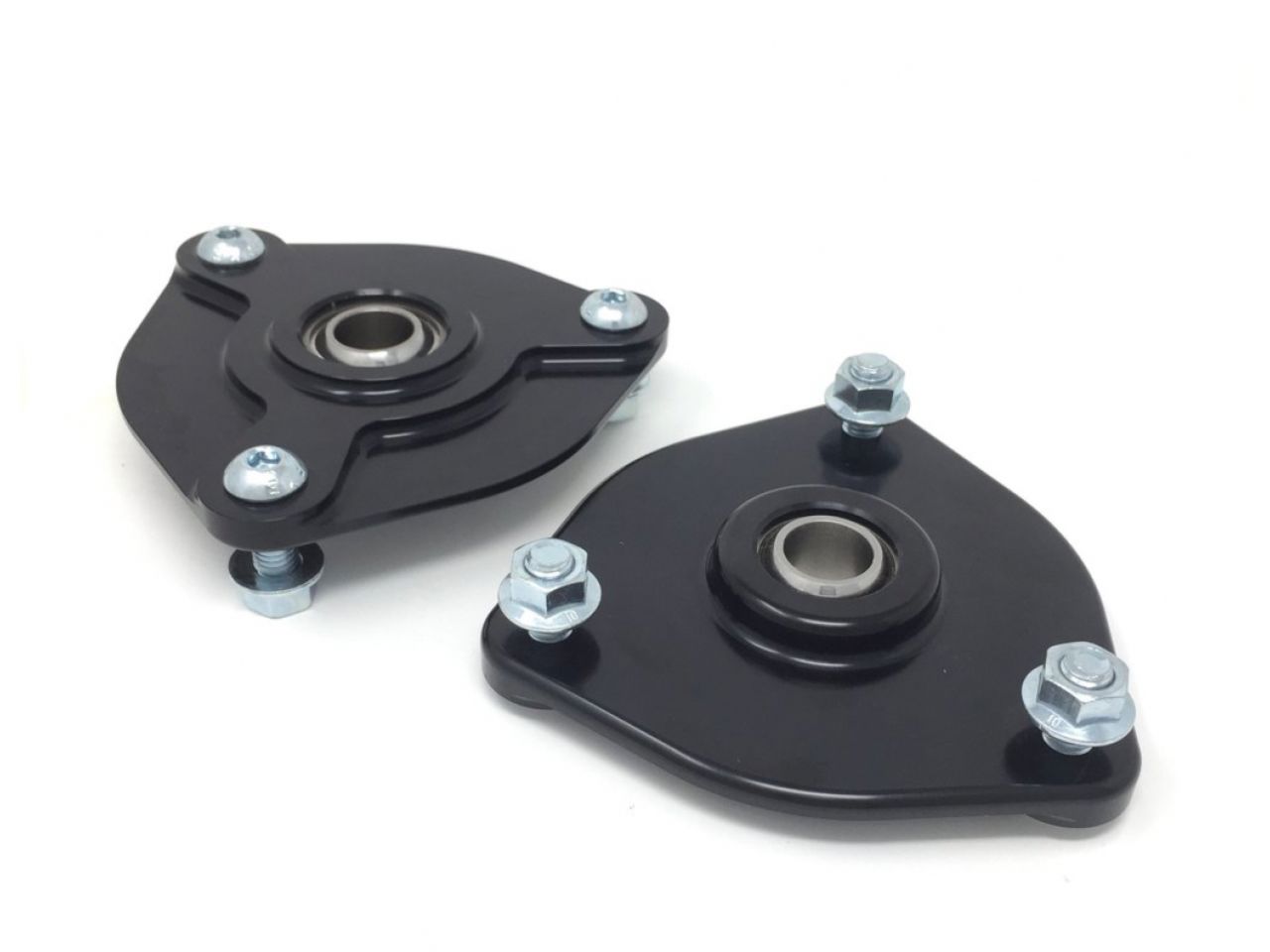

Diftech Shock Upper Mounts Front Coilover Top Hats for Mazda RX8 SE3P Penske 8300 Coilover
- Fits Mazda RX-8 SE3P chassis
- Fits Penske 8300 coilovers
- Coaxial design for increased traction and reduced shock blind
- Hat movement is independent of spring compression axis
- Increase compression stroke by .5" (13mm) compared to stock
- 6061-T6 aerospace aluminum alloy for extra rigidity and reduced weight
- FK large 3/4" high-quality spherical bearings

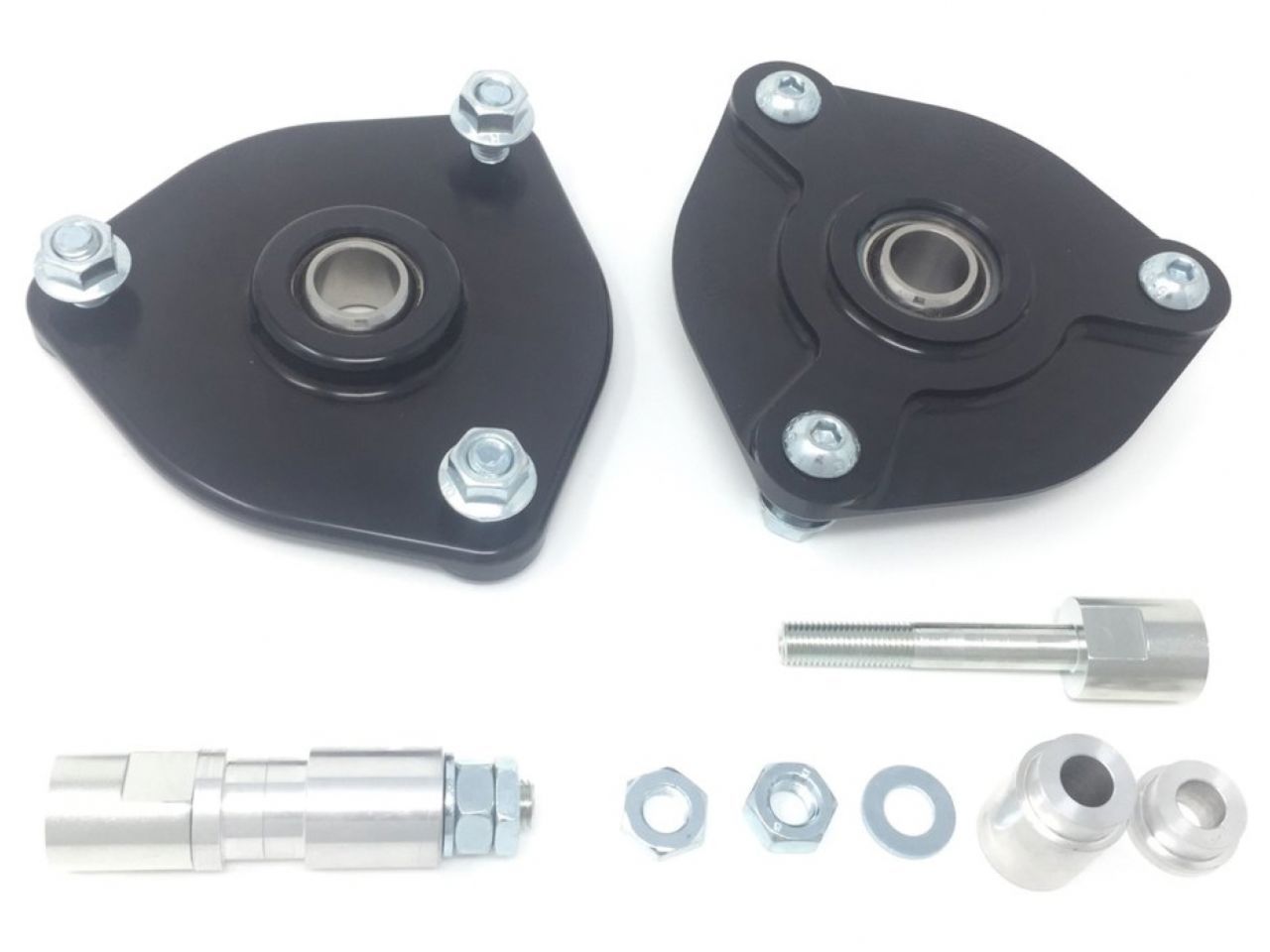

- Install kit included
- Anodized black finish for durability
- Engineered, tested, and manufactured in the United States
-
These extended front top hats for Mazda RX8 are designed to offer a bolt-on coaxial upper mount to customers wanting to run Penske 8300 coilovers. These will also add additional compression stroke to the shock. This top hat design allows the shock shaft to be tucked higher into the body of the car allowing the shock body to also tuck higher than normal. This results in more shock travel before bottoming out and will increase suspension compliance and traction. The spherical bearing upper mount also eliminates bushing compliance of stock mounts and gives greater control to dampers under high racing loads.
Non-coaxial upper mounts, while very economical for production and fine for street use, leave a lot of available suspension performance on the table. This can be vastly improved by going to a true coaxial setup that separates the upper mount and spring perch. Non-coaxial upper spring location induces bind in the shock shaft increasing friction on the shock piston and also forces the spring to have nonlinear compression rate. Increased friction leads to higher shock oil temperature, additional wear in pistons and seals, and greatly reduces traction at the wheel. This kit will round out your high-end Penske coilover kit and give you a true, bind-free coaxial upper mount setup.
Made in the USA from 6061 billet aluminum. All Diftech upper mounts use high strength FK wide-series bearings with Teflon liners for maintenance free, quiet operation. Customers can also email us for custom install kits for specific racing applications.
