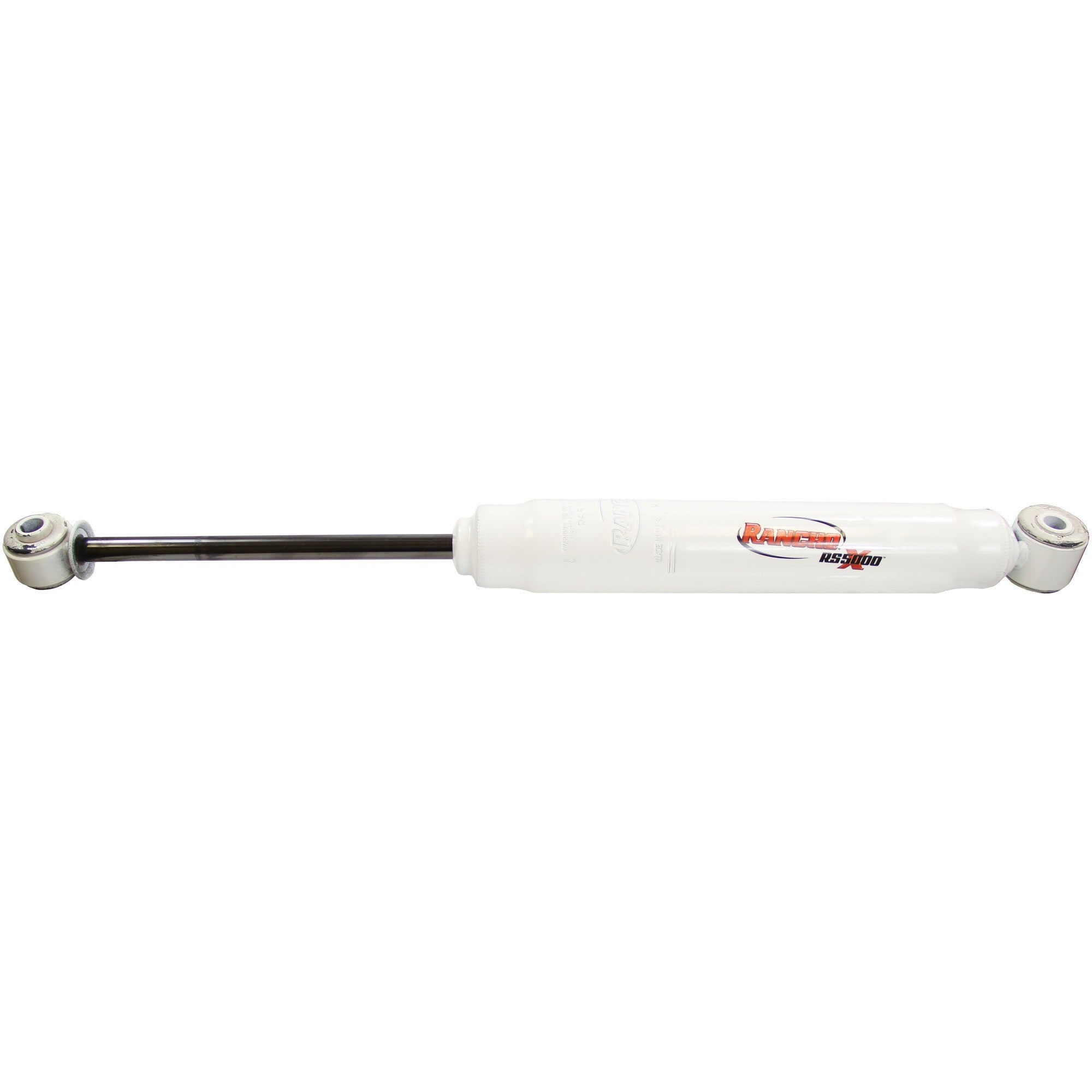

RANCHO RS5000X SHOCK ABSORBER
The core of this new and innovative shock from Rancho® is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road.
FEATURES:
Progressive Engagement Valving
Tuned Compression Control Valve
Enlarged 2-1/4-inch Twin Tube Body
Gas Pressurization of Shock
16 mm Nitro-Carburized Rod
Full-Displaced 35 mm Bore
1-3/8-inch Diameter Sintered Iron Piston
Rebound Bumper
Black, Natural Rubber Bushings
Low-Friction, Self-Lubricating Seal
Protective Boot
Glass-Filled, Fluon Banded Piston
Double-Welded Loops
Specifications:
- COMPRESSED LENGTH: 16.000
- EXTENDED LENGTH: 25.280
- TRAVEL LENGTH: 9.280
- LOWER MOUNTING CODE: LS47
- UPPER MOUNTING CODE: LS47
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2020 - 2023 | Chevrolet | Silverado 2500 HD | Custom |
| 2015 - 2023 | Chevrolet | Silverado 2500 HD | High Country |
| 2011 - 2023 | Chevrolet | Silverado 2500 HD | LT, LTZ, WT |
| 2020 | Chevrolet | Silverado 3500 HD | Base |
| 2015 - 2023 | Chevrolet | Silverado 3500 HD | High Country |
| 2011 - 2023 | Chevrolet | Silverado 3500 HD | WT, LTZ, LT |
| 2020 - 2023 | GMC | Sierra 2500 HD | AT4 |
| 2015 - 2023 | GMC | Sierra 2500 HD | Base |
| 2011 - 2023 | GMC | Sierra 2500 HD | Denali, SLT, SLE |
| 2011 - 2014 | GMC | Sierra 2500 HD | WT |
| 2020 - 2023 | GMC | Sierra 3500 HD | AT4 |
| 2015 - 2023 | GMC | Sierra 3500 HD | Base |
| 2011 - 2023 | GMC | Sierra 3500 HD | Denali, SLT, SLE |
| 2011 - 2014 | GMC | Sierra 3500 HD | WT |
