Rancho Shock Absorber

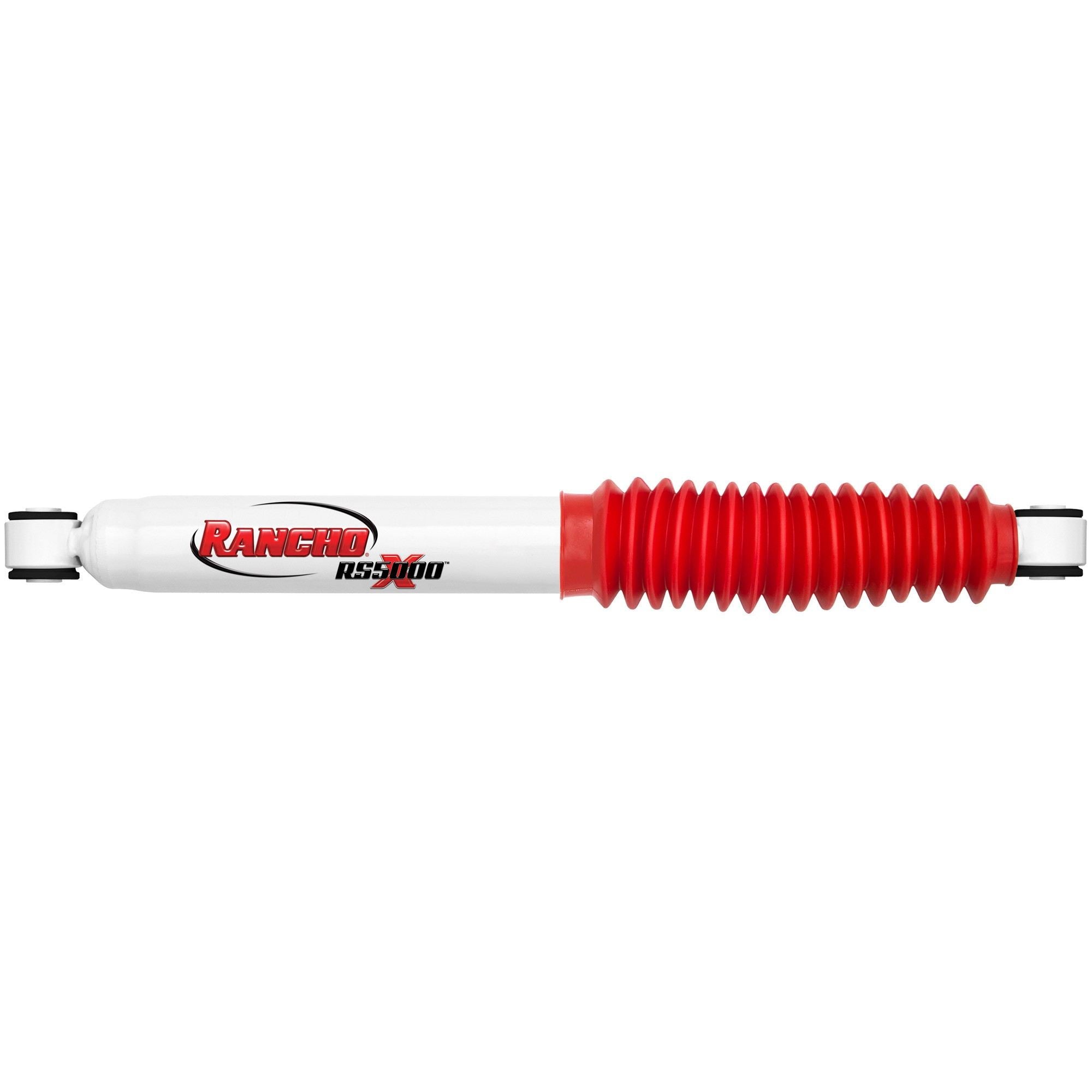

RANCHO RS5000X SHOCK ABSORBER

The core of this new and innovative shock from Rancho® is the unique and patented 8/0 and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road.

FEATURES:

Progressive Engagement Valving

Tuned Compression Control Valve

Enlarged 2-1/4-inch Twin Tube Body

Gas Pressurization of Shock

16 mm Nitro-Carburized Rod

Full-Displaced 35 mm Bore

1-3/8-inch Diameter Sintered Iron Piston

Rebound Bumper

Black, Natural Rubber Bushings

Low-Friction, Self-Lubricating Seal

Protective Boot

Glass-Filled, Fluon Banded Piston

Double-Welded Loops

Specifications:

• COMPRESSED LENGTH: 13.640
• EXTENDED LENGTH: 21.540
• TRAVEL LENGTH: 7.900
• LOWER MOUNTING CODE:LS25
• UPPER MOUNTING CODE: LS92
