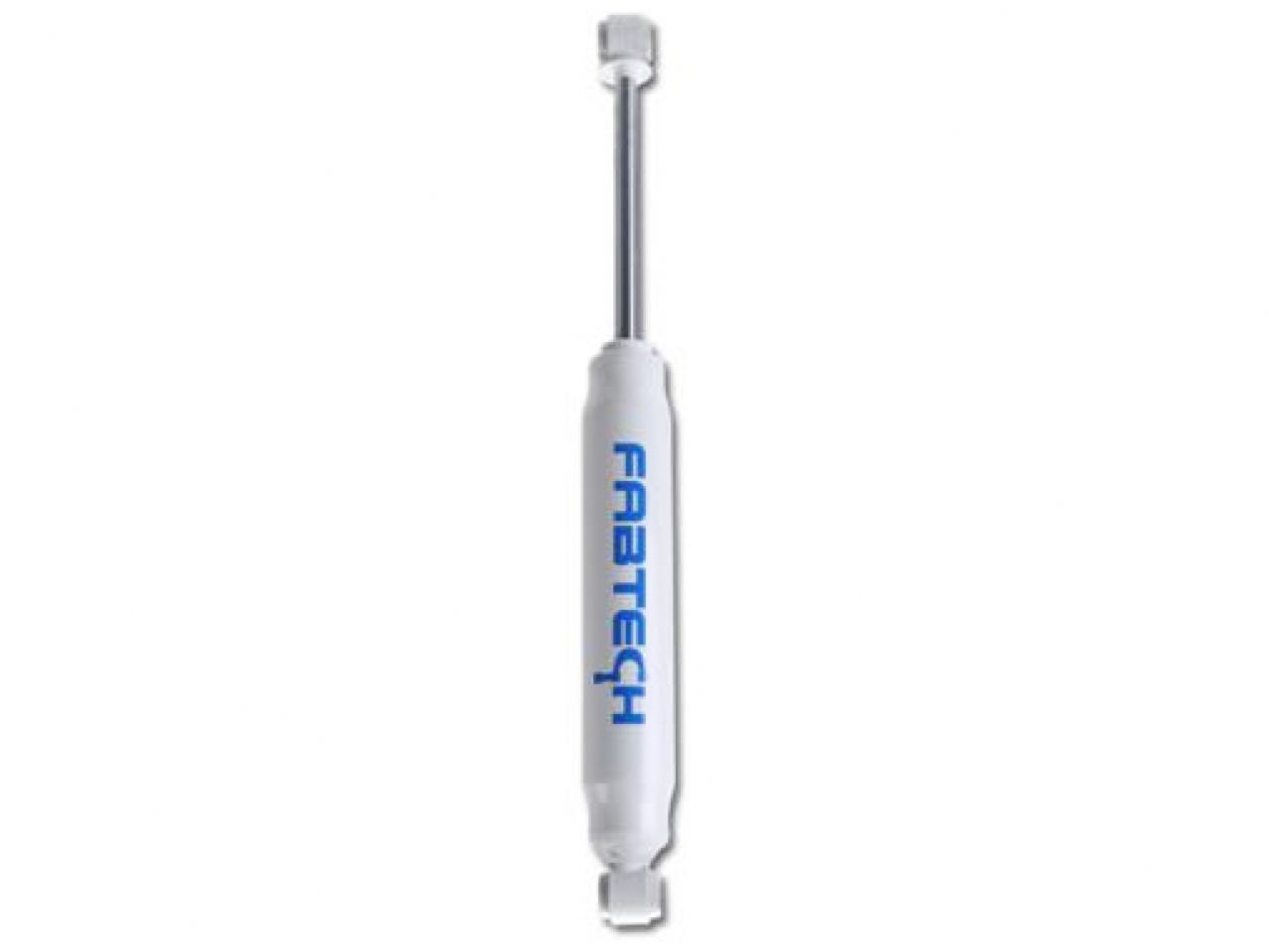

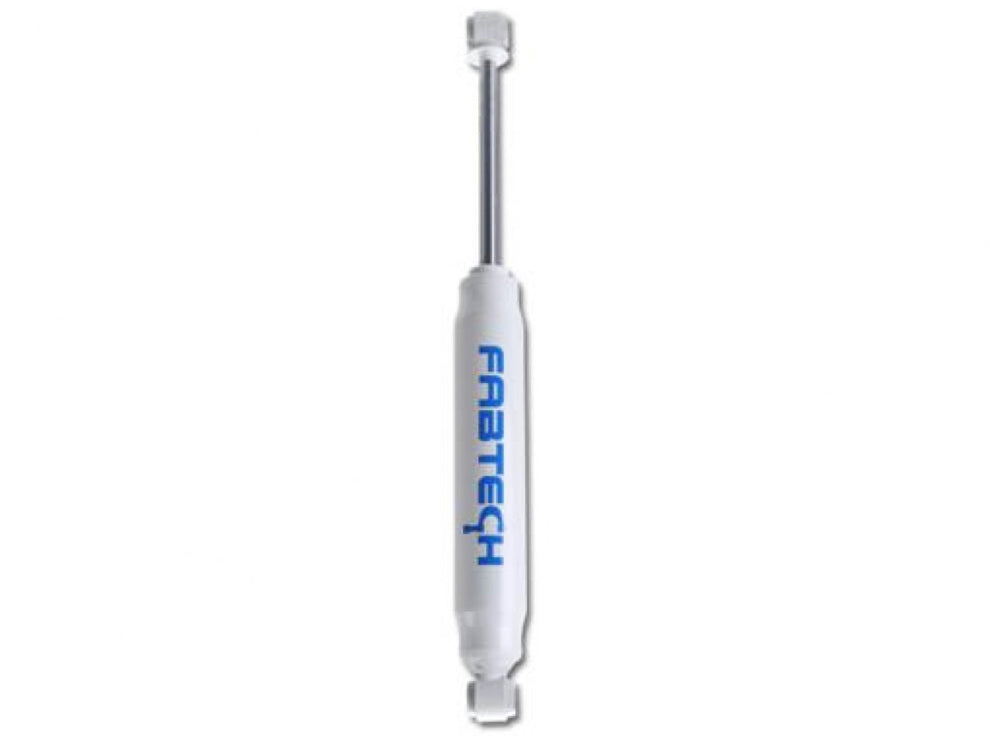

Fabtech Shock Absorber

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9 stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Type: Hydraulic
• With Coil Spring: No
• Internal Design: Twin Tube
• Adjustable: No
• Extended Length (IN): 22-1/2 Inch
• Compressed Length (IN): 14.32 Inch
• Rod Diameter (IN): 9/16 Inch
• Upper Mounting Style: Eyelet Bushing-EB1
• Lower Mounting Style: Eyelet Bushing-EB1
• Valving Type: 9 Stage High Velocity Valving
• Rod Finish: Chrome Plated
• Rod Material: Steel
• Body Color: White
• With Reservoir: No
• Includes Dust Shield: No
• Includes Boot: No
• Quantity: Single

Features

• Twin Tube Hydraulic Construction
• Closed Cell Foam Insert
• High Flow 9 Stage Valving
• Polyurethane Bushings
