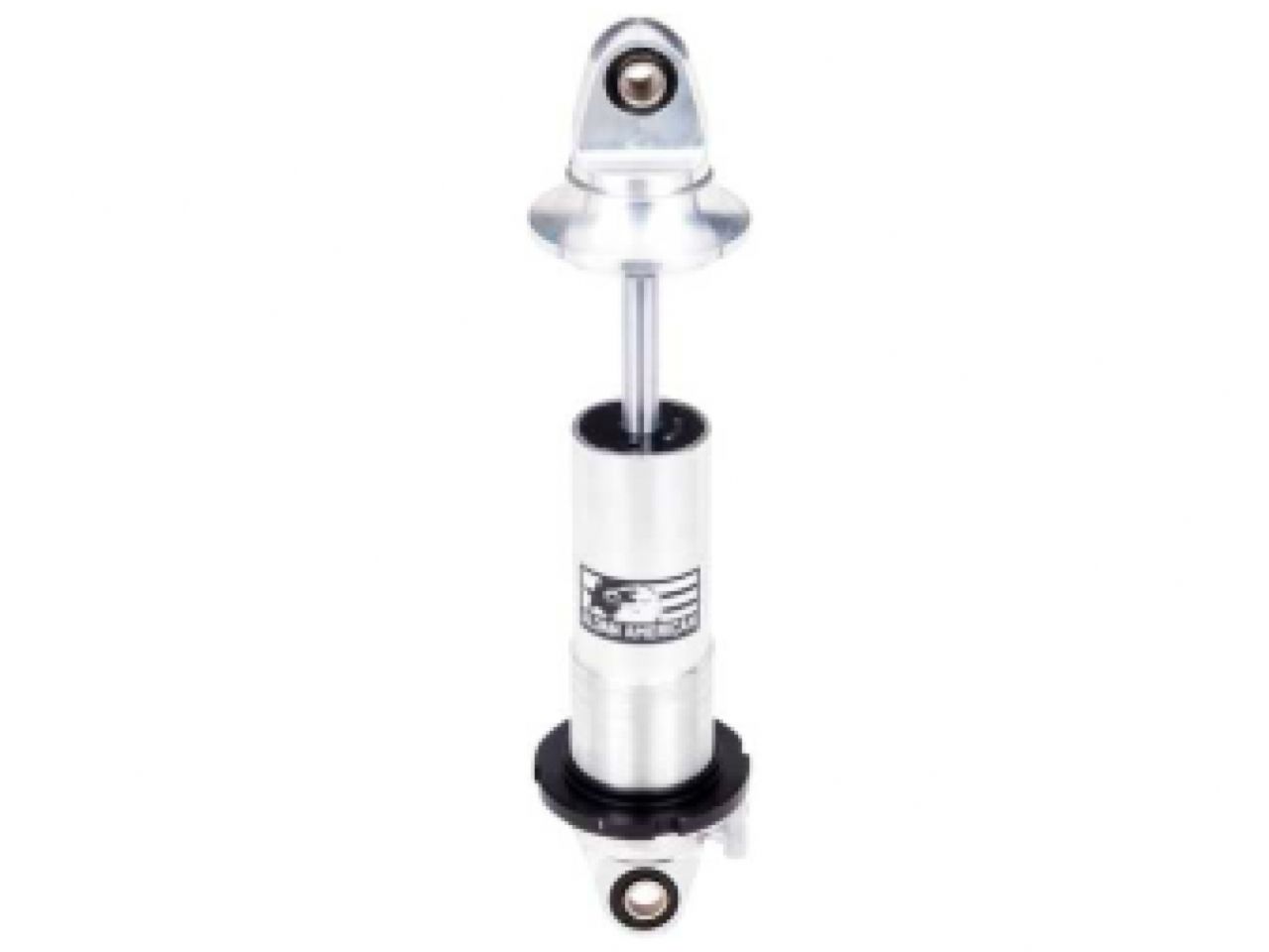

Aldan American Coilover Shock | Compression (Single) Adjustable | Ext. 15.4 in.

Coilover Shock | Compression (Single) Adjustable | Ext. 15.4 in. | Bearing

Aldan American’s TrueLine series shock absorbers are designed to with 2.0” shock bodies and single shock adjustment for fine shock tuning for a more consistent, smoother ride. TrueLine Series shocks are made in the USA.

Greater shock absorber adjustability allows improved handling and better ride quality when comparing to over the counter and basic shock setups. TrueLine Series shocks are designed to work with factory or aftermarket control arms, air bag shock replacements and rear end shock absorber setups. Custom shock absorber lengths available with polyurethane or spherical bearing mounts for stock or lowered car and truck applications.

Aldan TrueLine Series shock are machined from 6061-T6 billet aluminum providing a lightweight, high strength solution for reducing unsprung weight. Complete packages available for front & rear setups. TrueLine Series shock absorbers are fully rebuildable and serviceable for a lifetime of use and are made in the U.S.A.

Phantom Series Compression Adjustable coilovers provide 6 Compression Settings Settings of Adjustment that gives you the ability to control the rebound speed of your shocks.

Features:

• Coilover Shock Adjustment: Compression (single) adjustable

• Adjustable Ride Height: 14-14.5"

• Coilover Position: Rear

• Extended Length: 15.4 in. / Compressed Length: 11.5 in.

• Coilover Mounting: Bearing

Specifications

Weight: 5 lbs

Dimensions: 22.5 × 8.75 × 4 in

Coilover Shock Adjustment: Compression (single) adjustable

Ride Height: 14-14.5"

Coilover Position: Rear

Suspension Height Adjustment: Adjustable Ride Height

Mounting: Bearing

Extended Length: 15.4 in.

Compressed Length: 11.5 in.

Shock Body Material: Aluminum

Shock Body Finish: Billet

# of Valving Selections: 6

Body Diameter of Coil Shock: 2.0 in.

Recommended Spring Diameter: 2.5 in.

Recommended Spring Length: 10

Hardware Included: Yes

Bushing Color: Natural

Bushing Material: Steel
