Rancho RS9000XL Shock Absorber
Rancho RS9000XL Shock Absorber
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Shock Absorber
- Category
- Shock Absorbers
- Color
- Silver
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shock absorber mount type lower
- Eyelet
- Shock absorber mount type upper
- Eyelet
- Shipping dimensions (L × W × H)
- Shipping weight
- 8.3 lb
- Barcode
- 039703010252
Billable shipping weight; may include dimensional weight.

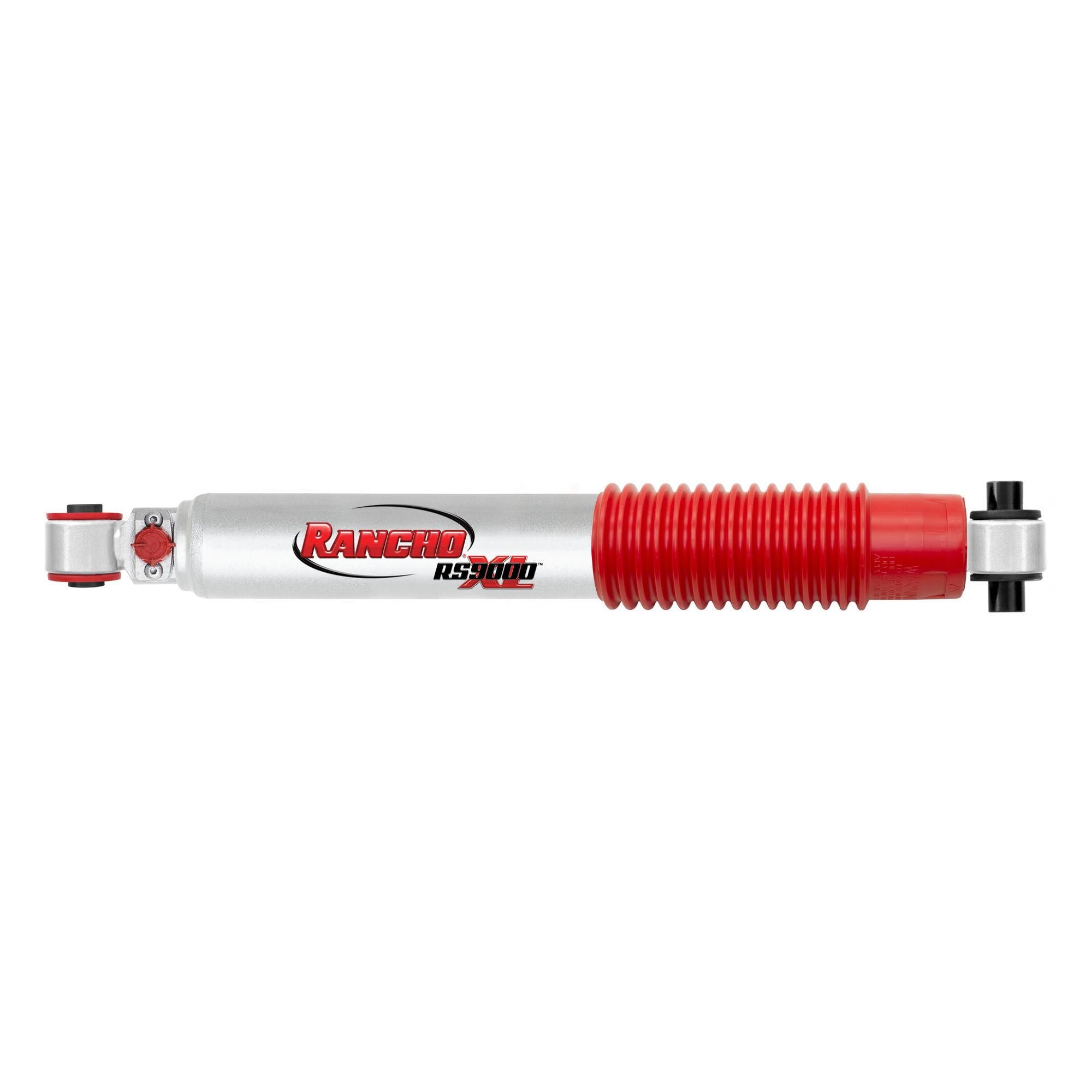

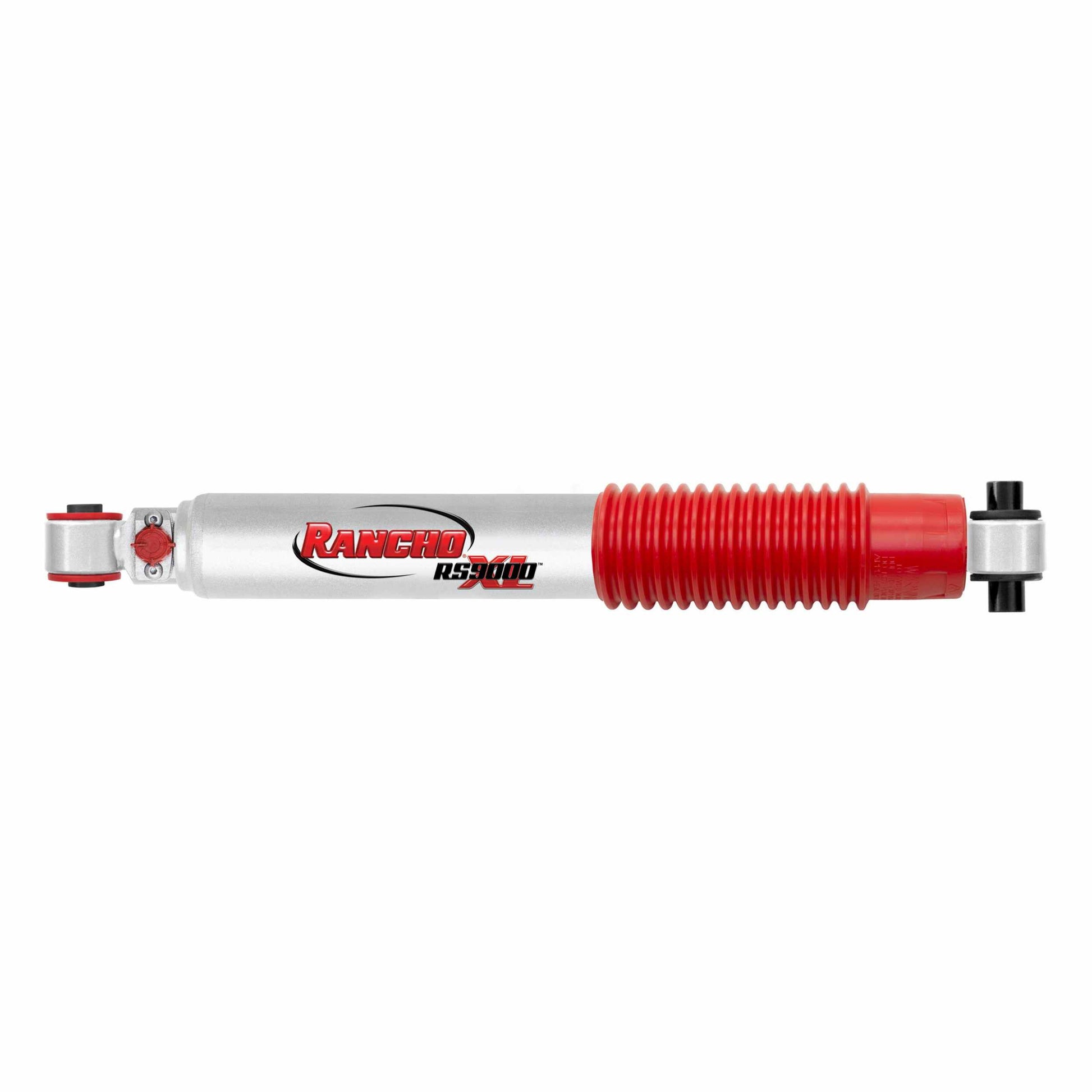

The Rancho® RS9000"XL 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations. Engineered and manufactured in the U.S.
Features:
Large, 2.75-in. (70mm) tri-tube body*
Increased fluid capacity to operate cooler
Large, heavy-duty 18mm Nitro-Carb rod*
Increases scuffing resistance & corrosion protection
9-position tuning technology
Allows for optimal performance in any environment
9-Position adjustment knob
Provides a clear understanding of tuning level
Gas pressurization of shock
Minimizes air-to-oil mixture
Graphite-filled, Fluon banded piston
Provides smoother piston travel & greater responsiveness
1-1/4-in. Diameter Sintered Iron piston
Brings increased structural conformity
Rebound Bumper
Helps control the rebound motion during harsh driving conditions
Low-Friction, self-lubricating seal
Provides an extra layer of defense against dirt & debris
Liquid metallic finish
Premium long lasting finish
Protective boot
Added protection for the shock rod and oil seal
Double-welded loops
Added strength and durability
Consumer protection
Specifications:
- COMPRESSED LENGTH:20.44
- EXTENDED LENGTH: @ DRS Contact: 29.74
@ DRS Fully Engaged: 31.40 - TRAVEL LENGTH: 10.96
- LOWER MOUNTING CODE:LS38
- UPPER MOUNTING CODE: LS97
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021 | Jeep | Wrangler | Islander, Unlimited Freedom, Freedom, Unlimited 80th Anniversary, Unlimited Islander, 80th Anniversary |
| 2022 | Jeep | Wrangler | Unlimited High Tide |
| 2018 - 2019 | Jeep | Wrangler | Unlimited Moab |
| 2021 - 2022 | Jeep | Wrangler | Unlimited Sahara Altitude, Unlimited Rubicon 392, Unlimited Willys, Unlimited Sport Altitude, Unlimited Willys Sport, Willys, Unlimited Rubicon 4xe, Unlimited High Altitude, Unlimited Sahara 4xe, Willys Sport, Unlimited High Altitude 4xe |
| 2018 - 2022 | Jeep | Wrangler | Unlimited Sport, Unlimited Sport S, Unlimited Sahara, Rubicon, Unlimited Rubicon, Sport, Sport S |
