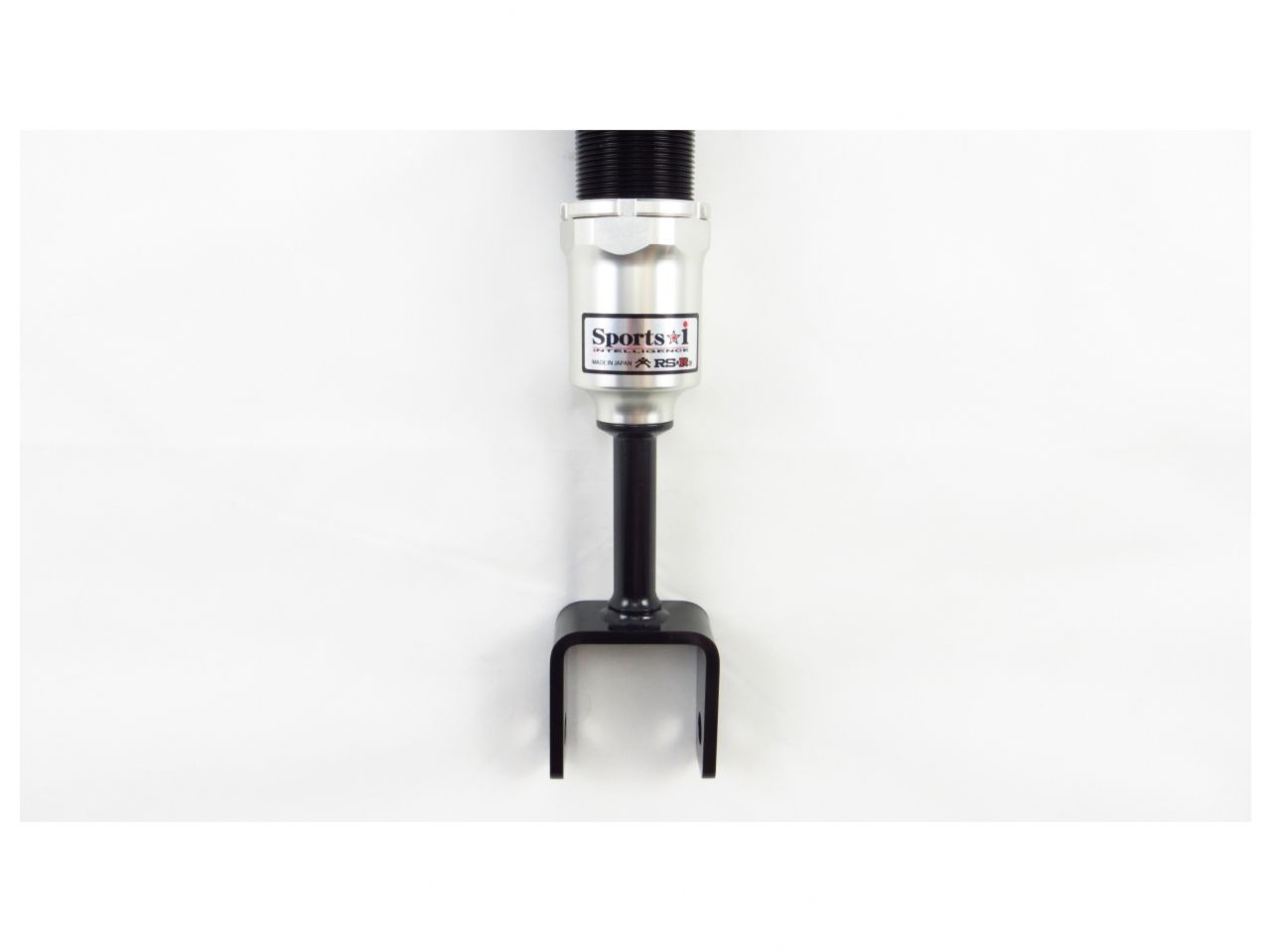

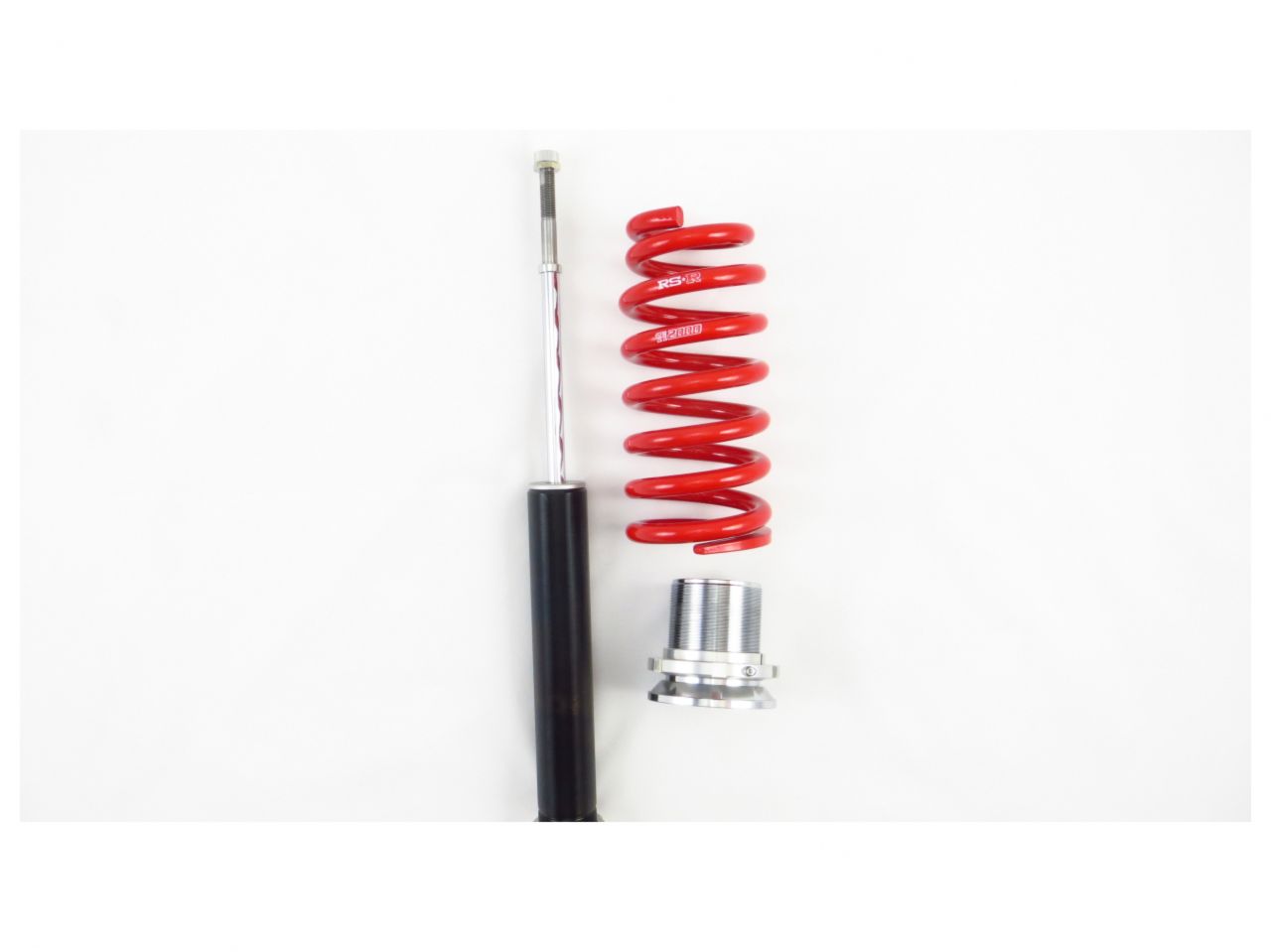

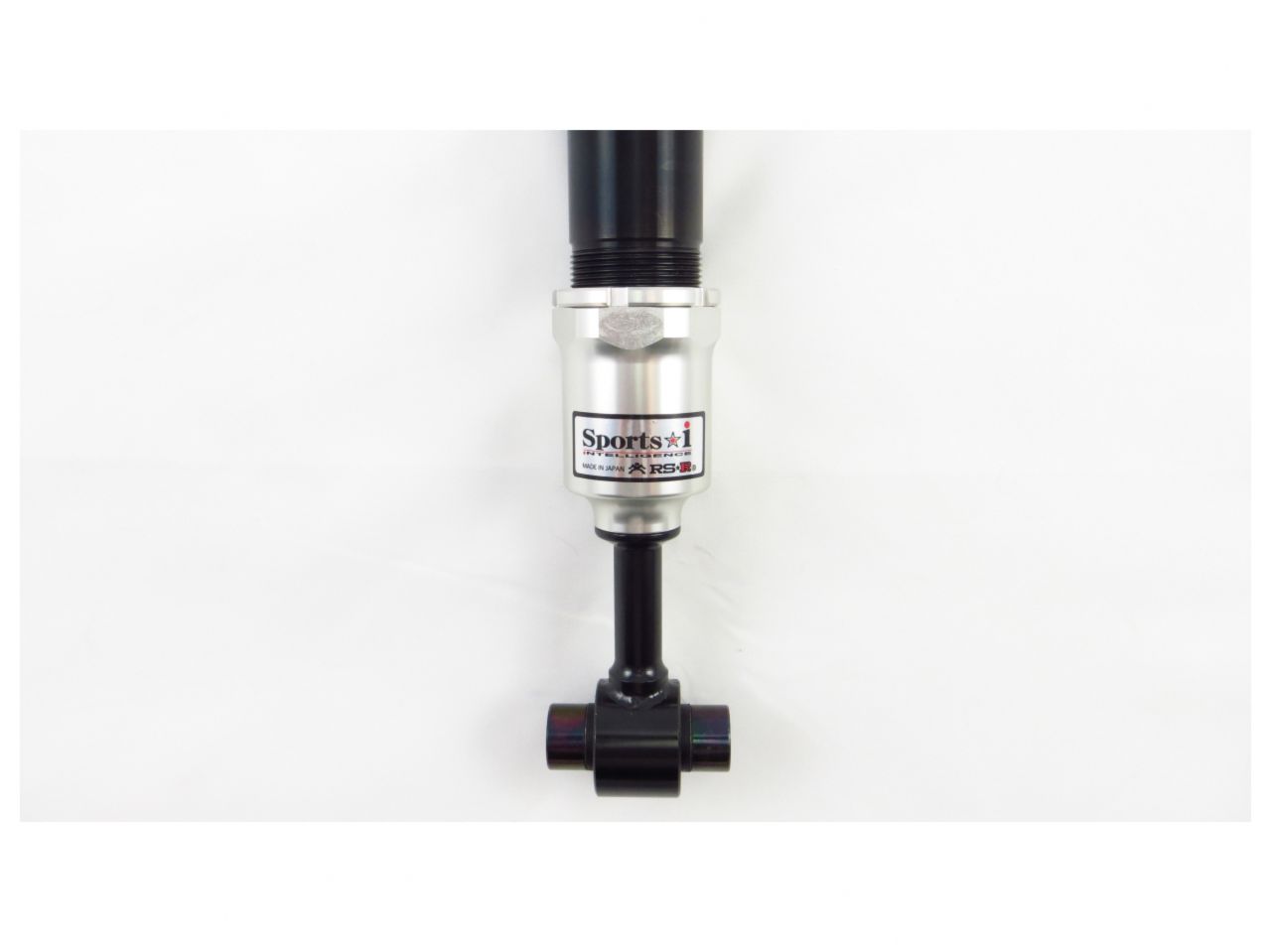

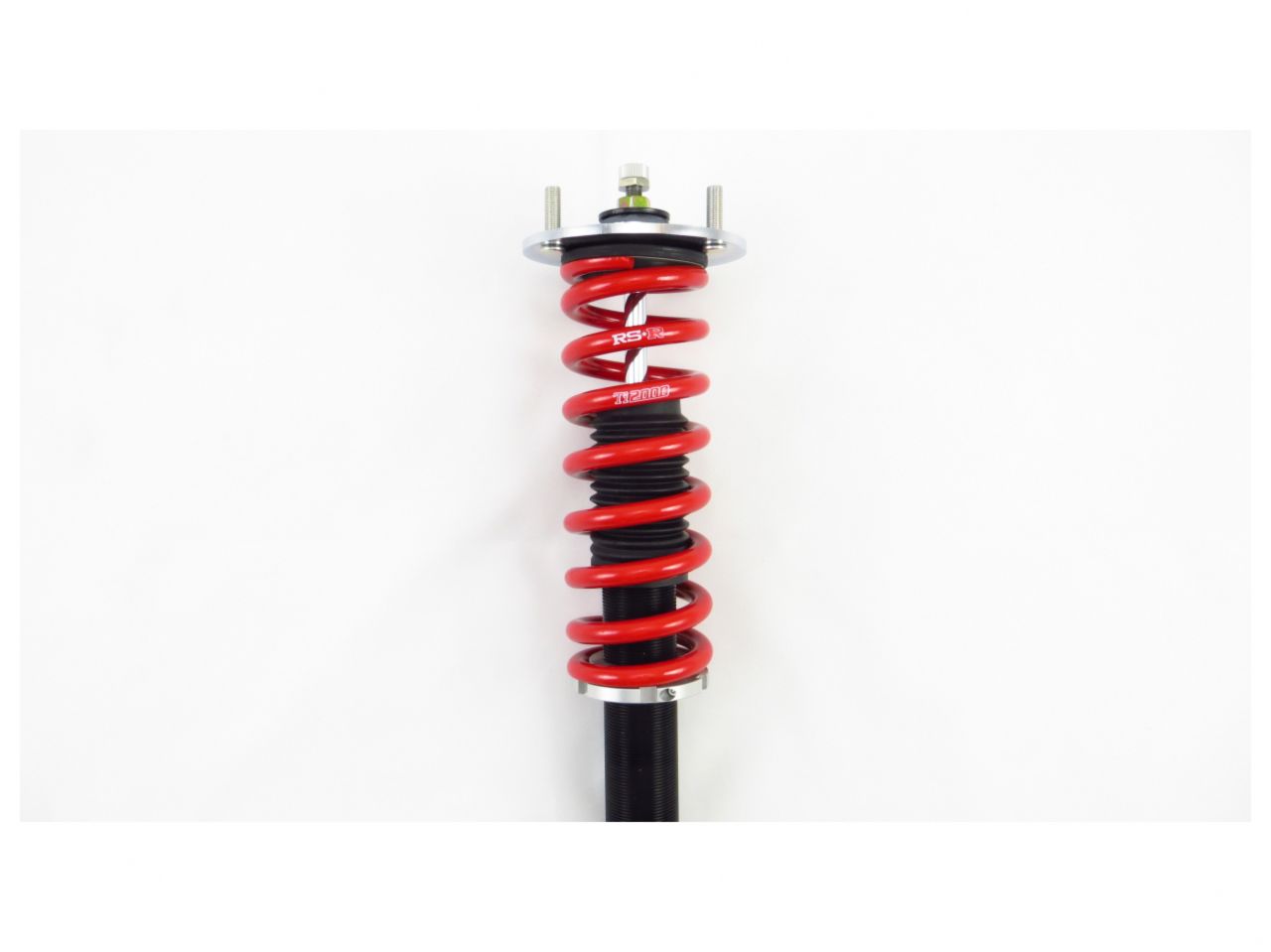

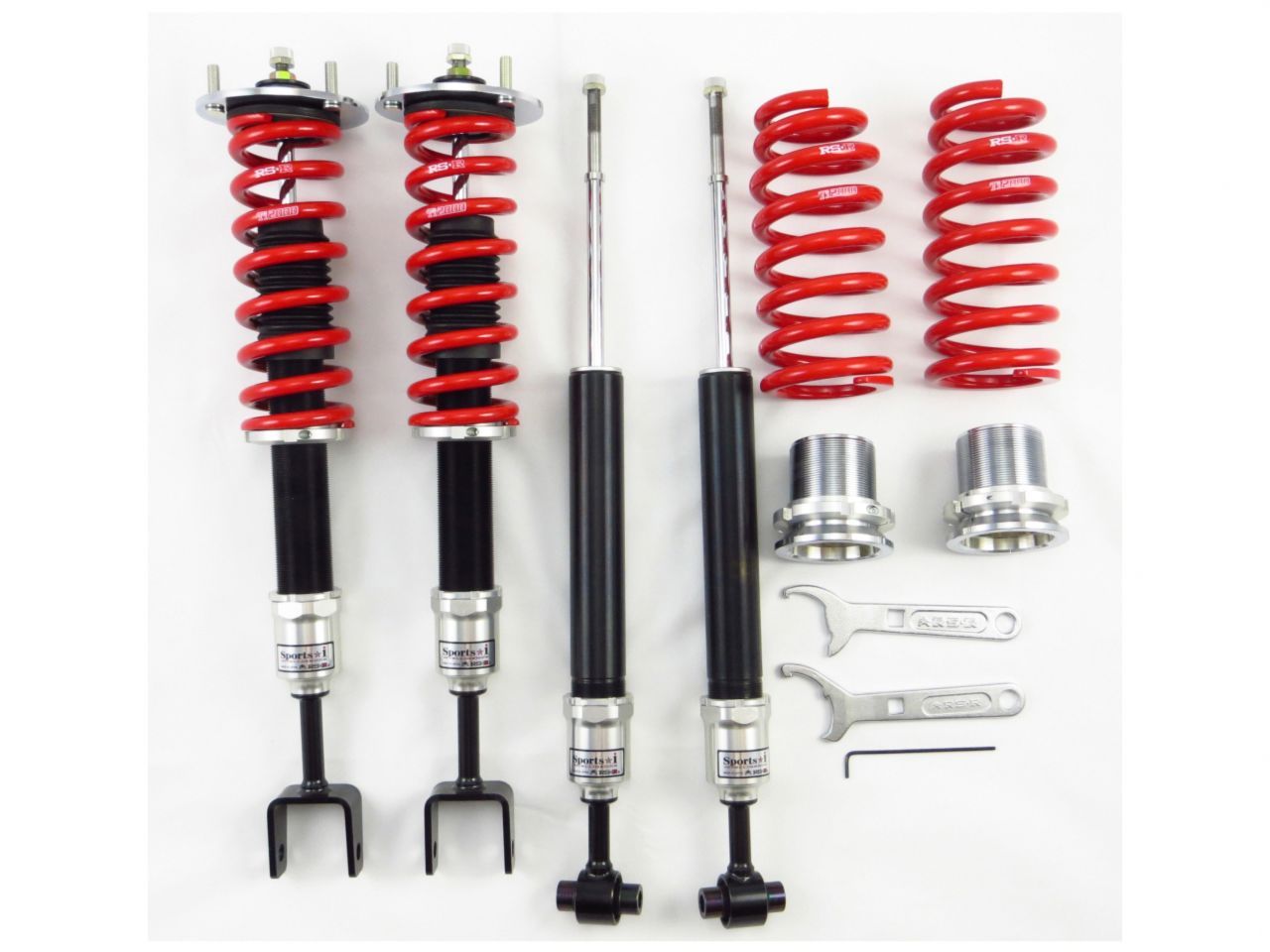

RS-R 2010 Lexus GS 450h RWD Sports-i Coilovers

2010 Lexus GS 450h RWD Sports-i Coilovers

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Specifications for Non F-Sport:
Preset Approximate Height From RS-R:
Front -40mm (-1.6inch)
Rear -45mm (-1.8inch)

Maximum Adjustment Ranges:
Front +15mm to -95mm (+0.6inch to -3.8inch)
Rear -10mm to -75mm (-0.4inch to -3.0inch)

Recommended Adjustments for Optimal Ride-ability:
Front -10mm to -60mm (-0.4inch to -2.4inch)
Rear -10mm to -75mm (-0.4inch to -3.0inch)

Spring Rates:
Front 9.00kg/mm
Rear 8.30kg/mm

Specifications for F-Sport:
Preset Approximate Height From RS-R:
Front -30mm (1.2inch)
Rear -35mm (1.4inch)

Maximum Adjustment Ranges:
Front +15mm to -95mm (+0.6inch to -3.8inch)
Rear -15mm to -60mm (-0.6inch to -2.4inch)

Recommended Adjustments:
Front 0mm to -60mm (0inch to -2.4inch)
Rear -15mm to -60mm (-0.6inch to -2.4inch)

Spring Rates:
Front 9.00kg/mm
Rear 8.30kg/mm

Dampers are 36 way adjustable in the front and the rear.
