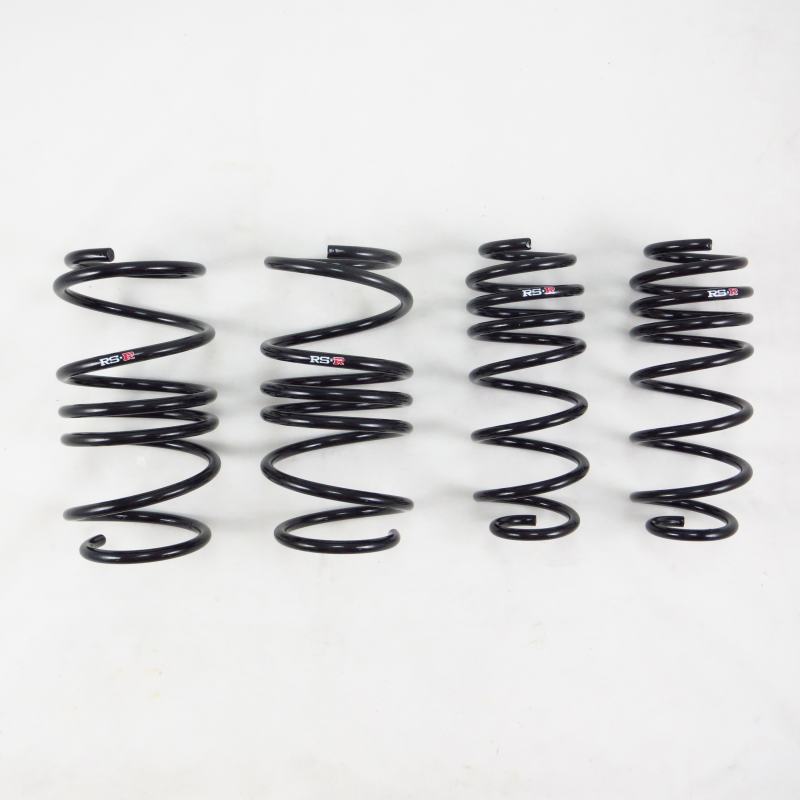

RS-R Down Sus: Toyota Prius 2016+, Rate F/R (kg/mm): 2.90 / 4.29

The Down Sus provides a lowered stance and improved handling to fulfill your needs to lower your car and improve its handling. Taking into consideration the factory suspension geometry, shock dampening, spring rate and ride height levels, RS-R ensures that the springs you are getting were made for your car both for performance and for comfort.

Part#: T580D
Compatibility: 2016+ Toyota Prius
Chassis code: ZVW50 / ZVW51

Specifications:
Approximate Drop (For ZVW50 - Prius Three):
Front -30mm to -35mm (-1.2inch to -1.4inch)
Rear -20mm to -25mm (-0.8inch to -1.0inch)

Approximate Drop (For ZVW50 - Prius Four)
Front -25mm to -30mm (-1.0inch to -1.2inch)
Rear -20mm to -25mm (-0.8inch to -1.0inch)

Approximate Drop (For ZVW51 - Prius Four Touring):
Front -30mm to -35mm (-1.2inch to -1.4inch)
Rear -20mm to -25mm (-0.8inch to -1.0inch)

Spring Rates:
Front 2.90kg/mm
Rear 4.29kg/mm
