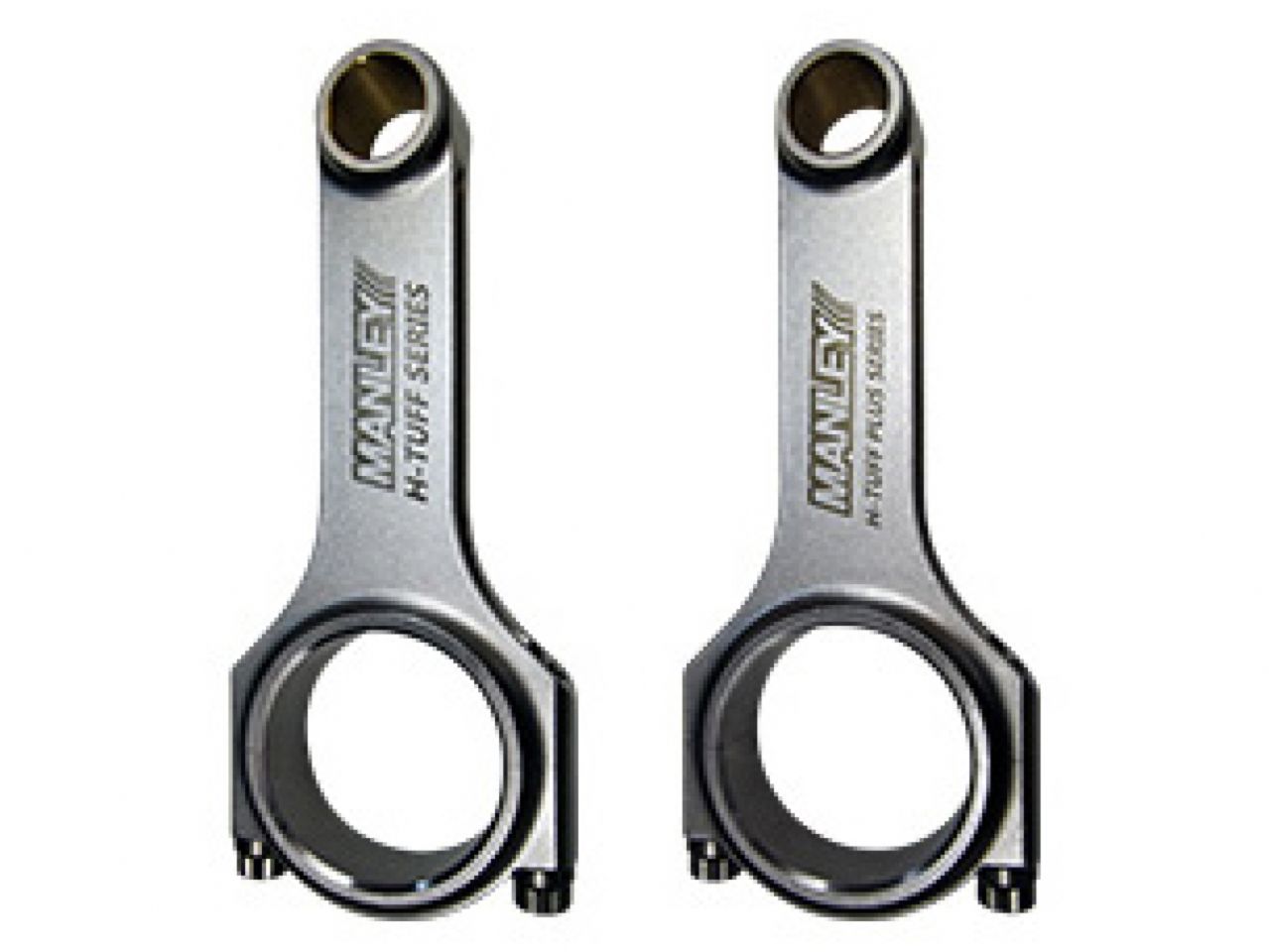

Manley Performance Rod-Subaru BRZ/Scion FR-S T/T

FA20 - H-TUFF & H-TUFF PLUS RODS

• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets " 1.5 grams
• Cap fasteners are 3/8" ARP 2000 for the H-Tuff and 3/8" ARP Custom Age 625" for the H-Tuff Plus
• Flywheel horsepower range for the these rods in a 4 cylinder application is 750 with the ARP 2000 bolts and 950 with ARP 625" bolts.
• Bridges the gap between our standard, proven H-Beams and top of the line, best of the best Turbo Tuff® Series rods
• H-Tuff delivers a stronger rod with greater safety margin to handle elevated boost and higher power levels for a modest price premium over standard H-Beams
• H-Tuff design incorporates wider beam and increased cross-sectional thickness in critical areas

Specifications

Fits: FA20 BRZ 2.0L 2013-Up/WRX 2015-Up

Center-to-Center: 5.090"

Big End Bore: 2.087"

Big End Width: .843"

Pin Diameter: .866" (22mm)

Pin Bore: .8671"

Gram Weight: TBA
