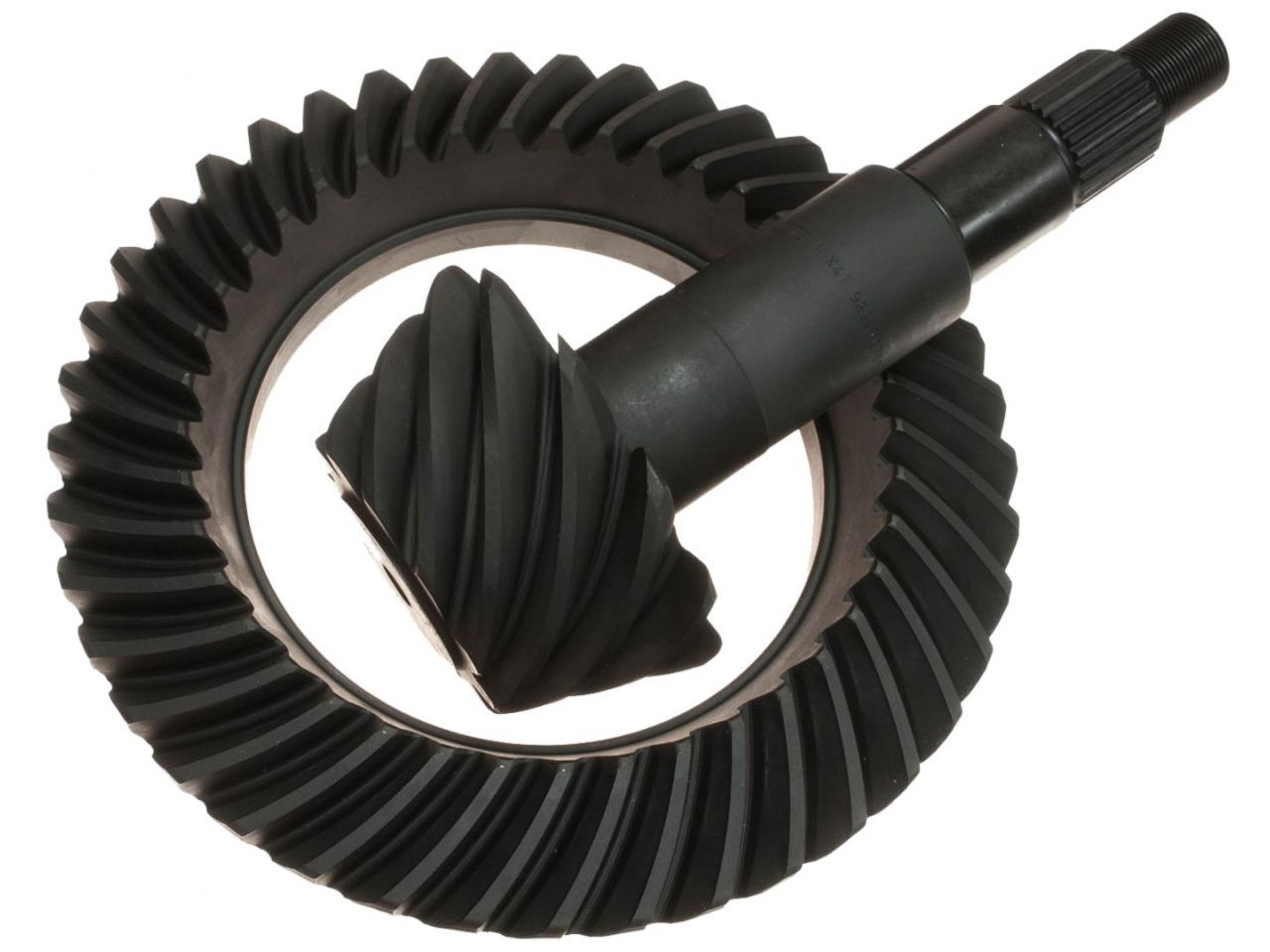

Richmond Ring And Pinion Kit

4.56 Ratio Differential Ring and Pinion for 8.875 (Inch) (12 Bolt)AM20456 Application Notes

• For AMC 20
• 4.56 Ratio
• 3.08 Ratio Carrier and Higher

AM20456 Specifications

Cover Bolt Quantity : 12

Differential Carrier Break : 3.08 and Higher

Differential Case Design Type : AMC 20

Pinion Gear Tooth Quantity : 9

Pinion Shaft Diameter : 1.625 (Inch)

Pinion Spline Count : 28

Ring & Pinion Gear Ratio : 4.56

Ring Gear Bolt Quantity : 8

Ring Gear Diameter : 8.875 (Inch)

Ring Gear Material : 8620 Steel

Ring Gear Rotation : Standard

Ring Gear Tooth Quantity : 41
