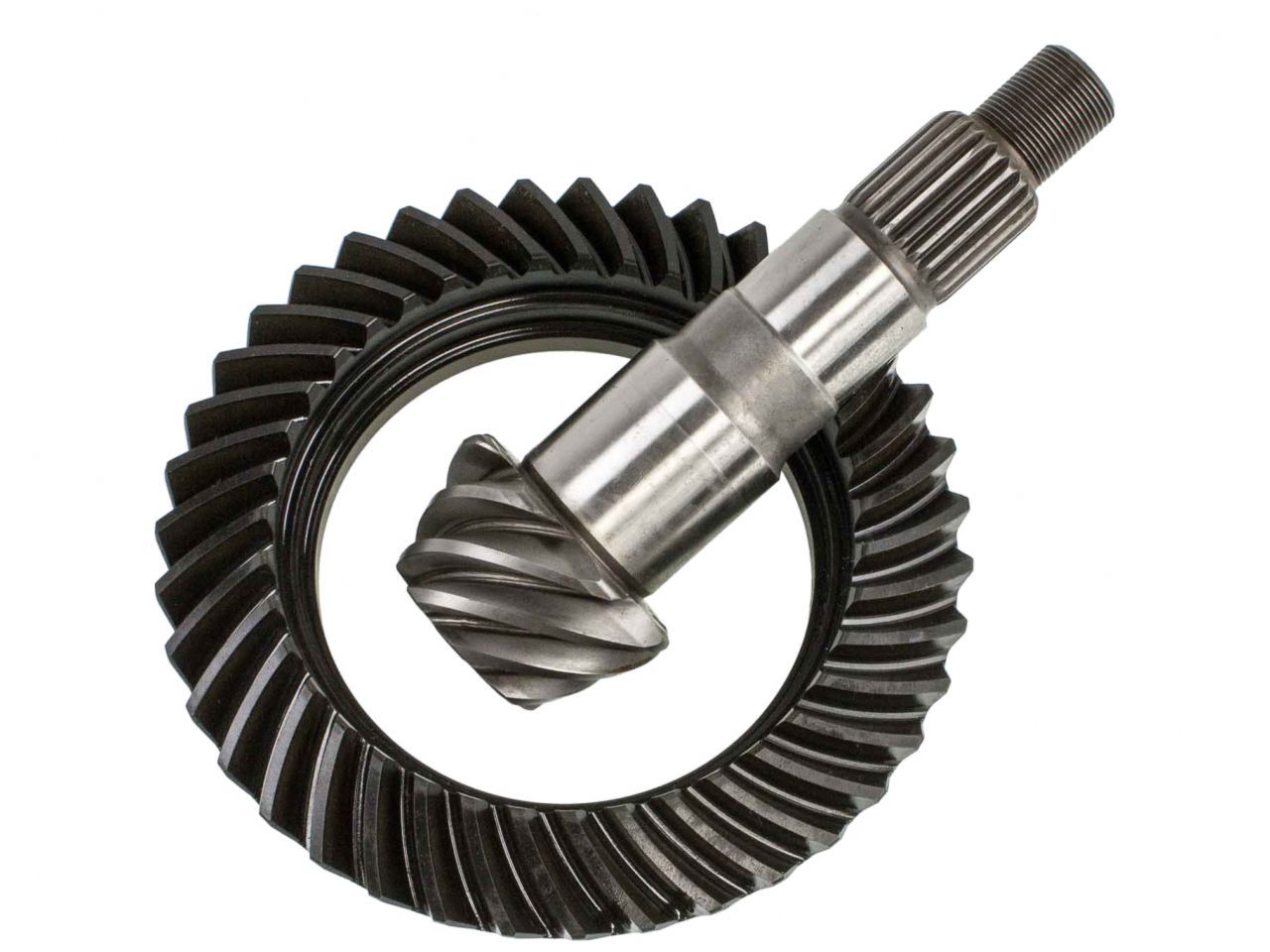

Richmond Ring And Pinion Kit

4.88 Ratio Differential Ring and Pinion for 7.125 (Inch) (10 Bolt)

Application notes:

• For Dana 30
• 4.88 Ratio
• 3.73 Ratio Carrier and Higher

Specifications

Cover Bolt Quantity : 10
Differential Carrier Break : 3.73 and Higher
Differential Case Design Type : Dana 30
Pinion Gear Tooth Quantity : 8
Pinion Shaft Diameter : 1.375 (Inch)
Pinion Spline Count : 24
Ring & Pinion Gear Ratio : 4.88
Ring Gear Bolt Quantity : 10
Ring Gear Diameter : 7.125 (Inch)
Ring Gear Material : 8620 Steel
Ring Gear Rotation : Reverse
Ring Gear Tooth Quantity : 39
Taxonomy : Differential LD, Ring and Pinion, Dana 30 JK Reverse
Title : Differential Ring and Pinion
