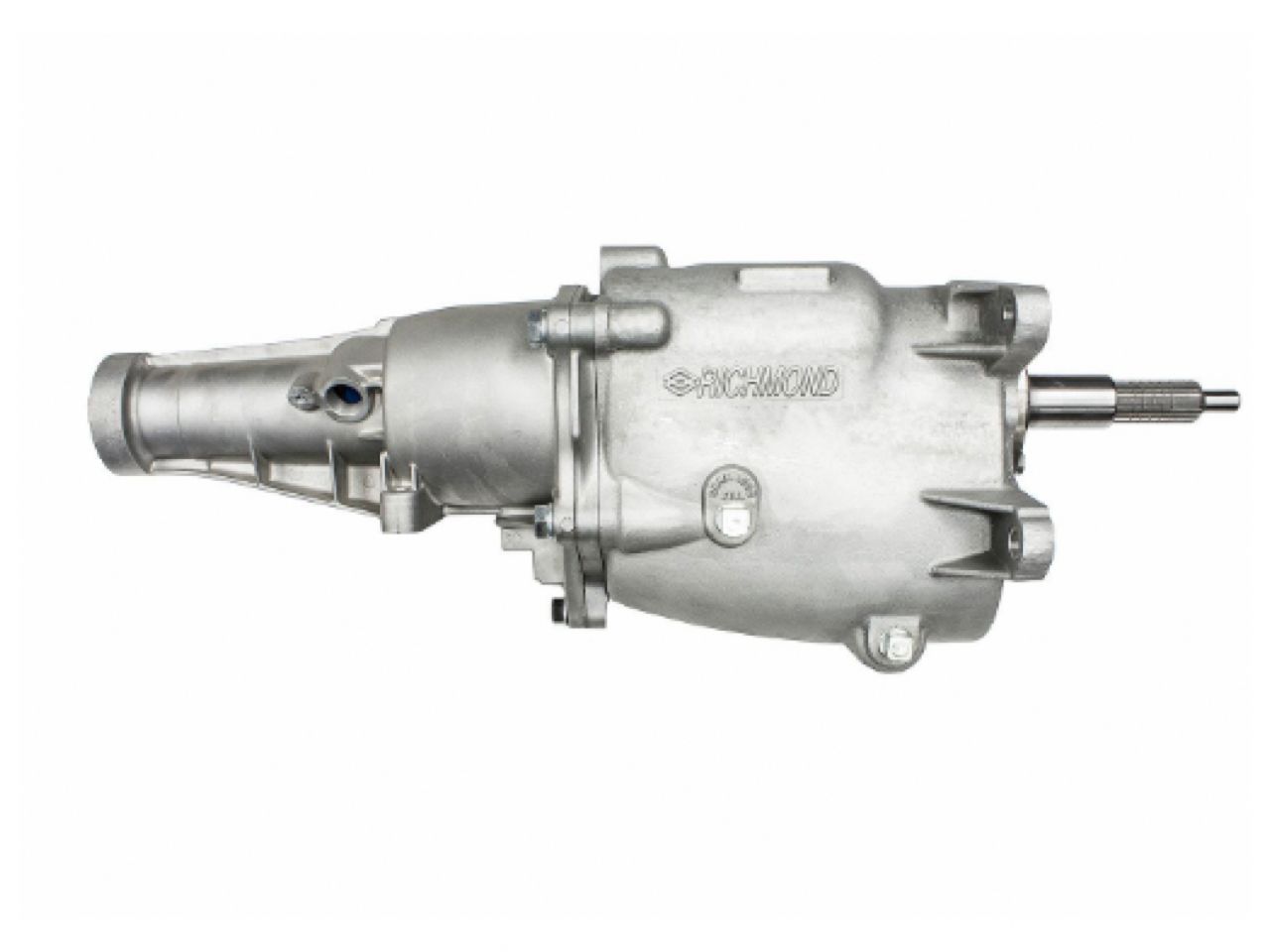

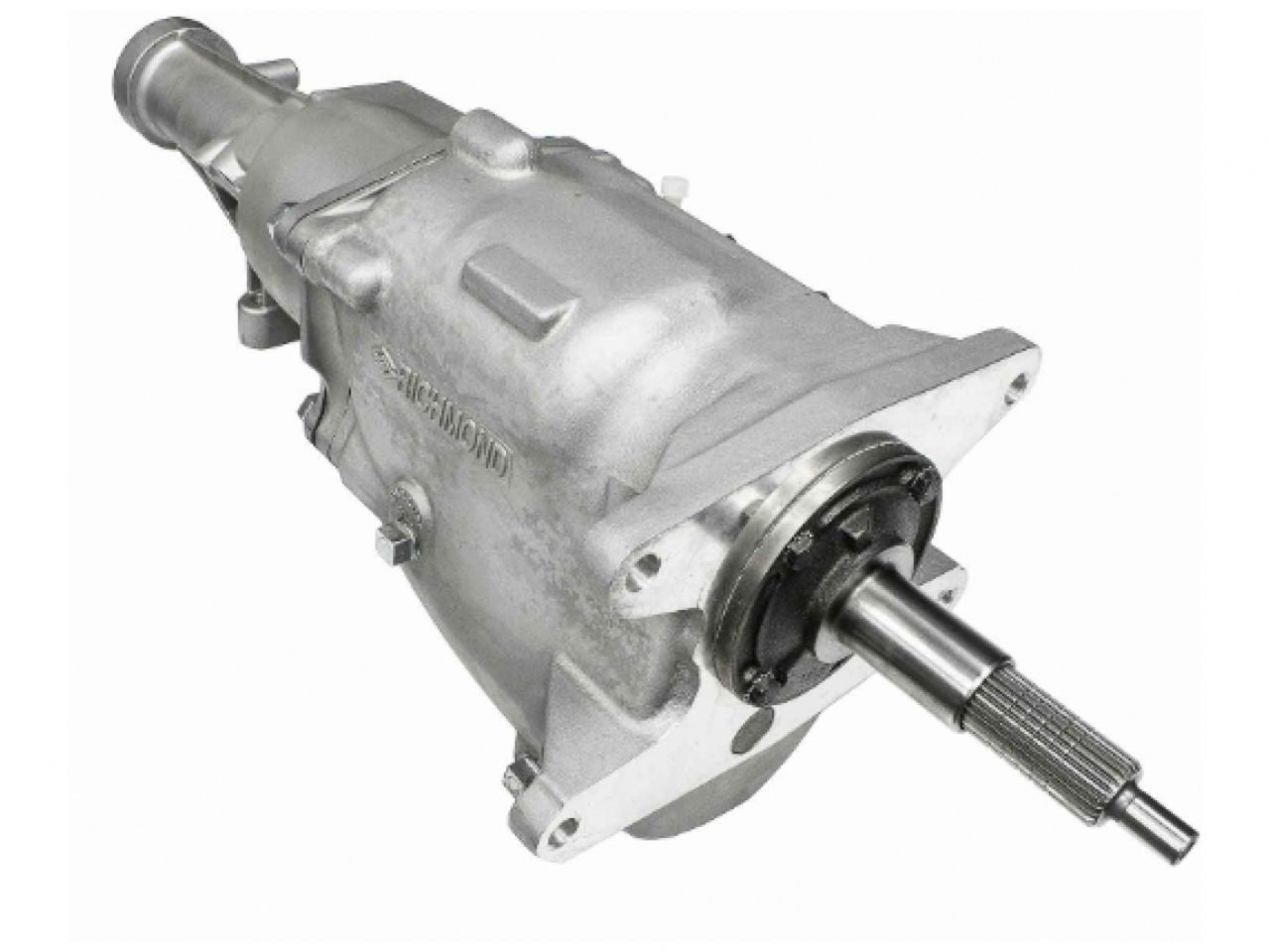

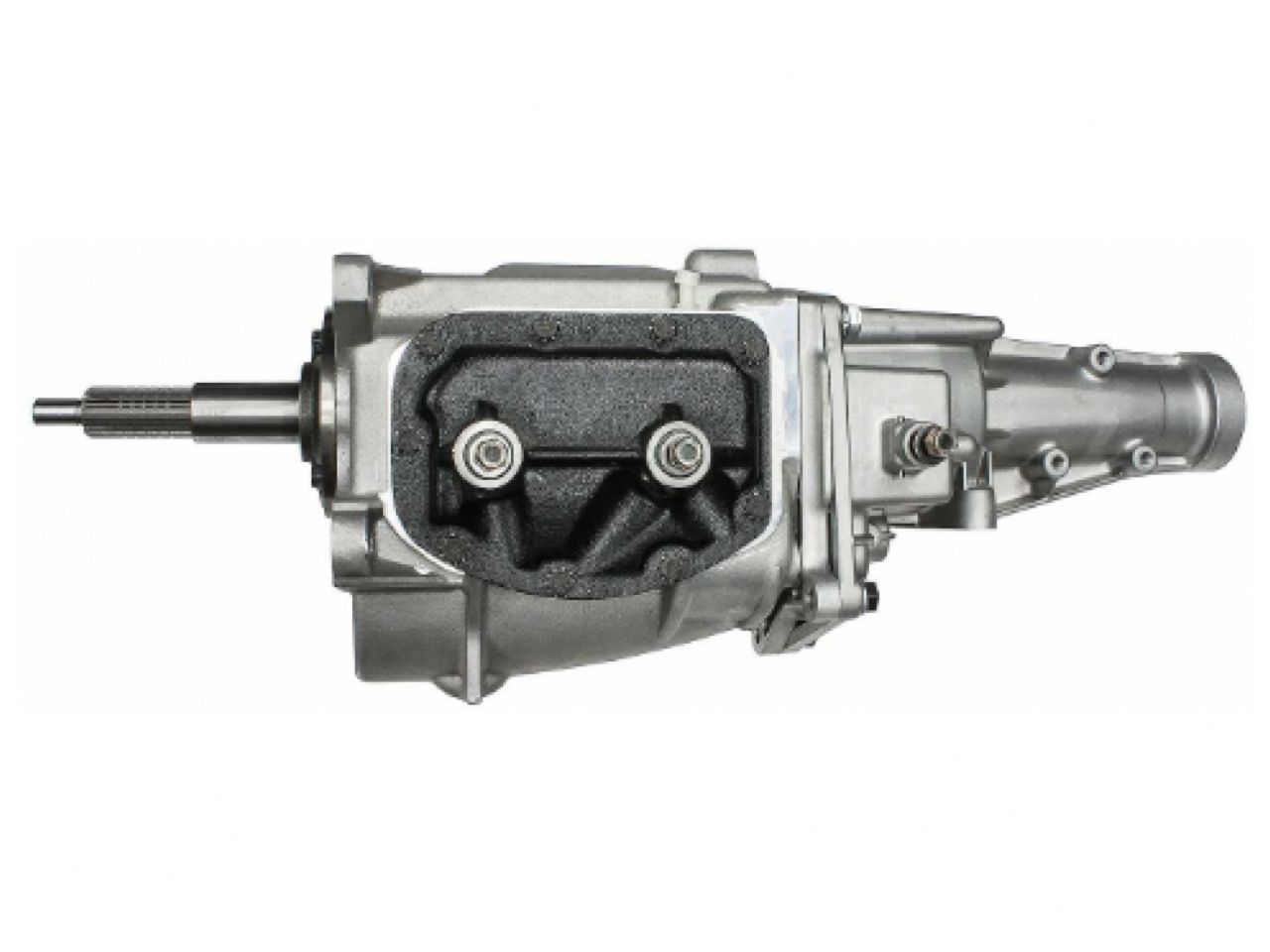

Richmond Super T-10 4-Speed Transmission

Super T-10 4-Speed Transmission

Richmond Gear is the leading manufacturer of professional quality, high-performance drivetrain products. Our complete line of products ranges from high performance ring-and-pinion sets for serious street and racing applications to torque-hungry manual transmissions and components. Richmond Gear products have been winners both at the Daytona 500 and U.S. Nationals for decades. WINNERS RUN RICHMOND!

Specifications:

• First Gear Ratio: 2.64
• Fourth Gear Ratio: 1.00
• Input Shaft Diameter: 1.125 (Inch)
• Input Shaft Spline Quantity: 26
• Maximum Torque: 325 (Foot Pounds)
• Oil Capacity: 2.4 (Pint)
• Oil Type: 80w90 GL-4
• Output Shaft Diameter: 1.375 (Inch)
• Output Shaft Spline Quantity: 32
• Reverse First Gear Ratio: 2.55
• Second Gear Ratio: 1.60
• Third Gear Ratio: 1.23
• Transmission Model: Richmond Super T10 4-Speed
