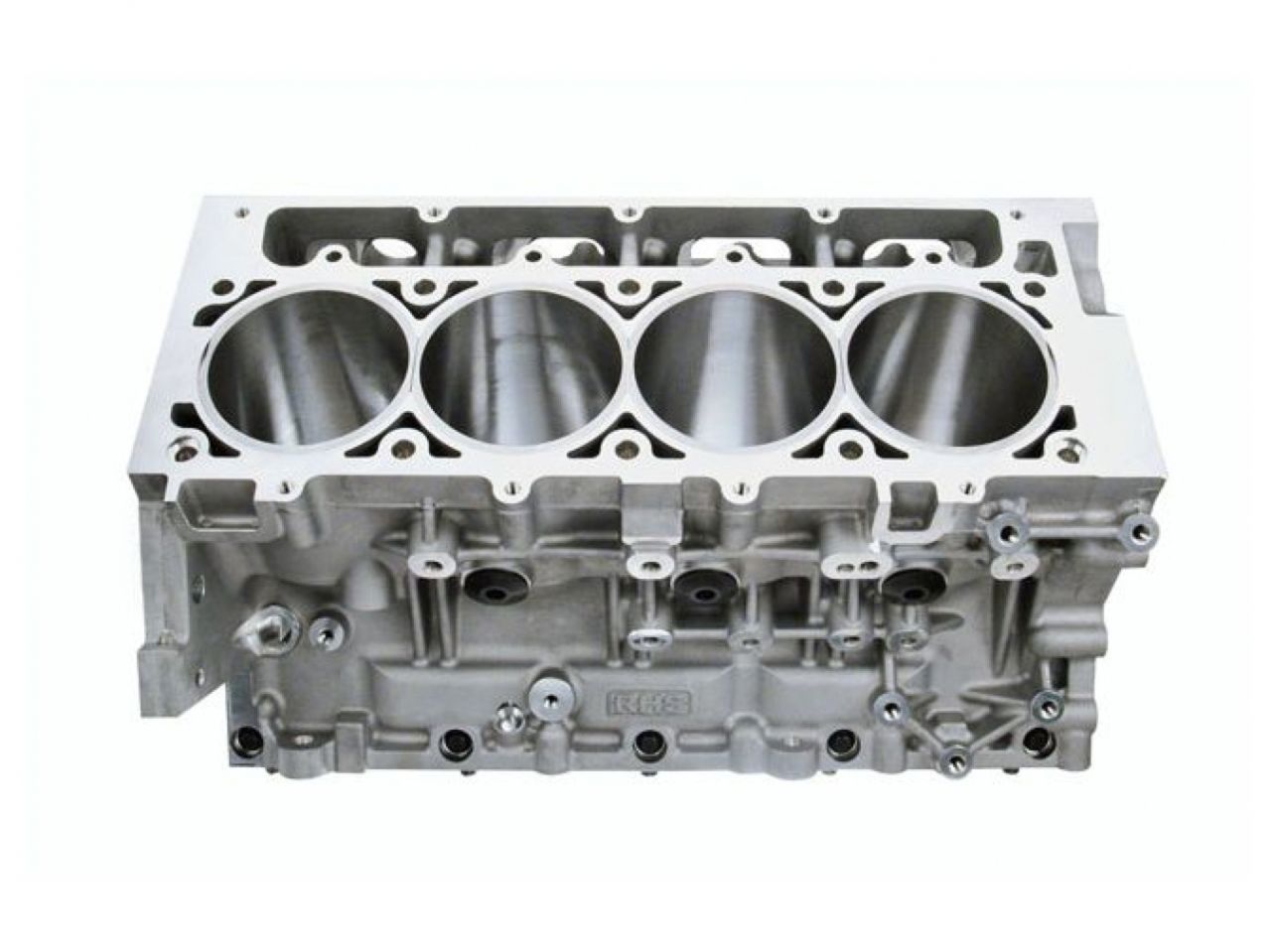

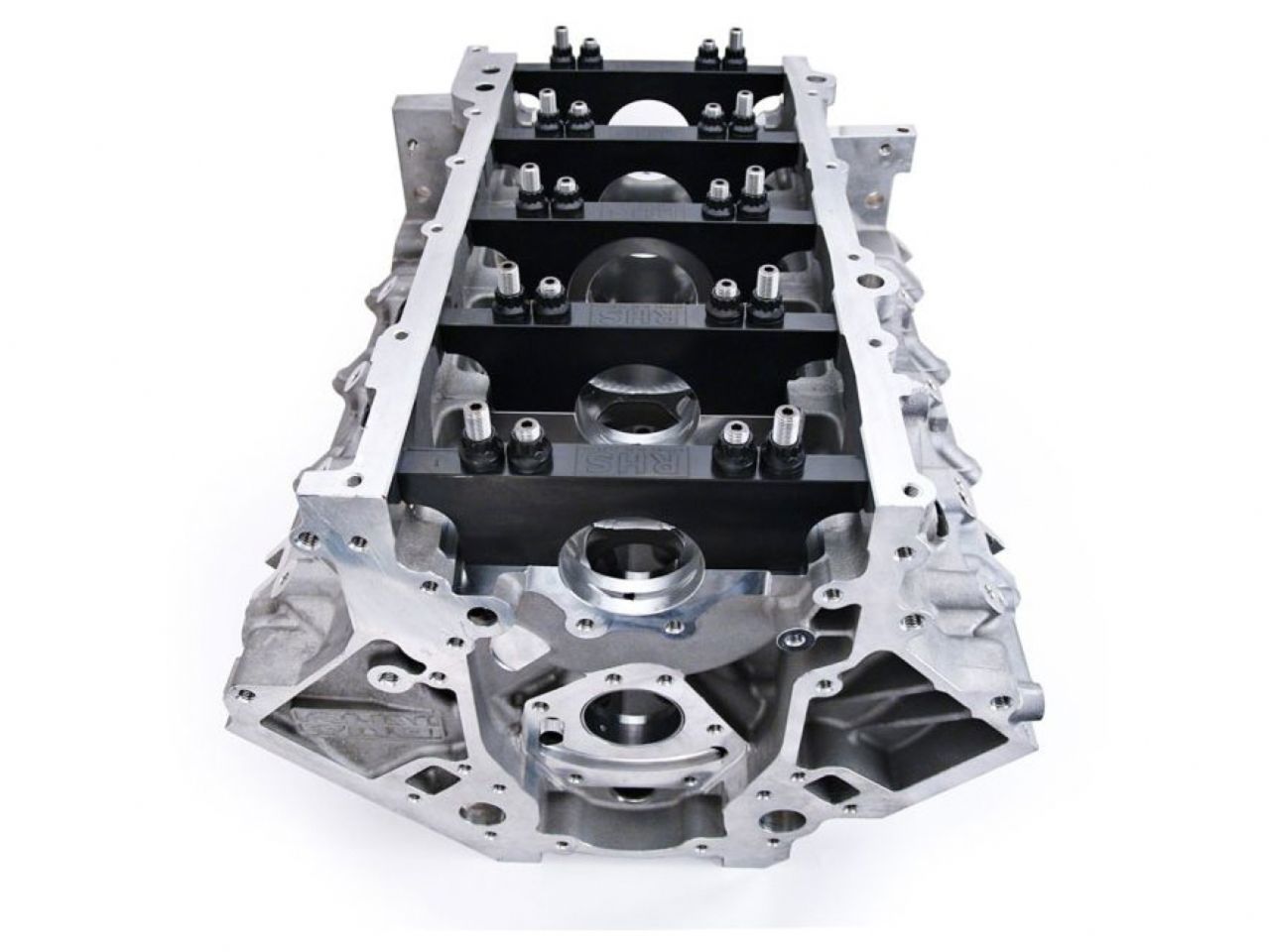

RHS LS Block,Std 9.240" Deck, Hone to 4.120"
RHS LS Block,Std 9.240" Deck, Hone to 4.120"
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Engine Block
- Category
- Motor Vehicle Engine Parts
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 140.0 lb
- Barcode
- 036584209522
Billable shipping weight; may include dimensional weight.

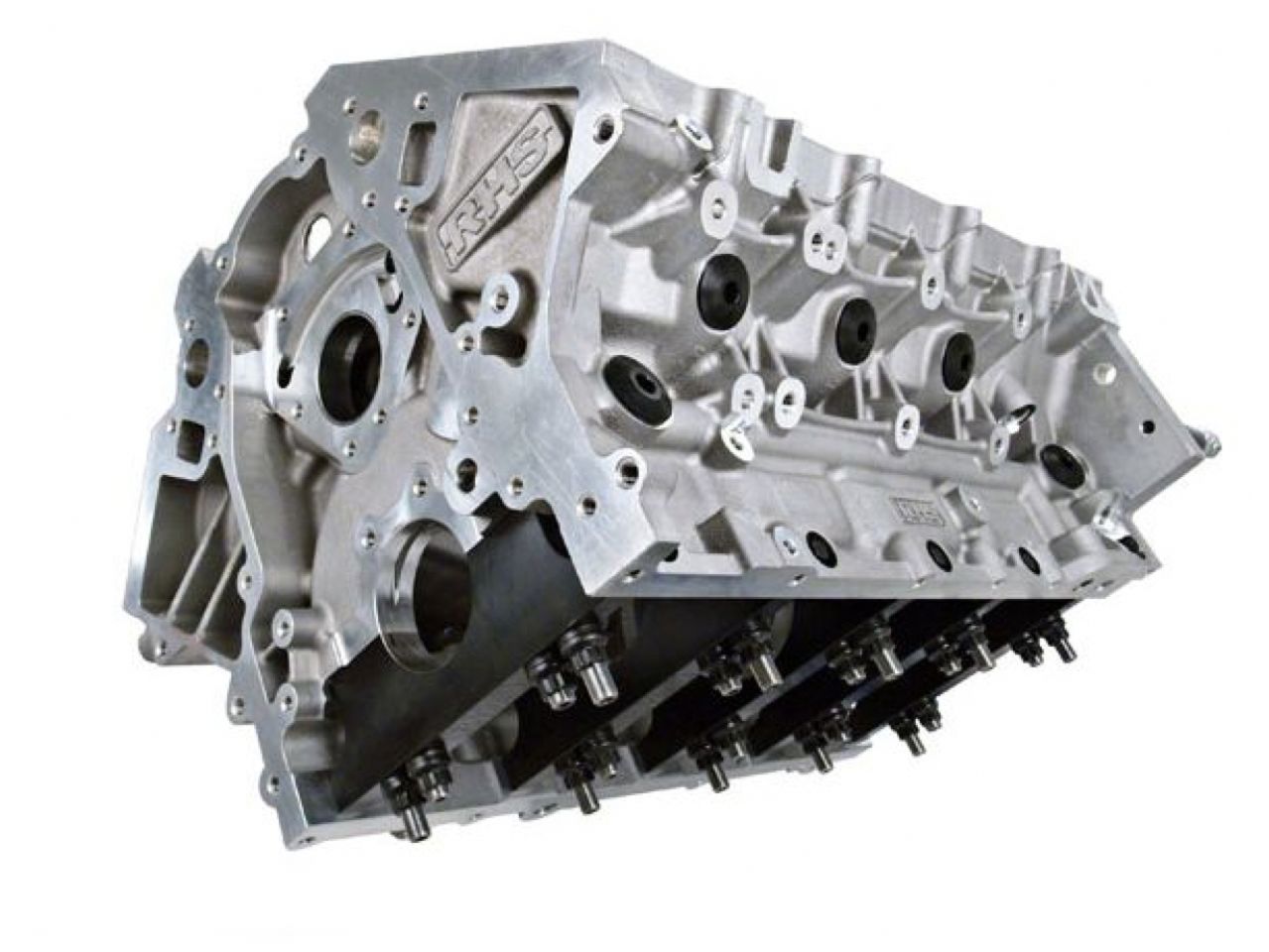

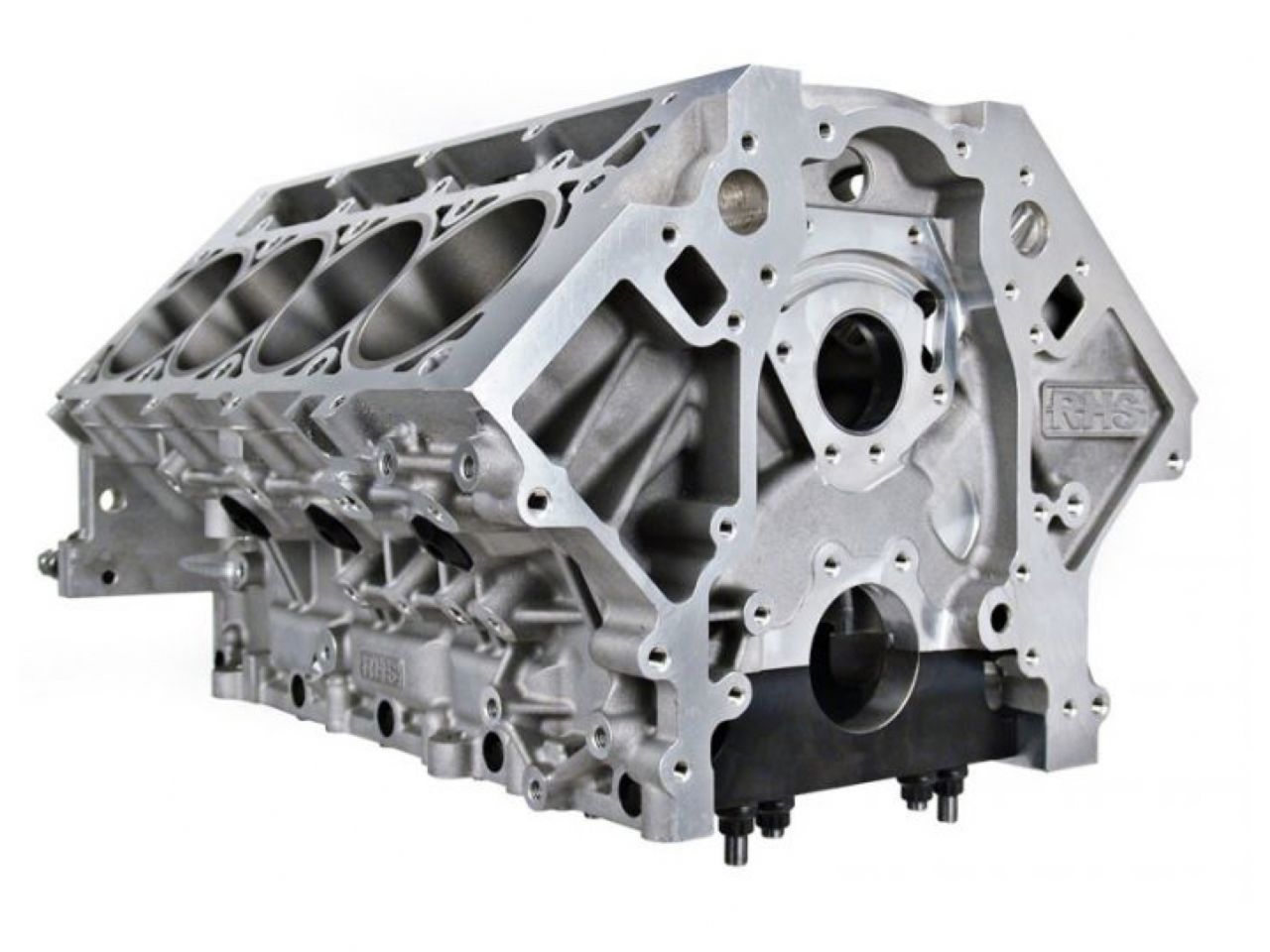

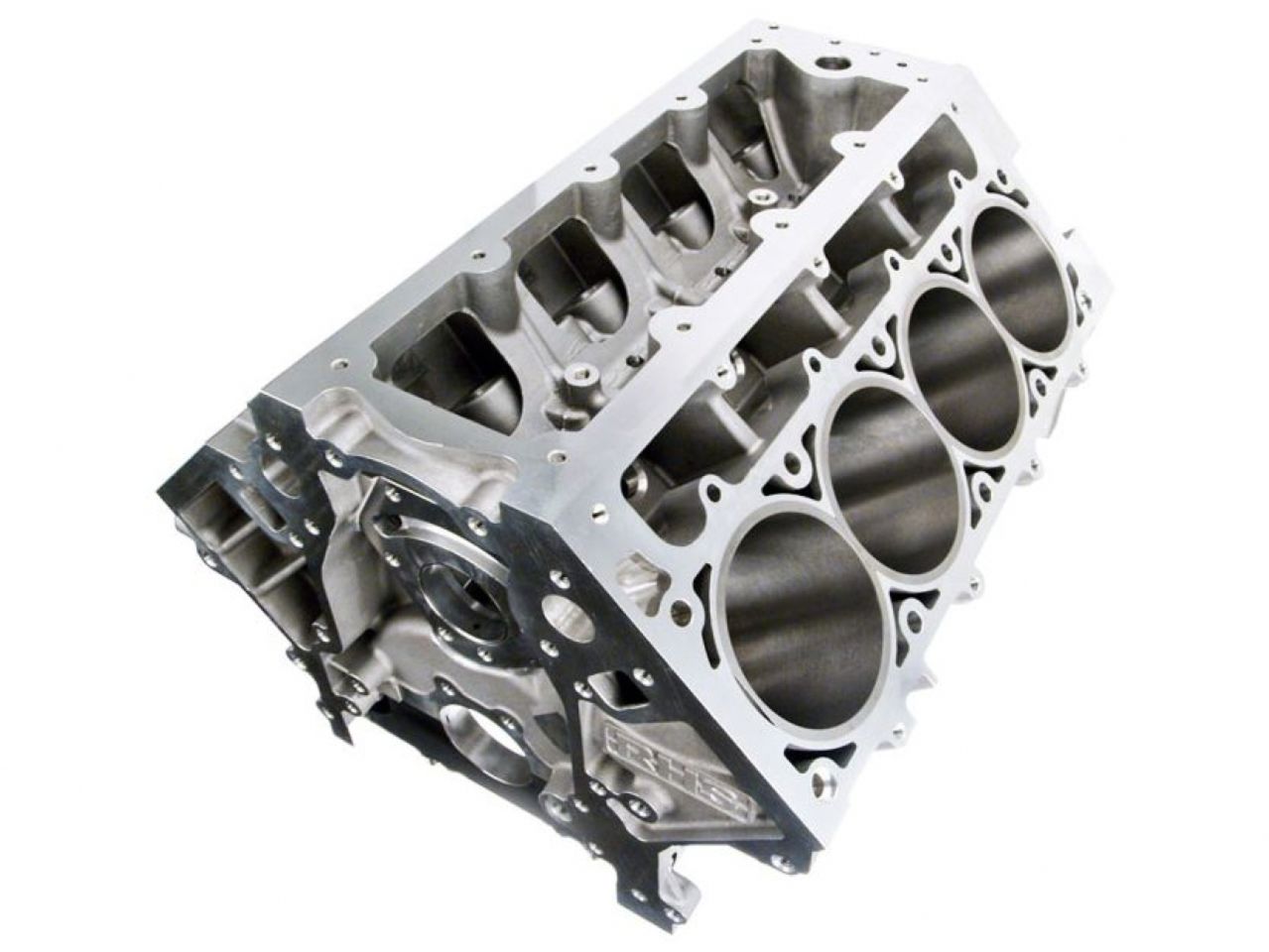

Engineers at RHS® have designed a high performance aluminum engine block for GM LS applications to meet the needs of race and street performance engine builders alike. To go beyond the limitations of other existing LS blocks, the new RHS® LS Race Block is available in both standard deck and tall deck height configurations. Additionally, this innovative aluminum block features a raised cam centerline and outboard priority main oiling to allow rod clearance for a 4.600” stroke and to minimize windage in the crankcase. And for quality control assurance, RHS® conducts a CT scan (similar to a medical CAT scan) on each block to ensure maximum casting precision and consistency. When you combine unmatched finishing quality with added clearance for increased stroke applications, precision computeraided design and extra surface material to allow custom machining, you get the new benchmark for LS horsepower, torque and durability.
Features:
• Standard Deck Height (9.250)
• Needs Final Finish Hone Before Assembly
• 5.87" Cylinder Sleeve Length
• 4.120" Bore
Bock Specifications
• Designed from heavy-duty A357-T6 aluminum material
• 4.125”-4.165” siamese cast bore walls w/ press-in spun cast iron liner
• Available in standard (9.240”) & tall (9.750”) deck heights w/ beefy .750” deck thickness
• Both standard deck (5.67”/5.87”- same as LS7) & tall deck (5.94”/6.38”) cylinder liner lengths available
• “Long arm friendly” – Accommodations for up to 4.6” stroke w/ standard rod pin diameters (2.100”) & oversized 60mm camshaft
• Raised cam centerline (.388”/9.86mm) to allow larger stroke; 2 extra links in the timing chain – Timing sets available from COMP®
• Main cap surface area maximized at mating surface & large fillets from cap to cross bolts for added strength
• Designed for clearance – side oil galley moved outboard & engineered rod clearance come standard
• Significantly increased windage passage area under bores & around caps over LS7/LSX engines
• 6 head bolt design w/ full water jacket around the cylinders (based on LS7 design)
• Bay-to-bay breathing improved w/ increased side window area versus LSX & LS7
• Extra large windows in valley for access to inboard “6th” head bolt
• Extra long liners for standard (5.87”) & tall (6.38”) decks
