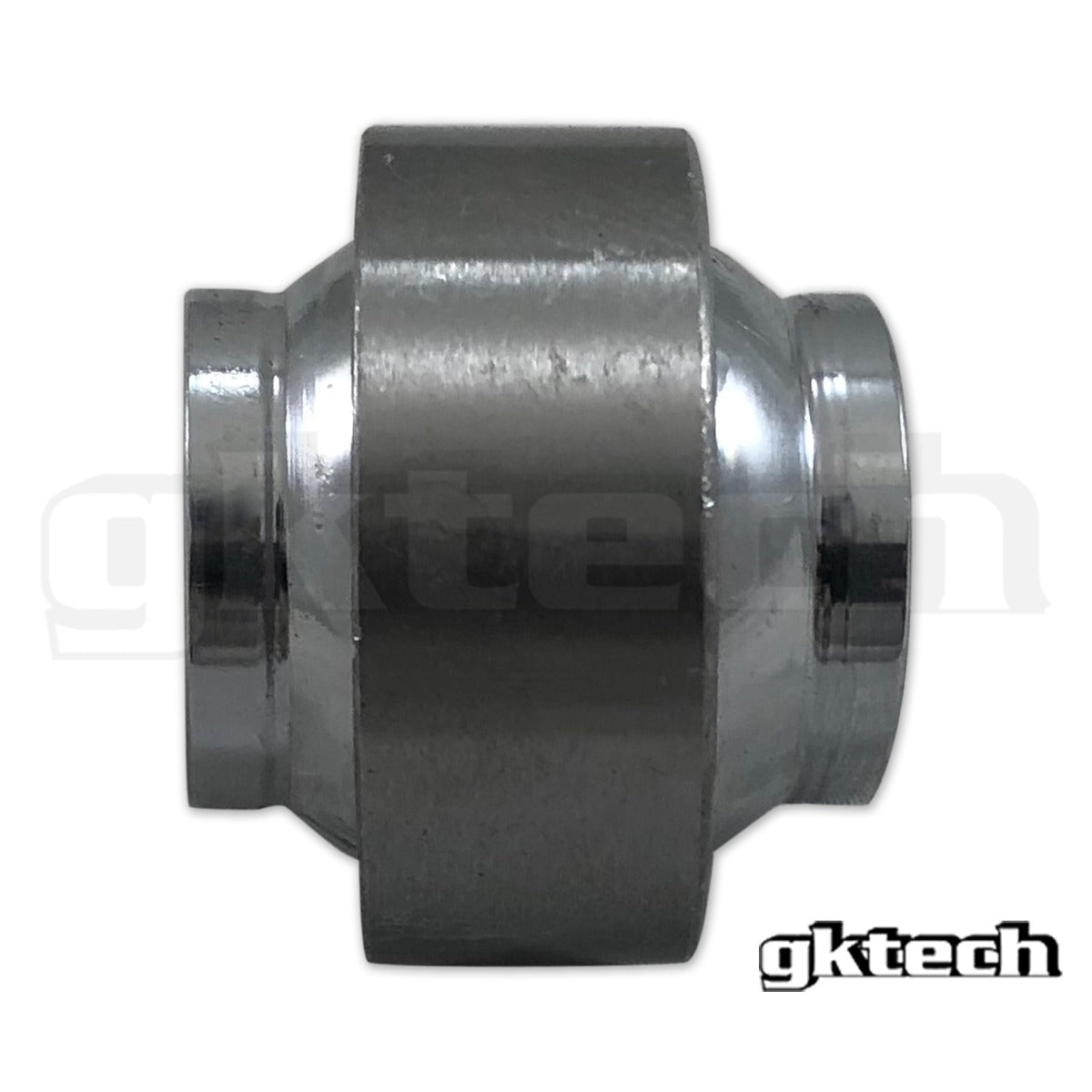

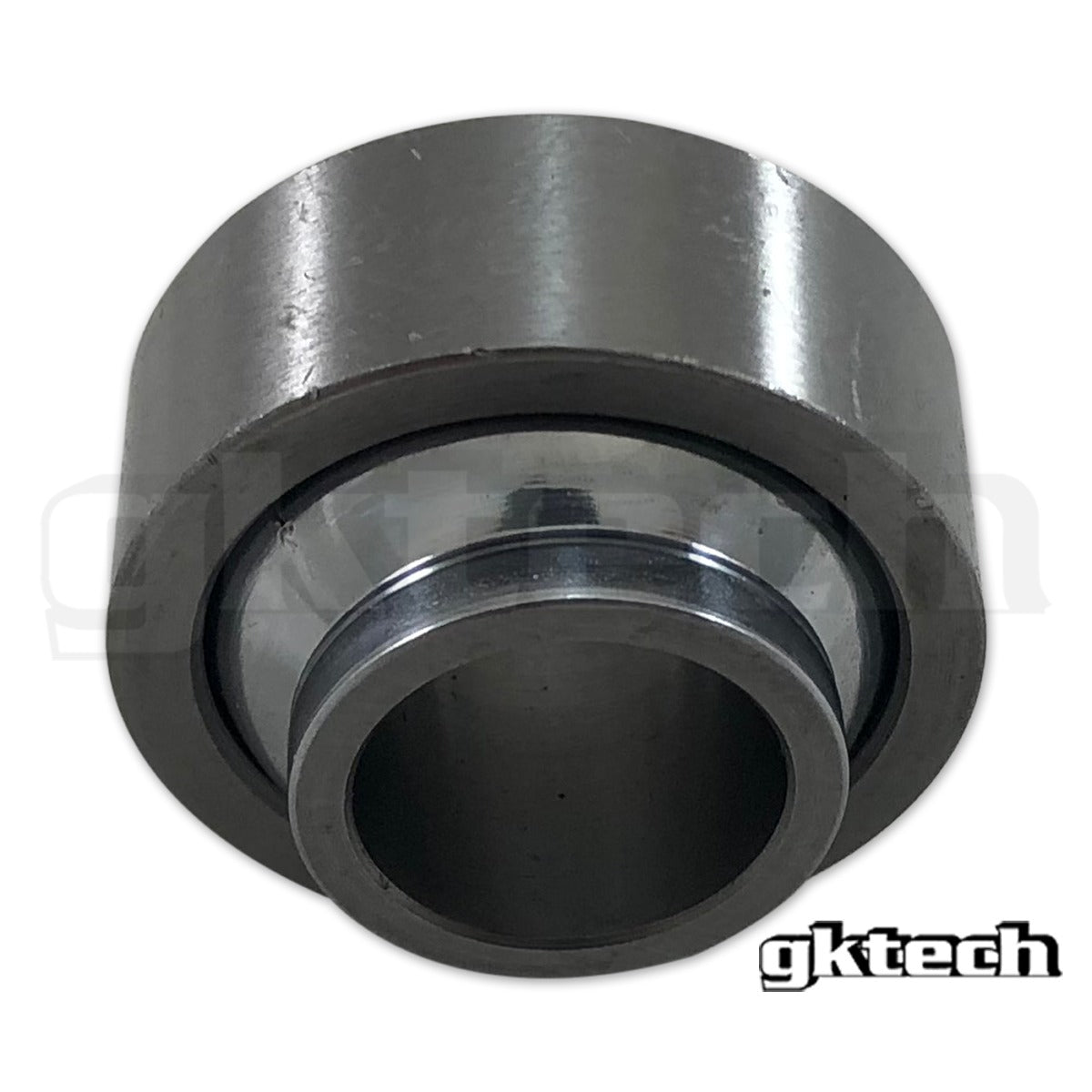

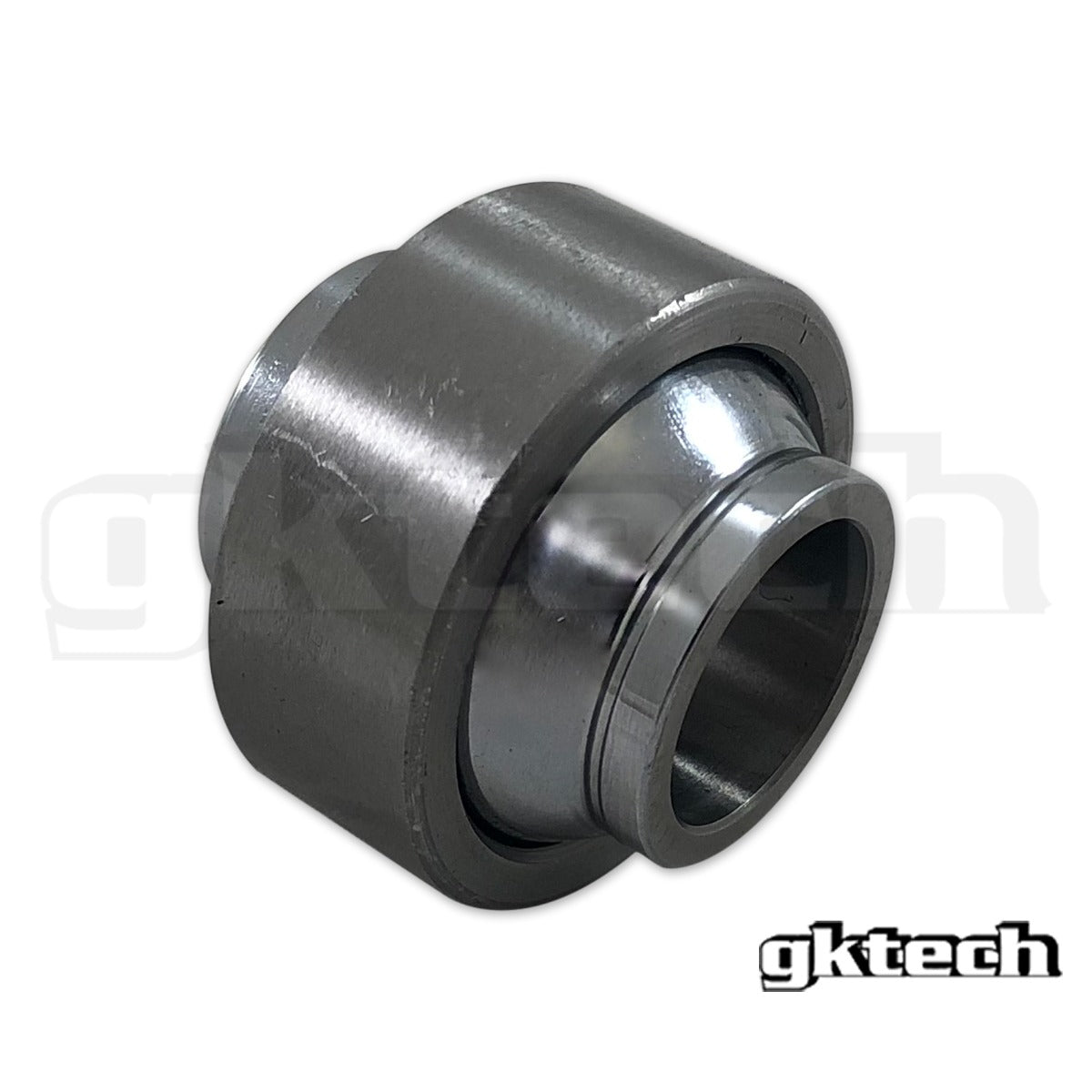

GKTech Replacement Spherical bearing YPB6T
GKTech Replacement Spherical bearing YPB6T
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReplacement YPB6T Spherical bearing used in the following products;
Premium sperical swaybar front end links, as seen here: https://us.gktech.com/premium-spherical-swaybar-front-end-links - PRMM-ENDL
Sold Individually
YPB6T
| IMPERIAL | METRIC |
|---|---|
| HOUSING OUTER DIAMTER | HOUSING OUTER DIAMTER |
| 0.9060 in | 23.0124 mm |
| HOUSING WIDTH | HOUSING WIDTH |
| 0.3450 in | 8.7630 mm |
| BALL WIDTH | BALL WIDTH |
| 0.8130 in | 20.6502 mm |
| BALL BORE SIZE | BALL BORE SIZE |
| 0.3750 in | 9.5250 mm |
| BEARING MISALIGNMENT ANGLE | BEARING MISALIGNMENT ANGLE |
| 23 degrees | 23 degrees |
| ULT. Static Radial Load (lbs) | ULT. Static Radial Load (kg) |
| 16,975 lbs | 7,700 kg |
| BEARING MATERIAL | BEARING MATERIAL |
| STAINLESS STEEL | STAINLESS STEEL |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
