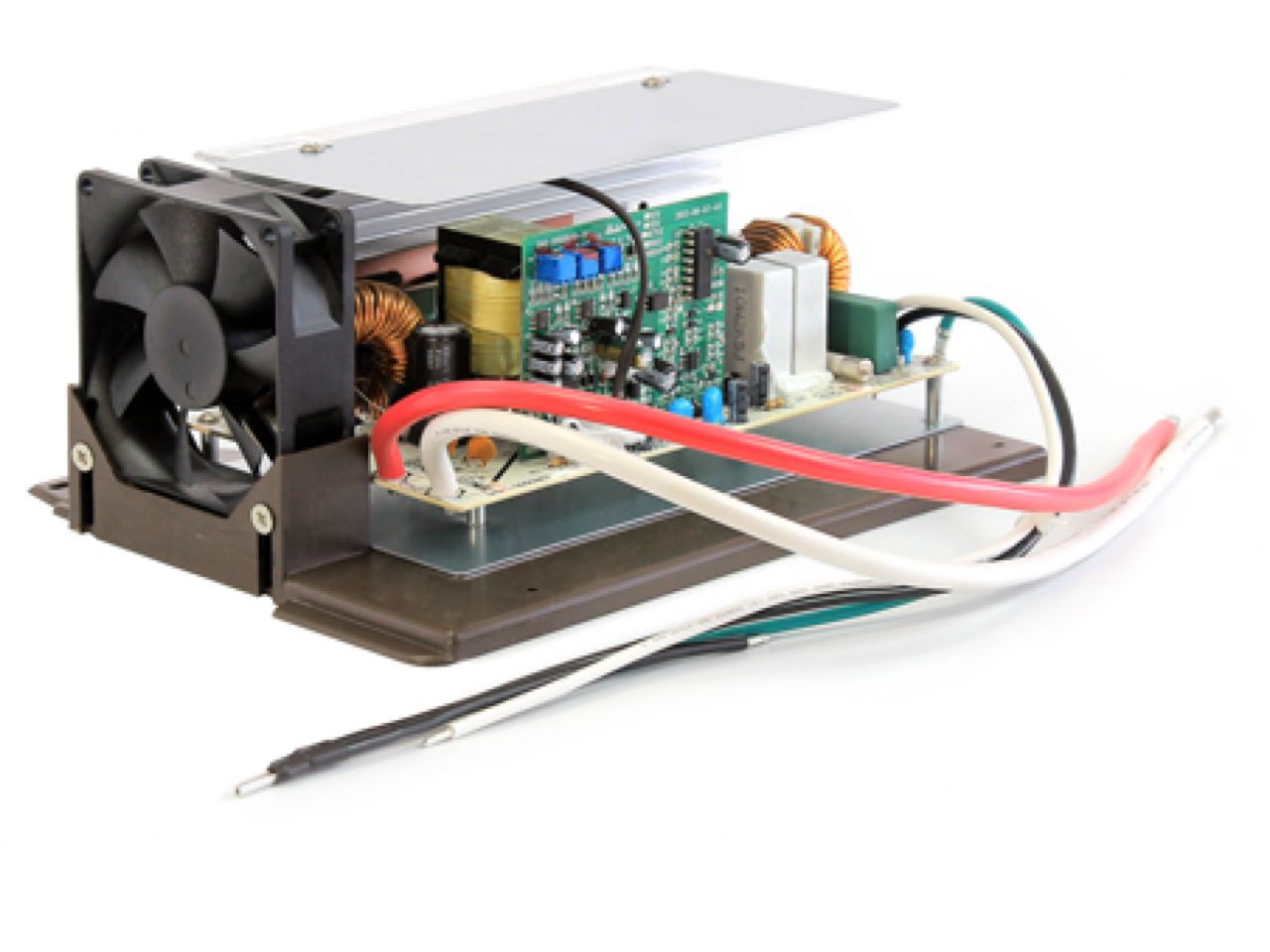

Arterra Dist Replacement Power Converter Main Board Assembly

Replaces the lower power converter section on any WF-8955 Series converter. Installs easily with only 2 screws, three AC wires and two DC wires.

SPECIFICATION

Output Power
950 W

Input Voltage/Hz
105-130 VAC, 60 Hz

Weight
5 lbs.

Dimensions
7 1/16'' W x 3 7/8 H x 9 1/2"D

Output Current
950 W

Converter Type
Three-Stage Converter Charger

Voltage Output
13.2 - 14.4V DC Range

Absorption Mode (Nominal Voltage)
13.6V DC (nominal voltage)

Bulk Mode (Quick Charging Voltage)
14.4V DC (quick charging voltage)

Float Mode (Trickle Charge Voltage)
13.2V DC (trickle charge voltage)

Over Current
Yes

Over Temperature
Yes

Over Voltage
Yes

Reverse Polarity
Yes

Cooling System
Yes

Mounting Plate Material
Plastic

Mounting Plate Color
Black, Brown

Certifications
FCC
