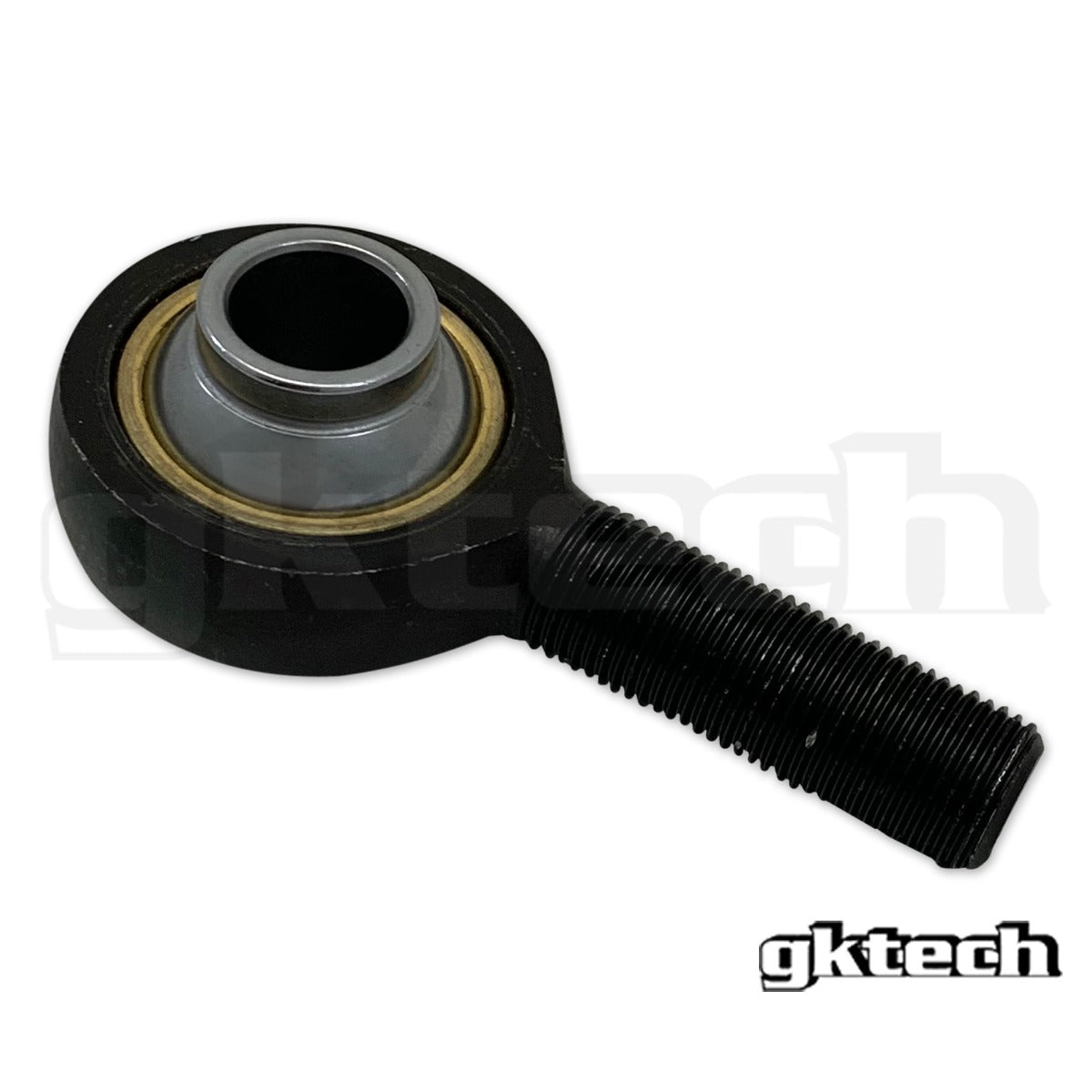

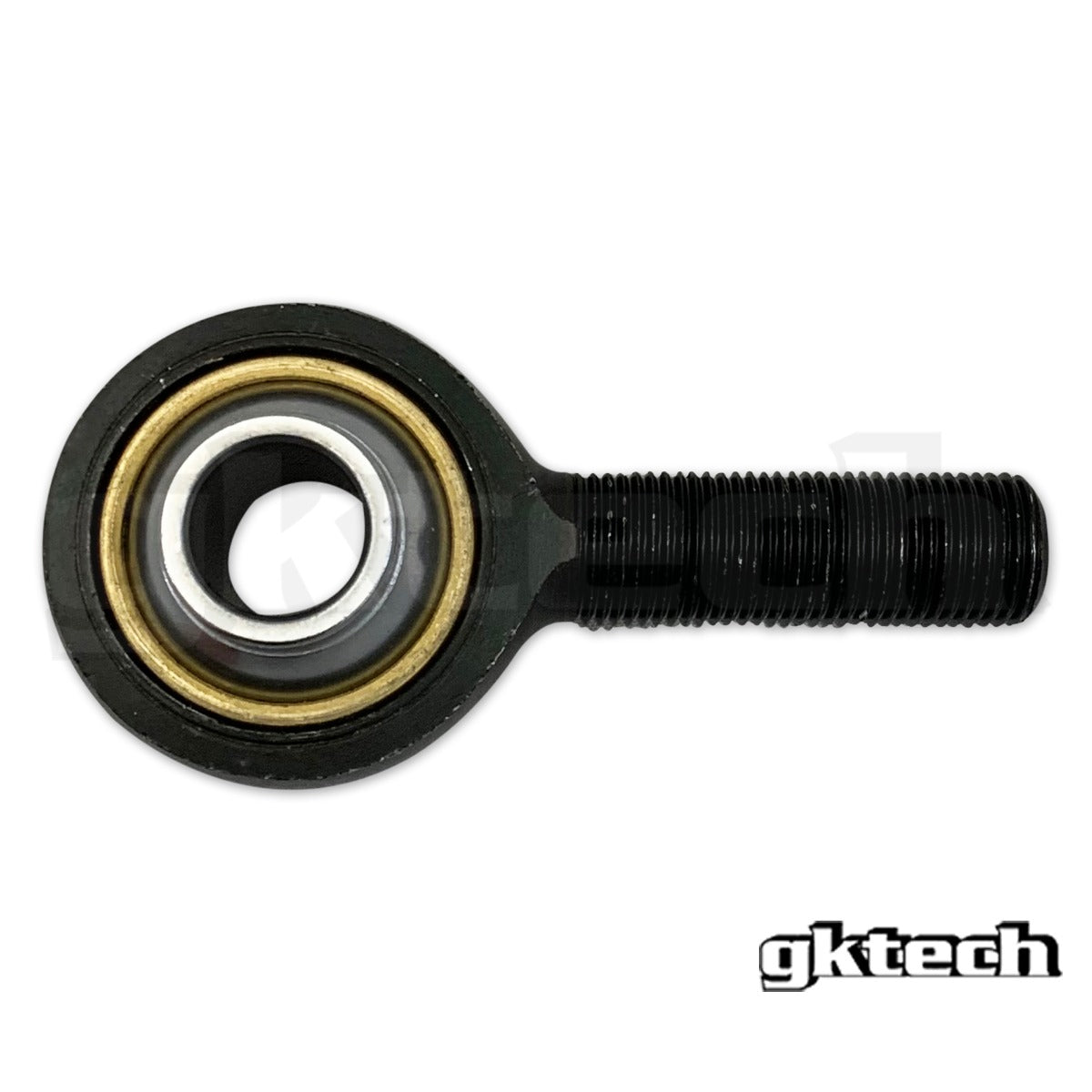

GKTech Replacement tie rod end heim PCYML10TS
GKTech Replacement tie rod end heim PCYML10TS
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Replacement PCYML10TS tie rod end bearing Used in the following GKTECH products:
M12/M14 tie rod ends SKU;
M125-TROD
M145-TROD
Z33X-SSTR
Z34X-SSTR
Z33X-TROD
GTRX-TROD
GT86-SSTR
XE10-SSTR
Sold individually
PCYML10TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.6250 in | 15.8750 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 1.3750 in | 34.9250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 2.0000 in | 50.8000 mm |
| THREAD SIZE | THREAD SIZE |
| 5/8 - 18 UNF LH | 5/8 - 18 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 2.0000 in | 50.8000 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 64 degrees | 64 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
