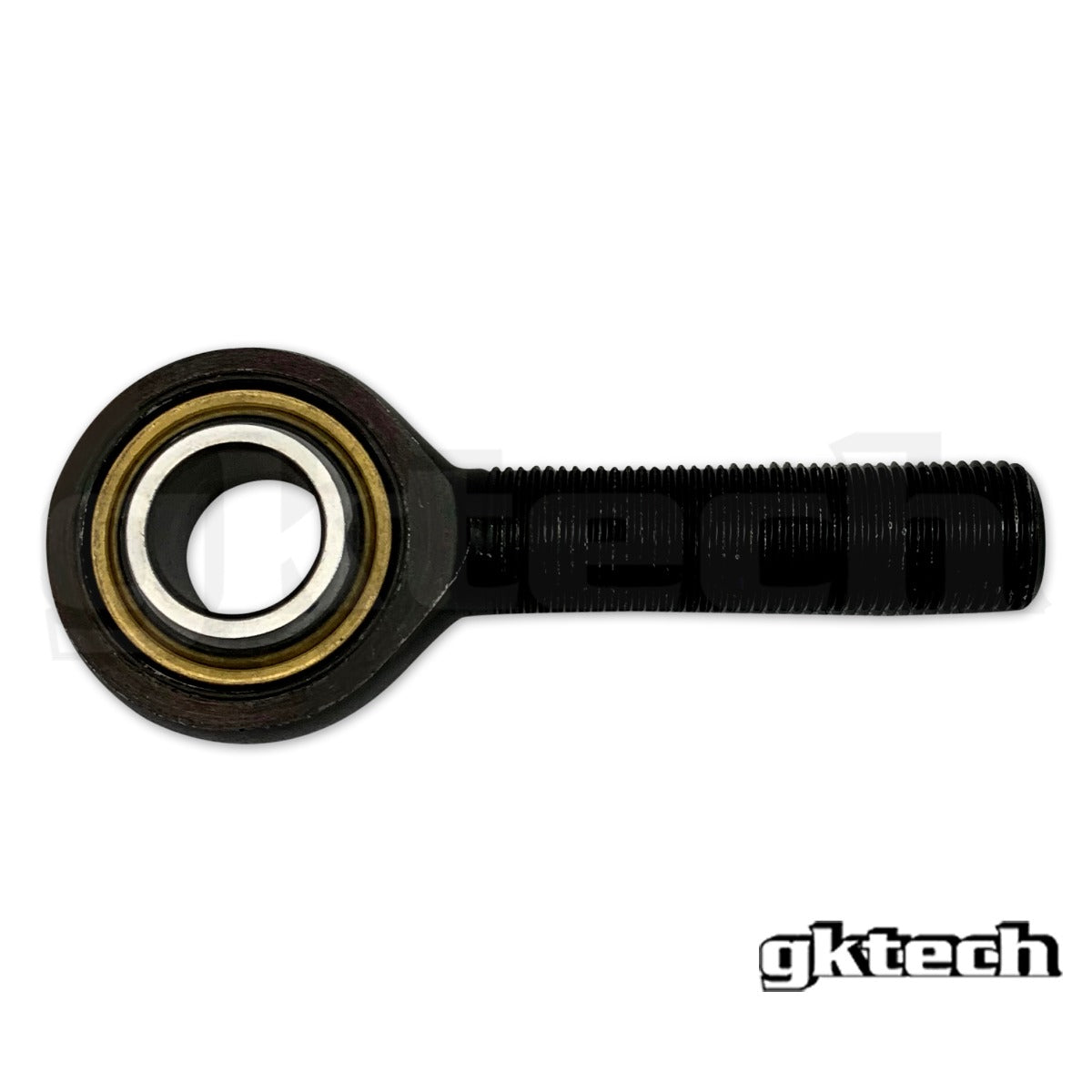

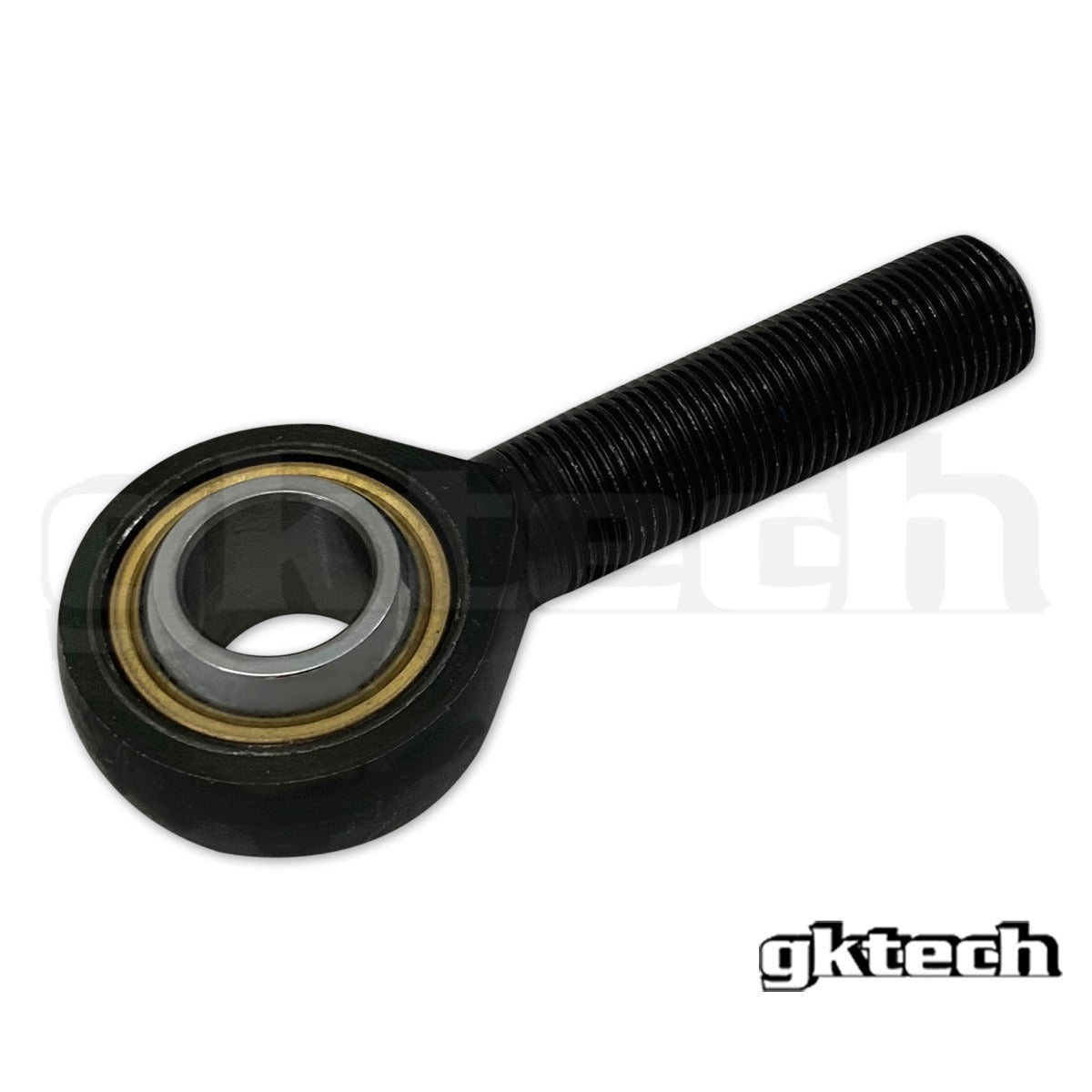

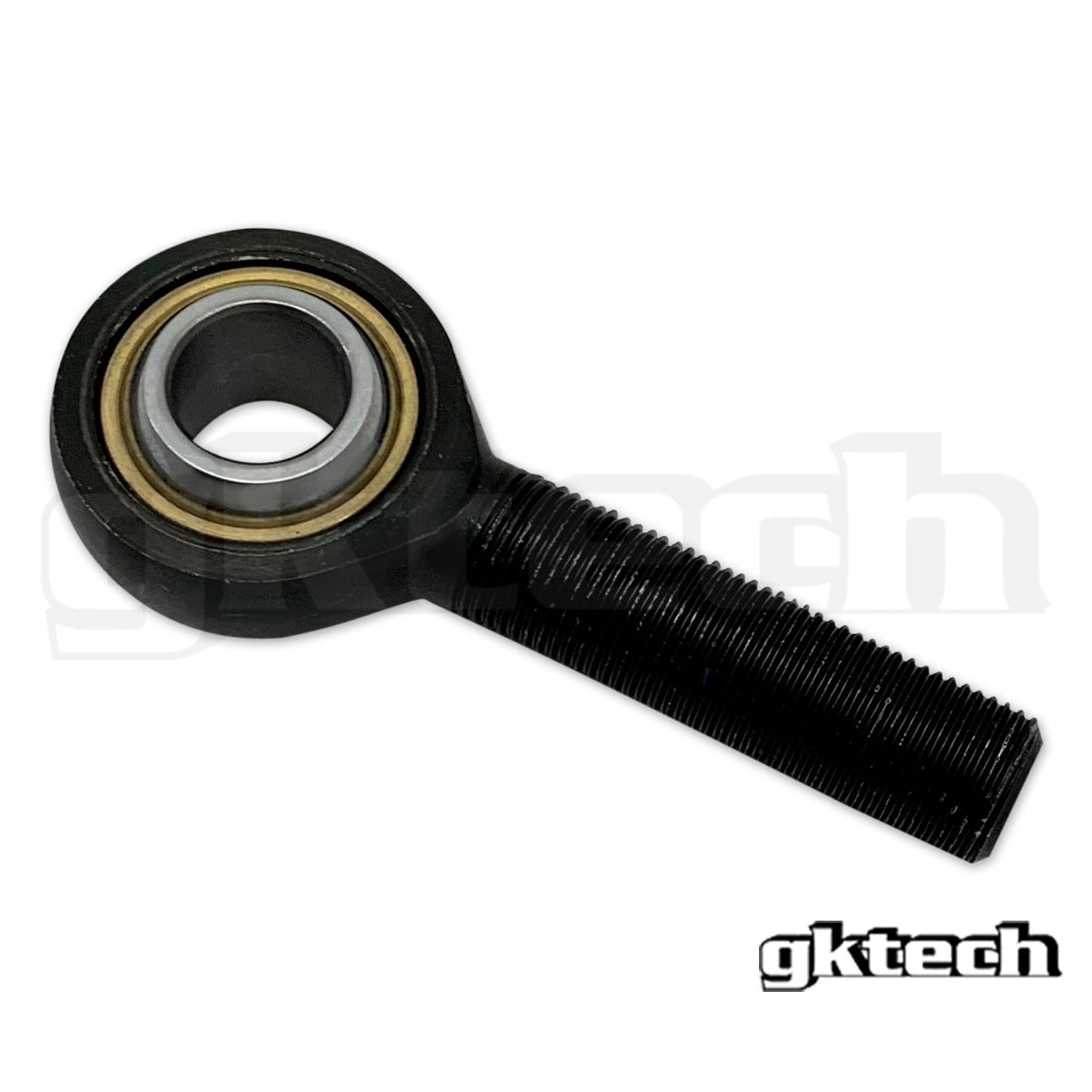

GKTech Replacement heim PCMR12TES

GKTech Replacement heim PCMR12TES

Regular price $25.00
Regular price Sale price $25.00
Sale Sold out

Out of stock

Quantity

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Replacement PCMR12TES bearing

Used in the following GKTECH products:
GT86 Toe arms - GT86-TOEX
F8X M2/M3/M4, G8X M3/M4 Adjustable Toe arms (pair) (SKU = FG8X-RTLX)
JZX Rear Toe Arms (SKU = JZXX-TOEX)
IS200/IS300 Rear Toe Arms (SKU = XE10-TOEX)

PCMR12TES

IMPERIAL METRIC
ROD END BALL BORE SIZE ROD END BALL BORE SIZE
0.7500 in 19.0500 mm
ROD END BALL WIDTH ROD END BALL WIDTH
0.8750 in 22.2250 mm
THREAD LENGTH THREAD LENGTH
1.7500 in 44.4500 mm
THREAD SIZE THREAD SIZE
3/4 - 16 UNF RH 3/4 - 16 UNF RH
ROD END HEAD DIAMETER ROD END HEAD DIAMETER
1.8700 in 47.4980 mm
ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE
24 degrees 24 degrees
ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg)
30,290 lbs 13,739 kg
ROD END MATERIAL ROD END MATERIAL
Chromoly Chromoly
LUBRICATION LUBRICATION
PTFE lined PTFE lined
