GKTech Replacement heim PCML12TES
GKTech Replacement heim PCML12TES
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

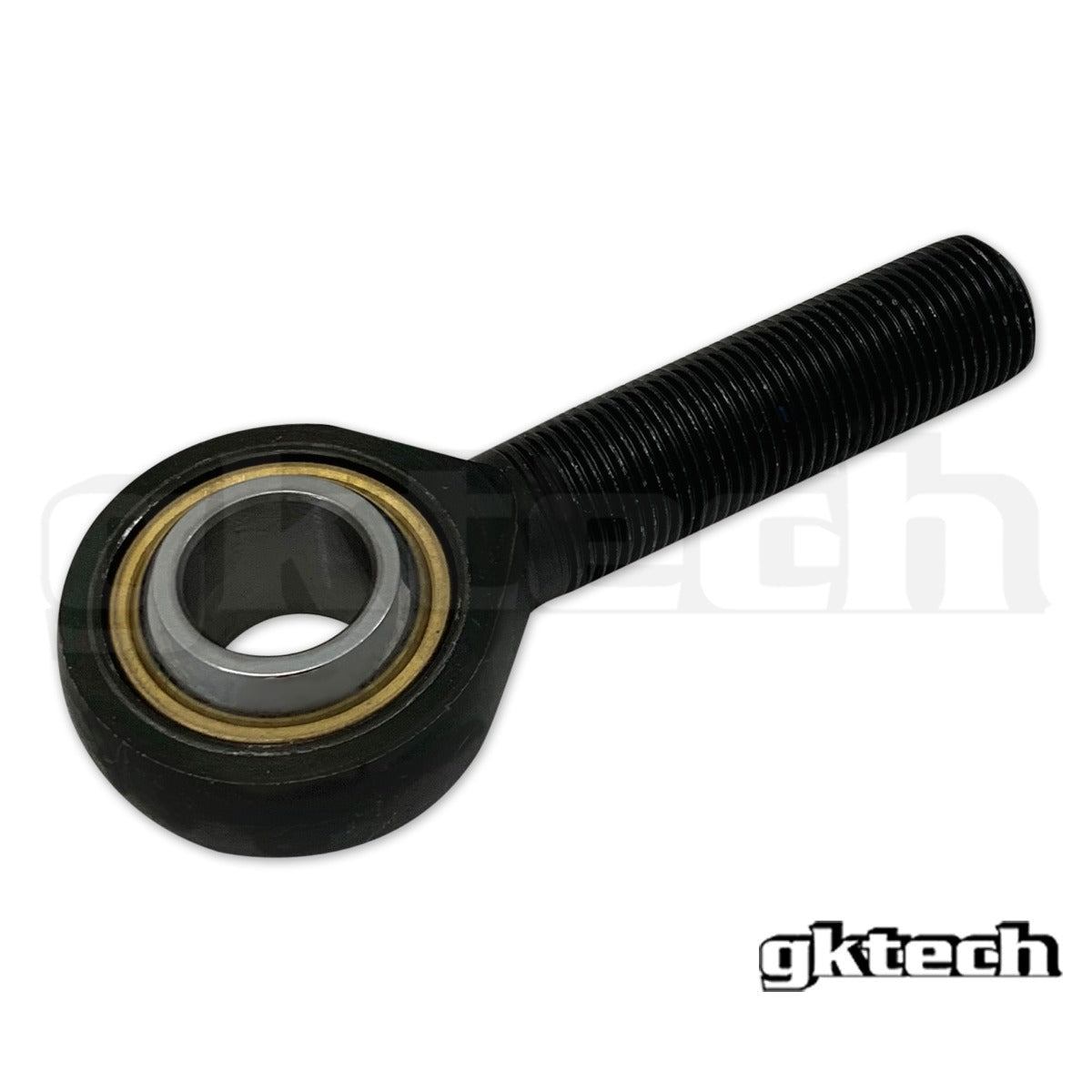

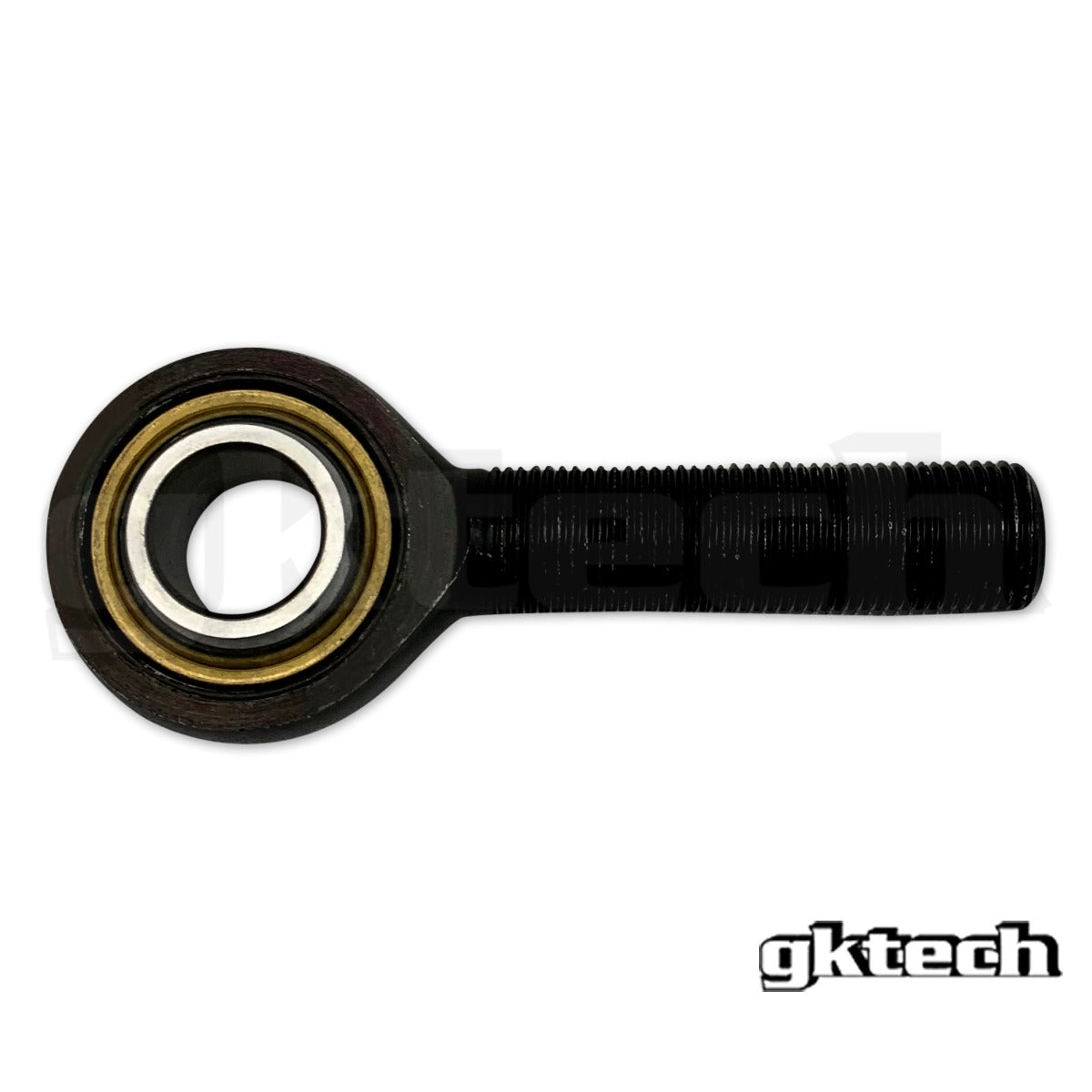

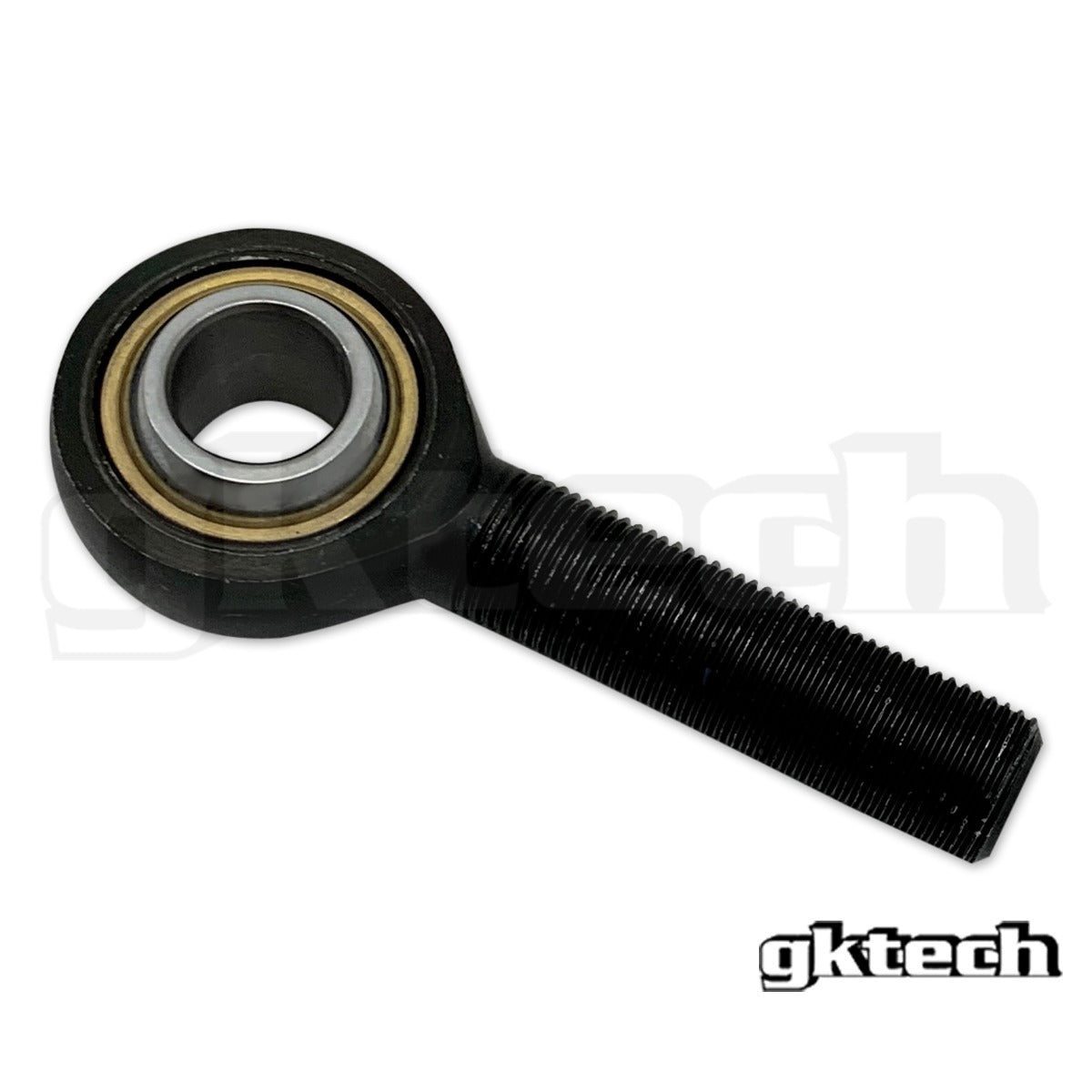

Replacement PCML12TES bearing (can also be replaced with PCML12T, non extended version and PCML12TE)
Used in the following GKTECH products:
Super Lock LCA's (SKU = S13X-944X, S13X-3974, S145-035X, S145-3065)
V3 and V4 Rear camber arms (SKU = REAR-CMBR and STRT-CMBR)
V3 and V4 Rear toe arms (SKU= S13X-TOEX and S145-TOEX)
V3 and V4 Rear traction rods (SKU = REAR-TRTN when used in S14/S15/R33/R34 subframe)
R32 front upper camber arms (SKU= R32X-FUCA)
R33 front upper camber arms (SKU= R33X-FUCA)
V2 Rear LCA's (SKU=REAR-LCAX)
V2 High clearance lower control arms (SKU = BUDG-2045, BUDG-4065)
V3 and V4 Front caster rods (SKU = S13X-CSTR and S145-CSTR)
Z33/350z Front upper camber arms (SKU = Z33X-FUCA)
Z33/350z Rear camber arms (SKU = 350Z-CMBR)
Z33/350z Front super lock arms (SKU = Z33X-FLCA)
Z33/350z Toe arms (SKU=350Z-TOEX)
Z33 350Z on car adjustable front lower control arms (SKU = 350Z-FLNK)
Z34 370z/RZ34 Z Front upper camber arms (SKU = Z34X-FUCA)
(SKU = 370Z-FLCA)
F8X M2/M3/M4, G8X M3/M4 Adjustable Traction arms (pair) (SKU = FG8X-RRLR)
JZX Rear Lower Control Arms (RLCA) (SKU = JZXX-RLCA)
JZX Rear Toe Arms (SKU = JZXX-TOEX)
JZX Rear Traction Arms (SKU = JZXX-TRTN)
IS200/IS300 Rear Traction Arms (SKU = XE10-TRTN)
IS200/IS300 Rear Toe Arms (SKU = XE10-TOEX)
IS200/IS300 Adjustable Rear Lower Control Arms (RLCA) (XE10-RLCA)
PCML12TES
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.7500 in | 19.0500 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 0.8750 in | 22.2250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 2.53 in | 64.45 mm |
| THREAD SIZE | THREAD SIZE |
| 3/4 - 16 UNF LH | 3/4 - 16 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 1.8700 in | 47.4980 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 24 degrees | 24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
