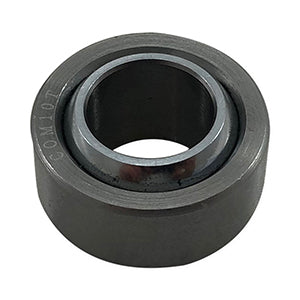

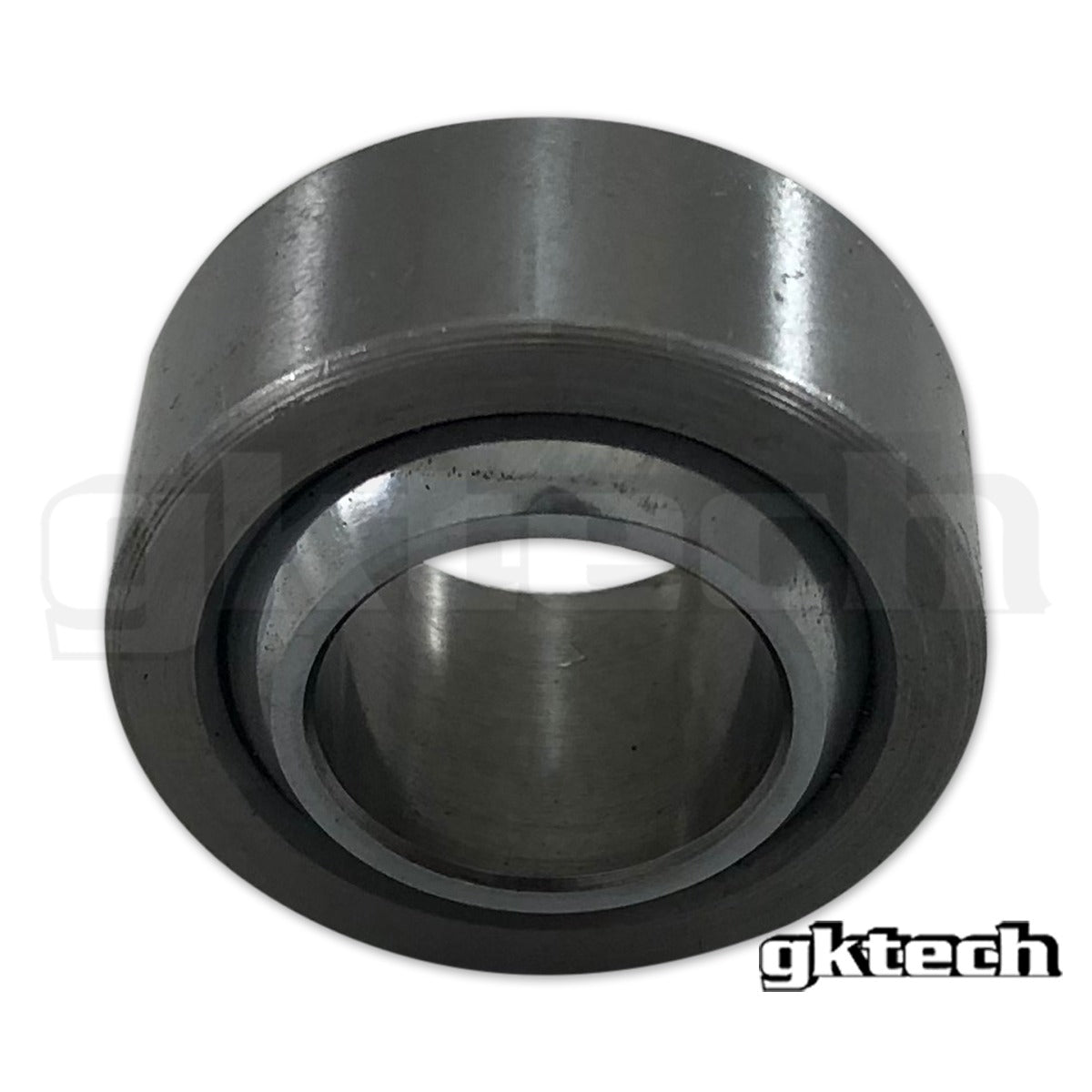

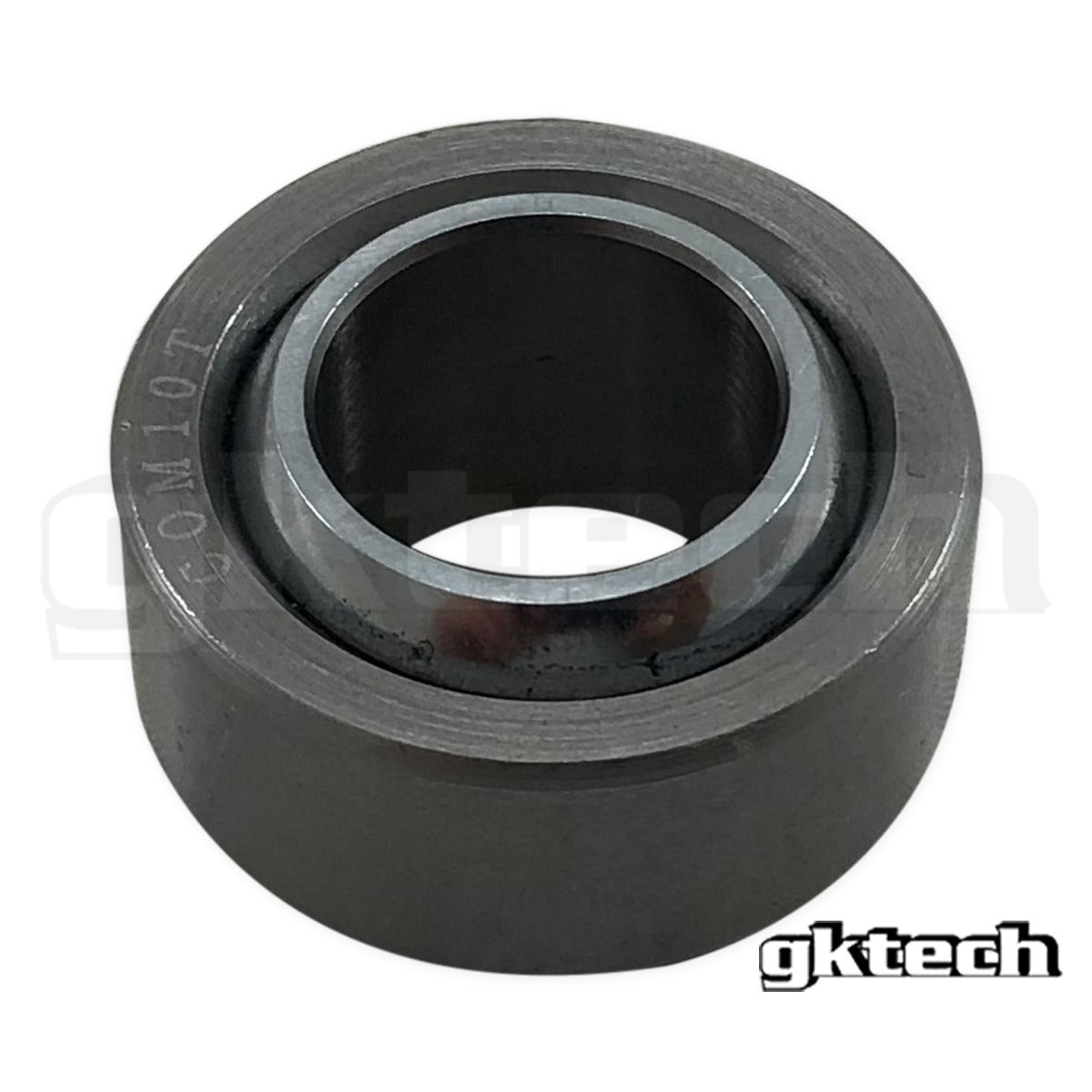

GKTech Replacement Spherical bearing COM10T
GKTech Replacement Spherical bearing COM10T
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReplacement COM10T bearing Used in the following GKTECH products:
350Z-RKBK
R32X-FUCA
REAR-KNCK
S13X-FLSB
S145-FLSB
Z32X-FUCA
Z33X-FBSH
Z33X-FUCA
Z33X-RBSH
Z33X-RMSB
Z33X-SBSH
Z33X-UPSP
Z34X-FUCA
V2 Z33X-FLCA
COM10T
| IMPERIAL | METRIC |
|---|---|
| HOUSING OUTER DIAMTER | HOUSING OUTER DIAMTER |
| 1.1875 in | 30.1625 mm |
| HOUSING WIDTH | HOUSING WIDTH |
| 0.5000 in | 12.7000 mm |
| BALL WIDTH | BALL WIDTH |
| 0.6030 in | 15.3162 mm |
| BALL BORE SIZE | BALL BORE SIZE |
| 0.6250 in | 15.8750 mm |
| BEARING MISALIGNMENT ANGLE | BEARING MISALIGNMENT ANGLE |
| 8.5 degrees | 8.5 degrees |
| ULT. Static Radial Load (lbs) | ULT. Static Radial Load (kg) |
| 31,920 lbs | 14,479 kg |
| BEARING MATERIAL | BEARING MATERIAL |
| STEEL | STEEL |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
