Wiring Specialties SR20DET PRO Series Harness S13 Chassis – WRS-PROS13-CHASSIS

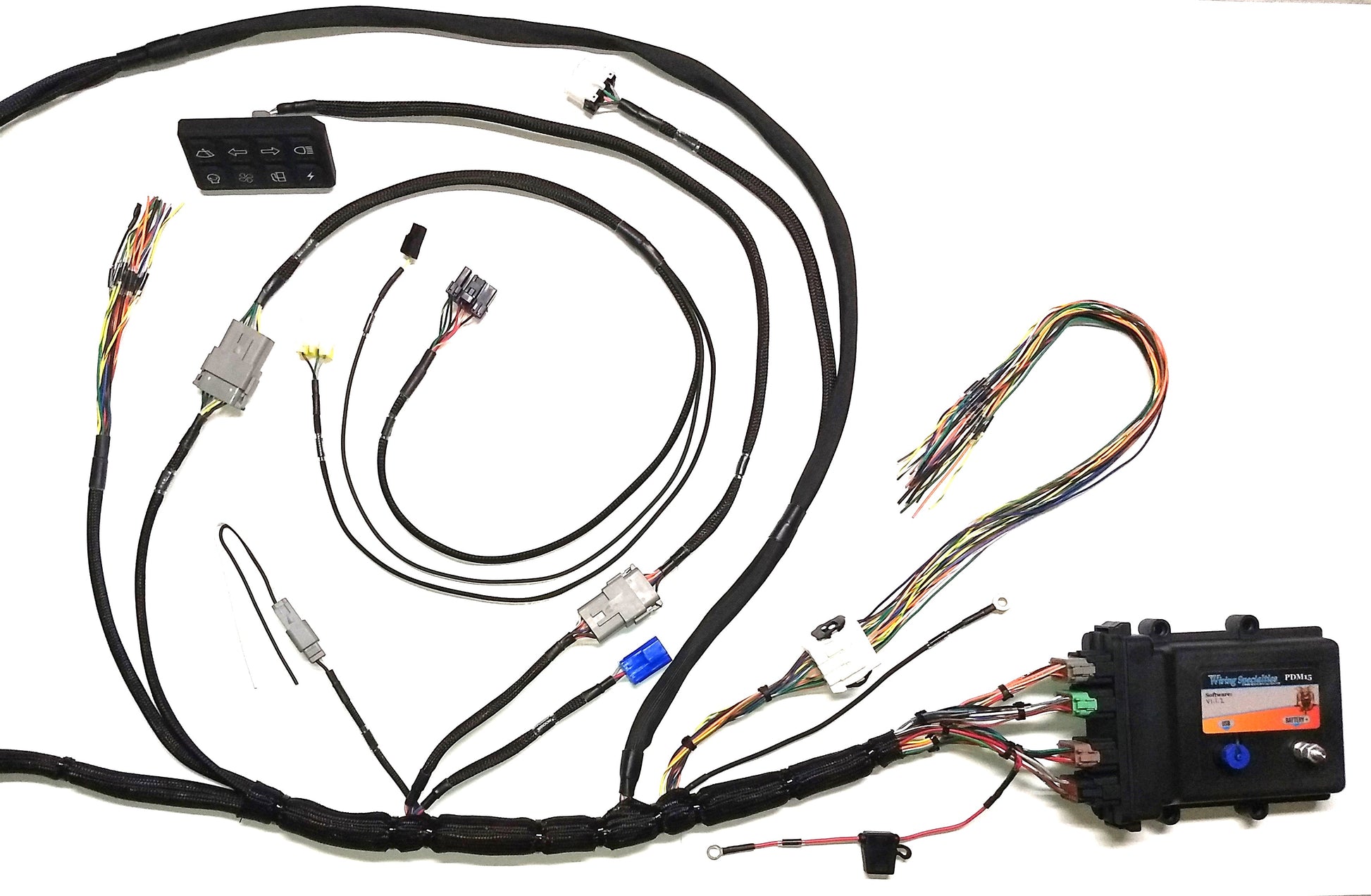

For use with an Aftermarket ECU like ECU Master, AEM Infinity, Haltech Elite or LINK G4X Series. Please contact sales if you have any questions. Complete Replacement Chassis Harness & Power Distribution Management Solution for Nissan S13 vehicles includes:

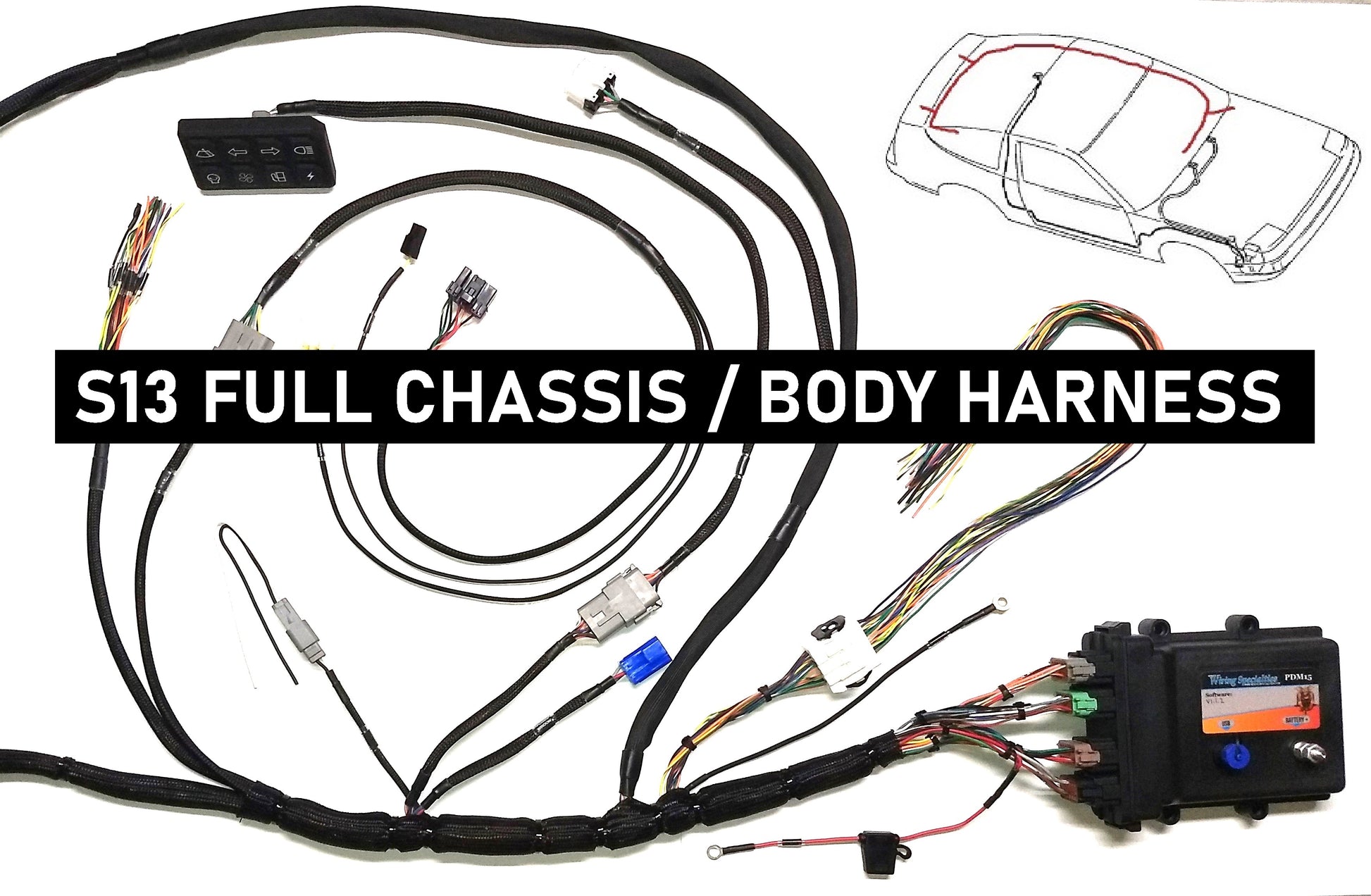

• Complete replacement body wiring harness
• finally available!

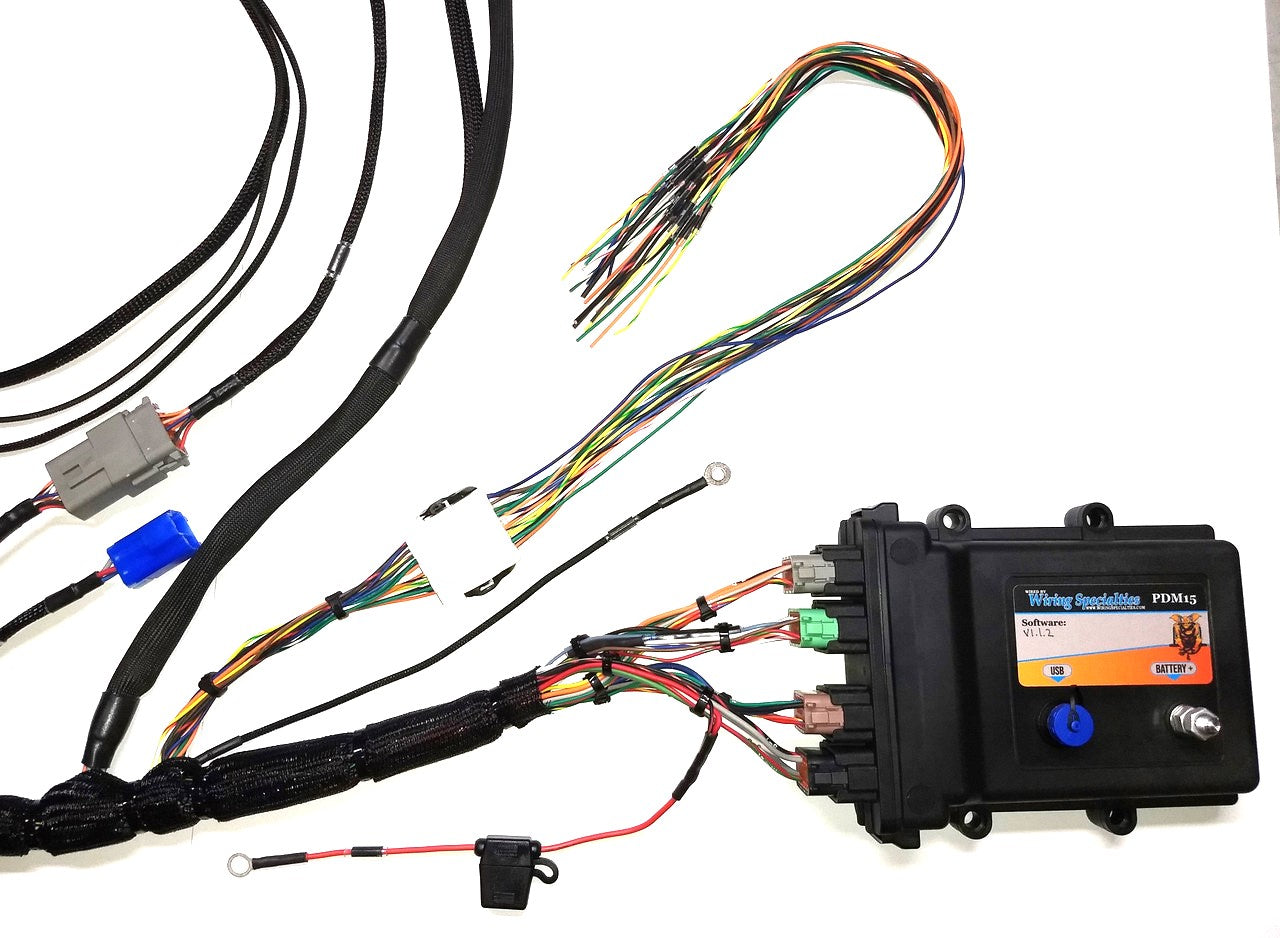

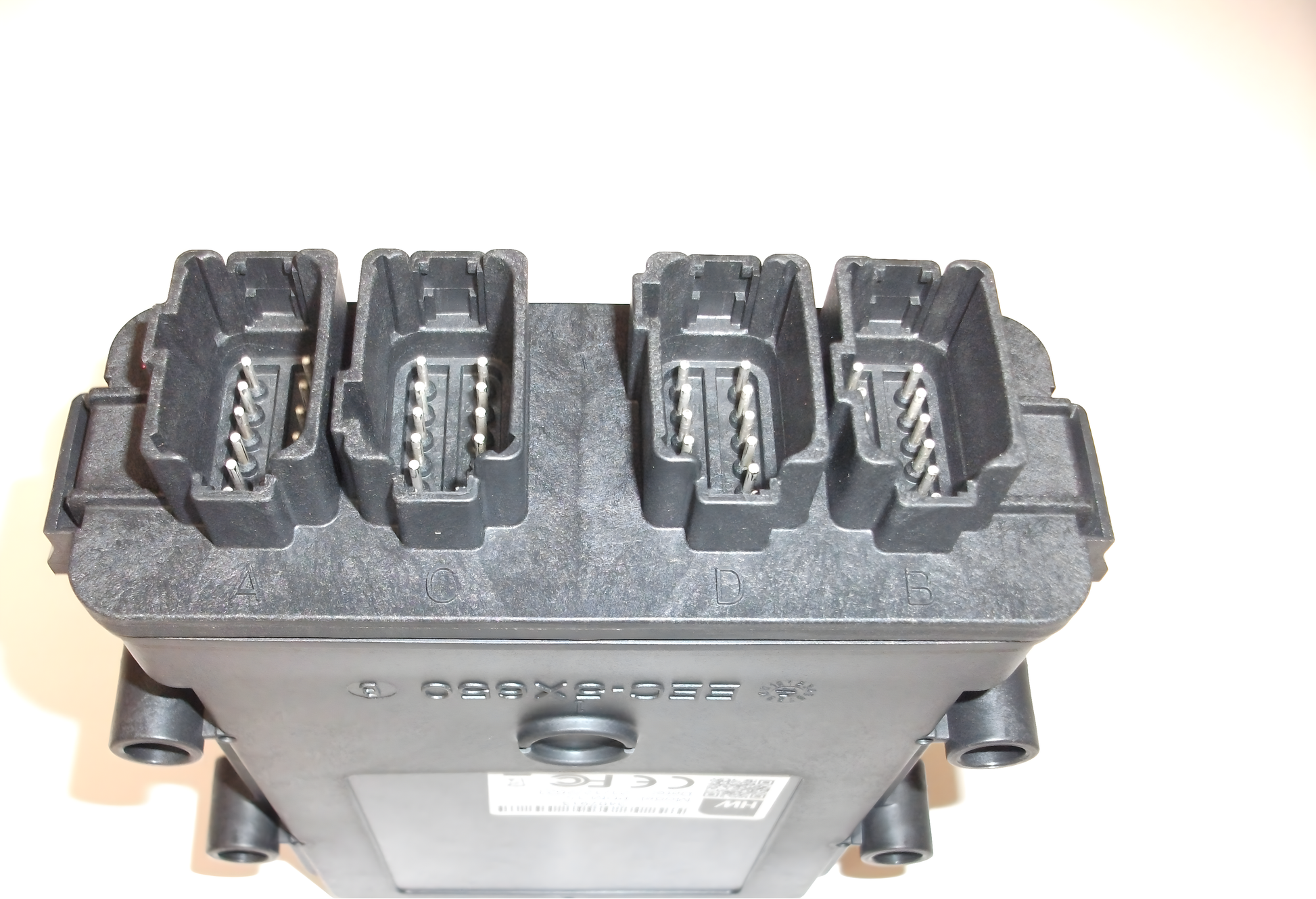

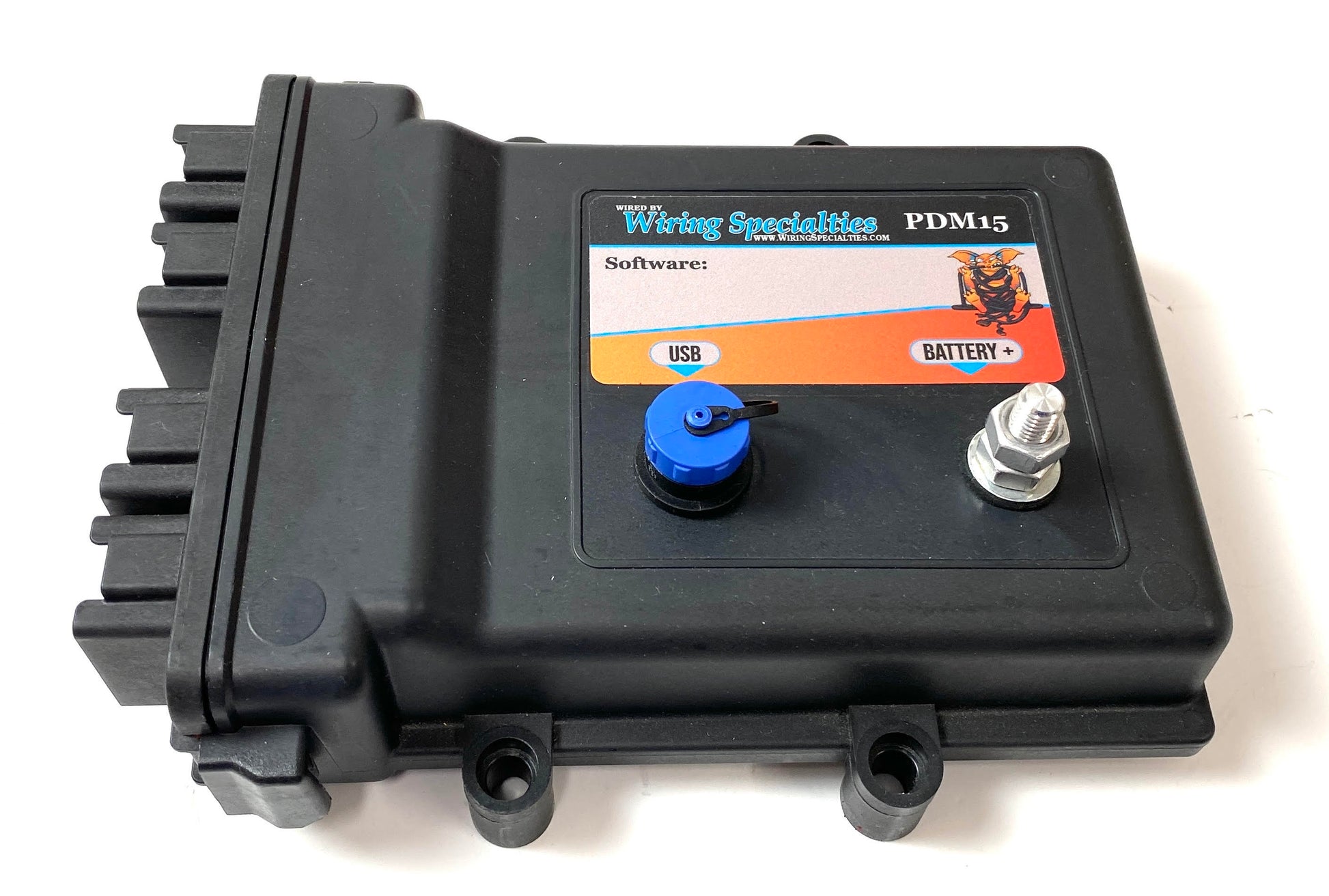

• Pre-Programmed 15-Circuit Solid-State Power Distribution Management Unit (PDM15)
• Choice of 8-position CAN Keypad OR use your OEM S13 Stalks (for an additional charge, RHD connector must be sent in see picture) to control lights, turn signals, wipers etc.
• Directly Terminated Signal connections based on Chassis
• we make this as Plug-N-Play as possible
• Add our Complete Battery Wiring Power Management Kit (for an additional charge) for total peace of mind This chassis harness is perfect for Race / Track cars, cars running a stripped interior / switch panel, and restoration projects

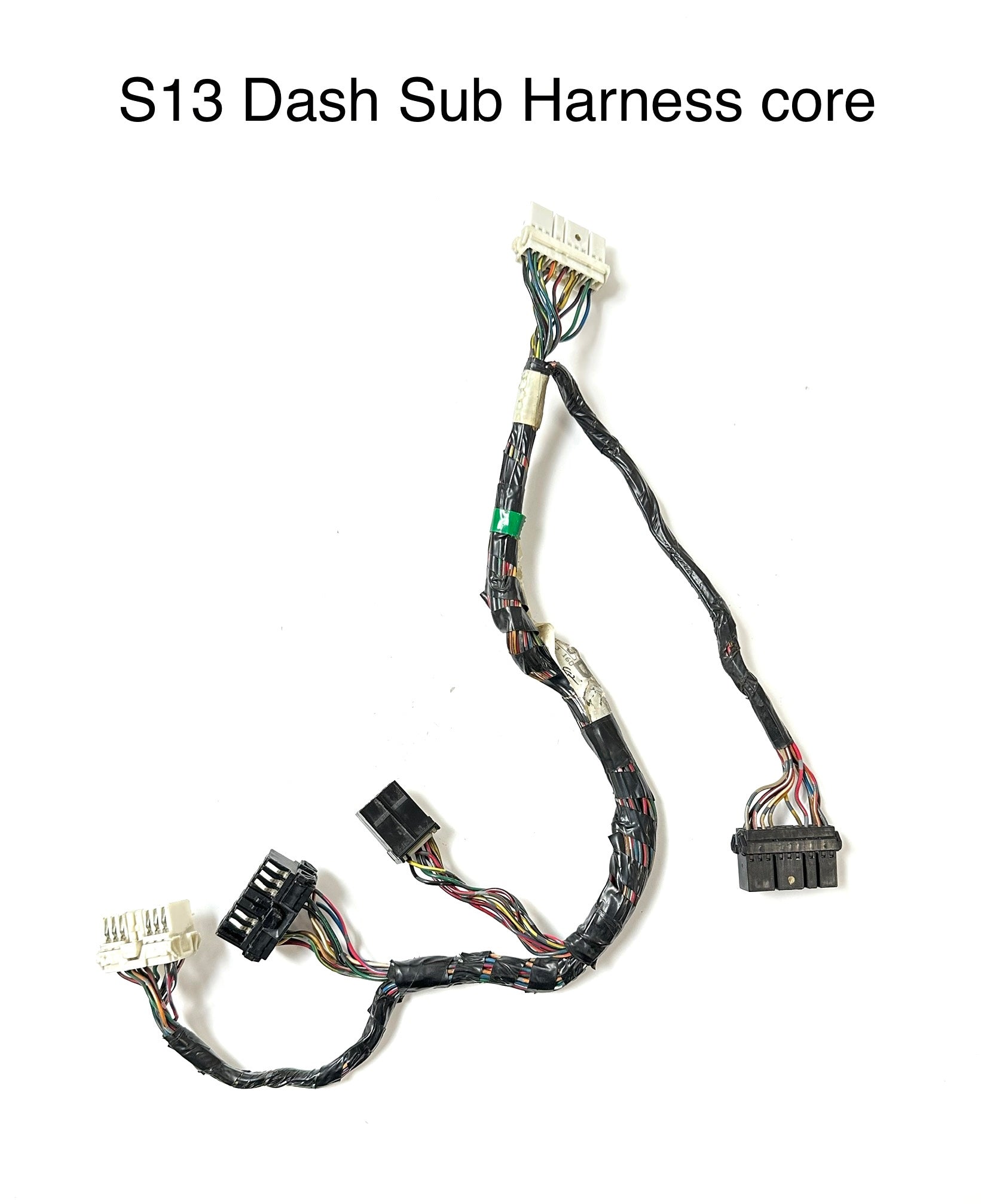

• all using an aftermarket ECU. It was developed in house on actual S13 LHD & RHD Chassis' to ensure a perfect fit to all connections. NOTE: For all RHD chassis using the OEM Stalks lighting Option, you will need to send in the pictured steering column harness connector to us. NOTE: This item is NOT ELIGIBLE for coupon discounts. Call Sales!

Specifications

APPLICATIONS: USDM S13, JDM S13, Euro S13

• Any Nissan 240sx S13, Silvia S13, 180sx or 200sx S13
• Coupe & Hatch Body Styles Supported
• 240sx Convertible NOT supported
• 180sx Type X Hatchback Taillights will need connector adapters
• Pop-up headlight motor operation NOT supported
• only lights Supported Outputs
• Ignition & EFI + Starter
• Dual Engine Cooling Fans controlled via Aftermarket ECU
• Single Fuel Pump, Dual Pump Upgrade Available

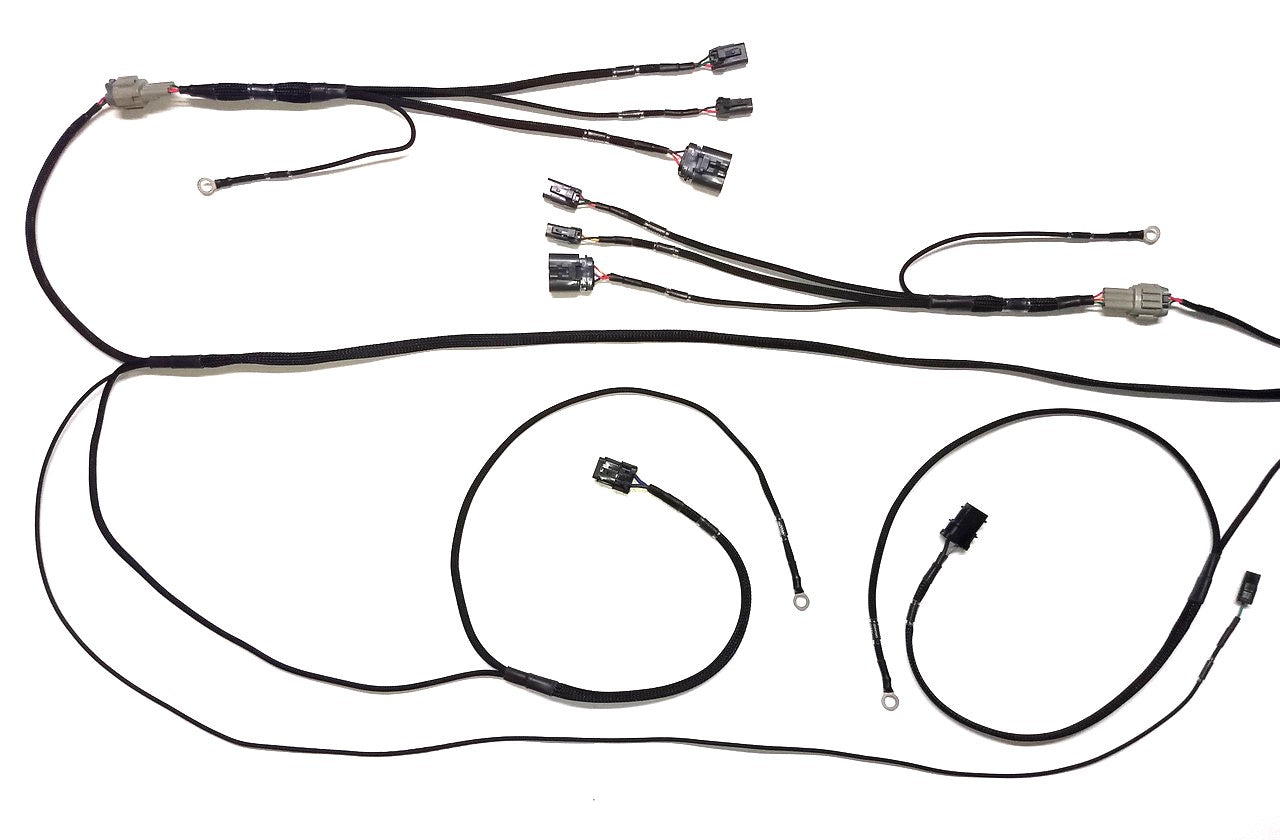

• Running Lights, Marker Lights, and License Plate Lights

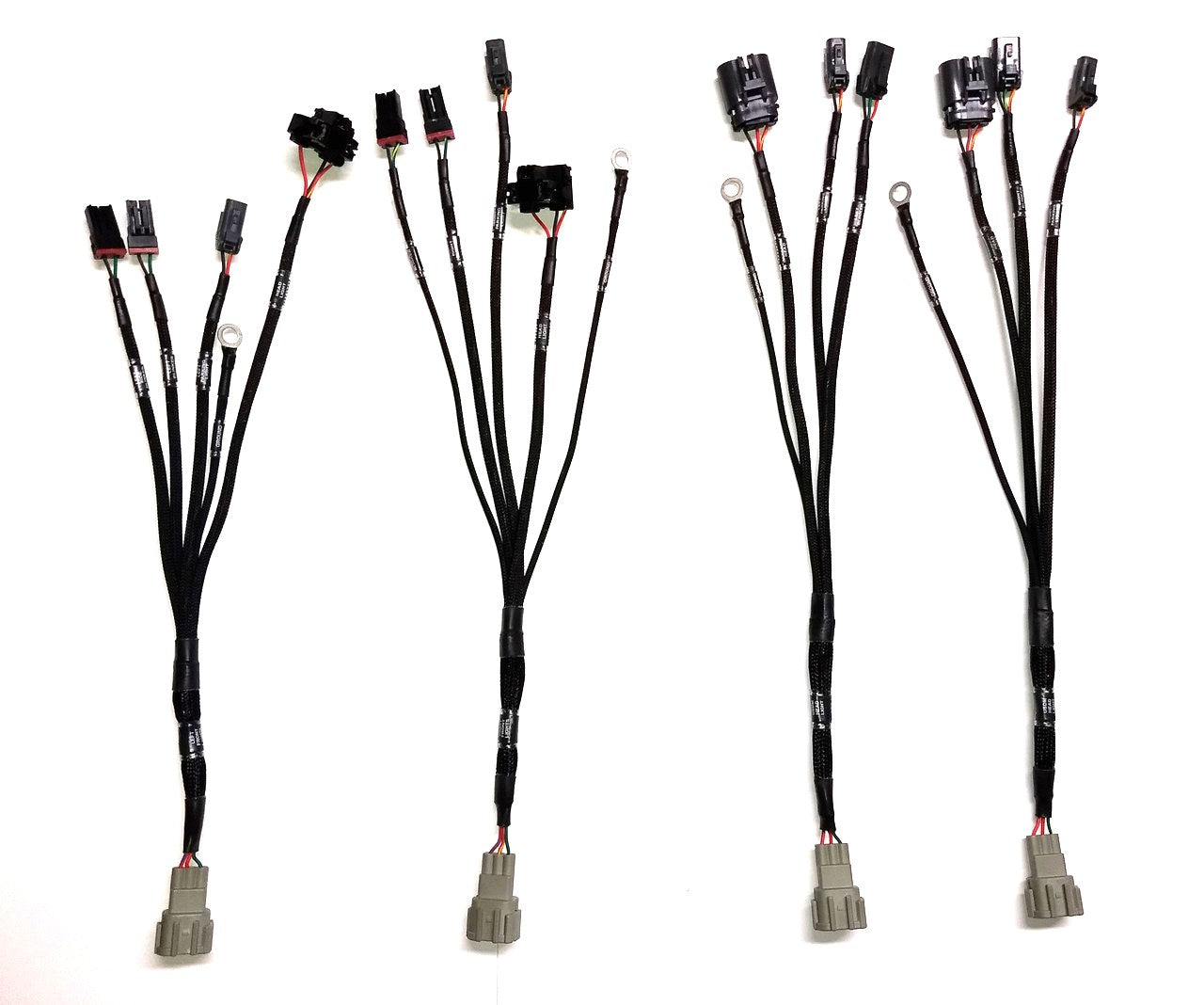

• Low Beam & High Beam Headlights
• Left & Right Turn Signals (manual, no auto cancel) at All Four Corners + Marker Lights

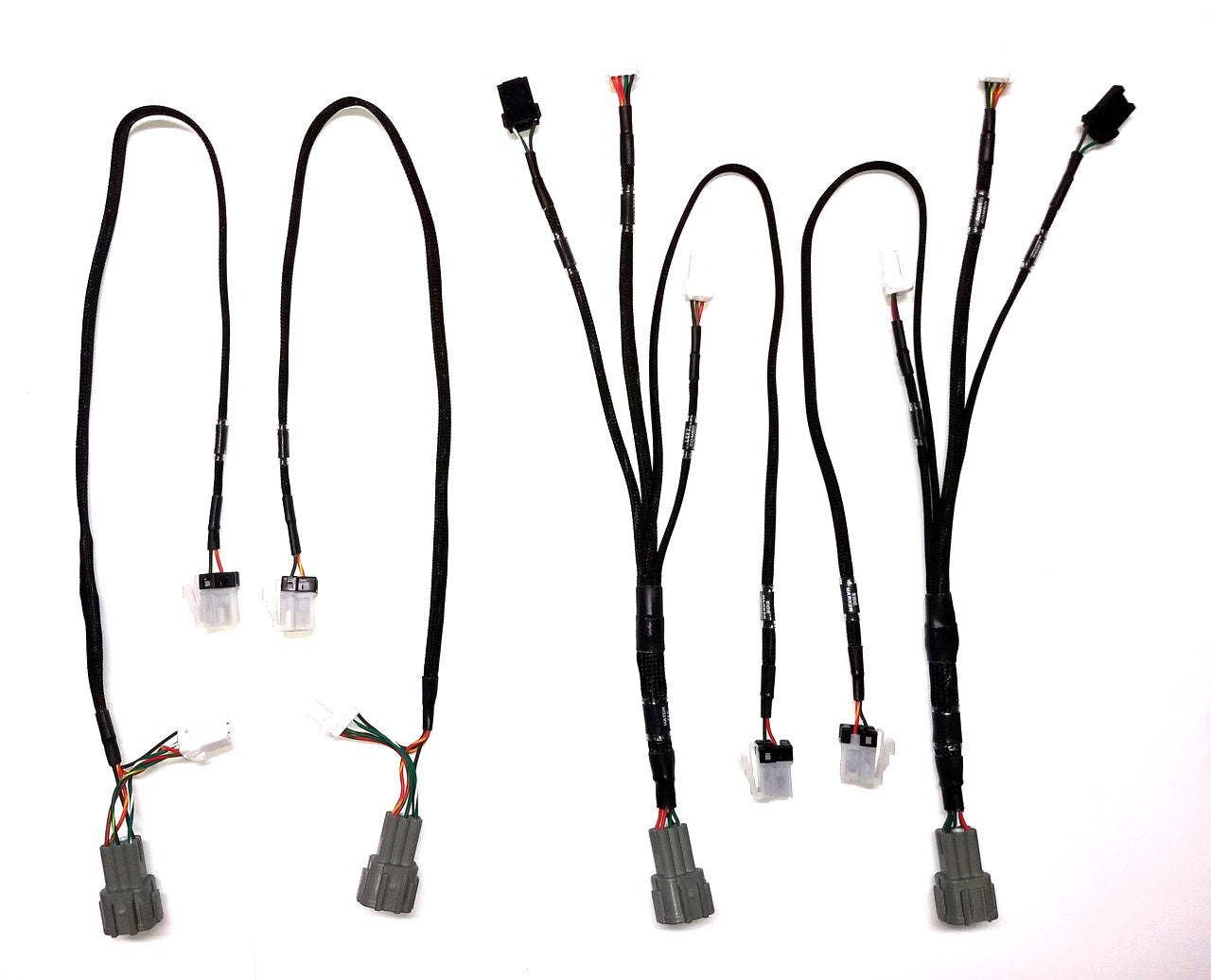

• Brake Lights
• Single Windshield Wiper Speed
• High
• Power Windows
• Requires all OEM door modules, switches & harnesses to be in place
• Power Sunroof Upgrade Available
• Single Blower Motor/ HVAC Speed
• Horn
• Hazard Lights Supported Inputs
• OEM Key Switch Required for Ignition Signal
• Choice of:
• OEM Stalks for Lighting and Wipers (Additional charge, RHD must send in steering column harness connector
• see picture above), OEM Key Switch operates starter

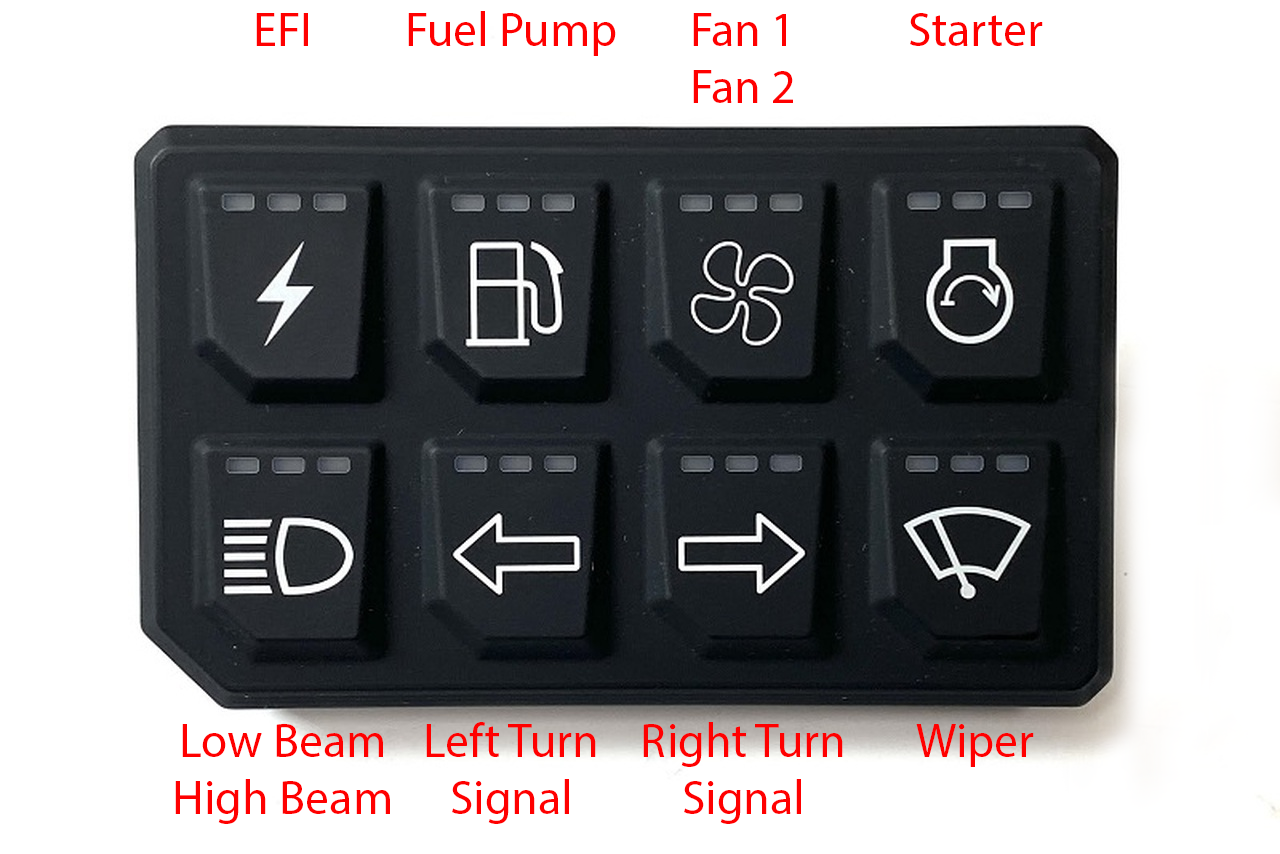

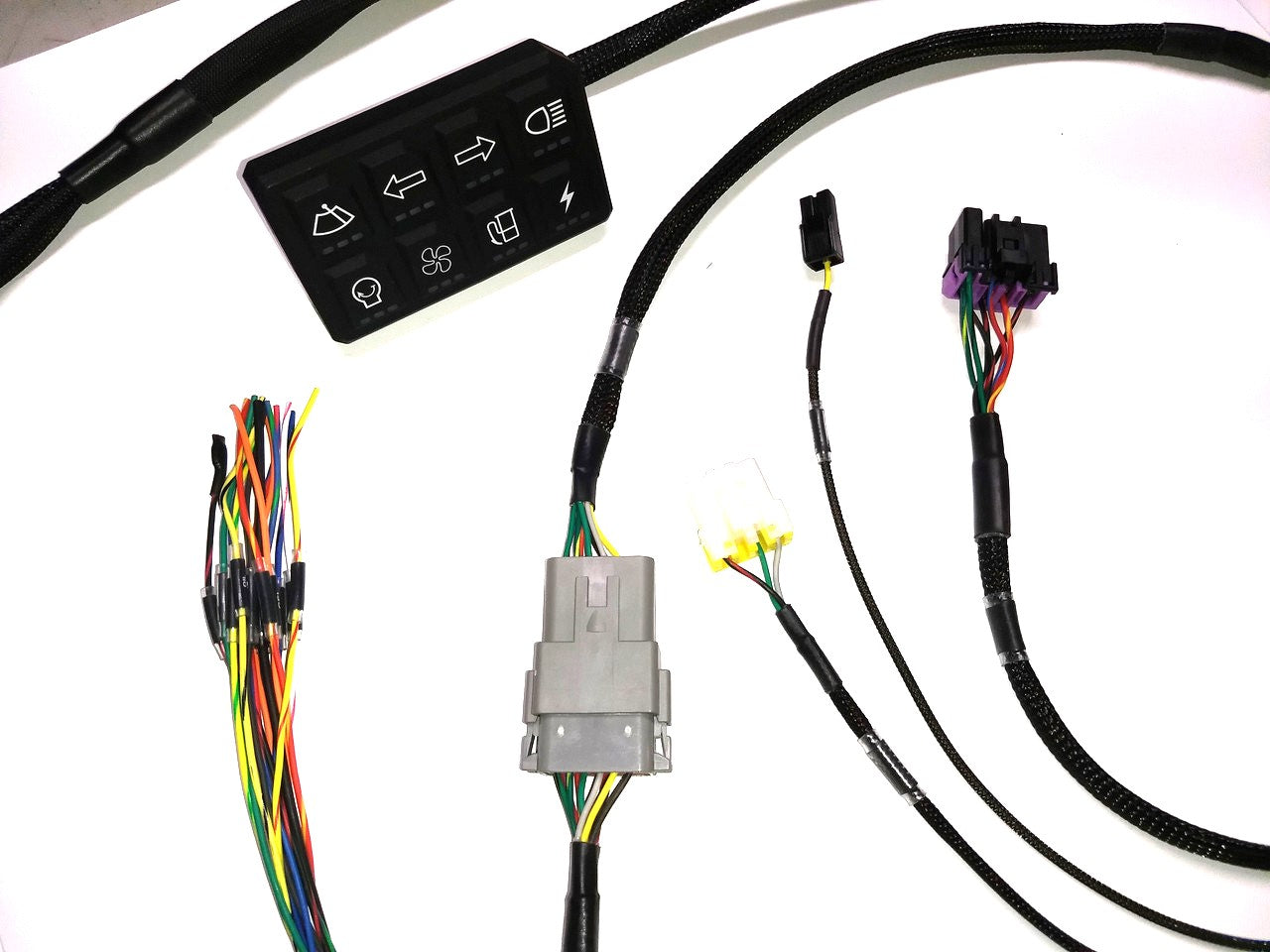

• CANbus 8-Button Keypad for all functions Tech Support Included for our Customers 7 days a week For the Dual Fuel Pump Option, please click HERE for additional specifications & details. For the Complete Battery Wiring Power Management Kit Option, please click HERE for additional specifications & details. PRO-SERIES HARNESS TECHNICAL SPECS
• Point-to-Point continuity tested on every wire

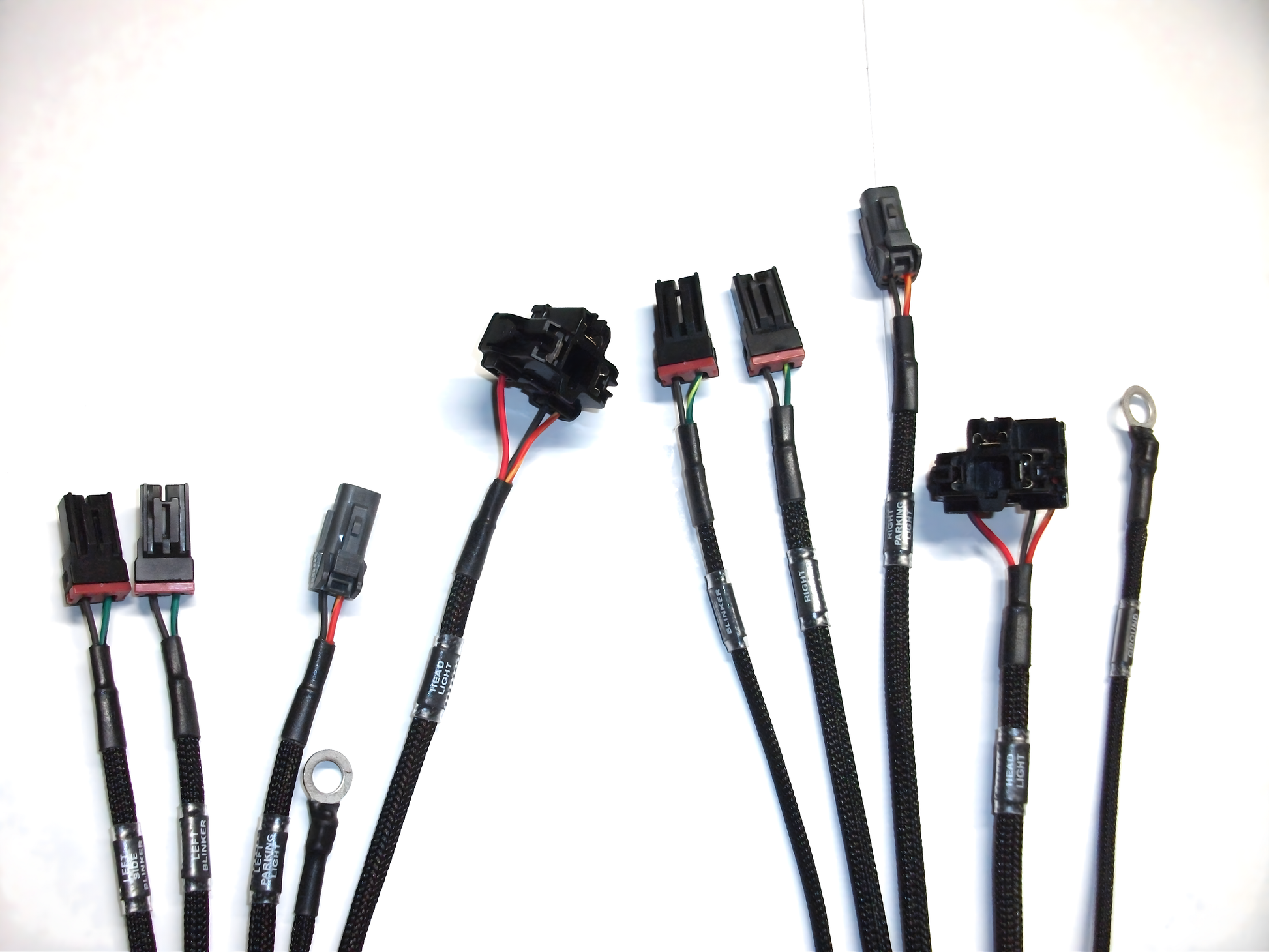

• Constructed using exact OEM connectors and seals
• Made with high temp TXL wire with adhesive shrink tubing (-40°C/-40°F to +125°C/+257°F operating temperature)
• Wrapped in lightweight nylon loom (-94°C/-137°F to +125°C/+257°F operating temperature)
• Fully tested after production for an easy plug-and-play installation Read more
