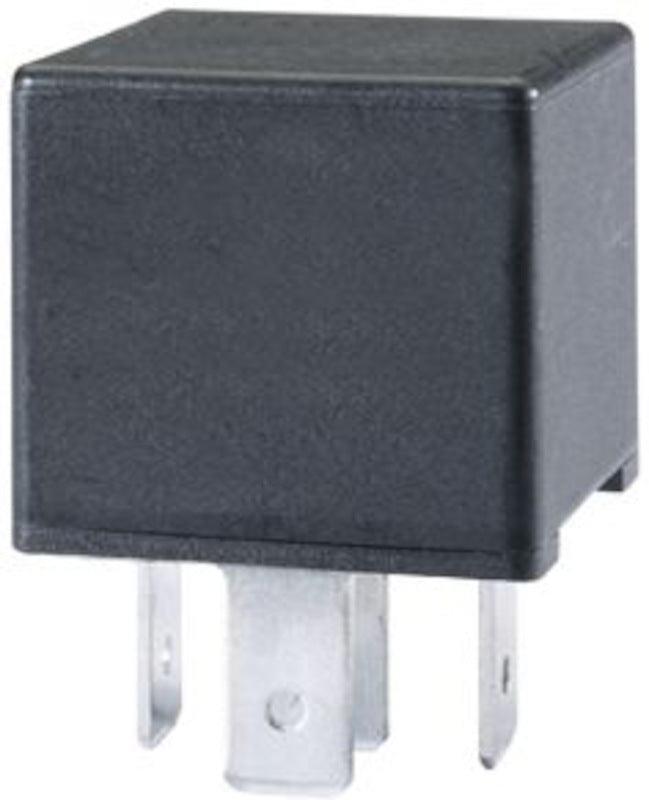

Hella Relay Single

Hella Relay Single

Regular price $16.27
Regular price Sale price $16.27
Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type
Multi-Purpose Relay
Category
Relays
Item condition
New
Shipping weight
0.1 lb

Billable shipping weight; may include dimensional weight.

Features:

  • 12 Volt
  • SPDT / Form C
  • Resistor Coil Suppression
  • 40 Amp Continuous
  • Dust Cover



Specifications

Nominal Voltage: 12V

Rated Continuous Load: N/O 40A | N/C 20A at 85° C

Ambient Temperature: -40° C...+125° C

Contact Form: 1 Form C / SPDT

Contact Material: AgSnO2

Operating / Drop out Voltage: ≤ 8.0V / ≥1.0V

Max. Coil Voltage: 18V

Coil Resistance: 100 Ohm ± 10% (incl. suppression component)

Suppression: Diode

Mechanical Cycles: 10,000,000

Operating / Releasing Time: ≤ 10 ms / ≤ 10 ms

Dielectric Strength: ≥ 1,000 VDC

Max. Inrush Load: 150A lamp / 166A motor

Resistive Load / Switching Cycles: N/O 30A | N/C 20A,150,000 cycles; N/O 40A, 100,000 cycles

Inductive Load / Switching Cycles: N/O 35A, 100,000 cycles

Lamp Load (capacitive) / Switching Cycles: N/O 30A, 100,000 cycles

Vibration: 20 - 200 Hz, 50m/s², 6 h per axis

Mechanical Shock: 500 m/s², 11 ms, period: 1 min, 1,000 times

IP Rating: IP54 DIN IEC 60 529

Terminals: 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn
30, 87, 87a: ISO 8092 6.3 x 0.8, CuZn
