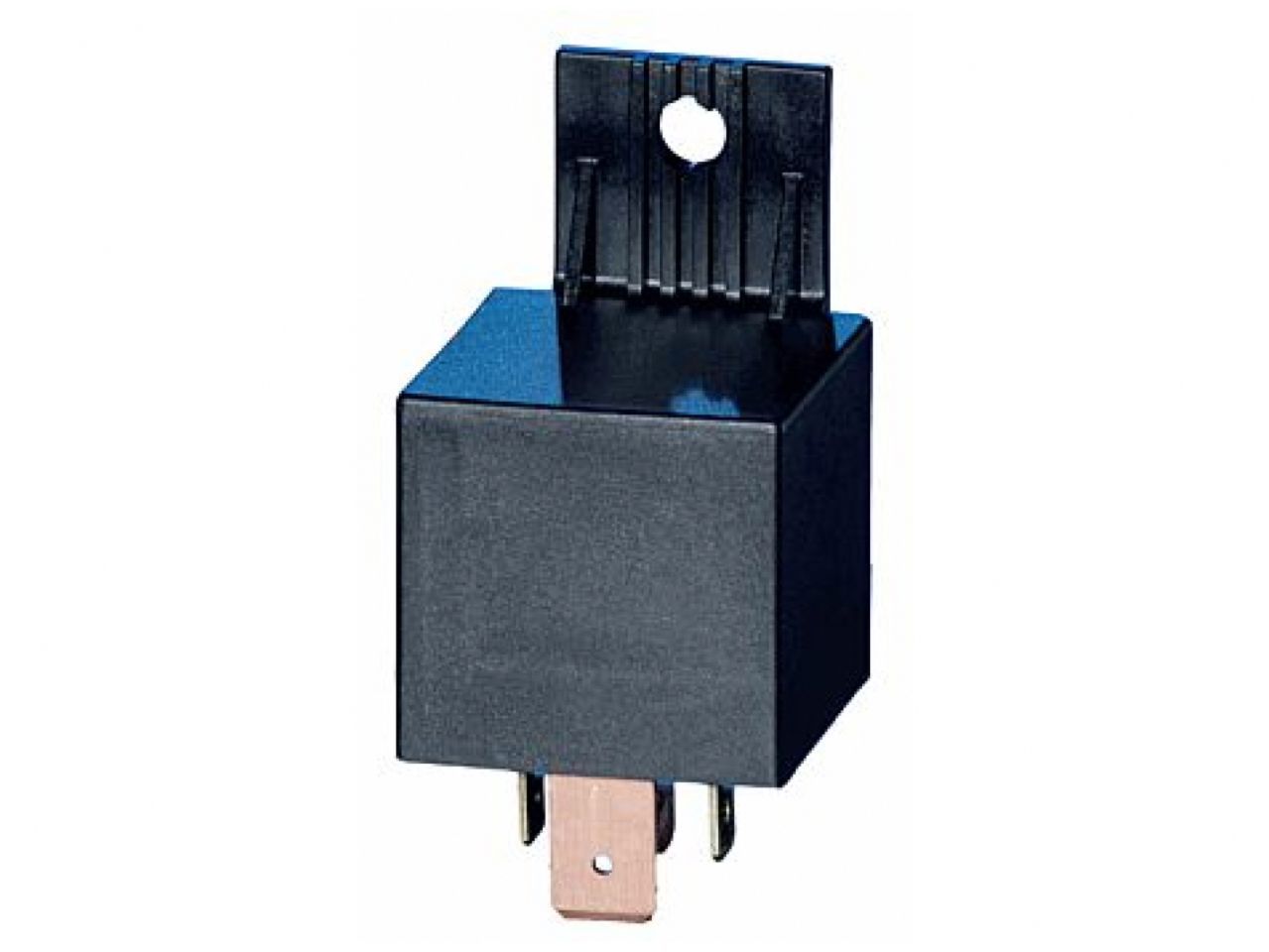

Hella Mini ISO Heavy Duty Relay 24V 50A SPST BKT

Mini ISO Heavy Duty Relay 24V 50A SPST BKT

Features:

• 24 Volt

• SPST / Form A

• 60 Amp Continuous

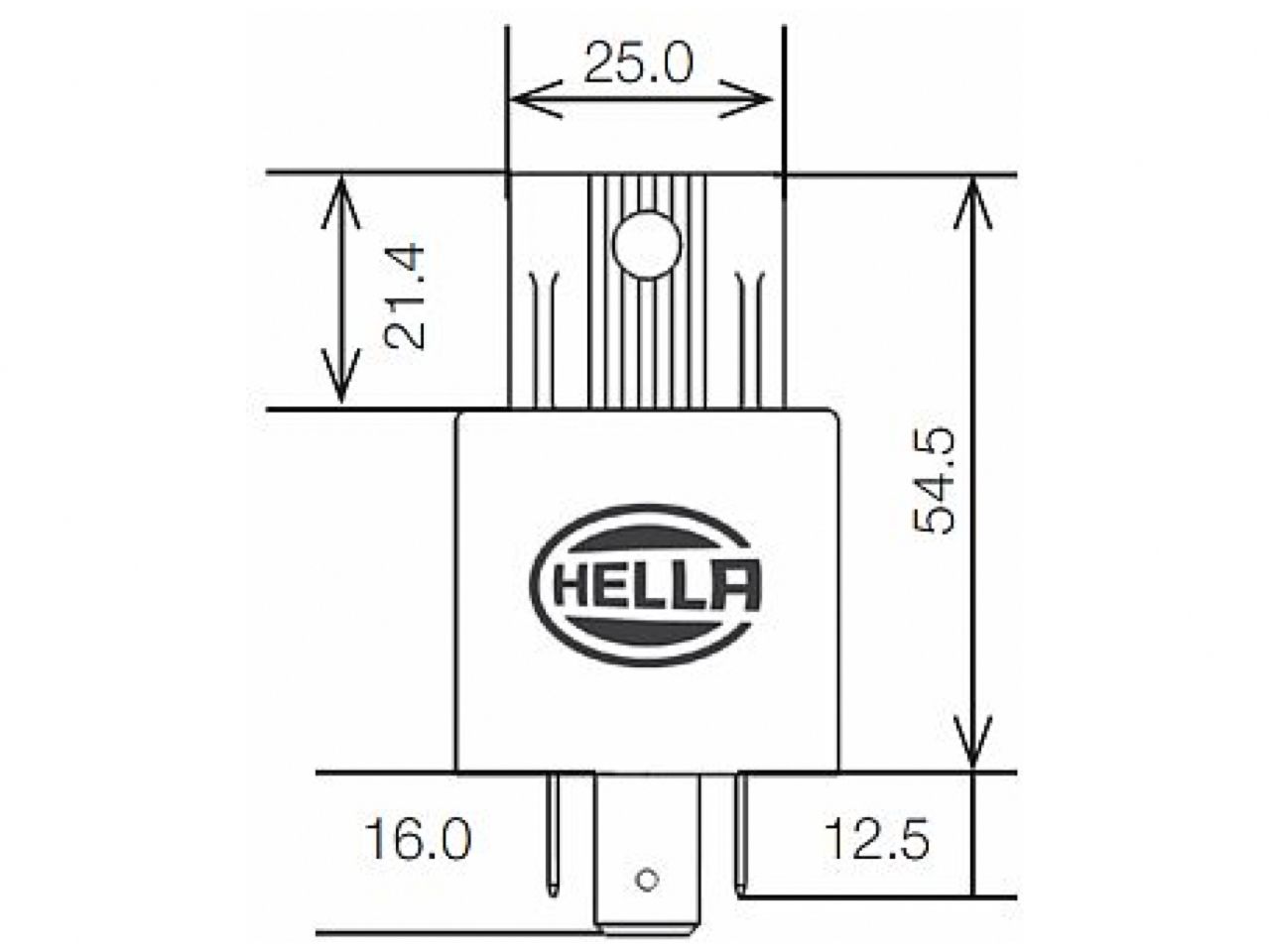

• Mounting Bracket

Technical Data:

• Nominal Voltage: 24V
• Rated Continuous Load: N/O 60A at 85° C
• Ambient Temperature: -40° C...+85° C

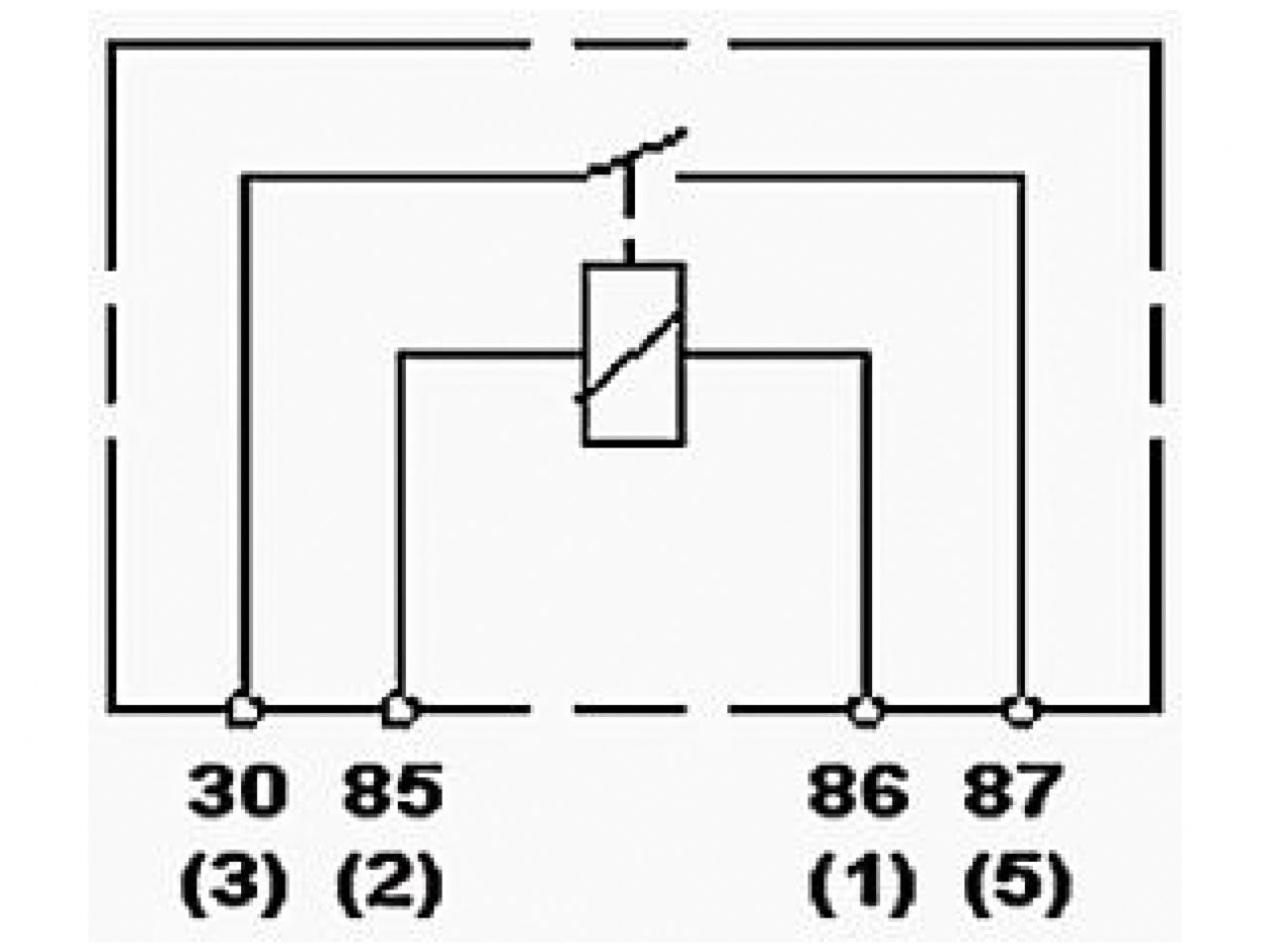

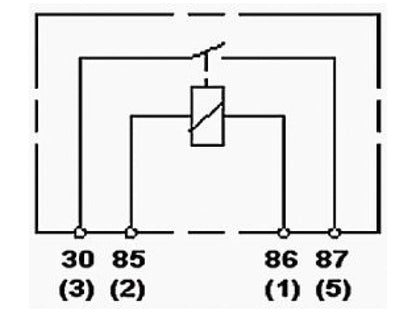

• Contact Form: 1 Form A / SPST N/O
• Contact Material: AgSnO2
• Operating / Drop out Voltage: ≤ 17.0V /  ≥5.0V
• Max. Coil Voltage: ---
• Coil Resistance: 310_ ± 10%
• Suppression: None
• Mechanical Cycles: 10,000,000
• Operating / Releasing Time: ≤ 10 ms / ≤ 10 ms
• Dielectric Strength: ≥ 1000 VDC
• Max. Inrush Load: 200A
• Resistive Load / Switching Cycles: 60A, 100,000 cycles
• Inductive Load / Switching Cycles: ---
• Lamp Load (capacitive) / Switching Cycles: ---
• Vibration: 20 - 200 Hz, 50m/s², 6 h per axis
• Mechanical Shock: 500 m/s², 11 ms, period: 1 min, 1,000 times
• IP Rating: IP54 DIN IEC 60 529

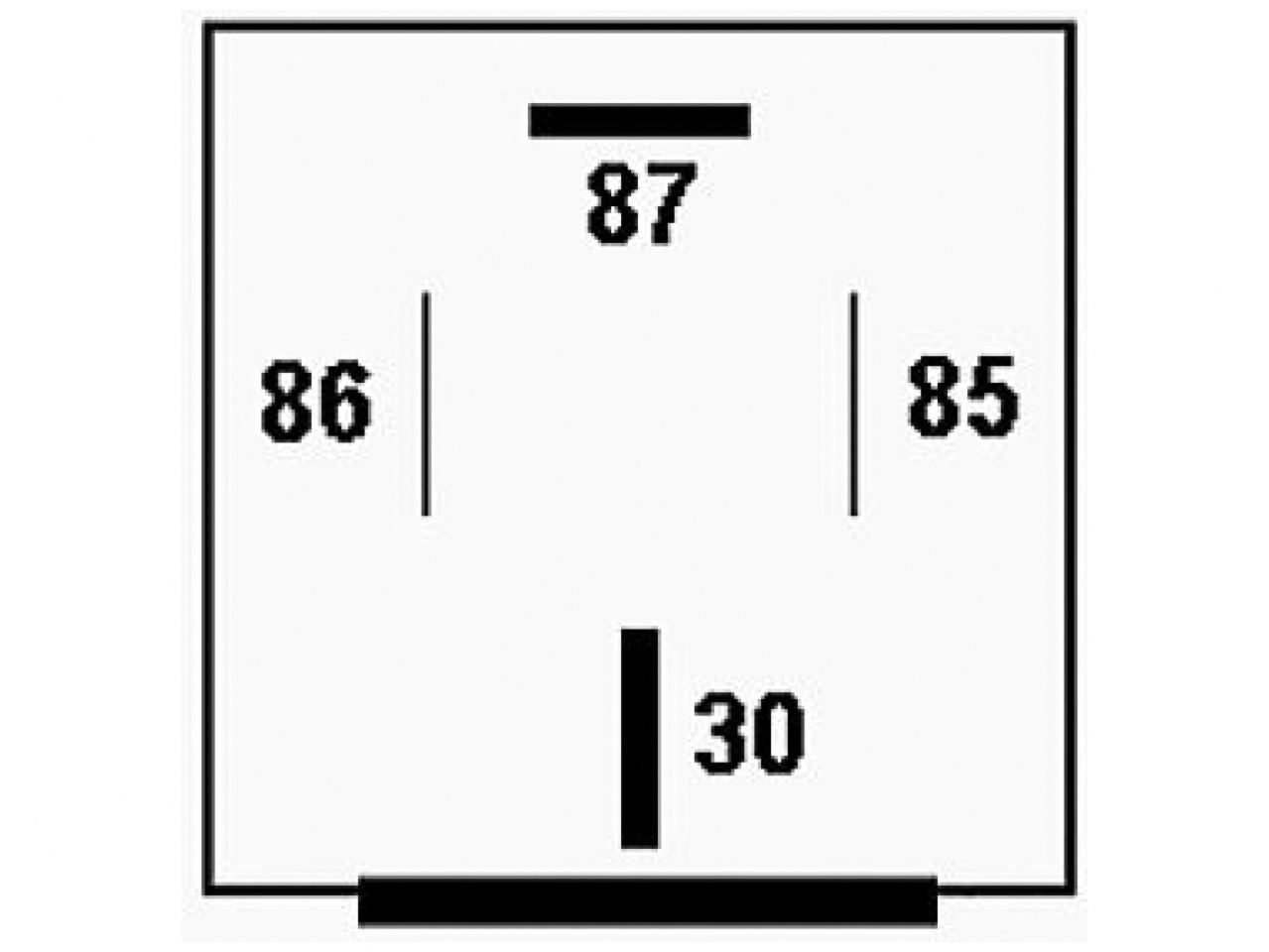

• Terminals: 85, 86: ISO 8092 6.3 x 0.8, CuZn, 30: ISO 8092 6.3 x 0.8, E-Cu, gal Sn 87: ISO 8092 9.5 x 1.2, E-Cu
