Whiteline Rear Differential - mount bushing

Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

Notes: Important

Kits Required: 1

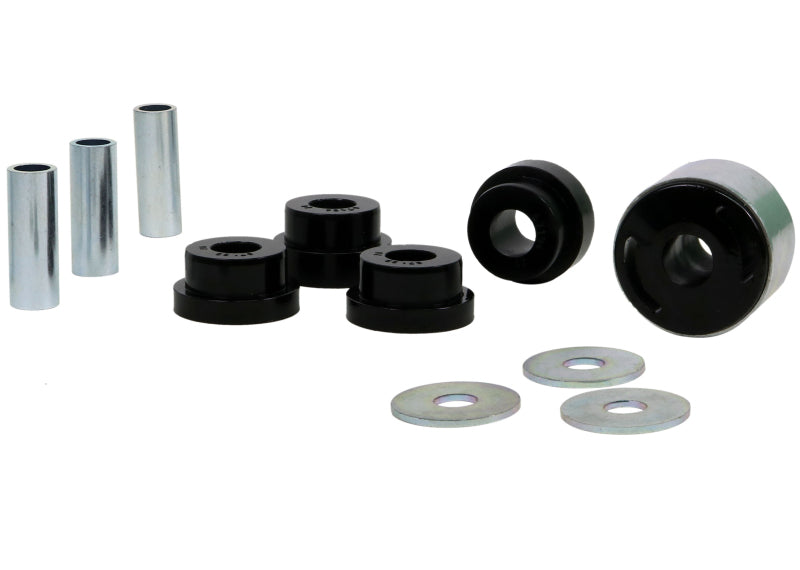

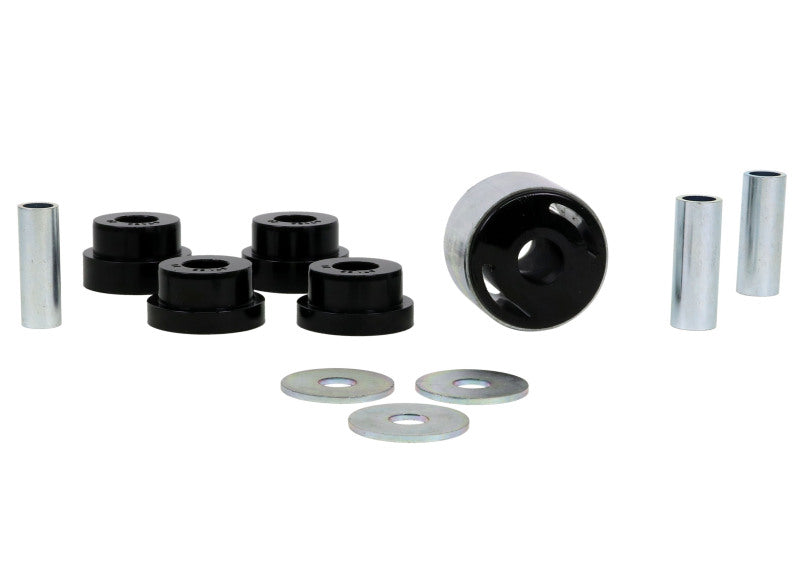

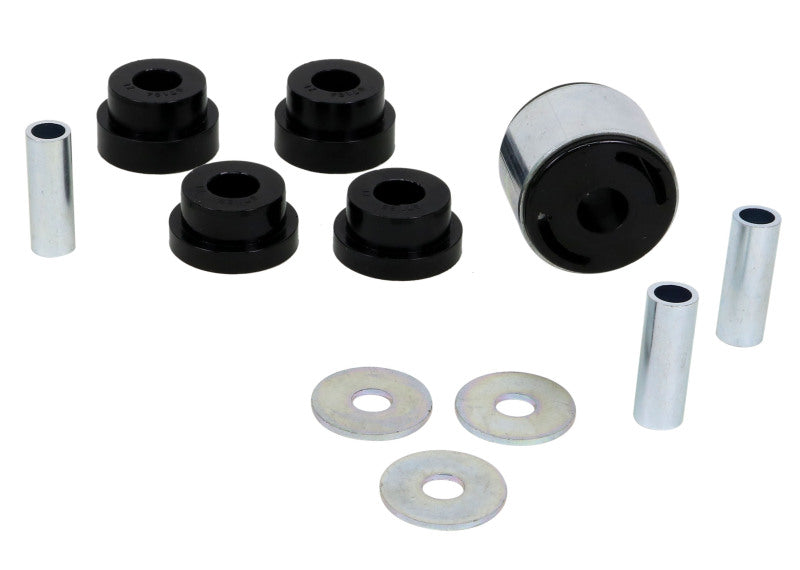

Kit Contents: 1 Shell Bushing, 4 Bushings, 3 Tubes, 3 Washers, Install Guide, Grease

Features

• Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
• Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
• Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
• Internal grease reservoirs provide continual self lubrication for optimum friction management.
• Specially bonded design for optimised strength typically required in high load bearing applications.
• Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.

Bush Type:1/1/16

Bush Qty: 2/2/1

ODA: 45.3 mm/45.3 mm/70 mm

IDB: 22.2 mm/22.2 mm/22.2 mm

LC: 27.5 mm/33.3 mm/56.7 mm

FLD: 10.5 mm/16.3 mm/6.7 mm

FLOD E: 56 mm/56 mm/65.5 mm

C/Tube QTY: 3/3/3

C/Tube Size: 22.2x14.3x56 / 22.2x16.2x62 mm/22.2x14.3x56 / 22.2x16.2x62 mm/22.2x14.3x56 / 22.2x16.2x62 mm

Packaged Weight and Dimensions

Weight: 0.88kg/1.94lbs

Length: 10cm/4''

Width: 20cm/8''

Height: 26cm/10''

Vehicle Applications

MITSUBISHI LANCER EVOLUTION EVO X(10/2007-ON)

Vehicle Fitments:
