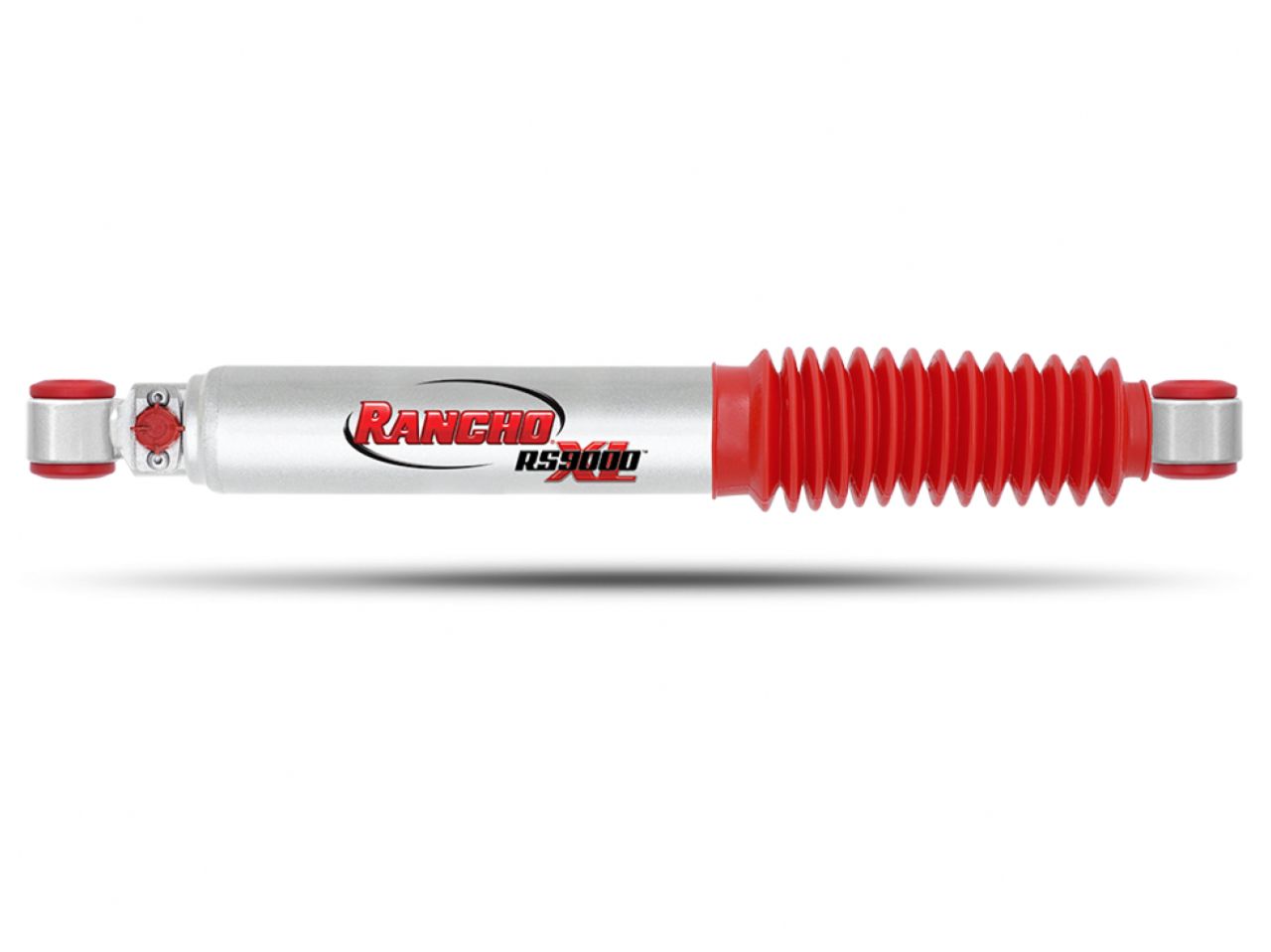

Rancho RS9000XL Shock Absorber

The Rancho® RS9000™XL 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations.

Features:

Large, 2.75-in. (70mm) tri-tube body- Increased fluid capacity to operate cooler

Large, heavy-duty 18mm Nitro-Carb rod- Increases scuffing resistance & corrosion protection

9-position tuning technology- Allows for optimal performance in any environment

9-Position adjustment knob- Provides a clear understanding of tuning level

Gas pressurization of shock- Minimizes air-to-oil mixture

Graphite-filled, Fluon banded piston- Provides smoother piston travel & greater responsiveness

1-1/4-in. Diameter Sintered Iron piston- Brings increased structural conformity

Rebound Bumper- Helps control the rebound motion during harsh driving conditions

Low-Friction, self-lubricating seal- Provides an extra layer of defense against dirt & debris

Liquid metallic finish- Premium long lasting finish

Protective boot- Added protection for the shock rod and oil seal

Double-welded loops- Added strength and durability.

Specifications

Compressed Length: 14.110

Extended Length: 21.920

Travel Length: 7.810

Lower Mounting Code: L3

Upper Mounting Code: L1
