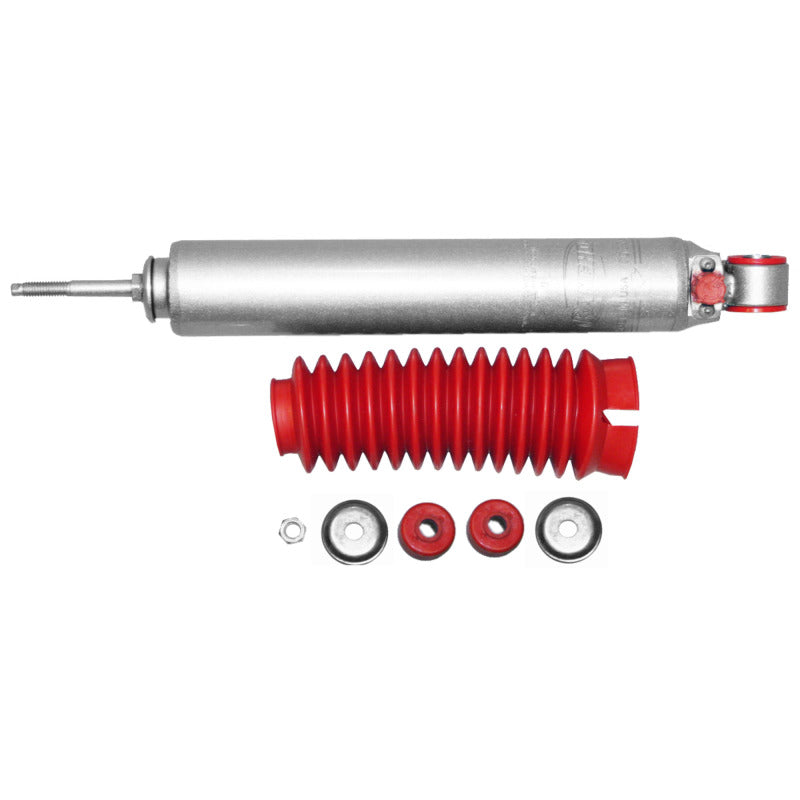

Rancho RS9000XL Shock

The Rancho® RS9000™XL 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations. Engineered and manufactured in the U.S

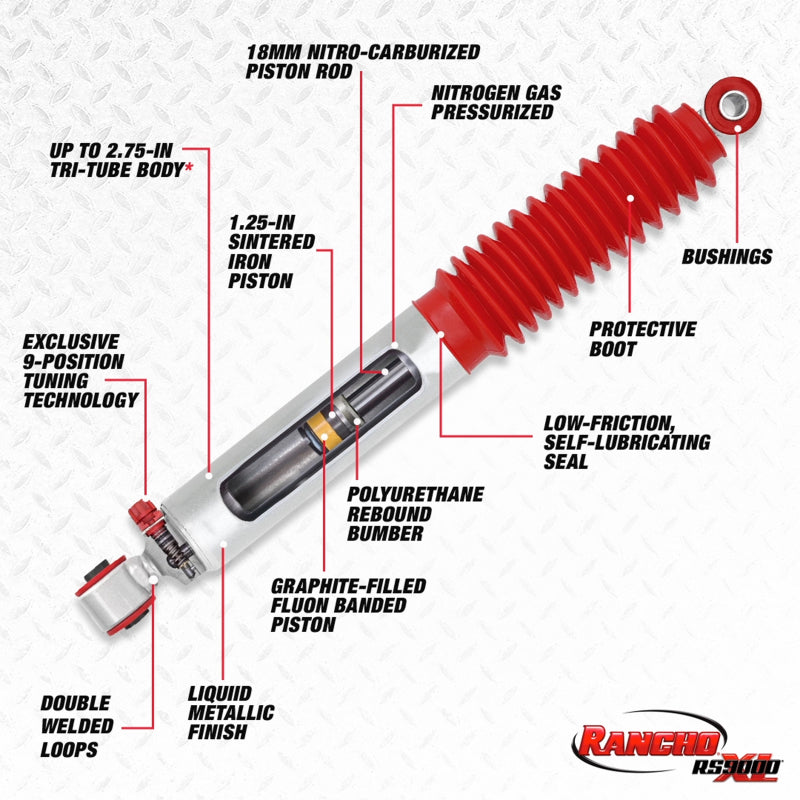

• Large, 2.75-in. (70mm) tri-tube body* - Increased fluid capacity to operate cooler
• Large, heavy-duty 18mm Nitro-Carb rod* - Increases scuffing resistance & corrosion protection
• 9-position tuning technology -  Allows for optimal performance in any environment
• 9-Position adjustment knob -  Provides a clear understanding of tuning level
• Gas pressurization of shock -  Minimizes air-to-oil mixture
• Graphite-filled, Fluon banded piston -  Provides smoother piston travel & greater responsiveness
• 1-1/4-in. Diameter Sintered Iron piston Brings increased structural conformity
• Rebound Bumper -  Helps control the rebound motion during harsh driving conditions
• Low-Friction, self-lubricating seal -  Provides an extra layer of defense against dirt & debris
• Liquid metallic finish -  Premium long lasting finish
• Protective boot -  Added protection for the shock rod and oil seal
• Double-welded loops -  Added strength and durability

Shock Specification

• COMPRESSED LENGTH: 10.140
• EXTENDED LENGTH: 14.650
• TRAVEL LENGTH: 4.510
• LOWER MOUNTING CODE: LS23
• UPPER MOUNTING CODE: S4
