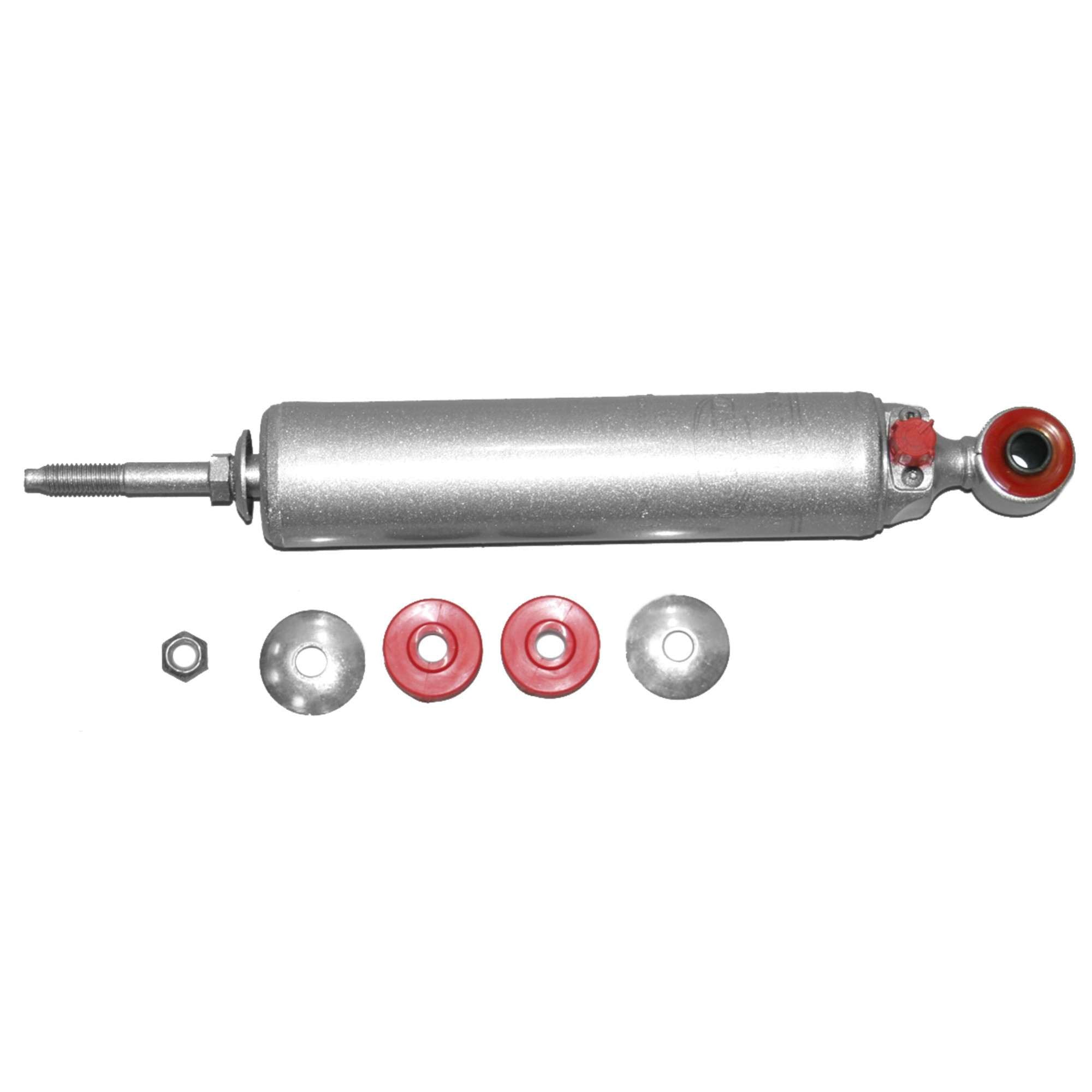

Rancho RS9000XL Shock
The Rancho® RS9000TXL 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations.
Features And Benefits
- Large, 2.75-in. (70mm) tri-tube body*- Increased fluid capacity to operate cooler
- Large, heavy-duty 18mm Nitro-Carb rod* - Increases scuffing resistance & corrosion protection
- 9-position tuning technology- Allows for optimal performance in any environment
- 9-Position adjustment knob - Provides a clear understanding of tuning level
- Gas pressurization of shock - Minimizes air-to-oil mixture
- Graphite-filled, Fluon banded piston - Provides smoother piston travel & greater responsiveness
- 1-1/4-in. Diameter Sintered Iron piston- Brings increased structural conformity
- Rebound Bumper - Helps control the rebound motion during harsh driving conditions
- Low-Friction, self-lubricating seal - Provides an extra layer of defense against dirt & debris
- Liquid metallic finish - Premium long lasting finish
- Protective boot - Added protection for the shock rod and oil seal
- Double-welded loops - Added strength and durability
Shock Specification
- COMPRESSED LENGTH: 13.375
- EXTENDED LENGTH: 19.938
- TRAVEL LENGTH: 6.563
- LOWER MOUNTING CODE: LS92
- UPPER MOUNTING CODE: S5
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002 | Dodge | Ram 1500 | Custom |
| 2003 - 2005 | Dodge | Ram 1500 | Laramie |
| 2002 - 2005 | Dodge | Ram 1500 | SLT, ST |
| 2004 - 2005 | Dodge | Ram 1500 | SRT-10 |
Rancho RS9000XL Shock
Sale price$130.28 USD
