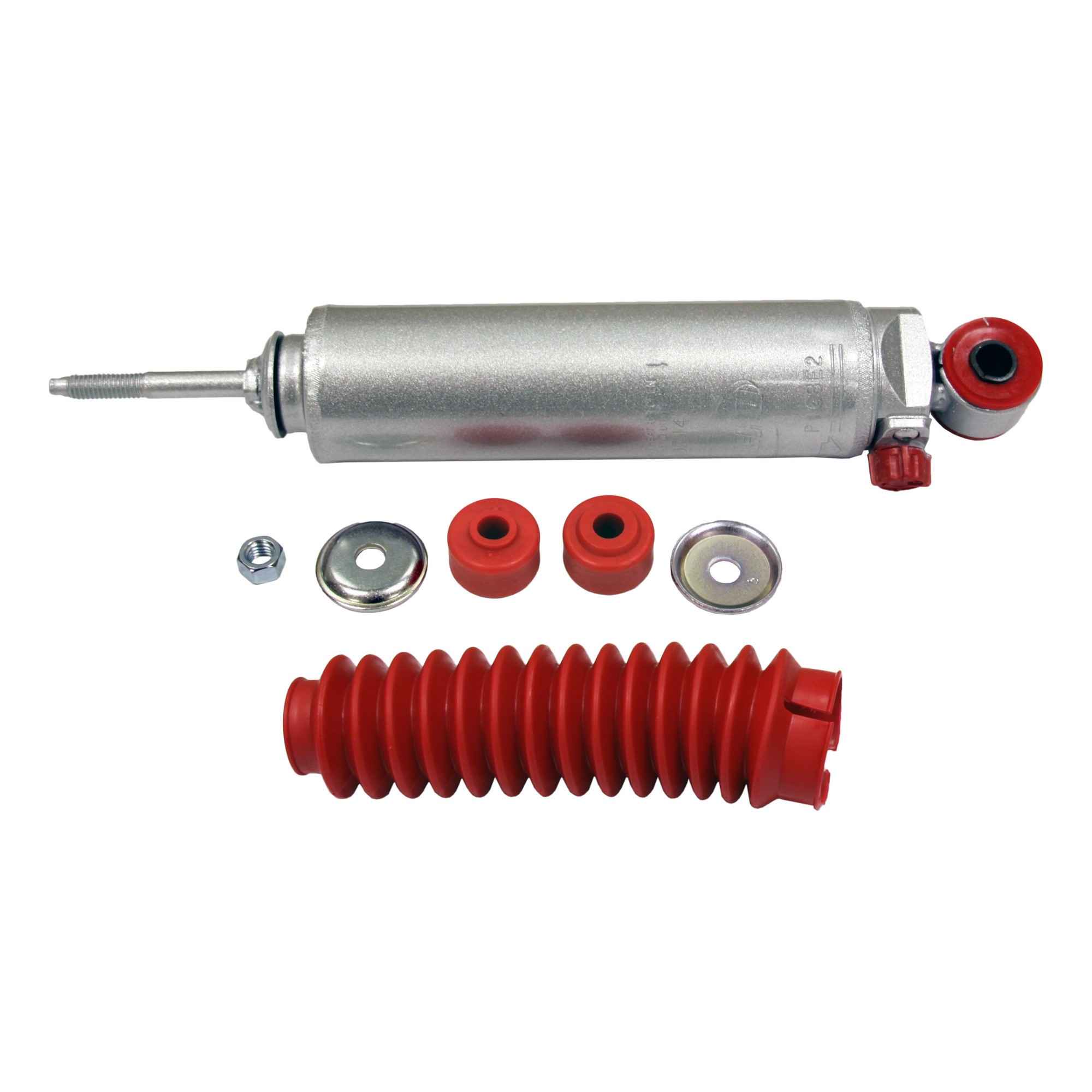

Rancho RS9000XL Shock
The Rancho® RS9000TXL 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations.
Features And Benefits
- Large, 2.75-in. (70mm) tri-tube body*- Increased fluid capacity to operate cooler
- Large, heavy-duty 18mm Nitro-Carb rod*- Increases scuffing resistance & corrosion protection
- 9-position tuning technology - Allows for optimal performance in any environment
- 9-Position adjustment knob - Provides a clear understanding of tuning level
- Gas pressurization of shock - Minimizes air-to-oil mixture
- Graphite-filled, Fluon banded piston - Provides smoother piston travel & greater responsiveness
- 1-1/4-in. Diameter Sintered Iron piston - Brings increased structural conformity
- Rebound Bumper - Helps control the rebound motion during harsh driving conditions
- Low-Friction, self-lubricating seal - Provides an extra layer of defense against dirt & debris
- Liquid metallic finish - Premium long lasting finish
- Protective boot - Added protection for the shock rod and oil seal
- Double-welded loops - Added strength and durability
Shock Specification
- COMPRESSED LENGTH: 10.340
- EXTENDED LENGTH: 14.500
- TRAVEL LENGTH: 4.160
- LOWER MOUNTING CODE: LS23
- UPPER MOUNTING CODE: S4
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996 - 1997 | Acura | SLX | Base |
| 1996 - 1999 | Acura | SLX | Premium |
| 1994 - 1995 | Honda | Passport | EX, DX, LX |
| 1989 - 1994 | Isuzu | Amigo | S, XS |
| 1989 - 1992 | Isuzu | Pickup | 1 Ton, LS |
| 1989 - 1995 | Isuzu | Pickup | S |
| 1989 - 1990 | Isuzu | Pickup | XS |
| 1991 - 1995 | Isuzu | Rodeo | S, LS |
| 1991 - 1992 | Isuzu | Rodeo | XS |
| 1995 - 2002 | Isuzu | Trooper | Limited |
| 1989 - 2002 | Isuzu | Trooper | LS, S |
| 1997 | Isuzu | Trooper | Ltd |
| 1989 - 1995 | Isuzu | Trooper | RS |
| 1991 - 1996 | Isuzu | Trooper | SE |
| 1989 - 1991 | Isuzu | Trooper | XS |
| 1999 - 2001 | Isuzu | VehiCROSS | Base |
| 1988 - 1992 | Nissan | Pathfinder | Base |
| 1987 | Nissan | Pathfinder | E |
| 1994 - 1995 | Nissan | Pathfinder | LE |
| 1987 - 1995 | Nissan | Pathfinder | XE, SE |
Rancho RS9000XL Shock
Sale price$127.65 USD
