Rancho Rs9000Xl Shock

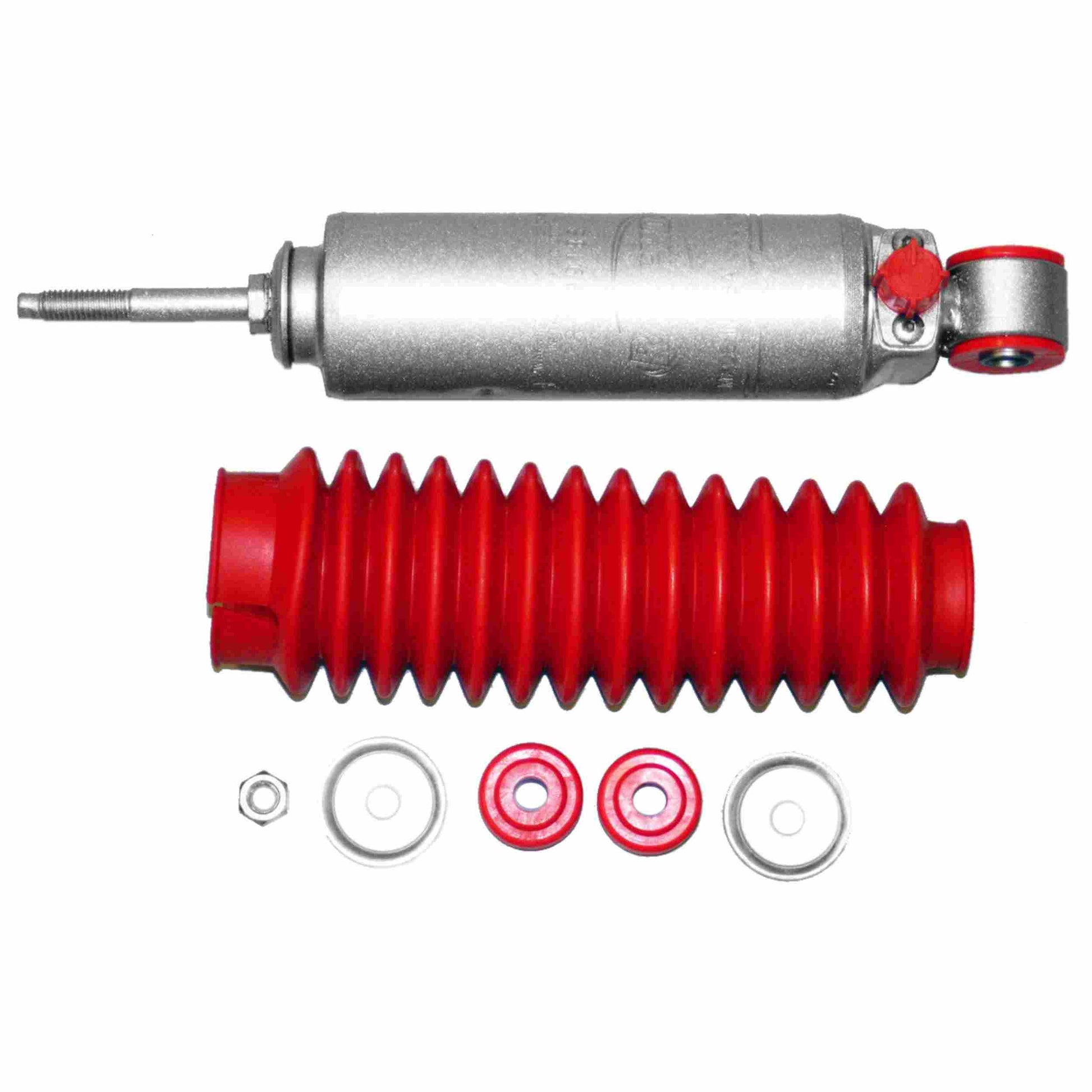

RANCHO RS9000XL SHOCK ABSORBER

NINE LEVELS OF PERFORMANCE
The Rancho® RS9000TXL 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations. Engineered and manufactured in the U.S.

FEATURES BENEFITS
Large, 2.75-in. (70mm) tri-tube body-Increased fluid capacity to operate cooler
Large, heavy-duty 18mm Nitro-Carb rod- Increases scuffing resistance & corrosion protection
9-position tuning technology- Allows for optimal performance in any environment
9-Position adjustment knob- Provides a clear understanding of tuning level
Gas pressurization of shock- Minimizes air-to-oil mixture
Graphite-filled, Fluon banded piston -Provides smoother piston travel & greater responsiveness
1-1/4-in. Diameter Sintered Iron piston -Brings increased structural conformity
Rebound Bumper -Helps control the rebound motion during harsh driving conditions
Low-Friction, self-lubricating seal -Provides an extra layer of defense against dirt & debris
Liquid metallic finish -Premium long lasting finish
Protective boot -Added protection for the shock rod and oil seal
Double-welded loops- Added strength and durability

*Size varies by application

SHOCK SPECIFICATIONS

COMPRESSED LENGTH:9.000
EXTENDED LENGTH:12.370
TRAVEL LENGTH:3.370
LOWER MOUNTING CODE:LS23
UPPER MOUNTING CODE:S4
PARTS PACK: P01192

*All measurements are in inches. Boot/Dust Shield end is upper. All shocks sold individually.

Vehicle Fitments:
