Wiring Specialties Radium Top Feed Fuel Rail Kit for RB26DETT 20-0217

Wiring Specialties Radium Top Feed Fuel Rail Kit for RB26DETT 20-0217

$199.95
$199.95 $199.95
Sale Sold out

Shipping calculated at checkout.

Low stock: 10 left

Configure your harness

Select the options for your vehicle and equipment.

Loading configuration…

Add the specifications requested by your selected options, such as throttle body, pedal, or sensor details.

Your build summary

Price per harness $199.95 USD

Need help choosing options?

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type
Unclassifiable
Shipping weight
5.5 lb

Billable shipping weight; may include dimensional weight.

INCLUDES

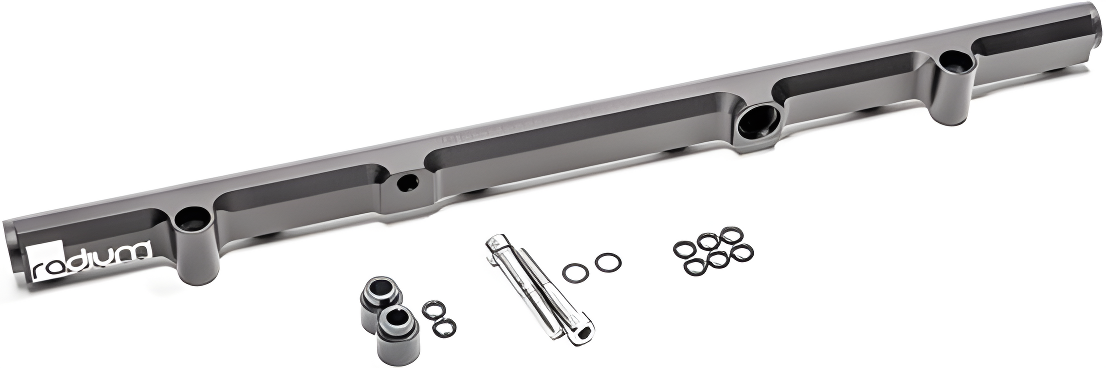

  • Black Anodized Aluminum Fuel Rail
  • Thermal Insulating Spacers (x2)
  • Thermal Insulating Washers (x2)
  • Stainless Steel Mounting Bolts (x2)
  • FKM O-rings for OEM Injectors (x6) NOTE: This fuel rail does NOT come with fittings! Unused ports must be plugged. PORTS AND FITTINGS This fuel rail features three 8AN ORB ports, two located at the ends and one in the middle. It also features one 1/8NPT port.
  • Optional 8AN Plugs are available here 14-0150 8AN ORB Plug
  • Optional 1/8 NPT Plugs are available here 14-0172 1/8 NPT Plug
  • Optional Nissan OEM FPR Adapter available here 20-0301 Fitting

Specifications

Read more 20-0217 FUEL RAIL, NISSAN RB26DETT This 1989-2002 Nissan Skyline GT-R fuel rail is designed specifically for OEM (R32/R33/R34) RB26DETT intake manifolds. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish. For thermal insulation, press-fit machined spacers and washers are included to completely isolate the fuel rail from heat transfer via the manifold and mounting bolts, as shown. The fuel rail is designed for any aftermarket injectors that have the same fitment as the OEM injectors. Contact an injector manufacturer to see what they offer. The upper injector bores are machined with a common 11mm ID (Denso). Use the included O-rings if re-using the OEM injectors, otherwise the included O-rings will not be needed. The rail is compatible with all fuel types including popular alcohol mixtures such as E85. As shown below, the front, rear, and center ports use 8AN ORB (3/4"-16 O-ring threads) to accept many adapter fittings for custom high flow fuel system builds.

FAQs

20-0217 FUEL RAIL, NISSAN RB26DETT This 1989-2002 Nissan Skyline GT-R fuel rail is designed specifically for OEM (R32/R33/R34) RB26DETT intake manifolds. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish. For thermal insulation, press-fit machined spacers and washers are included to completely isolate the fuel rail from heat transfer via the manifold and mounting bolts, as shown. The fuel rail is designed for any aftermarket injectors that have the same fitment as the OEM injectors. Contact an injector manufacturer to see what they offer. The upper injector bores are machined with a common 11mm ID (Denso). Use the included O-rings if re-using the OEM injectors, otherwise the included O-rings will not be needed. The rail is compatible with all fuel types including popular alcohol mixtures such as E85. As shown below, the front, rear, and center ports use 8AN ORB (3/4"-16 O-ring threads) to accept many adapter fittings for custom high flow fuel system builds.
