Wiring Specialties SR20DET Top Feed Fuel Rail Kit for S14/S15 PRO Series 20-0359
Wiring Specialties SR20DET Top Feed Fuel Rail Kit for S14/S15 PRO Series 20-0359
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 10 left
Configure your harness
Select the options for your vehicle and equipment.
Add the specifications requested by your selected options, such as throttle body, pedal, or sensor details.
Your build summary
Contact us to order this configuration. We will confirm the options, availability, and final price.
Email this configurationShipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

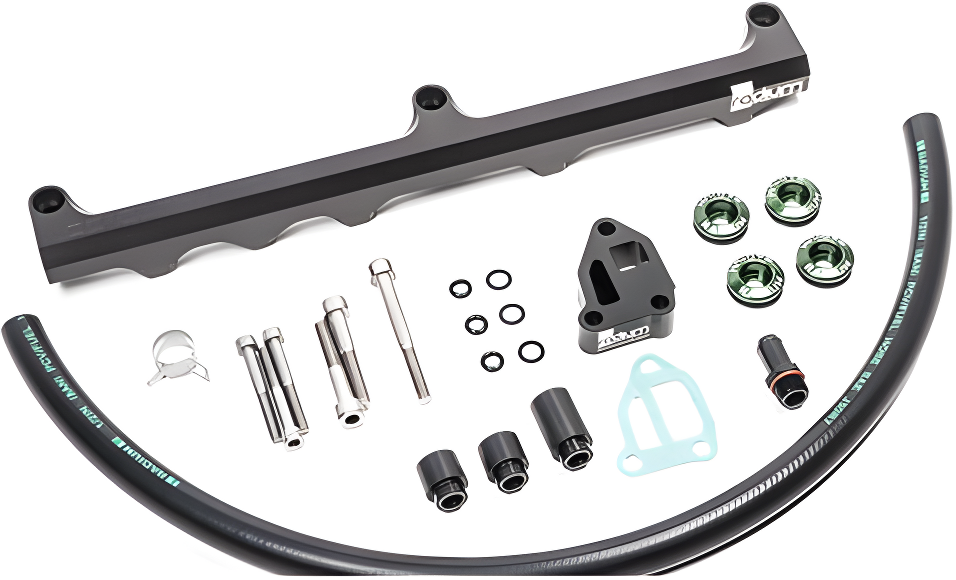

INCLUDED All parts listed below are included for a trouble and leak-free installation.
- Black Anodized Aluminum Fuel Rail
- Thermal Insulating Spacers (x3)
- Thermal Insulating Washers (x3)
- Green Anodized Aluminum 25mm Injector Seats (x4)
- Black Anodized Aluminum IACV Spacer
- IACV Gasket, SR20DET S14/S15
- Black Anodized Aluminum IACV Barb Adapter
- Rubber Hose and OEM Clamp for IACV
- Stainless Steel M8x1.25 Mounting Bolts (x3)
- Stainless Steel M6x1 Mounting Bolts (x3) NOTE: This fuel rail does NOT come with fittings! Unused ports must be plugged. PORTS AND FITTINGS
- The fuel rail features three 8AN ORB ports
- Optional 8AN Plugs are available here 14-0150 8AN ORB Plug
Specifications

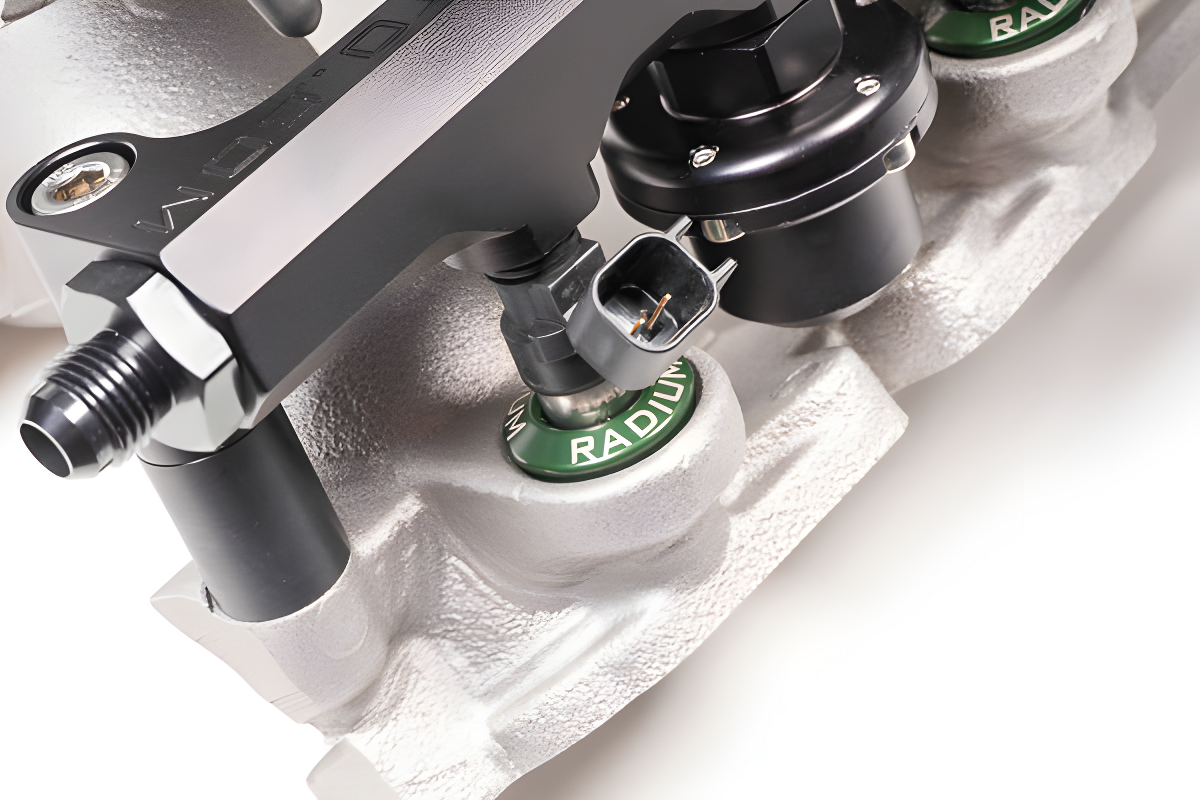

This Nissan Silvia fuel rail kit is specifically designed for the SR20DET S14/S15 OEM intake manifold. For the SR20DET S13 fuel rail kit, click HERE Read more Manufactured with a 0.69" large internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from solid 6061 aluminum and black anodized for a high quality surface finish. The included insulating spacers mount the rail to the OEM intake manifold bosses thermal isolation. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (not included). The fuel injector bores are 14mm ID. The kit is designed for specific upper and lower O-ring spacing, as depicted. Below are some of the many fuel injectors that are a direct fitment: Injector Dynamics ID1050-XDS-34-14-14 Injector Dynamics ID1300-XDS-34-14-14 Injector Dynamics ID1700-XDS-34-14-14 Injector Dynamics ID2600-XDS-34-14-14 To resist oxidation corrosion, the lower billet aluminum injector seats are anodized and laser etched. They are O-ring sealed and designed for 14mm top feed injectors. This kit is compatible with all fuel types including popular alcohol mixtures such as E85. The OEM 2-bolt IACV bypass hard line is replaced by a billet aluminum IACV spacer kit to gain clearance for the top feed fuel rail. An anodized aluminum barb adapter and rubber hose is supplied to reroute the charge pipe hose externally to the manifold. One gasket is included for the IACV spacer.
FAQs

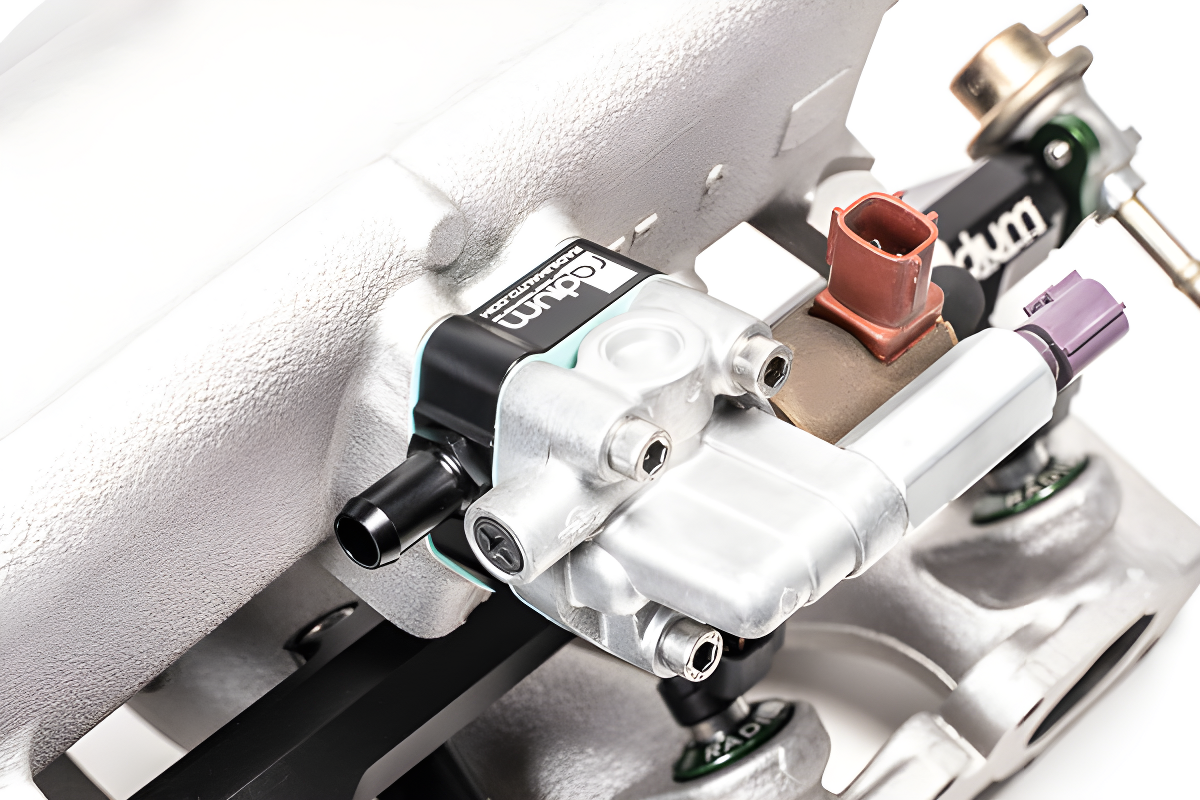

Manufactured with a 0.69" large internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from solid 6061 aluminum and black anodized for a high quality surface finish. The included insulating spacers mount the rail to the OEM intake manifold bosses thermal isolation. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (not included). The fuel injector bores are 14mm ID. The kit is designed for specific upper and lower O-ring spacing, as depicted. Below are some of the many fuel injectors that are a direct fitment: Injector Dynamics ID1050-XDS-34-14-14 Injector Dynamics ID1300-XDS-34-14-14 Injector Dynamics ID1700-XDS-34-14-14 Injector Dynamics ID2600-XDS-34-14-14 To resist oxidation corrosion, the lower billet aluminum injector seats are anodized and laser etched. They are O-ring sealed and designed for 14mm top feed injectors. This kit is compatible with all fuel types including popular alcohol mixtures such as E85. The OEM 2-bolt IACV bypass hard line is replaced by a billet aluminum IACV spacer kit to gain clearance for the top feed fuel rail. An anodized aluminum barb adapter and rubber hose is supplied to reroute the charge pipe hose externally to the manifold. One gasket is included for the IACV spacer.
