Wiring Specialties Radium Top Feed Fuel Rail Kit Standalone RDM-20-0957
Wiring Specialties Radium Top Feed Fuel Rail Kit Standalone RDM-20-0957
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 10 left
Configure your harness
Select the options for your vehicle and equipment.
Add the specifications requested by your selected options, such as throttle body, pedal, or sensor details.
Your build summary
Contact us to order this configuration. We will confirm the options, availability, and final price.
Email this configurationShipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyIncluded

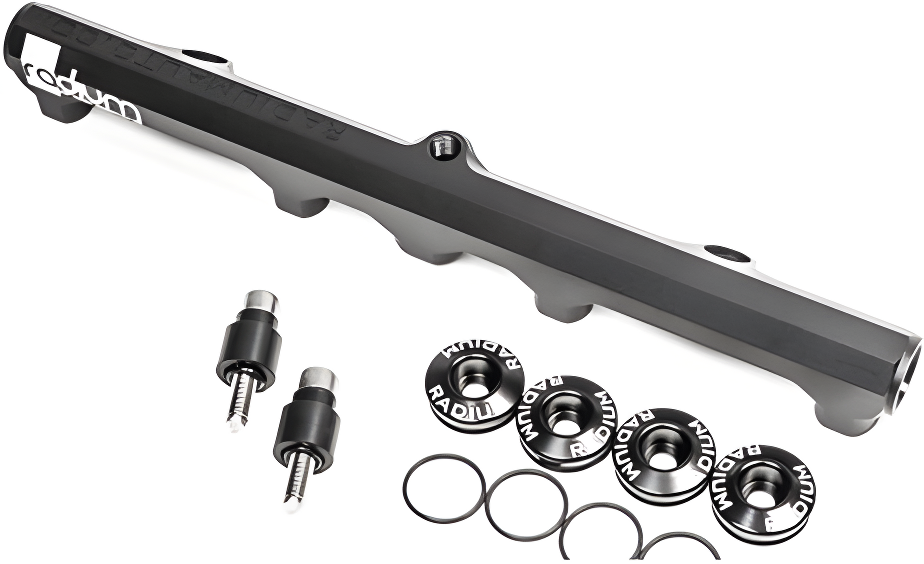

- Black Anodized Aluminum Fuel Rail
- Thermal Insulating Spacers (x2)
- Thermal Insulating Washers (x2)
- Black Anodized Aluminum Injector Seats (x4)
- Stainless Steel Mounting Bolts (x2) NOTE: This fuel rail does NOT come with fittings! Unused ports must be plugged. PORTS AND FITTINGS This fuel rail features three ports that are tapped for 8AN ORB (both ends and bottom). It also has one 1/8 NPT port (top).
- Optional 8AN Plugs are available here 14-0150 8AN ORB Plug
- Optional 1/8 NPT Plugs are available here 14-0172 1/8 NPT Plug
Specifications

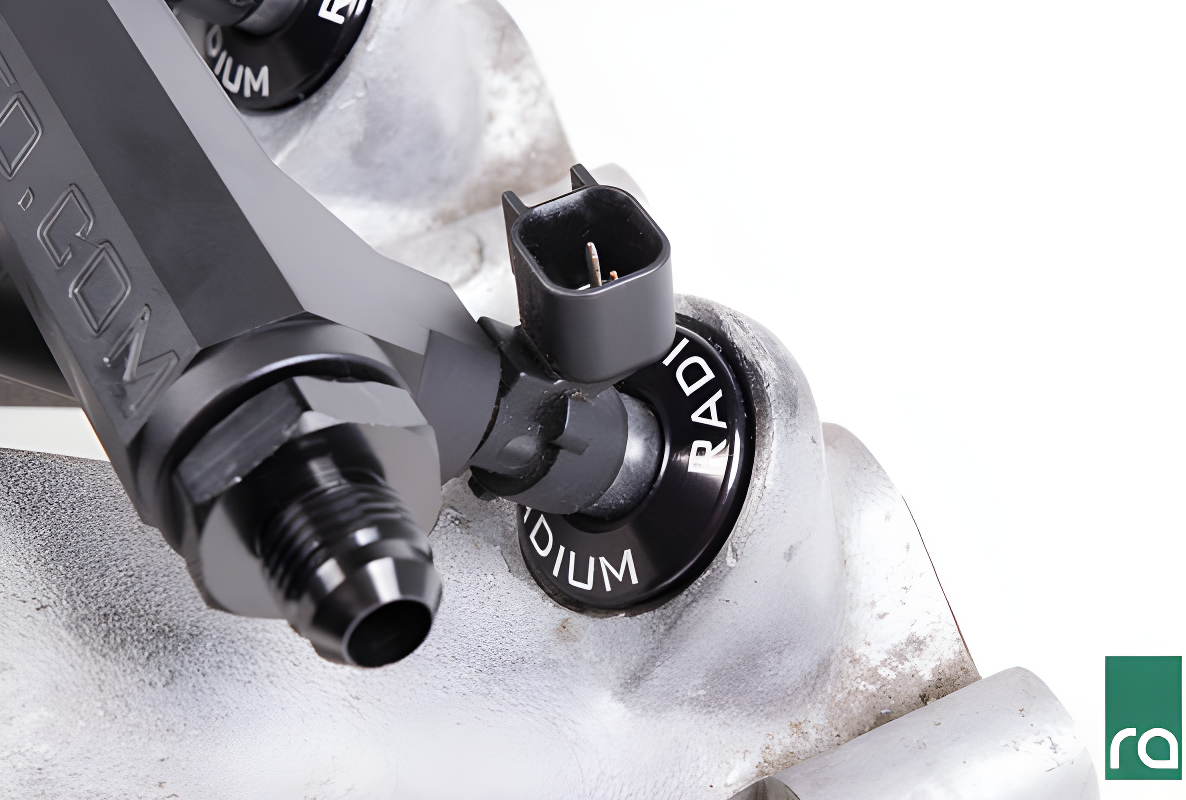

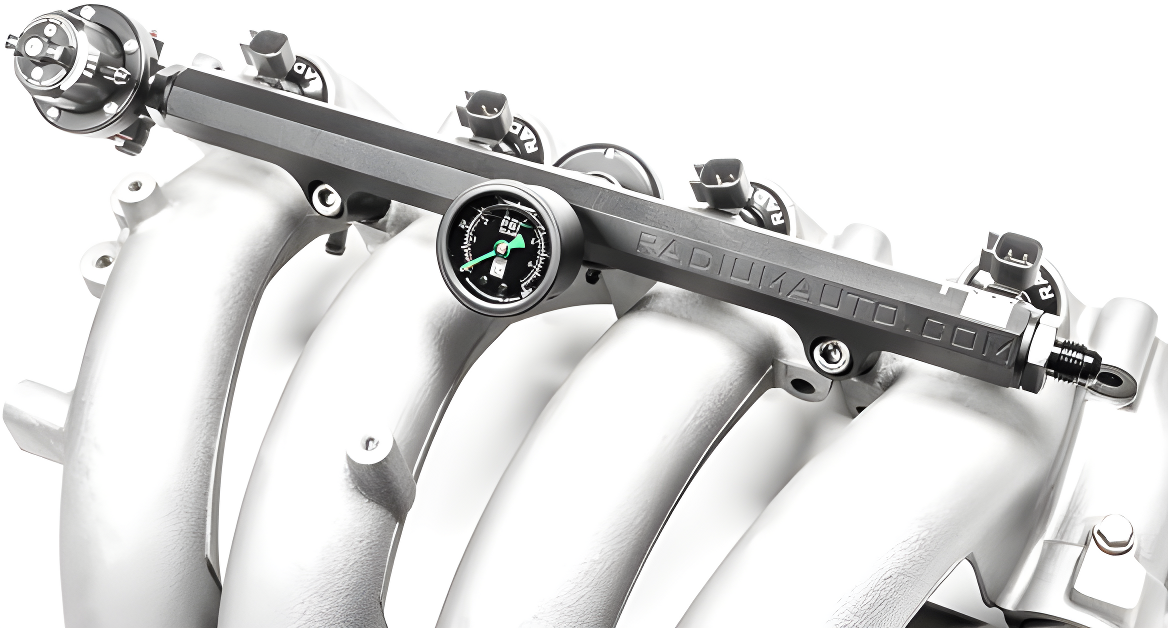

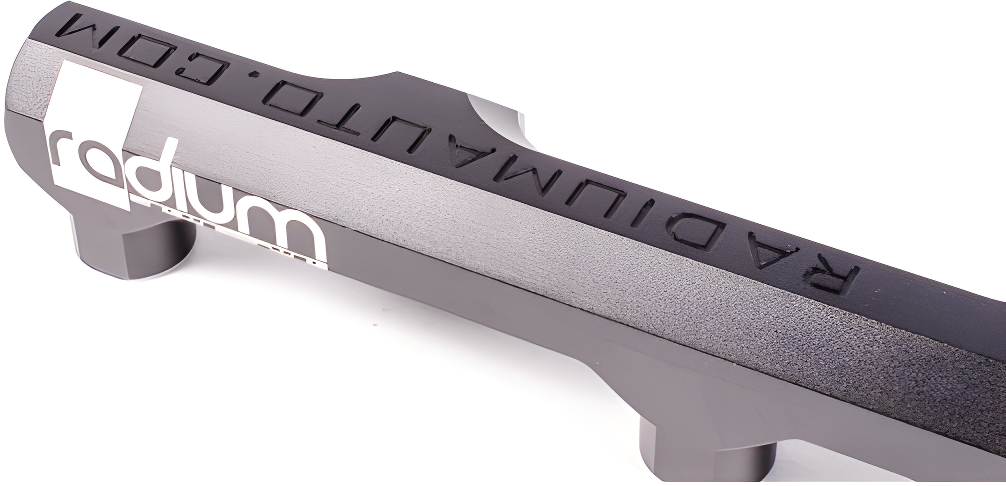

This Radium Engineering fuel rail is a direct bolt-on with all twin cam Nissan KA24DE engines. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed allowing the use of high flow 14mm O-ring fuel injectors (not included). The rail is CNC machined from solid 6061 aluminum and black anodized making it compatible with all fuel types including E85. The OEM Nissan intake manifold is shown above. If planning to use with an Xcessive intake manifold, please note that the fuel rail may need to be shimmed to the proper height depending on fuel injectors used. Also, the aluminum injector seats (shown above) will not be used. Fuel Injector Compatibility The kit includes spacers for 34mm height injectors. Read more Injectors MUST have 14mm O-rings top and bottom. Below are some of the many fuel injectors that are a direct fitment with this Radium Engineering fuel rail: Injector Dynamics ID1050-XDS-34-14-14 Injector Dynamics ID1300-XDS-34-14-14 Injector Dynamics ID1700-XDS-34-14-14 Injector Dynamics ID2600-XDS-34-14-14 NOTE: Fuel injectors are NOT included and must be purchased elsewhere.
FAQs
Injectors MUST have 14mm O-rings top and bottom. Below are some of the many fuel injectors that are a direct fitment with this Radium Engineering fuel rail: Injector Dynamics ID1050-XDS-34-14-14 Injector Dynamics ID1300-XDS-34-14-14 Injector Dynamics ID1700-XDS-34-14-14 Injector Dynamics ID2600-XDS-34-14-14 NOTE: Fuel injectors are NOT included and must be purchased elsewhere.
