Wiring Specialties 2JZGTE Radium Top Feed Fuel Rail Kit Accessories RDM-20-0215
Wiring Specialties 2JZGTE Radium Top Feed Fuel Rail Kit Accessories RDM-20-0215
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 10 left
Configure your harness
Select the options for your vehicle and equipment.
Add the specifications requested by your selected options, such as throttle body, pedal, or sensor details.
Your build summary
Contact us to order this configuration. We will confirm the options, availability, and final price.
Email this configurationShipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

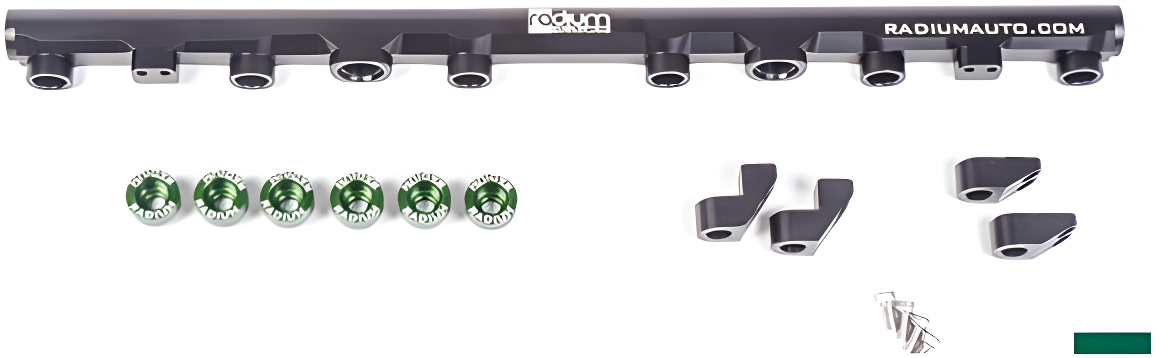

INCLUDED

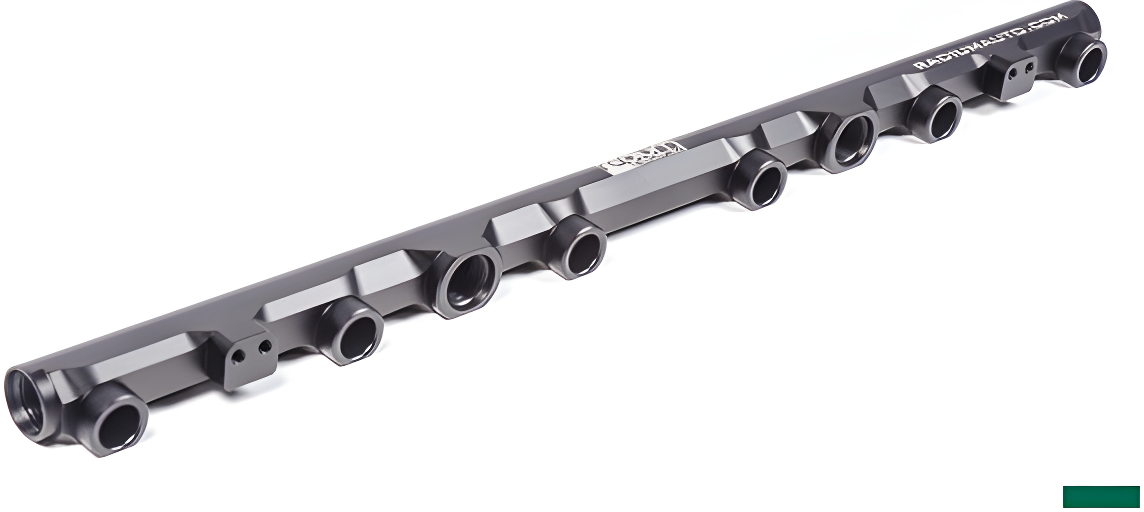

- Black Anodized Laser Etched Aluminum Fuel Rail
- Black Anodized Aluminum Mounting Feet, Tall and Short
- Stainless Steel Mounting Feet Bolts (x4)
- Green Anodized Aluminum Injector Seats (x6) NOTE: This fuel rail does NOT come with fittings! Unused ports must be plugged. PORTS AND FITTINGS
- The 4 fuel rail ports are tapped for 8AN ORB
- Optional Toyota OEM FPR Adapter available here 20-0301 Fitting
- Optional Toyota OEM Fuel Inlet Banjo Bolt Adapter available here 14-0285 Fitting
- Optional 8AN Plugs are available here 14-0150 8AN ORB Plug
Specifications

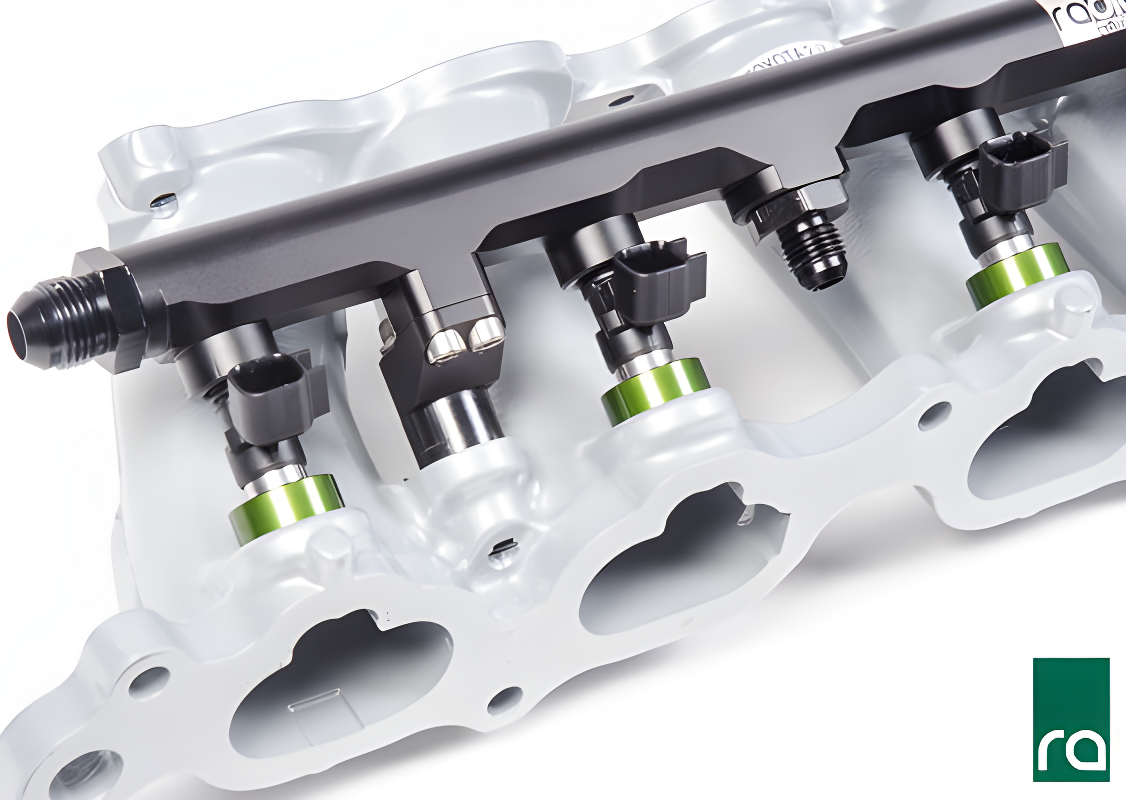

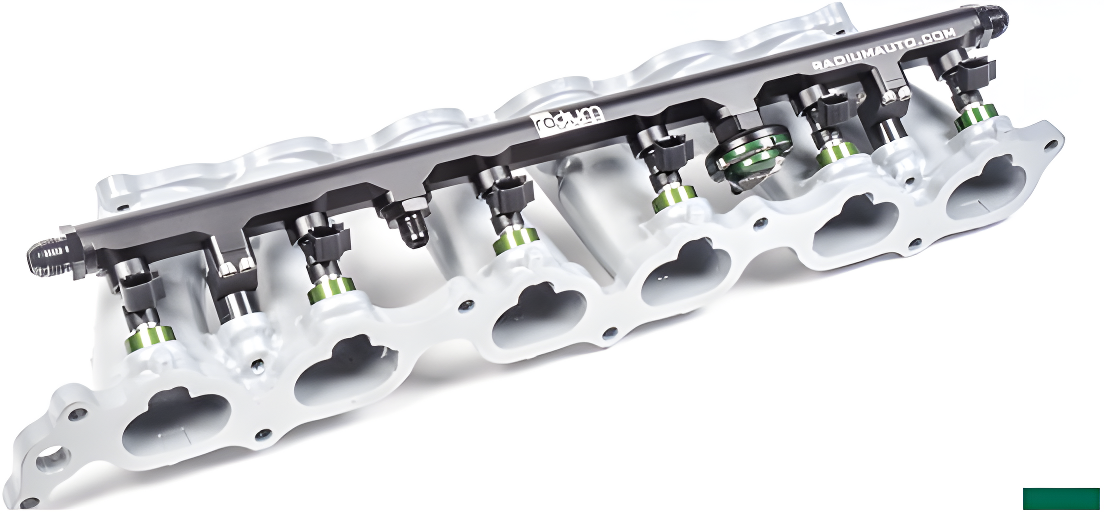

Read more Compatible with all Toyota 2JZ-GTE engines (VVTi and non-VVTi) that use the OEM intake manifold. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from a custom 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. This kit is compatible with all fuel types including popular alcohol mixtures such as E85. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (NOT INCLUDED). The kit includes 2 different sets of mounting feet allowing various height fuel injectors to be used (tall spacers shown below). The anodized aluminum mounting feet secure the fuel rail to the intake manifold reusing the OEM Toyota thermal insulating spacers (P/N: 90561-08009). The fuel injector bores and the included press-fit injector seats are designed for 14mm injector O-rings. These seats include O-rings to prevent boost pressure leaks. They are CNC machined billet aluminum, anodized, and laser etched. Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit. Use the tall spacers to accommodate this size injector: Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the tall spacers: Injector Dynamics ID1050-XDS-48-14-14 Injector Dynamics ID1300-XDS-48-14-14 Injector Dynamics ID1700-XDS-48-14-14 Injector Dynamics ID2600-XDS-48-14-14 To permit increased throttle body clearance, we recommend using the short spacers in conjunction with the injector sizing described below: Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the short spacers: Injector Dynamics ID1050-XDS-34-14-14 Injector Dynamics ID1300-XDS-34-14-14 Injector Dynamics ID1700-XDS-34-14-14 Injector Dynamics ID2600-XDS-34-14-14 To reuse the OEM fuel pressure regulator, use the 20-0301 Fitting (shown below). If securing to the front port, modification to the Traction Control TPS sensor is required when using the tall spacers. Check for firewall clearance if mounting on the rear port. To reuse the factory fuel feed line, use the 14-0285 8AN ORB to M12x1.25mm Female Fitting. This can secure to the rear port and reuse the OEM fuel feed banjo bolt. Shown below is the fuel rail installed on a 2JZ-GTE with VVTi.
FAQs
Compatible with all Toyota 2JZ-GTE engines (VVTi and non-VVTi) that use the OEM intake manifold. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from a custom 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. This kit is compatible with all fuel types including popular alcohol mixtures such as E85. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (NOT INCLUDED). The kit includes 2 different sets of mounting feet allowing various height fuel injectors to be used (tall spacers shown below). The anodized aluminum mounting feet secure the fuel rail to the intake manifold reusing the OEM Toyota thermal insulating spacers (P/N: 90561-08009). The fuel injector bores and the included press-fit injector seats are designed for 14mm injector O-rings. These seats include O-rings to prevent boost pressure leaks. They are CNC machined billet aluminum, anodized, and laser etched. Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit. Use the tall spacers to accommodate this size injector: Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the tall spacers: Injector Dynamics ID1050-XDS-48-14-14 Injector Dynamics ID1300-XDS-48-14-14 Injector Dynamics ID1700-XDS-48-14-14 Injector Dynamics ID2600-XDS-48-14-14 To permit increased throttle body clearance, we recommend using the short spacers in conjunction with the injector sizing described below: Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the short spacers: Injector Dynamics ID1050-XDS-34-14-14 Injector Dynamics ID1300-XDS-34-14-14 Injector Dynamics ID1700-XDS-34-14-14 Injector Dynamics ID2600-XDS-34-14-14 To reuse the OEM fuel pressure regulator, use the 20-0301 Fitting (shown below). If securing to the front port, modification to the Traction Control TPS sensor is required when using the tall spacers. Check for firewall clearance if mounting on the rear port. To reuse the factory fuel feed line, use the 14-0285 8AN ORB to M12x1.25mm Female Fitting. This can secure to the rear port and reuse the OEM fuel feed banjo bolt. Shown below is the fuel rail installed on a 2JZ-GTE with VVTi.
