Wiring Specialties Radium Top Feed Fuel Rail Kit for 2JZGE (20-0371)
Wiring Specialties Radium Top Feed Fuel Rail Kit for 2JZGE (20-0371)
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 9 left
Configure your harness
Select the options for your vehicle and equipment.
Add the specifications requested by your selected options, such as throttle body, pedal, or sensor details.
Your build summary
Contact us to order this configuration. We will confirm the options, availability, and final price.
Email this configurationShipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
INCLUDED

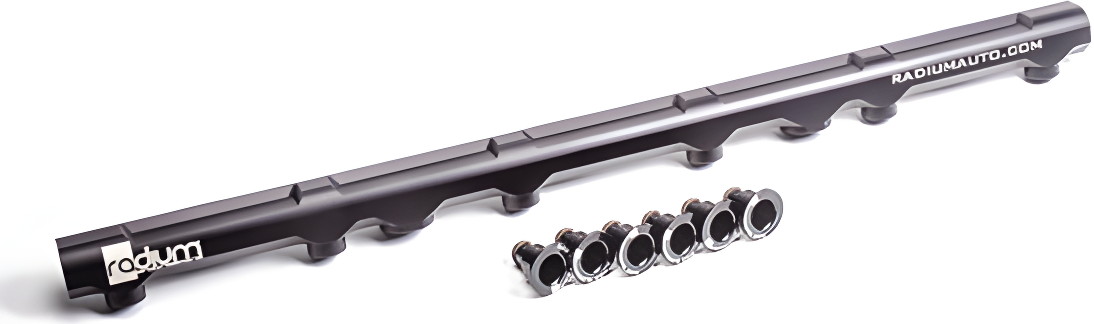

- Black Anodized Laser Etched Aluminum Fuel Rail
- Injector Seats for Toyota Air Assist Manifolds (x6) NOTE: This fuel rail does NOT come with fittings! Unused ports must be plugged. PORTS AND FITTINGS
- The 4 fuel rail ports are tapped for 8AN ORB
- Optional 8AN Plugs are available here 14-0150 8AN ORB Plug
Specifications
The Radium fuel rail for the 6-cylinder Toyota 2JZ-GE (Non-Turbo) engine is manufactured with a large 8AN ORB internal bore supporting all horsepower requirements. They are CNC machined from 6063 aluminum, black anodized, and laser etched for a high quality surface finish. For flexibility, the fuel rail features four 8AN ORB ports and is compatible with all fuel types including popular alcohol mixtures such as E85. NOT compatible with the 2JZ-GTE (Turbo) engine. If looking for the Toyota 2JZ-GTE fuel rail, click HERE. IMPORTANT: The fuel rail re-uses the factory mounting bolts and plastic spacers. Make sure these are present before beginning installation. INFORMATION REGARDING OEM FUEL PRESSURE REGULATOR Late model 2JZ-GE vehicles use a returnless fuel system where the fuel pressure regulator (FPR) is integrated into the pump assembly. However, early model 2JZ-GE vehicles use a traditional fuel system with the FPR mounted directly to the fuel rail. For these setups, an aftermarket fuel pressure regulator will be required. Read more FUEL INJECTOR FITMENT OEM TOYOTA INJECTORS ON 2JZ-GE ENGINES The Radium Engineering fuel rail features 11mm injector bores making it compatible with ALL factory Toyota 2JZ-GE (Non Turbo) fuel injectors. This includes non VVT-i and VVT-i engines as well as air-assist and non air-assist injectors. No modifications are needed. If preparing to use aftermarket fuel injectors, read below. AFTERMARKET INJECTORS ON 2JZ-GE ENGINES (WITHOUT AIR-ASSIST) For engines that do NOT use Toyota air assist equipment, use your preferred injector manufacturer's suggestion for OEM equivalent fuel injectors. DO NOT USE THE INJECTORS LISTED BELOW WHICH ARE FOR AIR-ASSIST ENGINES ONLY. AFTERMARKET INJECTORS ON 2JZ-GE ENGINES WITH AIR-ASSIST Late model (and California-spec) 2JZ-GE engines use Toyota air-assist emissions equipment. These engines use a unique OEM fuel injector that is not replicated in the aftermarket. Air-assist intake manifolds require the Radium injector seats in order to use universal aftermarket fuel injectors, as shown in the picture below. When the provided Radium injector seats are installed into these air-assist intake manifolds, an aftermarket injector that is 60mm long with 11mm upper O-ring and 14mm lower O-ring must be used. The following universal injectors have been verified to be compatible, however there are others on the market that will work that are not listed here. Injector Dynamics ID1050x-60-11-14 Injector Dynamics ID1300x-60-11-14 Injector Dynamics ID1700x-60-11-14 Injector Dynamics ID2000-60-11-14
FAQs
FUEL INJECTOR FITMENT OEM TOYOTA INJECTORS ON 2JZ-GE ENGINES The Radium Engineering fuel rail features 11mm injector bores making it compatible with ALL factory Toyota 2JZ-GE (Non Turbo) fuel injectors. This includes non VVT-i and VVT-i engines as well as air-assist and non air-assist injectors. No modifications are needed. If preparing to use aftermarket fuel injectors, read below. AFTERMARKET INJECTORS ON 2JZ-GE ENGINES (WITHOUT AIR-ASSIST) For engines that do NOT use Toyota air assist equipment, use your preferred injector manufacturer's suggestion for OEM equivalent fuel injectors. DO NOT USE THE INJECTORS LISTED BELOW WHICH ARE FOR AIR-ASSIST ENGINES ONLY. AFTERMARKET INJECTORS ON 2JZ-GE ENGINES WITH AIR-ASSIST Late model (and California-spec) 2JZ-GE engines use Toyota air-assist emissions equipment. These engines use a unique OEM fuel injector that is not replicated in the aftermarket. Air-assist intake manifolds require the Radium injector seats in order to use universal aftermarket fuel injectors, as shown in the picture below. When the provided Radium injector seats are installed into these air-assist intake manifolds, an aftermarket injector that is 60mm long with 11mm upper O-ring and 14mm lower O-ring must be used. The following universal injectors have been verified to be compatible, however there are others on the market that will work that are not listed here. Injector Dynamics ID1050x-60-11-14 Injector Dynamics ID1300x-60-11-14 Injector Dynamics ID1700x-60-11-14 Injector Dynamics ID2000-60-11-14
