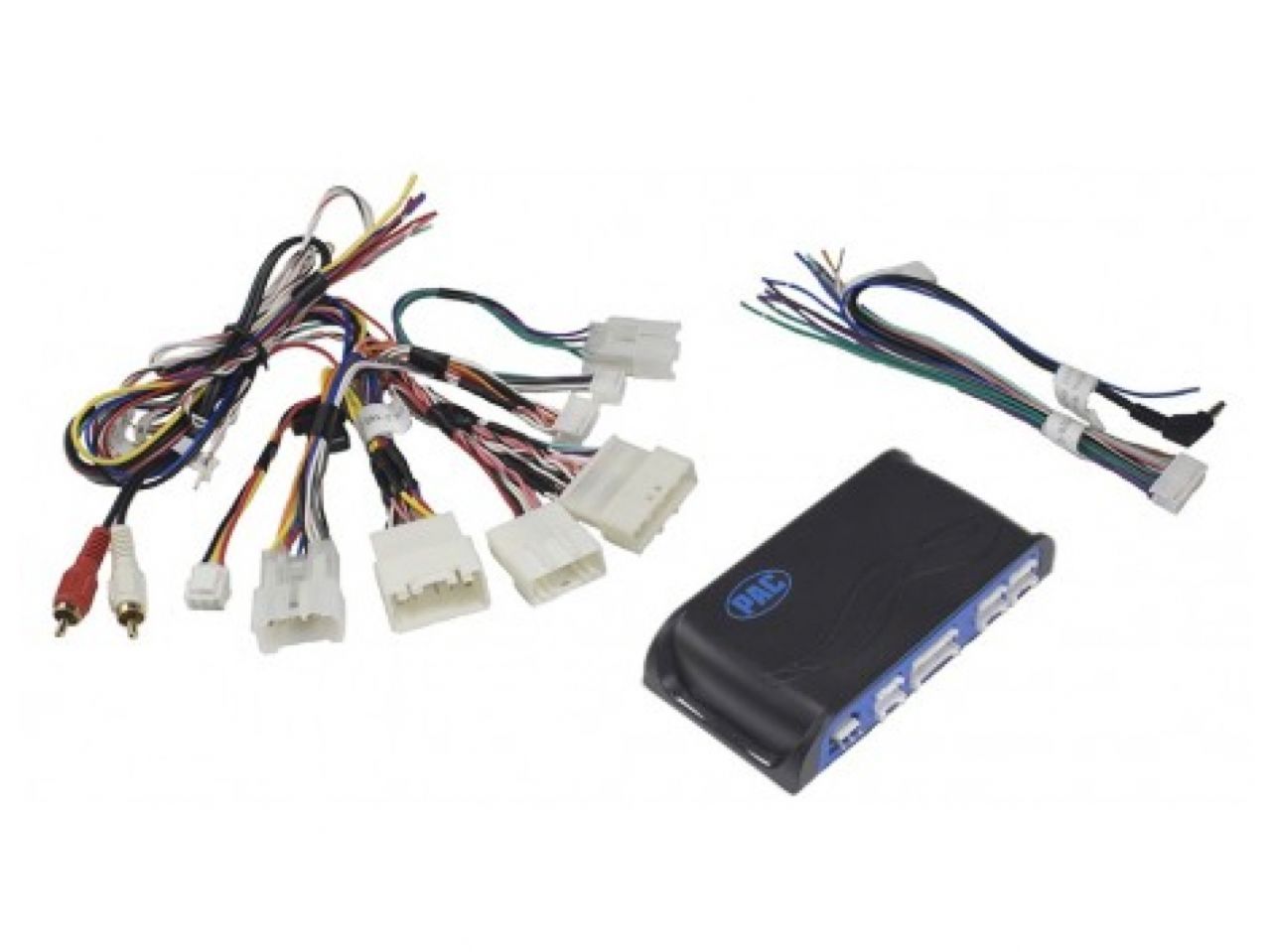

Pac RadioPRO 4 Radio Replacement Interface For Select Toyota Vehicles
The RadioPRO RP4.2-TY11 radio replacement interface is designed for 2001-2017 Toyota, Lexus, and Scion vehicle models. The module enables installation of an aftermarket radio while retaining the factory steering wheel control functions as well as maintaining compatibility with the factory JBL and JBL Synthesis amplified audio systems, and the built-in 3.5 mm auxiliary audio jack. The built-in USB connection and back-up camera can also be retained in conjunction with an optional PAC harness.
- Retains steering wheel controls (SWC)
- Retains JBL and JBL Synthesis amplified audio systems
- Real-time and programmable speaker fade function
- Retains 3.5mm auxiliary audio input
- Includes wired outputs for navigation radio installation
- USB and back-up camera retention with additional harnesses (USB-TY1, USB-TY2, CAM-TY11, CAM-TY12)
- Includes two sets of vehicle connectors and necessary firmware for compatibility with broader range of vehicles
- On-board 10 amp ACC 12 Volt output
- Direct USB in-field updatable
APPLICATION GUIDE
2004-2006 LEXUS ES 300 ALL TRIM LEVELS
2004-2006 LEXUS ES 330 ALL TRIM LEVELS
2006 LEXUS LS 430 ALL TRIM LEVELS
2004 LEXUS RX 330 ALL TRIM LEVELS
2012-2016 SCION FRS ALL TRIM LEVELS
2016 SCION IM ALL TRIM LEVELS
2012-2013 SCION IQ ALL TRIM LEVELS
2005-2016 SCION TC ALL TRIM LEVELS
2004-2007 SCION XA ALL TRIM LEVELS
2004-2015 SCION XB ALL TRIM LEVELS
2008-2012 SCION XD ALL TRIM LEVELS
2003-2018 TOYOTA 4RUNNER ALL TRIM LEVELS
2005-2018 TOYOTA AVALON ALL TRIM LEVELS
2007-2017 TOYOTA CAMRY ALL TRIM LEVELS
2004-2008 TOYOTA CAMRY SOLARA ALL TRIM LEVELS
2009-2017 TOYOTA COROLLA ALL TRIM LEVELS
2007-2014 TOYOTA FJ CRUISER ALL TRIM LEVELS
2008-2018 TOYOTA HIGHLANDER ALL TRIM LEVELS
2005-2012 TOYOTA MATRIX ALL TRIM LEVELS
2004-2017 TOYOTA PRIUS ALL TRIM LEVELS
2004-2018 TOYOTA RAV4 ALL TRIM LEVELS
2005-2018 TOYOTA SEQUOIA ALL TRIM LEVELS
2004-2016 TOYOTA SIENNA ALL TRIM LEVELS
2005-2008 TOYOTA SOLARA ALL TRIM LEVELS
2005-2018 TOYOTA TACOMA ALL TRIM LEVELS
2004-2018 TOYOTA TUNDRA ALL TRIM LEVELS
2009-2015 TOYOTA VENZA ALL TRIM LEVELS
2008-2011 TOYOTA YARIS ALL TRIM LEVELS
Compatibility Note:
- 2018+ vehicles must use firmware version .43 or higher and harness revision 3
- Toyota Avalon: Only compatible in vehicles equipped with a JBL system
- Not compatible in Lexus vehicles equipped with factory navigation
- Does not retain Rear Seat Entertainment
