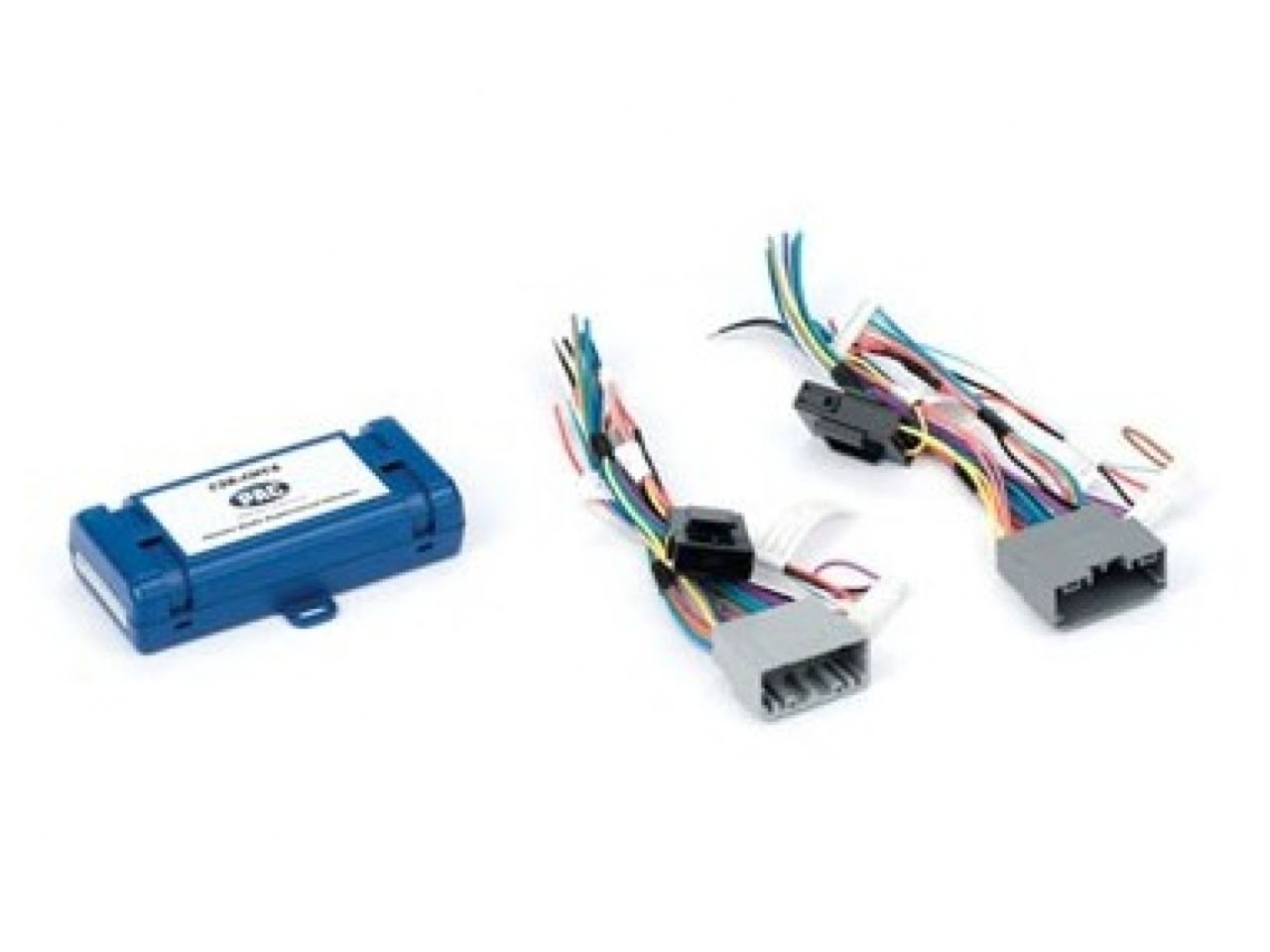

Pac Radio Replacement Interface With Navigation Outputs,Select Chrysler

Provides navigation trigger wires and timed accessory output for replacing the factory radio and retains the factory installed amplified audio system. Use the provided Steering Wheel Control output plug with a steering wheel interface module to retain function of all factory controls.

Data controlled:

• RAP accessory output wire
• Reverse trigger wire
• Illumination output wire
• Parking brake wire
• Vehicle speed sense wire

Retains:

• Keeps Data-Bus Intact for Vehicle Service & Emissions Testing
• Vehicle entertainment system (CHYRVD required for VES video in/out)
• Rear seat entertainment and dual zone audio
• Factory-installed amplified audio system
• Single wire output for steering wheel control module

NOTE: Does not support fading in Premium Amplified Systems. Does not retain Uconnect.

APPLICATION GUIDE

2011-2014 CHRYSLER 200 ALL TRIM LEVELS
2005-2010 CHRYSLER 300 ALL TRIM LEVELS
2007-2009 CHRYSLER ASPEN ALL TRIM LEVELS
2007-2010 CHRYSLER PT CRUISER ALL TRIM LEVELS
2007-2010 CHRYSLER SEBRING ALL TRIM LEVELS
2008-2014 CHRYSLER TOWN & COUNTRY ALL TRIM LEVELS
2007-2014 DODGE AVENGER ALL TRIM LEVELS
2006-2012 DODGE CALIBER ALL TRIM LEVELS
2008-2014 DODGE CHALLENGER ALL TRIM LEVELS
2006-2010 DODGE CHARGER ALL TRIM LEVELS
2011 DODGE DAKOTA ALL TRIM LEVELS
2008-2009, 2011-2013 DODGE DURANGO ALL TRIM LEVELS
2009-2015 DODGE GRAND CARAVAN ALL TRIM LEVELS
2009-2010 DODGE JOURNEY ALL TRIM LEVELS
2005-2008 DODGE MAGNUM ALL TRIM LEVELS
2007-2010 DODGE NITRO ALL TRIM LEVELS
2006-2008 DODGE RAIDER ALL TRIM LEVELS
2006-2012 DODGE RAM TRUCK ALL TRIM LEVELS
2007-2015 JEEP COMPASS ALL TRIM LEVELS
2005-2013 JEEP GRAND CHEROKEE ALL TRIM LEVELS
2008-2010, 2012 JEEP LIBERTY ALL TRIM LEVELS
2007-2015 JEEP PATRIOT ALL TRIM LEVELS
2007-2015 JEEP WRANGLER ALL TRIM LEVELS
2007-2015 JEEP WRANGLER UNLIMITED ALL TRIM LEVELS
2009 MITSUBISHI RAIDER ALL TRIM LEVELS
2014 RAM C/V ALL TRIM LEVELS
2010-2012 RAM RAM TRUCK ALL TRIM LEVELS
2009-2013 VOLKSWAGEN ROUTAN ALL TRIM LEVELS

Compatibility:

• Does not retain uConnect
• In Premium Amplified Systems only two input channels can be used from the aftermarket radio, therefore there will be no fading capability of the aftermarket stereo.
• Vehicles equipped with a factory Alpine system MUST use revision 1.1.4a or higher
