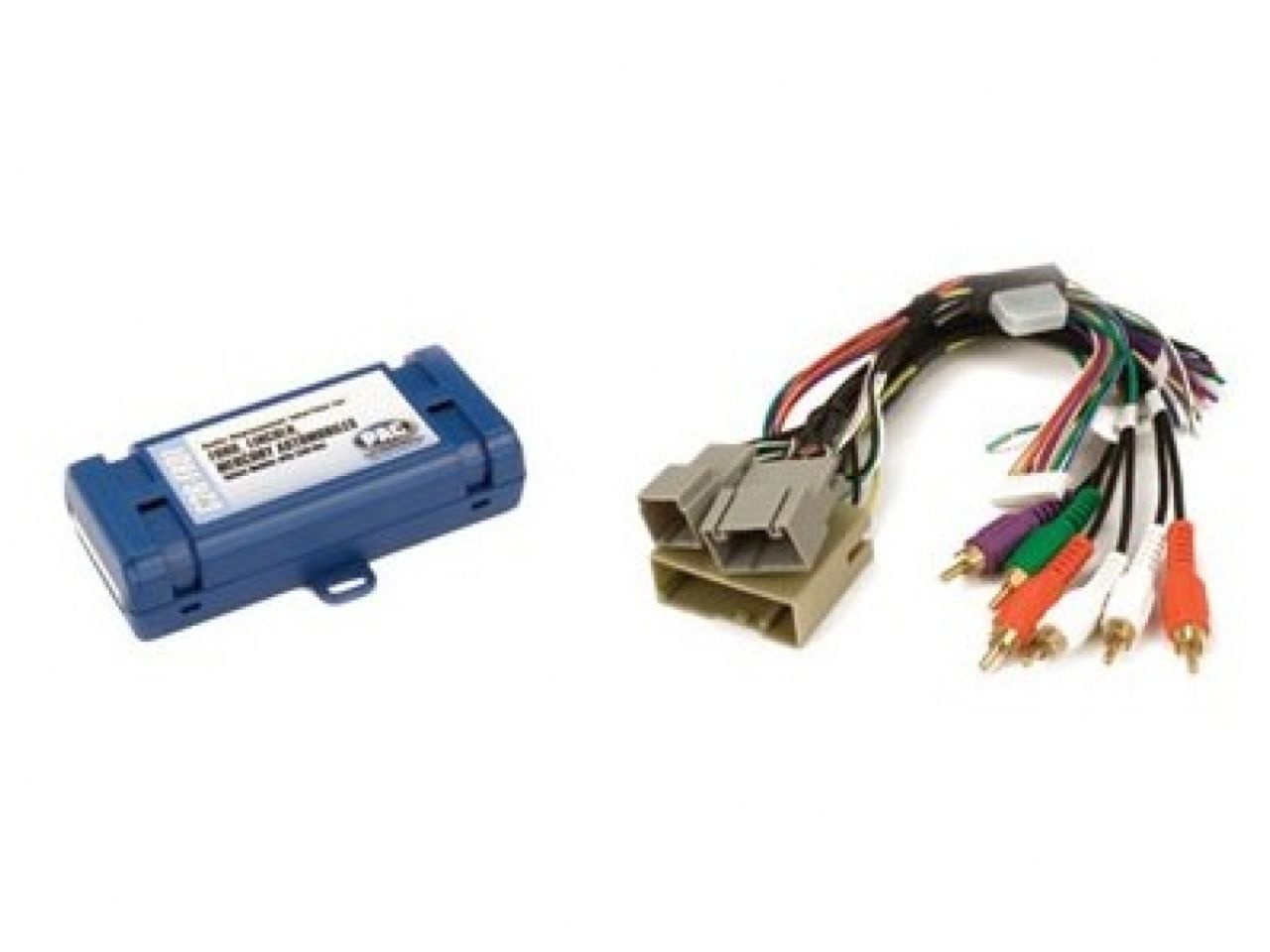

Pac Radio Replacement Interface For Select 2005-Up CAN-bus Ford, Lincoln

Provides navigation trigger wires and timed accessory output for replacing the factory radio. Retains the factory installed amplified audio system and rear seat entertainment (if equipped). Use with a steering wheel interface module to retain function of all factory controls.

Data controlled:

• RAP accessory output wire
• Reverse trigger wire
• Illumination output wire
• Parking brake wire
• Vehicle speed sense wire

Retains

• Factory 3.5mm jack if equipped
• Rear seat entertainment and dual zone audio
• Factory-installed amplified audio system
• Single wire output for steering wheel control module

Compatibility:

• Does not retain SYNC. SYNC retention requires the MS-FRD1
• Does not retain steering wheel controls in 2011+ F-series trucks. These vehicles must use the RP4-FD11 for steering wheel control retention.

Vehicle Specific Notes:

• 2008 F-250/350/450: Not compatible with model trim XL (fleet vehicles). These vehicles do not have the necessary CAN bus signals
• 2006-2007 Ford Freestyle: Does not retain RSE

APPLICATION GUIDE
2007-2010 FORD EDGE ALL TRIM LEVELS
2008-2012 FORD ESCAPE ALL TRIM LEVELS
2007-2014 FORD EXPEDITION ALL TRIM LEVELS
2006-2010 FORD EXPLORER ALL TRIM LEVELS
2007-2010 FORD EXPLORER SPORT TRAC ALL TRIM LEVELS
2009-2012 FORD F-150 ALL TRIM LEVELS
2008-2012 FORD F-250 ALL TRIM LEVELS
2008-2012 FORD F-350 ALL TRIM LEVELS
2008-2012 FORD F-450 ALL TRIM LEVELS
2005-2007 FORD FIVE HUNDRED ALL TRIM LEVELS
2009-2012 FORD FLEX ALL TRIM LEVELS
2008-2011 FORD FOCUS ALL TRIM LEVELS
2006-2007 FORD FREESTYLE ALL TRIM LEVELS
2006-2012 FORD FUSION ALL TRIM LEVELS
2005-2013 FORD MUSTANG ALL TRIM LEVELS
2008-2012 FORD TAURUS ALL TRIM LEVELS
2008-2009 FORD TAURUS X ALL TRIM LEVELS
2009-2012 LINCOLN MKS ALL TRIM LEVELS
2010-2012 LINCOLN MKT ALL TRIM LEVELS
2007-2010 LINCOLN MKX ALL TRIM LEVELS
2007-2012 LINCOLN MKZ ALL TRIM LEVELS
2007-2014 LINCOLN NAVIGATOR ALL TRIM LEVELS
2006 LINCOLN ZEPHYR ALL TRIM LEVELS
2008-2011 MAZDA TRIBUTE ALL TRIM LEVELS
2008-2011 MERCURY MARINER ALL TRIM LEVELS
2006-2011 MERCURY MILAN ALL TRIM LEVELS
2005-2007 MERCURY MONTEGO ALL TRIM LEVELS
2006-2010 MERCURY MOUNTAINEER ALL TRIM LEVELS
2008-2009 MERCURY SABLE ALL TRIM LEVELS
