Racepak IQ3 Logger Dash
Racepak IQ3 Logger Dash
The IQ3 dash represents an entirely new concept in data logging dashes. By placing the 32 channel data logger, Micro SD memory card, GPS board and 3 axis G meter inside the dash, every feature of the data system is now located in one central location. And, when that 32 channel data logger is one of Racepak's exclusive smart sensor type, that means that only one small cable will transmit the data from all the sensors to the rear of the dash. So, for the customer, this means:
- No external data logger necessary
- No bulky, heavy sensor wiring harness
- No beacon transmitter or receiver necessary for lap time data
- No wheel speed sensor necessary. GPS provides speed and track mapping

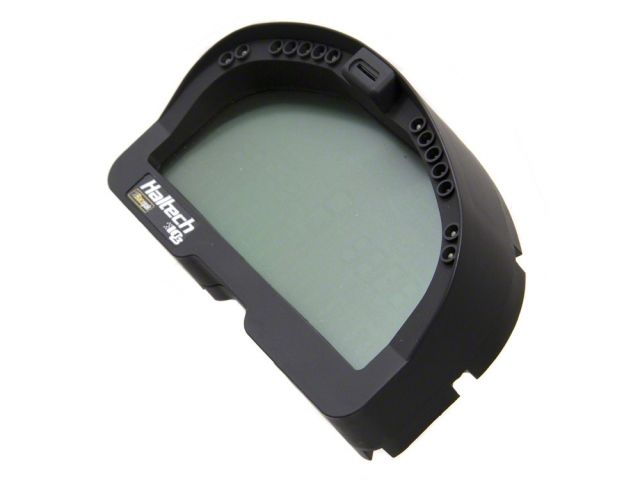

The IQ3 data logger dash is designed to be a complete data center. Contained inside the fully programmable dash is a 32 channel data logger, 512 MB memory card, GPS board and 3 axis G meter. The programmable shift lights are protected from sunlight by a molded shield above the lights, while the low glare LCD display is well recessed in the housing in order to provide viewing in all light conditions.

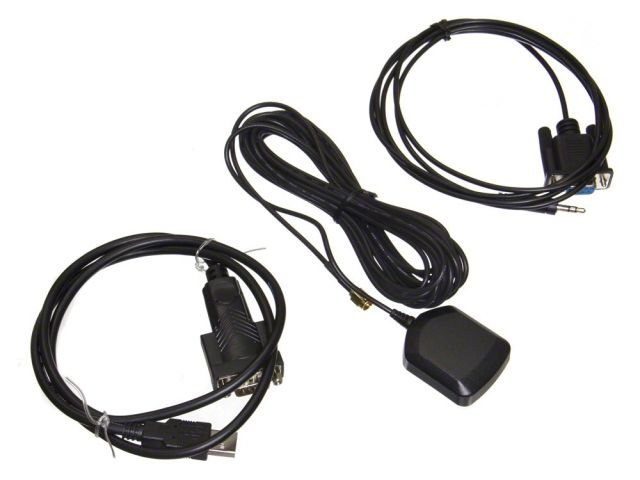

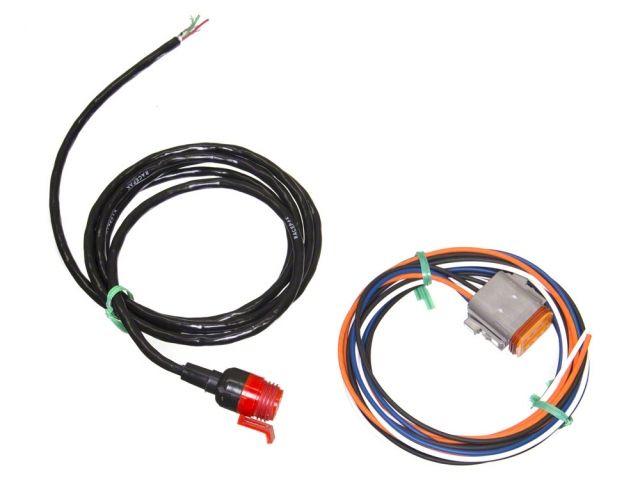

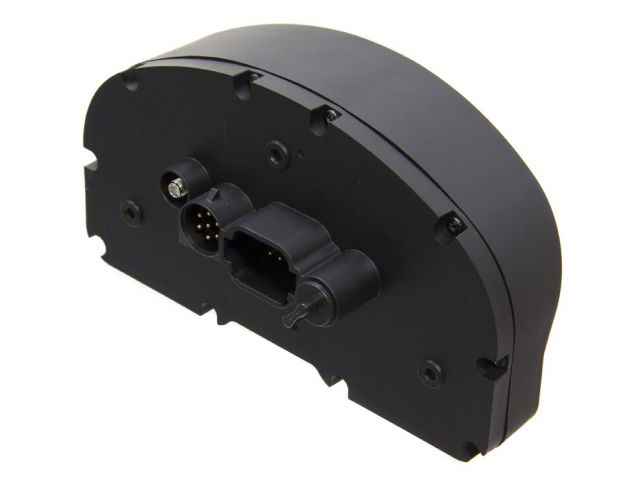

The rear of the dash contains the connectors for the external GPS antenna, Vnet sensor cable and the Power / Ground / Engine RPM / External Programming Button harness. All sensors transmit their data through a single cable (Vnet) which is routed to the rear of the dash. This eliminates the need for a sensor harness, greatly reducing installation time, complexity and overall weight.
All data is stored in a MicroSD memory card, located in the front of the dash between the programmable shift lights. This design insures easy access to the memory card for data download.
