Quik-Latch Polished Mini (Each)

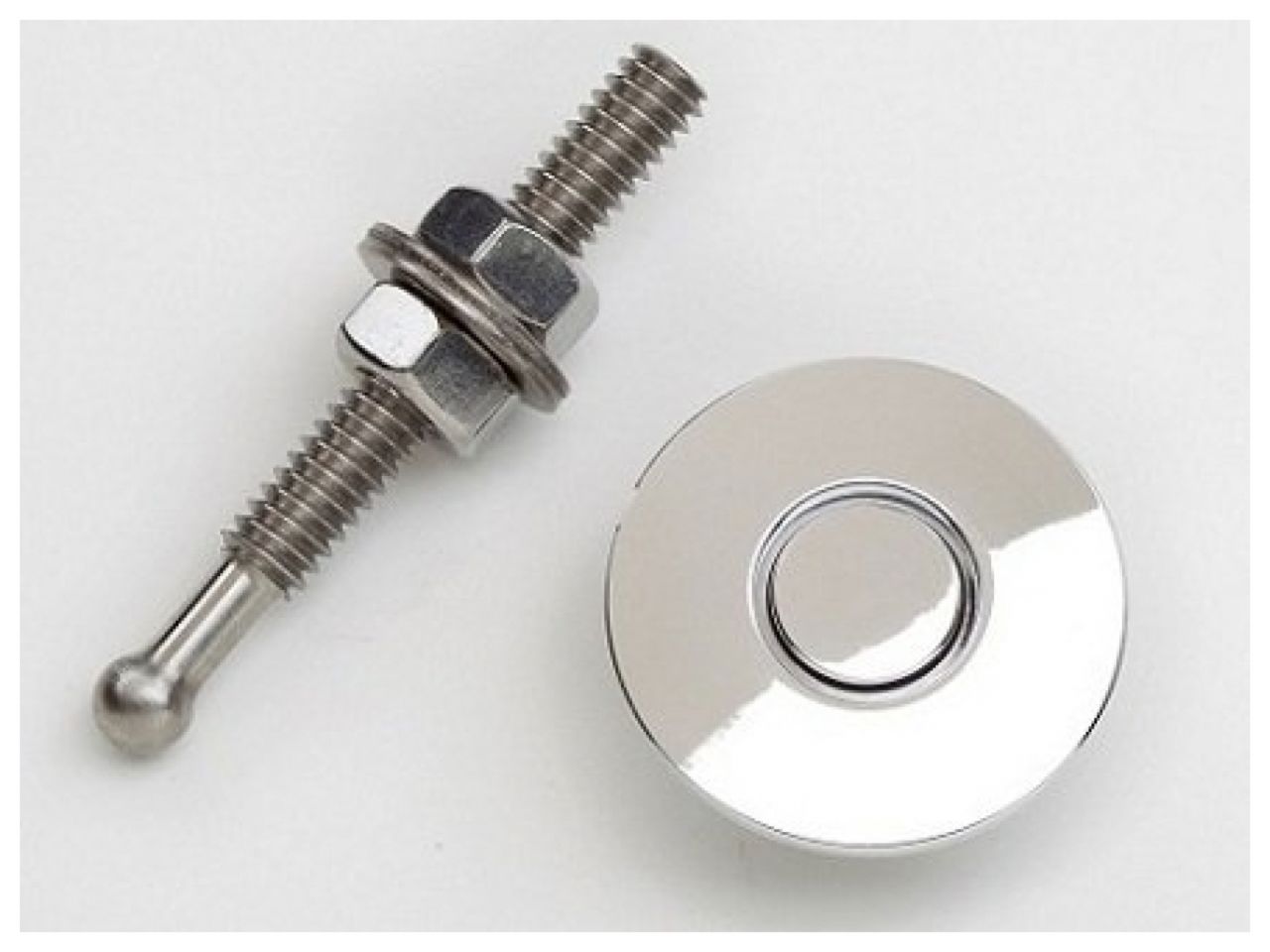

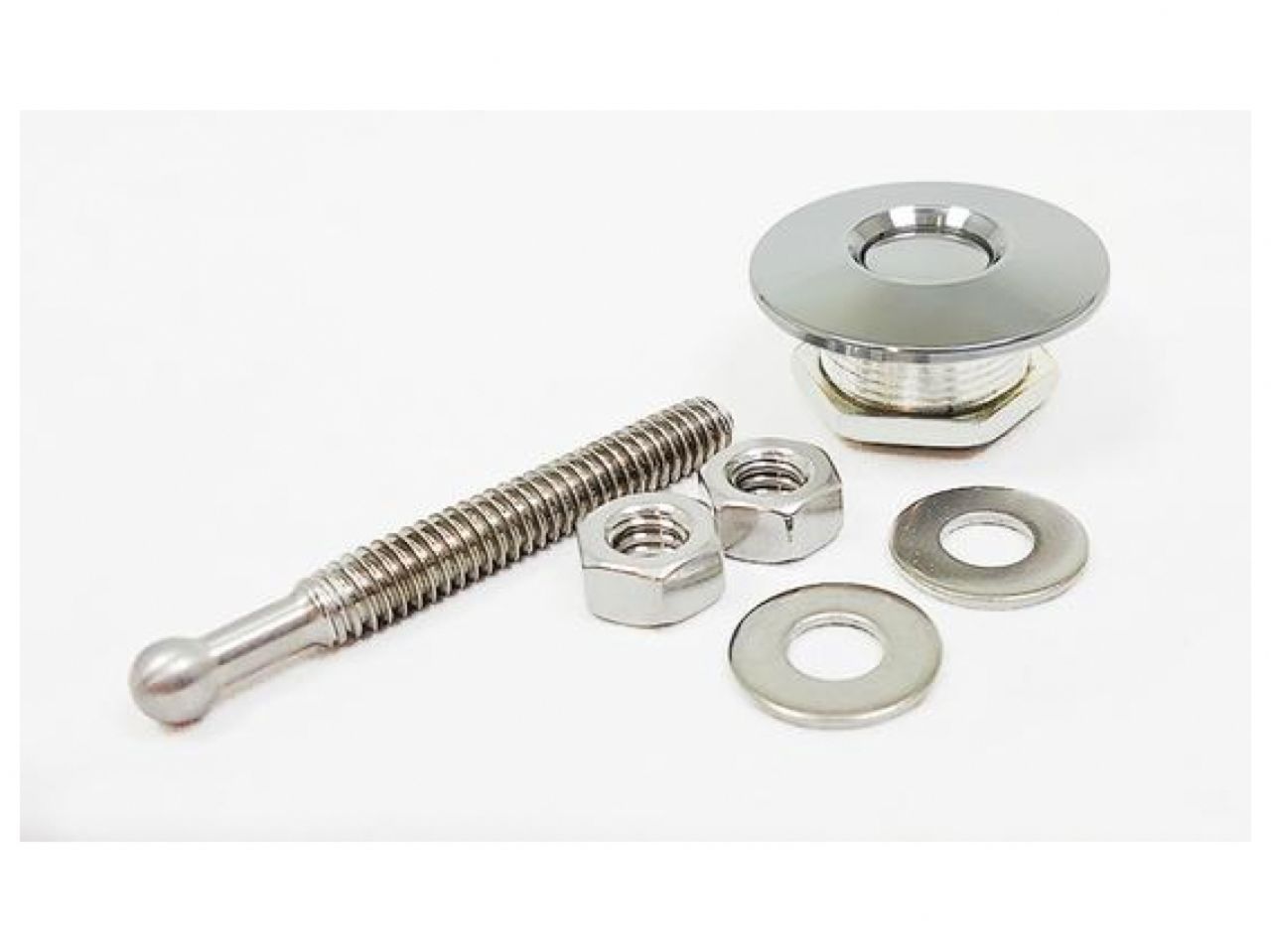

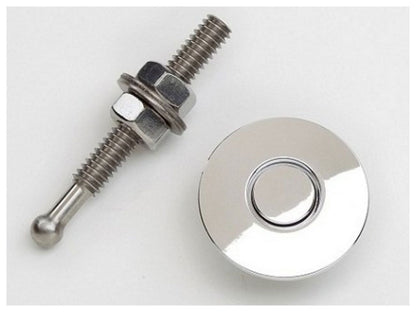

The polished Quik-Latch minis are identical to the billet aluminum mini Quik-Latches, except for the high polished finish. Each polished mini comes with: (1) latching body, (1) mounting stud, (2) washers and (2) mounting nuts. Below are some pictures of the polished Mini.

Quik-Latch Mini's can be used as fasteners on body panels, hoods, deck lids, air cleaners and many other purposes. They are 1.25" in diameter, about the size of a quarter, so they are very compact and neat looking. With just a push of a button, the Quick-Latch Mini is unlatched. The button stays in the down position until re-latched, and then the button pops back up. No more tools that scratch or get misplaced.

Dimensions:

Upper Diameter of latch body options:

• 1.5 inch (38.10 mm)

• 1.25 inch (31.75 mm)

• 1 inch (25.4 mm)

• .875 inch (22 mm)

• Threaded Diameter of latch: .75 inch (19.05 mm)

• Length of latch body: 0.57 inches (15 mm)

• Length of mounting stud: 2.13 inches (54 mm)

Features:

• Upper Diameter: 1.25 in ( 31.75 mm)
