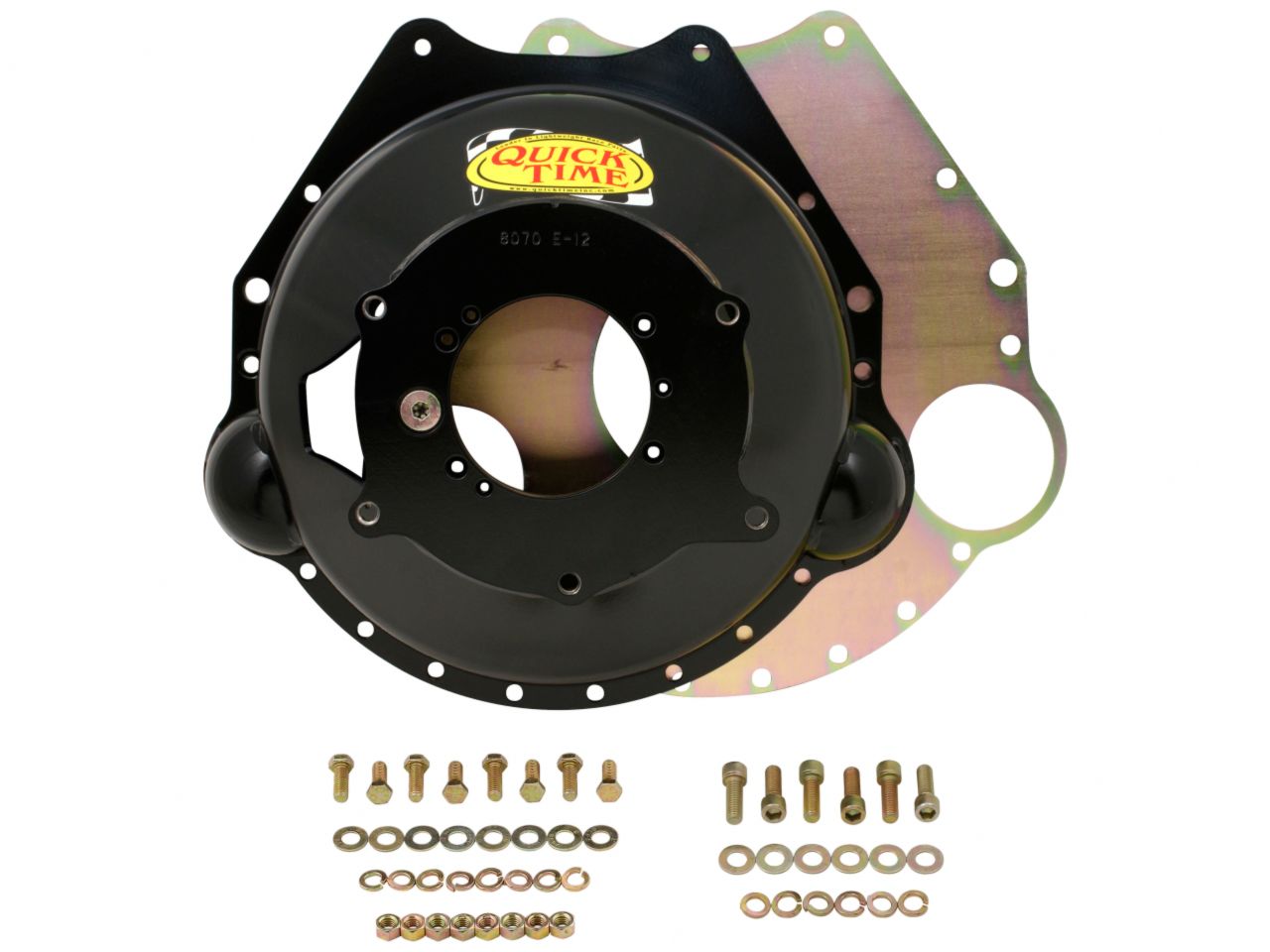

Quick Time Bellhousing - Buick/Olds/Pontiac to Muncie

Bellhousing - Buick/Olds/Pontiac

This bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. This bellhousing fits all V8 Buick, Olds, and Pontiac engines to Muncie, Richmond, Chevy TKO, BW T-10 transmissions. The 6.29 in deep bellhousing clears 166 tooth flywheel with 11 in clutch and only weighs 20 pounds. This American made bellhousing includes fork bracket, block plate and Grade 8 hardware. S.F.I. 6.1 certified. Other applications available.

Perfect fit for Buick, Oldsmobile, and Pontiac applications with Muncie or Jerico transmissions

Feartures:

Patent on 16 points of Bellhousing Design & Process

Fits V8 Buick Olds Pontiac Engines

S.F.I. 6.1 Certified

6.29 In Deep

Fit 166 Tooth Flywheel

Clears 11 In Clutch

Fits Most Manual Transmissions

Weighs 20 Lbs.

Hardware Included

Specs:

Brand: Quick Time

Certification: 6.1 SFI

Clutch Operation: Hydraulic

Color: Black

Engine: Buick V8

Oldsmobile V8

Pontiac V8

Engine Plate: RM-8070-C

Flywheel: 166 Tooth

Height: 6.290 inch

Material: Steel

Product Type: Bellhousing

Trans Bore: 4.687

Transmission: Bert Racing

Brinn Racing

Falcon

Jerico

Muncie

Richmond

Saginaw

T10

T5 Chevy

TKO 500/600 Chevy

Transmission Type: Manual

Weight: 20#
