Quick Time Bellhousing - Ford 5.0/5.8L

Bellhousing - Ford 5.0/5.8L

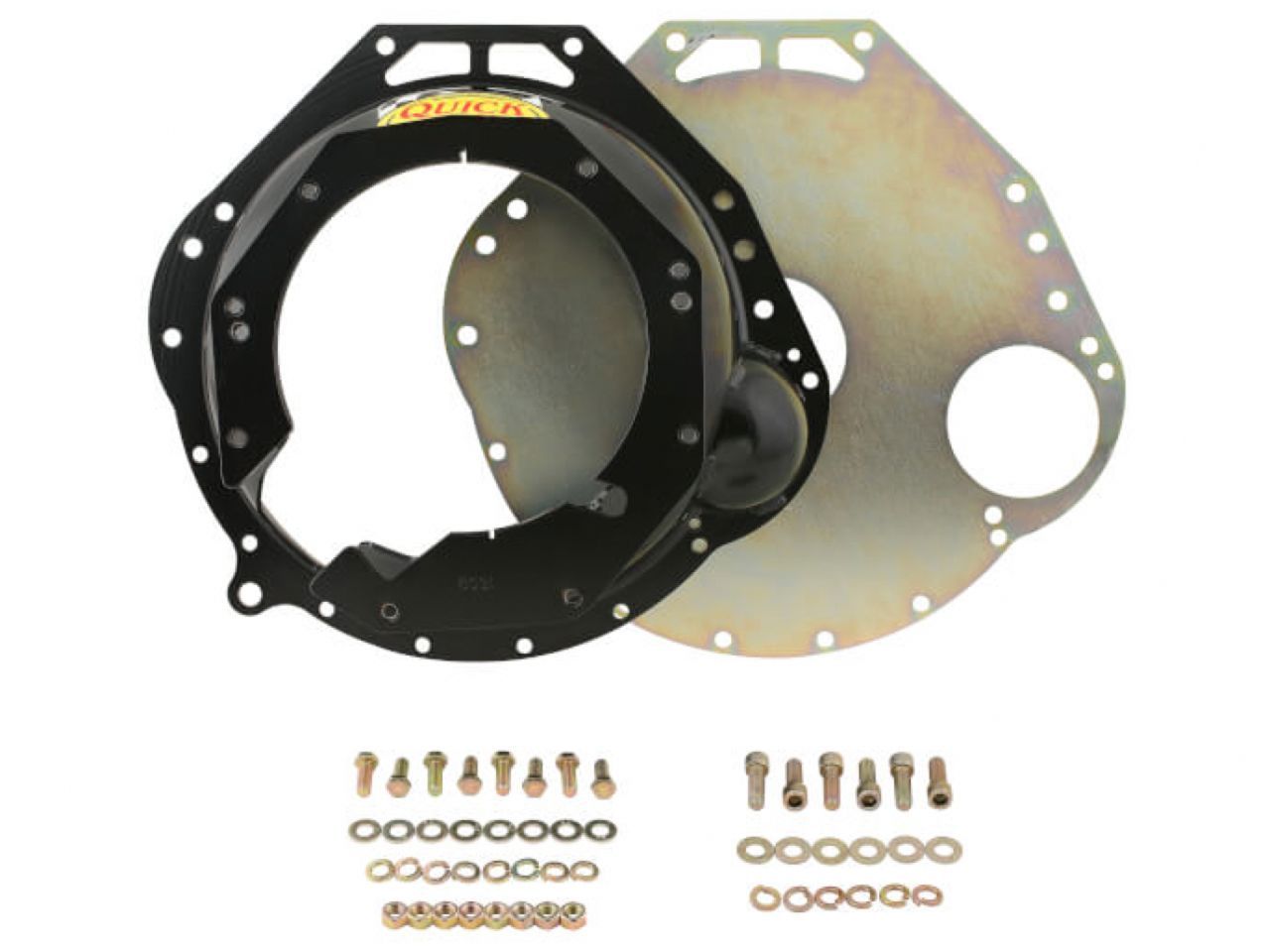

The Quick Time RM-8031 bellhousing connects small block Ford engines to T-56 Ford transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The clutch fork opening on this bellhouisng is at the 7:00 position. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Perfect fit for 5.0/5.8L Fords with T56 Ford transmissions – Fork positioned at 7:00

Features:

Patent on 16 points of Bellhousing Design & Process

Designed To Use Hydraulic Bearing Or 94+ Mustang clutch fork

Fits Up To 157 Tooth Flywheel And 10.5 in Clutch

Utilizes OEM Style Starter Attachment / Placement

Transmission Bore T56 Ford

Bellhousing Depth 5.34 In

Weight 20 Lbs

Include Grade 8 Hardware

Made In The USA

Specs:

Brand: Quick Time

Certification: 6.1 SFI

Clutch Operation: Hydraulic

Color: Black

Engine: Ford 289

Ford 302

Ford 351C

Ford 351W

Ford Small Block

Engine Plate: RM-8031-C

Finish: Semi-gloss

Flywheel: 157 Tooth

Height: 5.332 inch

Material: Steel

Product Type: Bellhousing

Trans Bore: N/A

Transmission: T56 Ford

Transmission Type: Manual

Weight: 20#
